Product Description

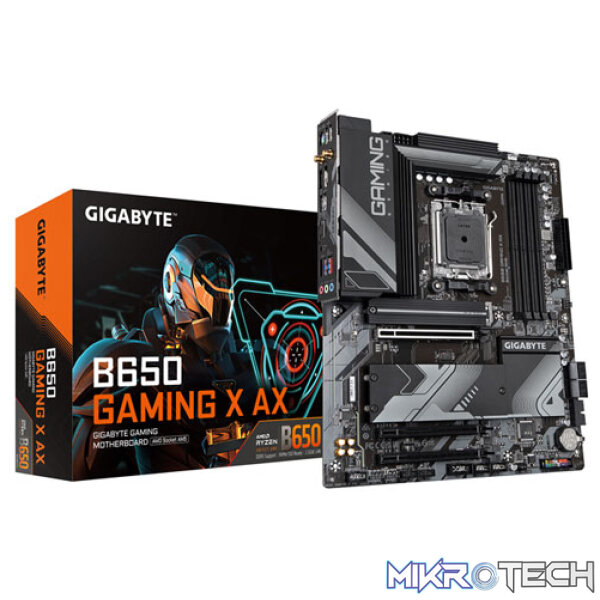

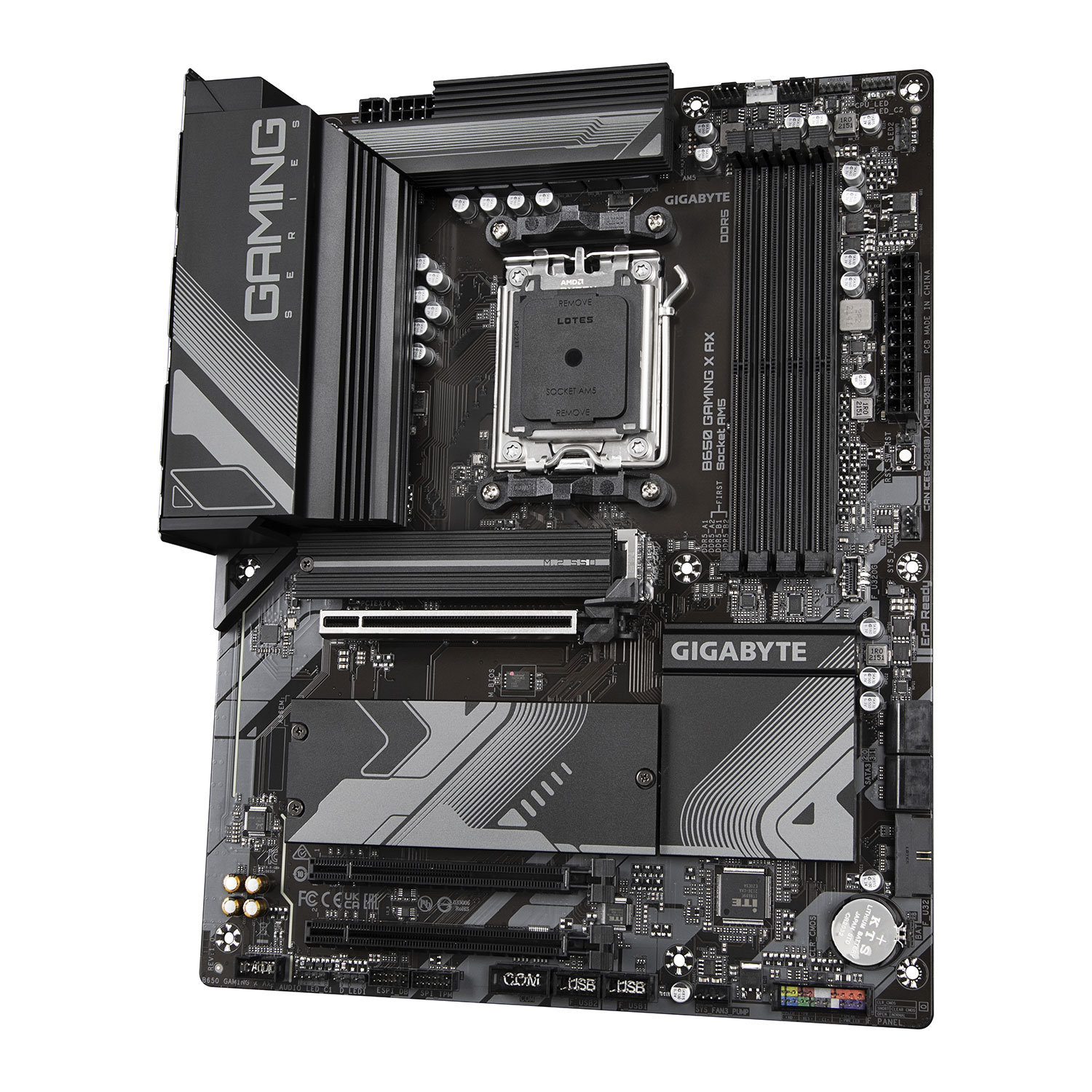

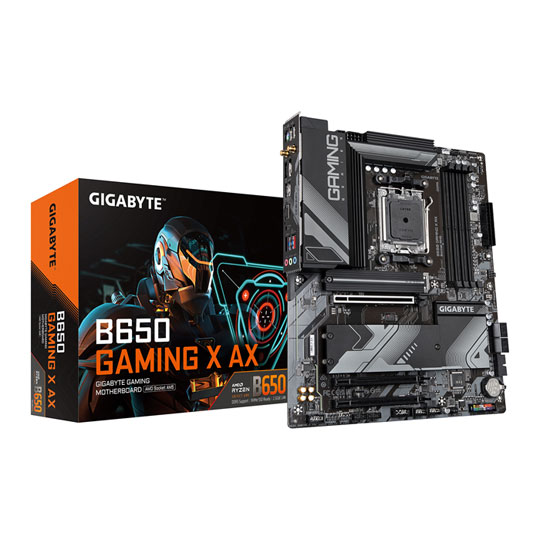

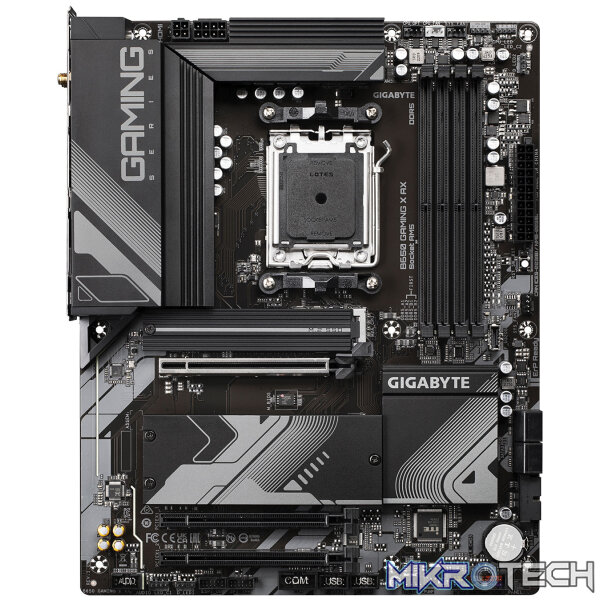

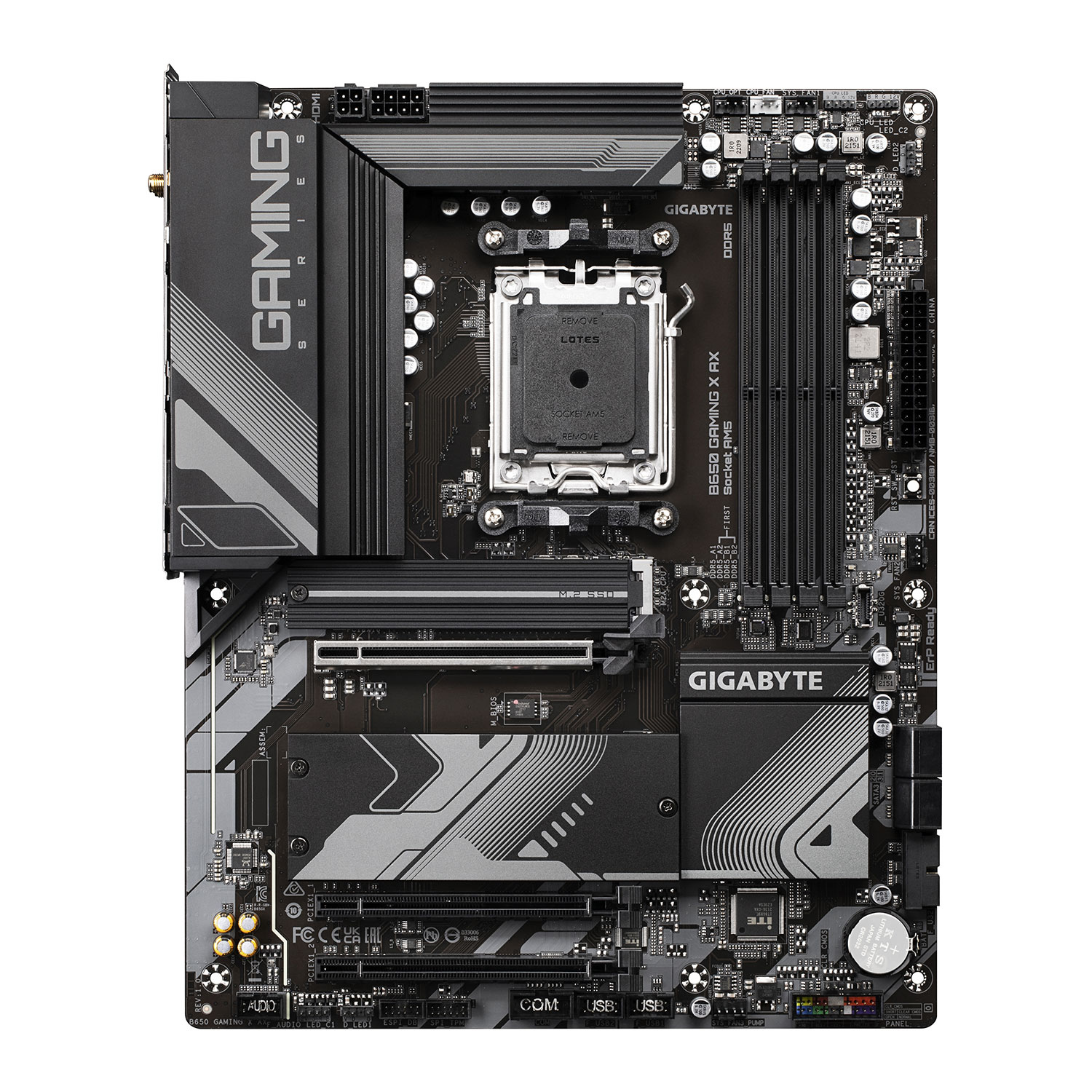

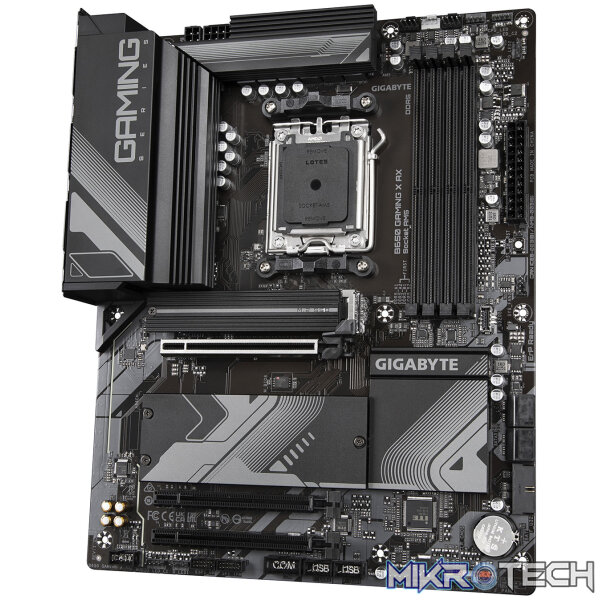

Gigabyte AMD Ryzen B650 GAMING X AX AM5 ATX Motherboard
GA-B650-GAMING-X-AX
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follow the latest trends to provide customers with advanced features and the latest technologies. The B650 GAMING X AX motherboard is equipped with an upgraded power solution, 1x PCIe 4.0 x16 slot, 3x M.2 slots (PCIe 4.0 x4), DDR5 support, Wi-Fi 6E and more outstanding connectivity to enable optimised performance for gaming.
With the fast-moving technology changes, GIGABYTE always follow the latest trends to provide customers with advanced features and the latest technologies. The B650 GAMING X AX motherboard is equipped with an upgraded power solution, 1x PCIe 4.0 x16 slot, 3x M.2 slots (PCIe 4.0 x4), DDR5 support, Wi-Fi 6E and more outstanding connectivity to enable optimised performance for gaming.
AM5 AMD Socket
B650 Chipset
AMD Ryzen™ 7000 Series Processors
ATX Form Factor
Boost Your System
DIRECT DIGITAL VRM DESIGN
To ensure maximum Turbo Boost and overclocking performance of AMDÂ’s new generation CPU, GIGABYTE Gaming series motherboard equip the best VRM design ever built with the highest quality components.
To ensure maximum Turbo Boost and overclocking performance of AMDÂ’s new generation CPU, GIGABYTE Gaming series motherboard equip the best VRM design ever built with the highest quality components.
8 VCORE Phases 60A Power Stage
2 SOC Phases 60A Power Stage
1 MISC Phase 30A Intelligent POL
Outstanding Thermal Design
1.FULLY COVERED MOSFET HEATSINK
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
2. M.2 THERMAL GUARD
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
3. 6-LAYER & 2X COPPER PCB
2X copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
Future-Proof Connectivity
802.11AX WI-FI 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Illuminate your PC with RGB Fusion
RGB FUSION 2.0
With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. Users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. Users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Durability for Years to Come
SOLID PIN POWER CONNECTORS
B650 GAMING X AX motherboards feature an 8+4 Solid Pin CPU Power Connector to offer a stable power supply during CPU overloading.
B650 GAMING X AX motherboards feature an 8+4 Solid Pin CPU Power Connector to offer a stable power supply during CPU overloading.
SOLID PIN POWER CONNECTOR ADVANTAGES
• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.
Take Control of your Motherboard
GIGABYTE BIOS & CONTROL CENTER
Good software goes hand in hand with perfect hardware. The B650 GAMING X AX has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.
Good software goes hand in hand with perfect hardware. The B650 GAMING X AX has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.
FRIENDLY USER INTERFACE
All new EASY MODE shows important hardware information all on one page.
MY FAVORITES
Add constantly used items into the favorite menu for quick access.
STORAGE INFORMATION
Show all kinds of storage information including SATA, PCIE and M.2 interface.
CHANGELOG
List all changes before saving and exiting bios. Quickly review overall settings modification.
INTUITIVE LOAD LINE CURVE
Clearly show each loadline calibration setting in an intuitive curve graph.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GAMING X |
| Model | B650 GAMING X AX (GA-B650-GAMING-X-AX) Rev 1.0 / 1.1 |
| CPU Support | Supports Ryzen 7000-Series Processors |
| Chipset | AMD B650 Chipset |
| Memory Support | |
| AMD B650 Chipset | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz, Support for DisplayPort 1.4 version and HDR. |
| HDMI | 1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4096×2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3. |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| AMD B650 Chipset | 2x PCIe 3.0 x16 Phyical, x16 Electrical Slots |
| Storage | |
| CPU Direct | 2x M.2 Slots (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU) |
| AMD B650 Chipset | 1x M.2 Slot (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) |
| 4x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | AMD RZ616 (MT7922A22M) WiFi 6E 2×2 MIMO Tri-Band Adapter for PCB Rev 1.0 |
| Intel AX210 WiFi 6E 2×2 MIMO Tri-Band Adapter for PCB Rev 1.1 | |
| Bluetooth | Bluetooth 5.2 |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking | |
| Connectivity | |

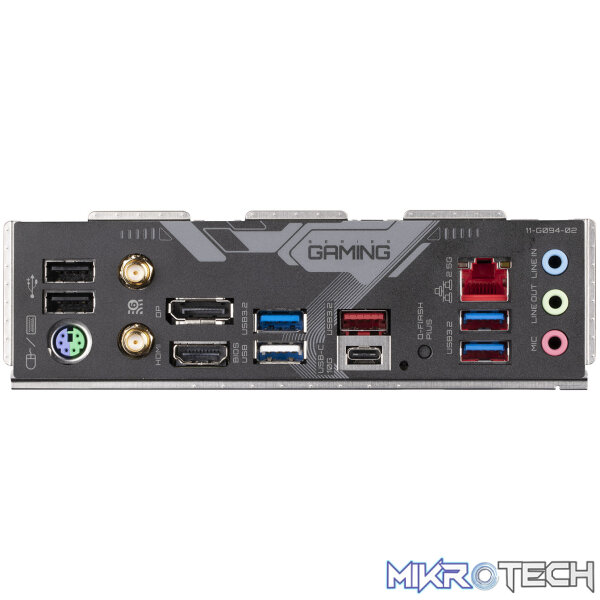

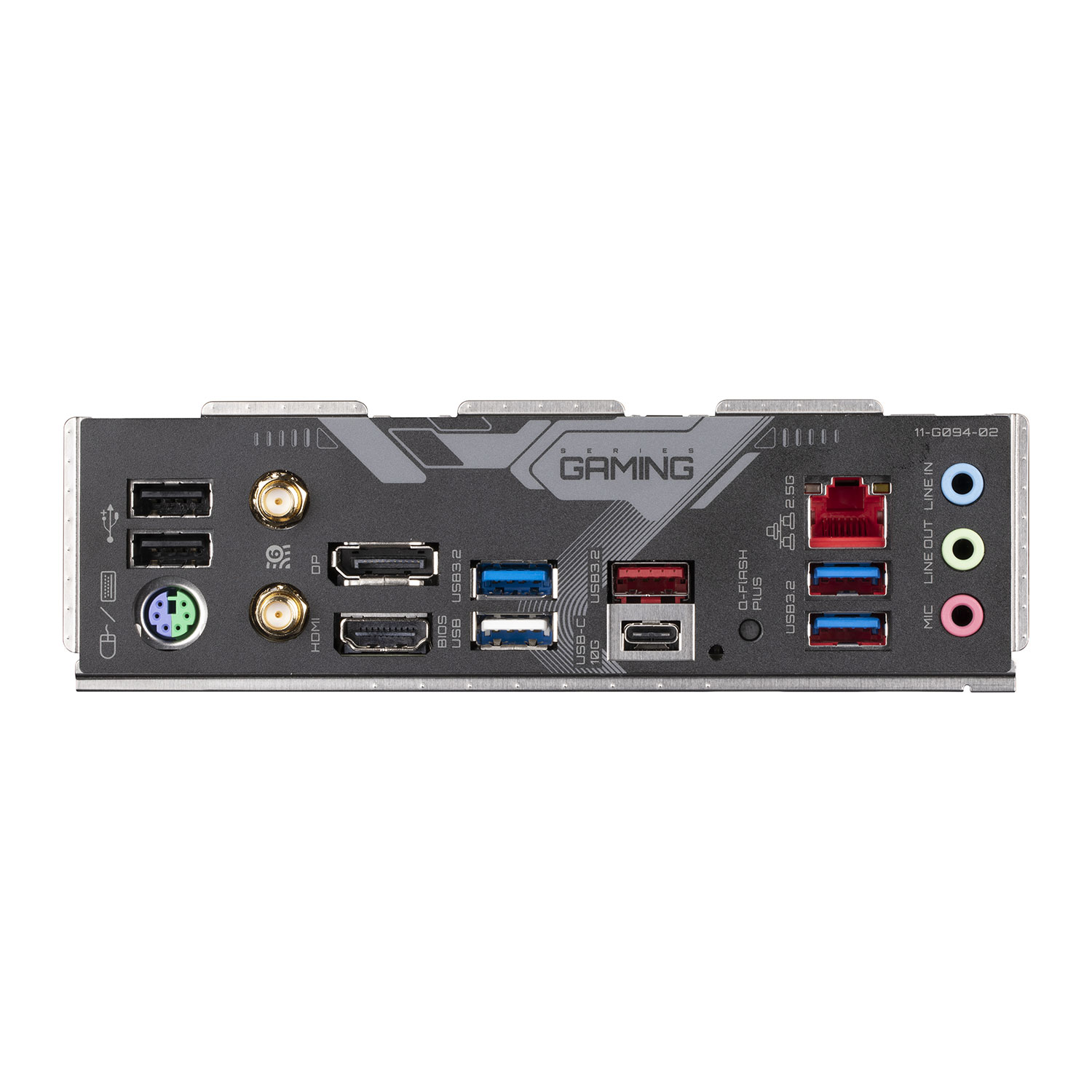

| Ports | 2x SMA antenna connectors (2T2R) |
| 1x Q-Flash Plus button | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 2 Type-A port (red) | |
| 3x USB 3.2 Gen 1 Type-A ports | |
| 3x USB 2.0/1.1 Type-A ports | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x water cooling CPU fan header | |
| 2x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 1x CPU cooler LED strip/RGB LED strip header | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2×2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | UserÂ’s Manual |
| One Antenna Pair | |
| 2x SATA cables | |
| 1x M.2 screw kit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
