Gigabyte B850M DS3H B850 Ryzen Socket AM5 Micro ATX Motherboard
R3,189.99 incl. VAT
Only 8 left in stock
KEY FEATURES:
– Socket Socket AM5, AMD B850 Chipset
– Supports Ryzen 7000 / 8000 / 9000 Series Processors
– 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200
– 1 x PCIe 5.0 x16 Slot
– 1 x PCIe 3.0 x16 Slot (x4 electrical)
– 1 x M.2 PCIe 5.0 NVMe Slot
– 1 x M.2 PCIe 4.0 NVMe Slot
– 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
– 2.5Gbps LAN
– 1 x HDMI 2.1, 2 x DisplayPort 1.4
– 1 x Rear USB Type-C 10Gb/s
– 1 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
– Micro ATX
– 3 Year Warranty
Description
Gigabyte B850M DS3H B850 Ryzen Socket AM5 Micro ATX Motherboard
GA-B850M-DS3H
GIGABYTE B850M DS3H Motherboard
The B850M DS3H supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
Features
- AMD Socket AM5: Fits AMD Ryzen 9000, 8000 & 7000 Series CPUs
- DDR5 RAM: 4x DDR5 DIMM Slots
- Power Design: 8+2+2 Power Design
- Thermals: MOSFET Heatsink
- Connectivity: PCIe 5.0, 2x M.2 Slots, USB-C
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug
- Networking: 2.5Gb Ethernet LAN
- 3 Year Gigabyte Limited Warranty
Compatibility
Supports AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors For Socket AM5
System Requirements
Operating System Support:
- Windows® 11, 64 bit: Requires Update 22H2 or later
WiFi Support:
- WiFi 6E: Requires Windows 11 Update 22H2 or later
Specifications
| Make and Model | GIGABYTE B850M DS3H Motherboard |
|---|---|
| Part Number | B850M DS3H |
| Colour | Black |
| Windows® Support | Windows® 11 with Update 22H2 or later |
| Chipset | AMD B850 Chipset |
| CPU Socket | AMD Socket LGA-1718 |
| CPU Support | Supports AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors For Socket AM5 |
| Memory | 4x DDR5 DIMM Slots |
| Onboard Graphics* | 1x DisplayPort v1.4 port 1x HDMI v2.1 port * Video output and resolution support depends on your chosen Processor |
| Expansion Slots | 1x PCIe 5.0 x16 slot 2x PCIe 4.0 x16 slots* * PCIe 4.0 Slot Bandwidth support depends on your chosen Processor |
| Storage | 2x M.2 slots: 1x M.2 (Key M) PCIe 5.0 x4 Slot 1x M.2 (Key M) PCIe 4.0 x4/x2 Slot * M.2 PCIe x4/x2 Slot Bandwidth depends on your chosen Processor 4x SATA III 6Gb/s ports |
| USB | Rear USB Ports: 1x USB 3.2 Gen2 (10Gbps) Type-C port 1x USB 3.2 Gen2 (10Gbps) Type-A ports (Red) 2x USB 3.2 Gen1 (5Gbps) Type-A ports (Blue) 4x USB 2.0 (480Mbps) Type-A Ports (Black) Front USB Ports: To Be Announced |
| LAN | 2.5Gb Ethernet Chipset: 1x RJ45 2.5Gb Ethernet LAN port |
| Wi-Fi | Wi-Fi not included |
| Bluetooth | Bluetooth not included |
| Audio | Rear Audio I/O: 3x 3.5mm Combo Audio jacks |

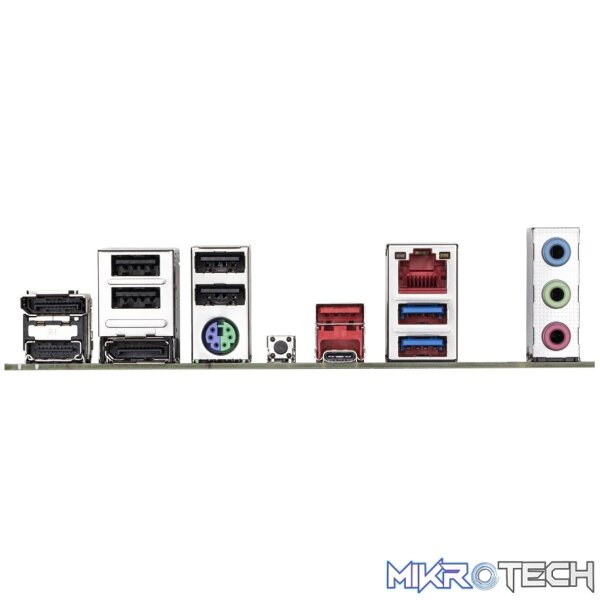

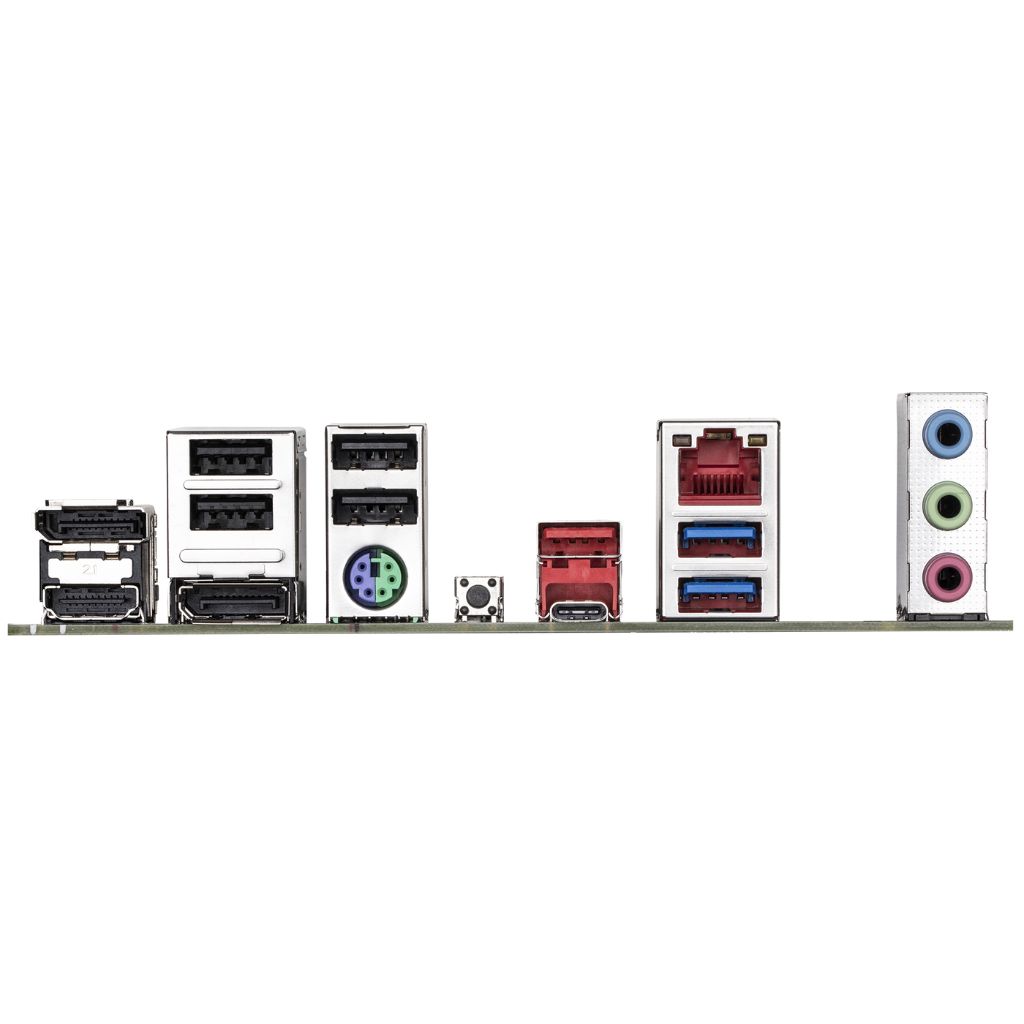

| Rear I/O Ports | 1x USB 3.2 Gen2 (10Gbps) Type-C port 1x USB 3.2 Gen2 (10Gbps) Type-A ports (Red) 2x USB 3.2 Gen1 (5Gbps) Type-A ports (Blue) 4x USB 2.0 (480Mbps) Type-A Ports (Black) 1x 2.5Gb RJ45 Ethernet LAN port2x DisplayPort ports 1x HMDI port 3x 3.5mm Combo Audio jacks 1x PS/2 Combo Keyboard / Mouse port |
| Internal I/O | To Be Announced |
| BIOS | Flash ROM w/ UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | m-ATX Form Factor |
| Dimensions | 244 x 244mm |
| Weight | To Be Announced |
