KEY FEATURES:

– Micro-ATX, Socket AM5, AMD B850 Chipset
– Supports Ryzen 7000 / 8000 / 9000 Series Processors
– 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200
– 1 x PCIe 5.0 x16 Slot
– 1 x PCIe 3.0 x16 Slot (x4 Electrical)
– 1 x M.2 PCIe 5.0 NVMe Slot
– 1 x M.2 PCIe 4.0 NVMe Slot
– 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 10
– 2.5Gbps LAN

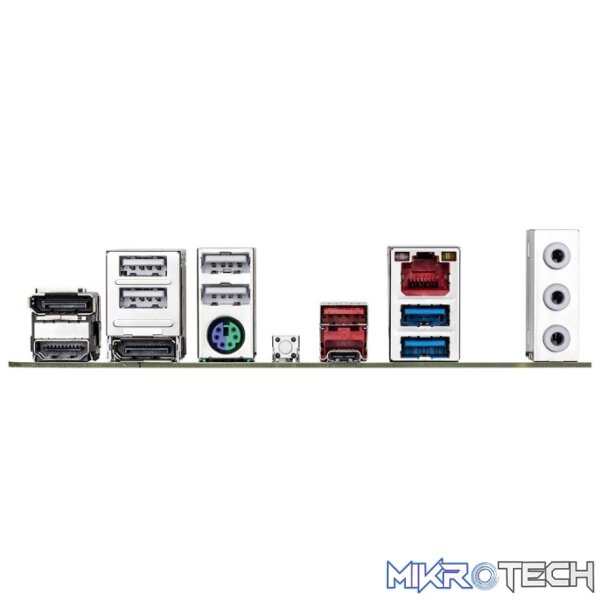

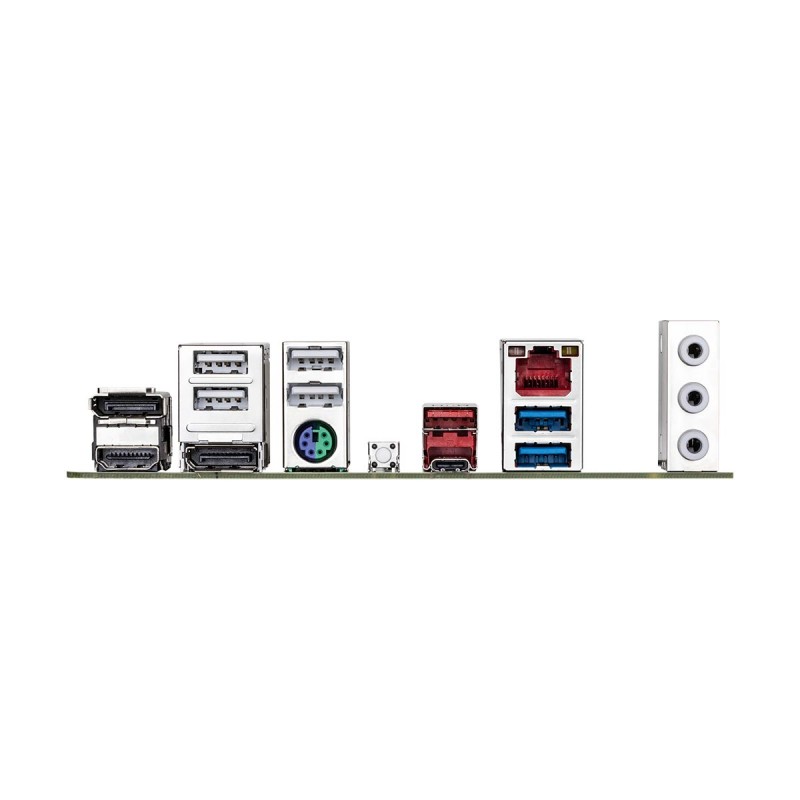

– 1 x HDMI 2.1, 2 x DisplayPort 1.4
– 1 x Rear USB Type-C 5Gb/s
– 1 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
– 4 x Rear USB 2.0/1.1 Ports
– 1 x PS/2 Keyboard/Mouse Port
– 3 x Rear Audio Jacks
– M.2 EZ-Latch Plus
– M.2 Thermal Guard
– PCIe EZ-Latch
– Q-Flash Plus – Update BIOS without CPU / RAM / GPU
– EZ Debug Zone
– 3 x ARGB Gen2 Headers
– 3 Year Warranty

Description

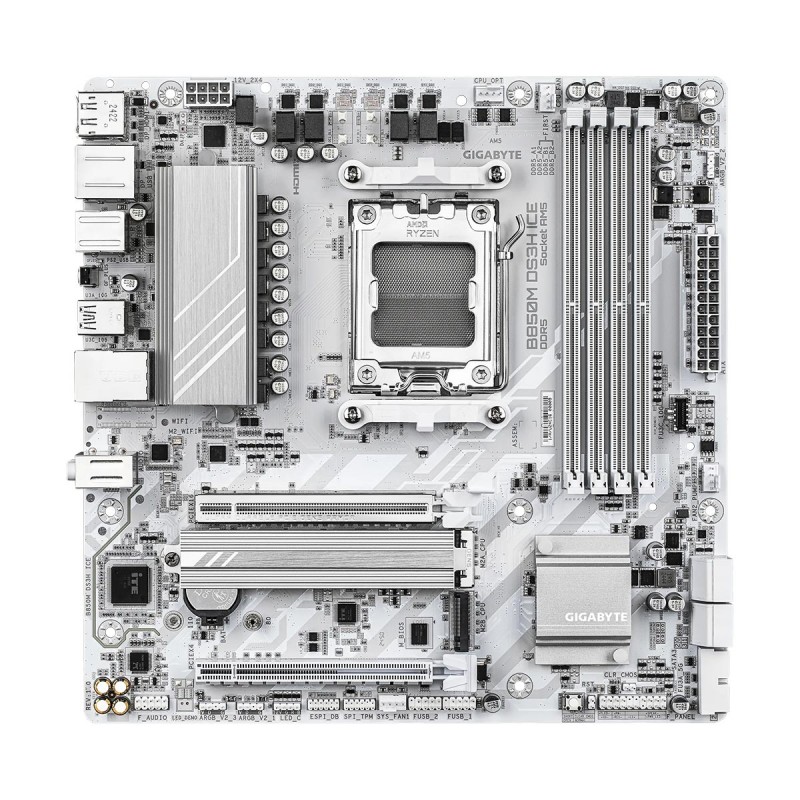

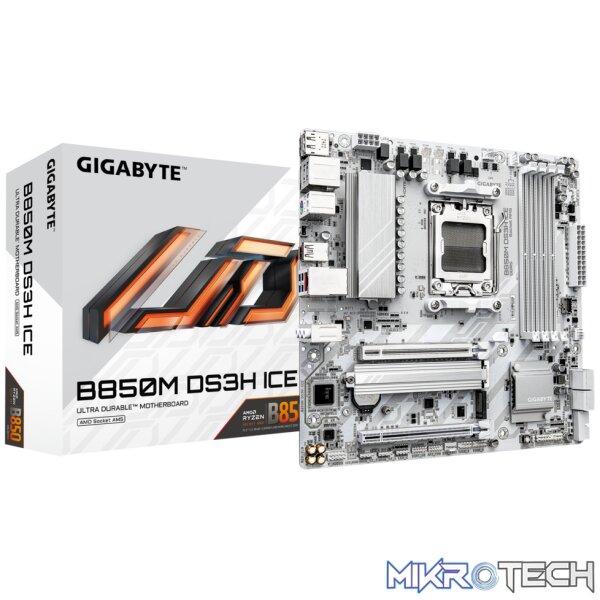

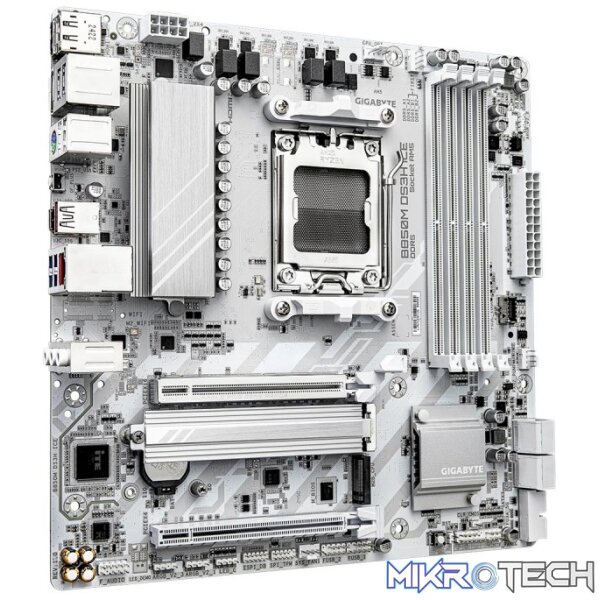

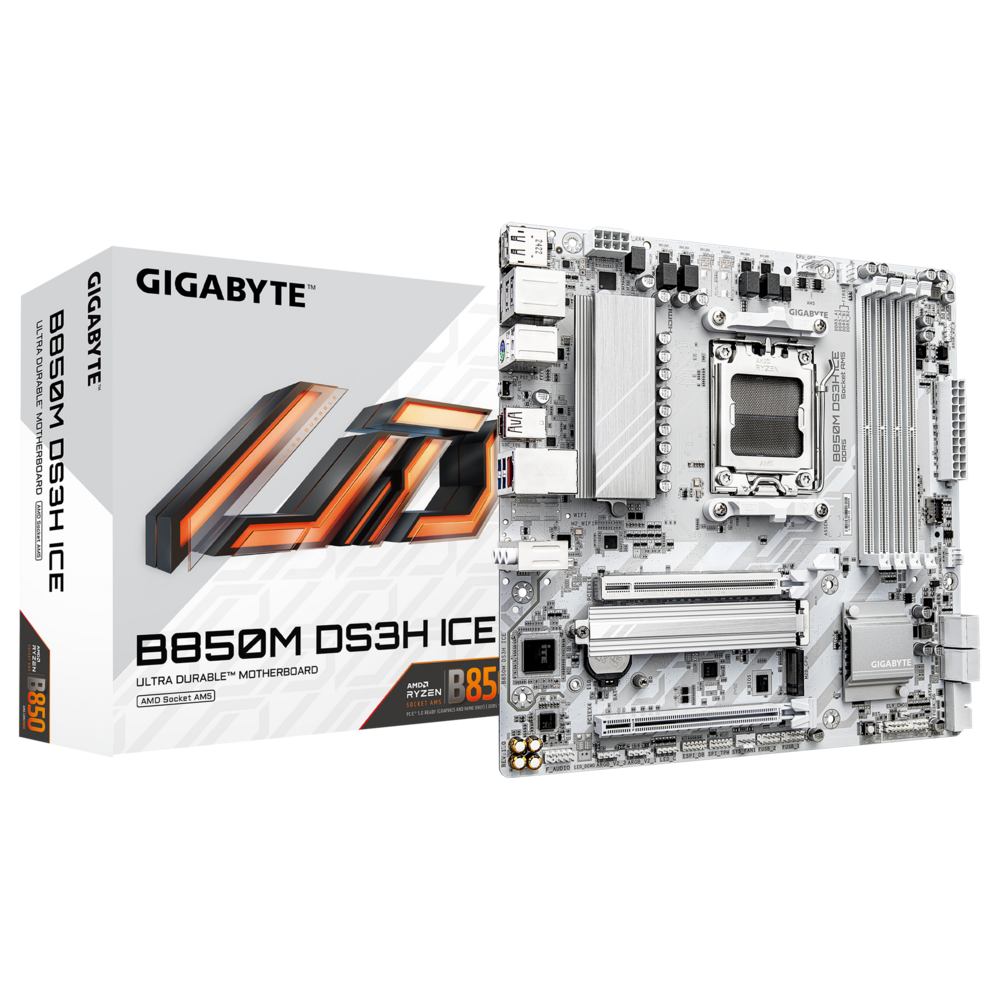

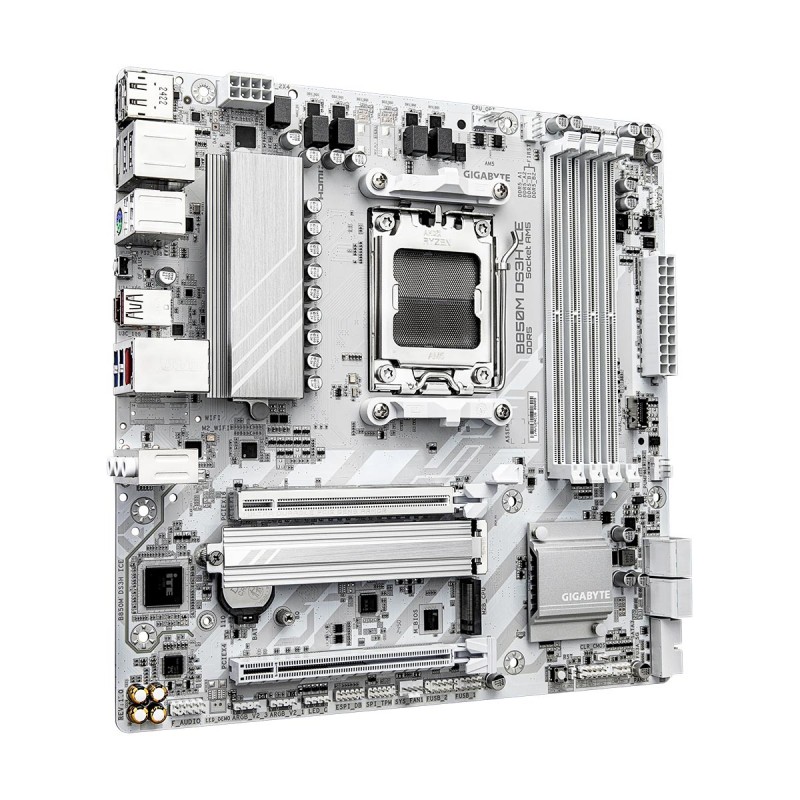

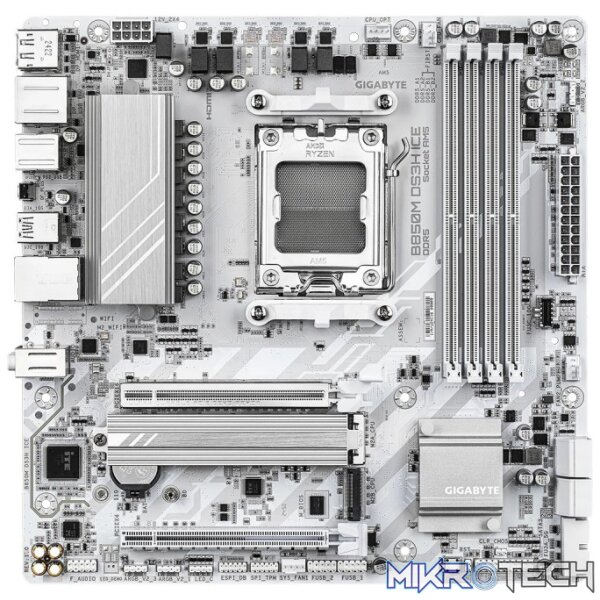

Gigabyte B850M DS3H ICE AM5 Micro?ATX DDR5 Motherboard

GA-B850M-DS3H-ICE

The Gigabyte B850M DS3H ICE is a high-performance, white-themed Micro?ATX motherboard built around the AMD B850 chipset and Socket AM5, compatible with Ryzen 9000 / 8000 / 7000 series processors. Engineered for both gamers and creators, it features a refined 8+2+2 digital VRM design, support for DDR5 memory up to 8200?MT/s, and two ultra-fast M.2 SSD slots (one PCIe 5.0 x4). Additional robustness comes via M.2 Thermal Guard, EZ-Latch ROI support, Smart Fan 6 cooling, dual DisplayPort + HDMI outputs, and 2.5GbE LAN connectivity. Plus, X3D Turbo Mode (BIOS-based) improves gaming performance for all Ryzen CPUs without needing a premium X3D model.

Key Features

• AMD Socket AM5 compatibility for Ryzen 7000 / 8000 / 9000 series

• Twin?digital 8+2+2 VRM power delivery on a durable 6?layer PCB

• Dual?channel DDR5 support with OC speeds up to 8200?MT/s using EXPO™ & XMP

• 1× PCIe 5.0 x16 Ultra Durable slot with PCIe EZ?Latch

• 2× M.2 SSD slots (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) with thermal guard

• X3D Turbo Mode provides a one-click FPS boost in gaming

• Integrated 2.5?GbE LAN for faster wired networking

• 1× USB?C Gen2, 1× USB?A Gen2, 2× USB 3.2 Gen1, 4× USB 2.0 ports

• Display Outputs: HDMI 2.1 (4K?@?60Hz) + 2× DP 1.4 (4K?@?144Hz)

• Smart Fan 6 with hybrid fan headers and temperature monitoring

• EZ?Debug Zone LEDs, Multi-Key controls, and Q?Flash Plus BIOS

• M.2 EZ?Latch Plus for tool-free SSD installation

• RGB Fusion support with multiple ARGB/RGB headers

Specifications Table:
