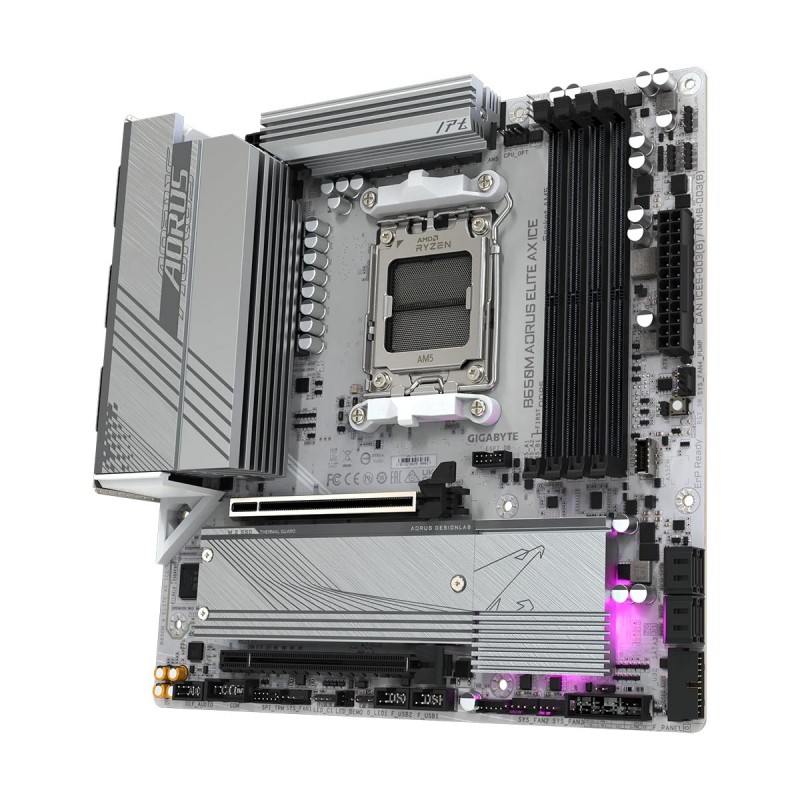

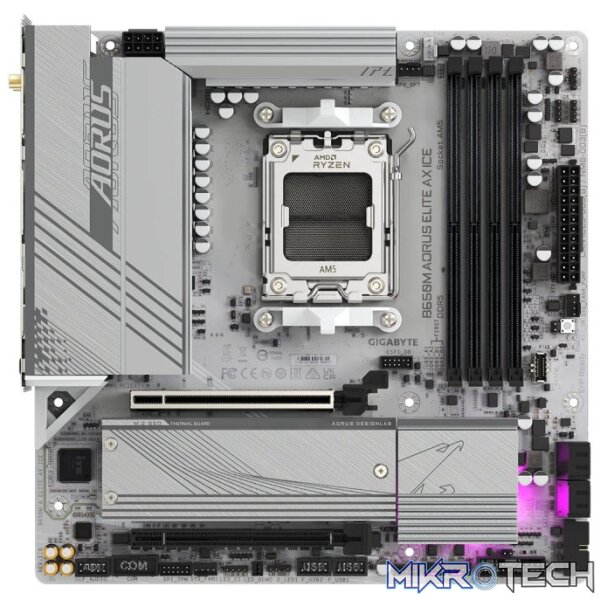

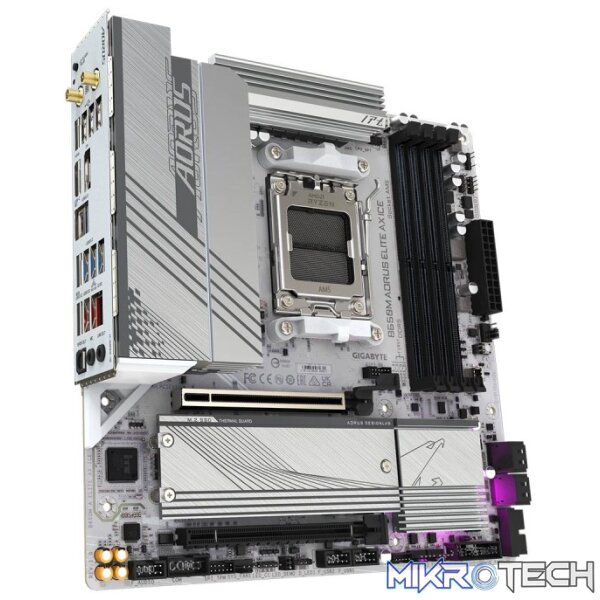

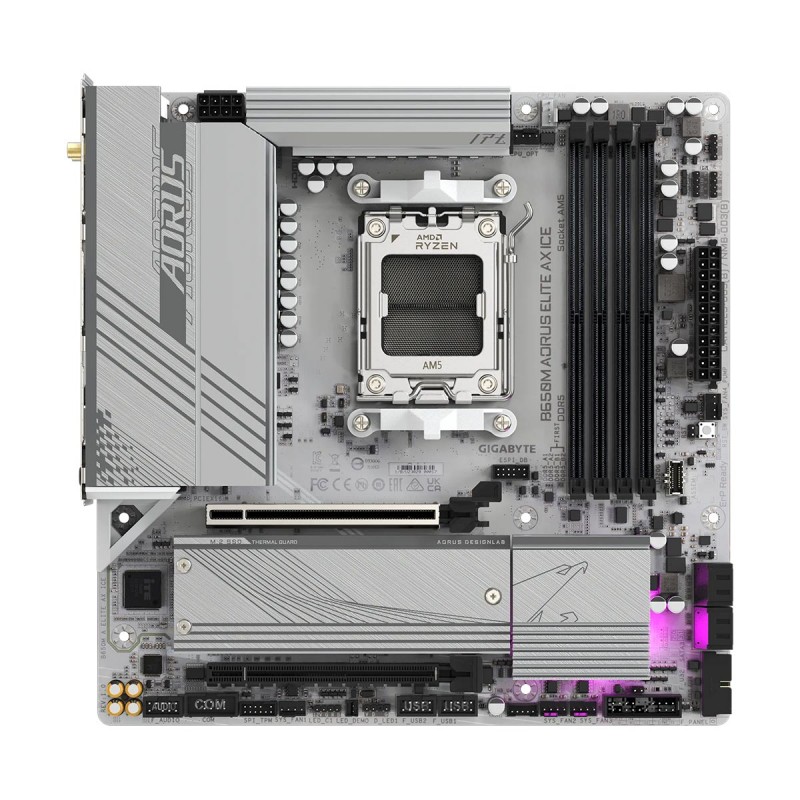

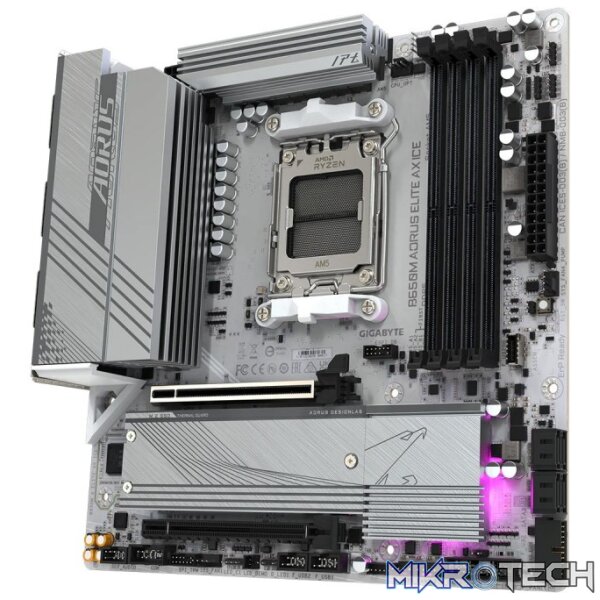

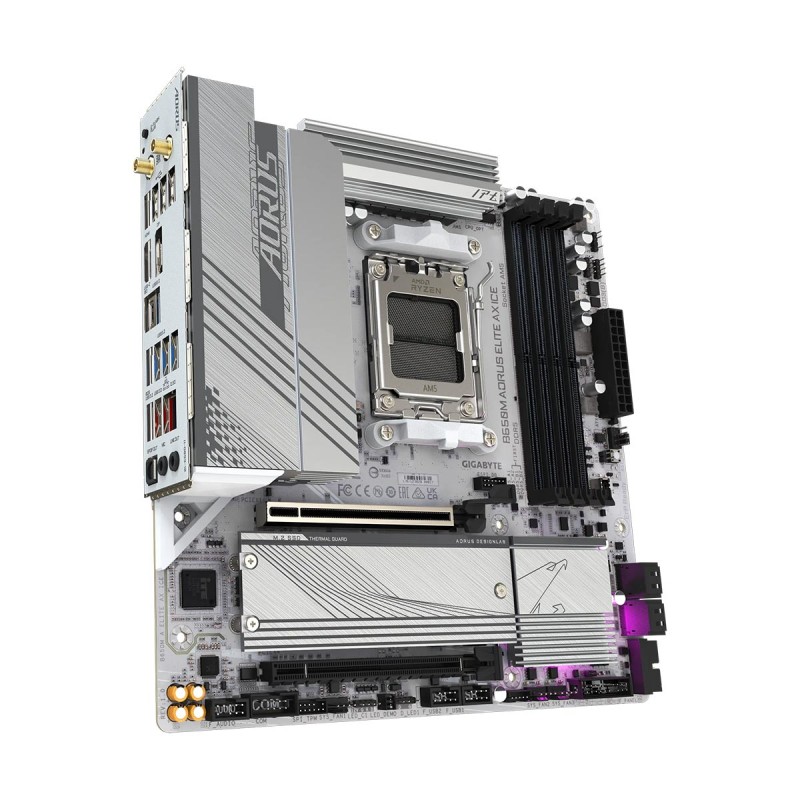

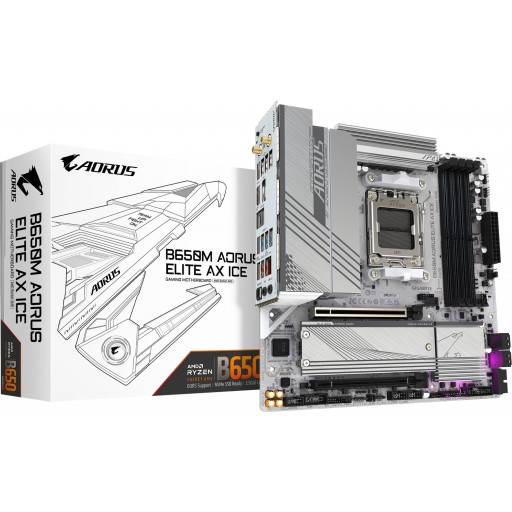

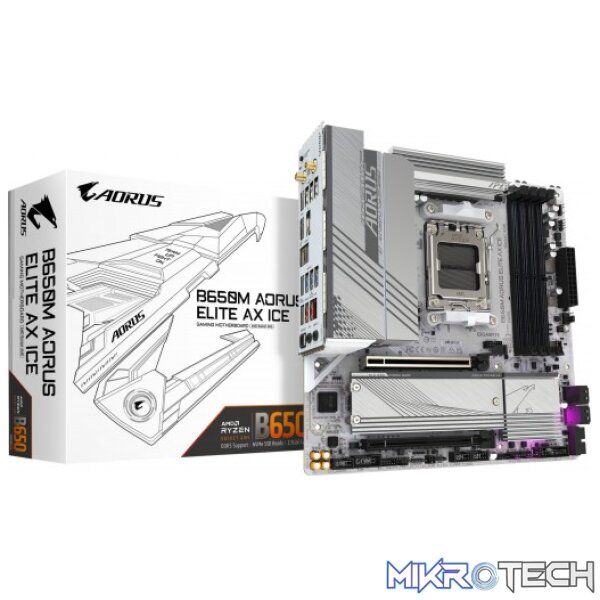

Gigabyte B650M AORUS ELITE AX ICE AMD B650 Ryzen Socket AM5 Micro-ATX Motherboard
R4,359.99 incl. VAT
Only 2 left in stock
KEY FEATURES:
– Micro-ATX Form Factor
– AMD B650 Chipset
– Socket AM5
– Supports Ryzen 7000, 8000-Series Processors
– Q-Flash Plus BIOS Flash Supports Future Processors
– 4x DDR5 DIMM Slots, Supports Up to 192GB
– Supports up to DDR5-8000 (OC)
– Supports AMD EXPO Memory
– 1x PCIe 4.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 1x M.2 25110/2580 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– Supports USB 5Gbps Type-C Front-Panel Header
– 1x USB 10Gbps Type-C Port
– 2x USB 10Gbps Type-A Ports
– 5x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x HDMI 2.1 Port (TMDS)
– 1x DisplayPort 1.4 Port
– 1x Q-Flash Plus button
– 2x 3.5mm Audio Jacks (Line Out, Microphone)
– 1x Optical S/PDIF Audio Out Port
– 2x SMA Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
– WiFi 6E 2×2 MIMO Tri-Band Adapter, Bluetooth 5.3
– Realtek High-Definition Audio Codec
– On-Board POST Debug LEDs
– Thermal Armor Advanced Twin 12+2+2 Digital VRM Solution
– Gigabyte M.2 Thermal Guard
– Gigabyte RGB Fusion Software
– Gigabyte Smart Fan 6 Technology
– Gigabyte Control Center Utility
– Supports Windows 11 64-bit
– 3 Year Warranty
Description
Gigabyte B650M AORUS ELITE AX ICE AMD B650 Ryzen Socket AM5 Micro-ATX Motherboard
GA-B650M-AORUS-ELITE-AX-ICE
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS ICE Motherboard Series |
| Model | B650M AORUS ELITE AX ICE |
| CPU Support | Supports Ryzen 7000, 8000-Series Processors |
| Chipset | AMD B650 Chipset |
| Memory Support | |
| AMD B650 Chipset | 4x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
| Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840×2160 @ 144Hz, supports HDCP, HDR |
| HDMI | 1x HDMI 2.1 Port (TMDS), supporting a maximum resolution of 4096×2160 @ 60Hz, supports HDCP, HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Electrical Slots (x16 Physical) (PCIEX16) |
| AMD B650 Chipset | 1x PCIe 4.0 x4 Electrical Slots (x16 Physical) (PCIEX4) |
| Slot Configurations | PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (Note) x4/x2 SSD support) (M2A_CPU) |
| 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| AMD B650 Chipset | 4x SATA 6Gbps connectors |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Storage Configurations | M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| M2B_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | WiFi 6E 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking | |
| Support for S/PDIF Out | |
| Connectivity | |

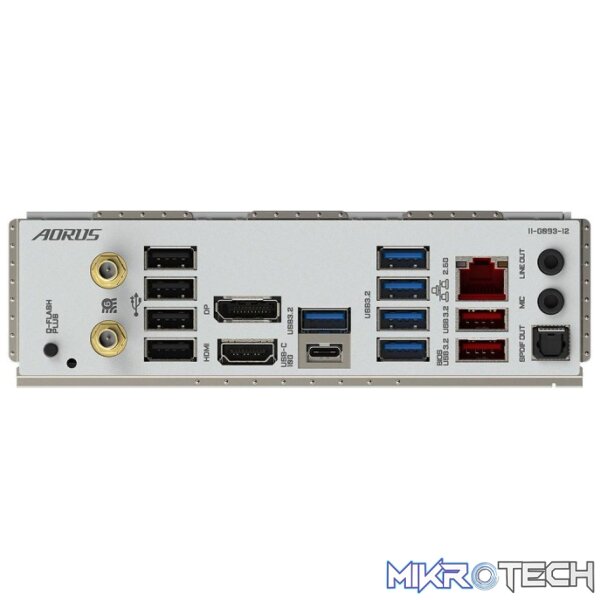

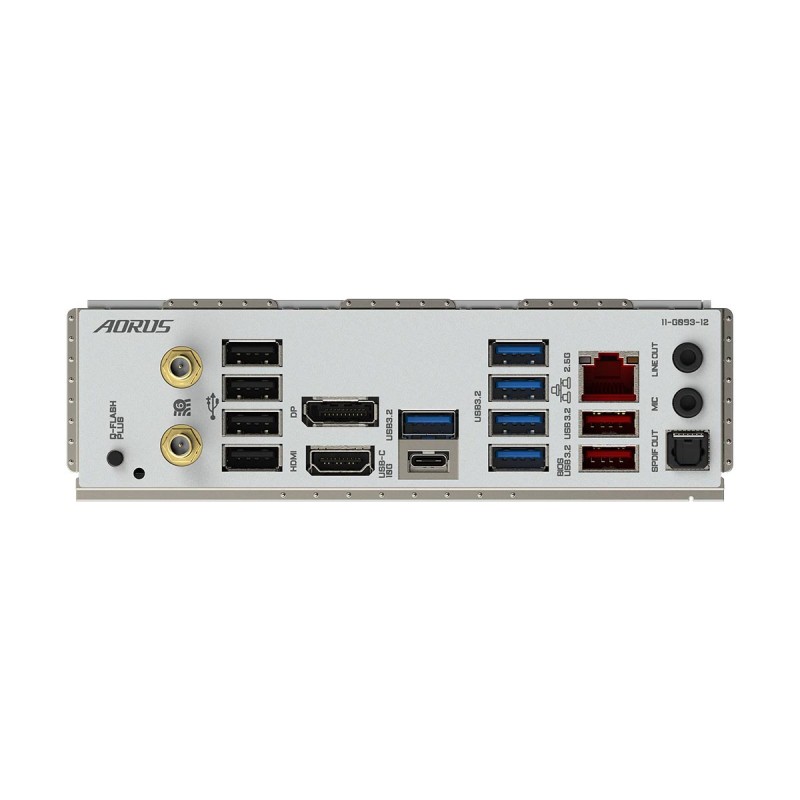

| Ports | 1x USB 10Gbps Type-C Port |
| 2x USB 10Gbps Type-A Ports | |
| 5x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port (TMDS) | |
| 1x DisplayPort 1.4 Port | |
| 1x Q-Flash Plus button | |
| 2x 3.5mm Audio Jacks (Line Out, Microphone) | |
| 1x Optical S/PDIF Audio Out Port | |
| 2x SMA Connectors | |
| Buttons | 1x Q-Flash Plus BIOS button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 1x CPU cooler LED strip/RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2×2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x serial port header | |
| 1x THB_U4 add-in card connector | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| LEDs | 4x On-Board POST Debug LEDs |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (recommended) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
