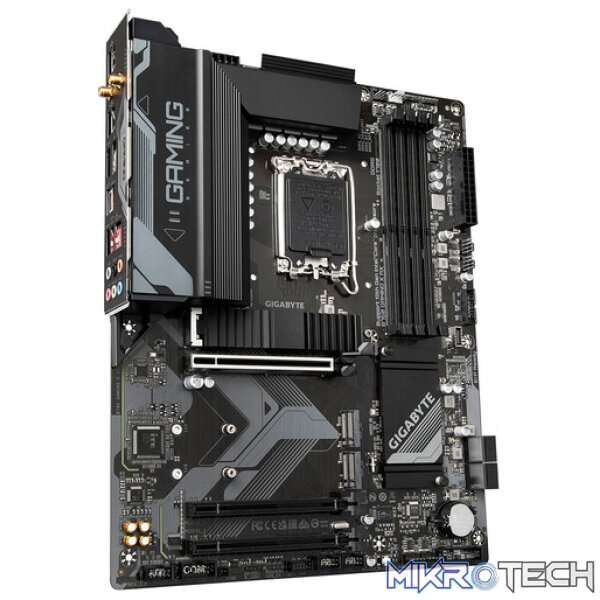

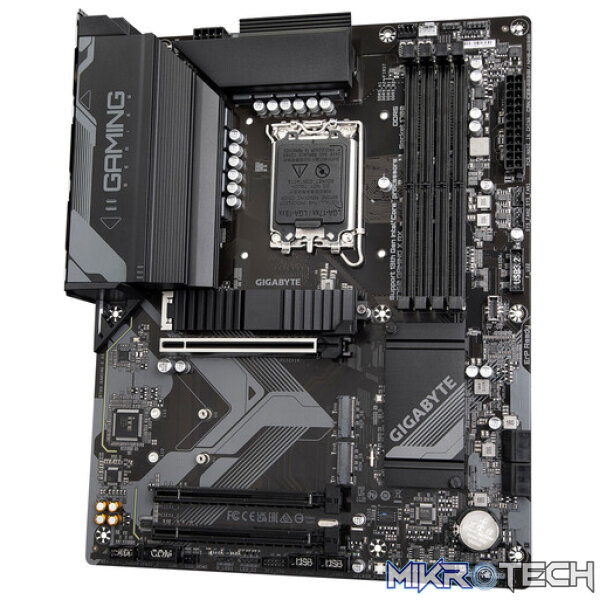

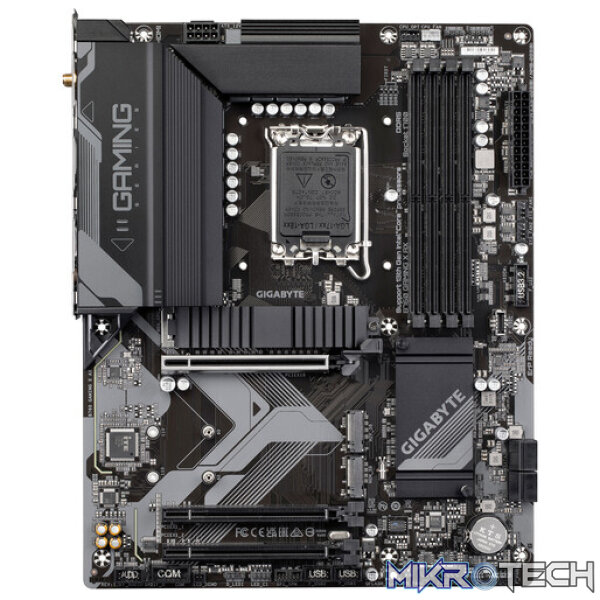

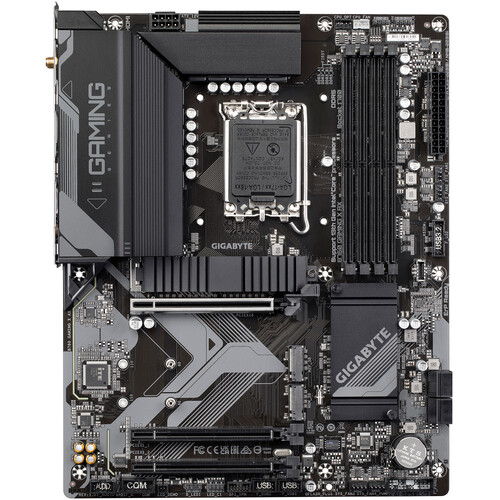

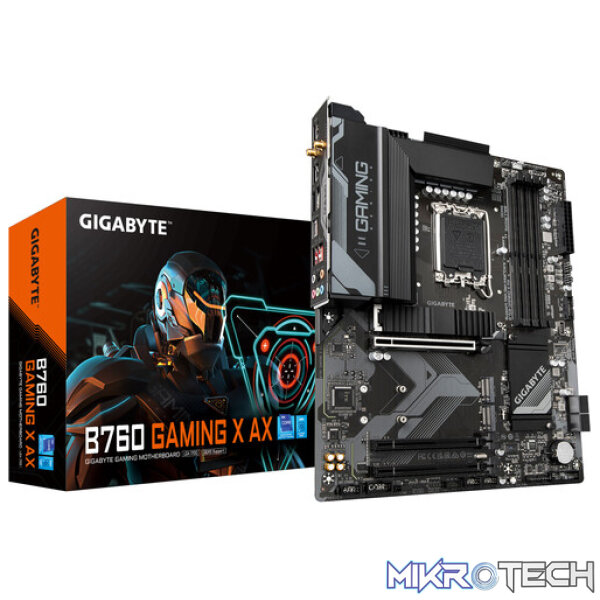

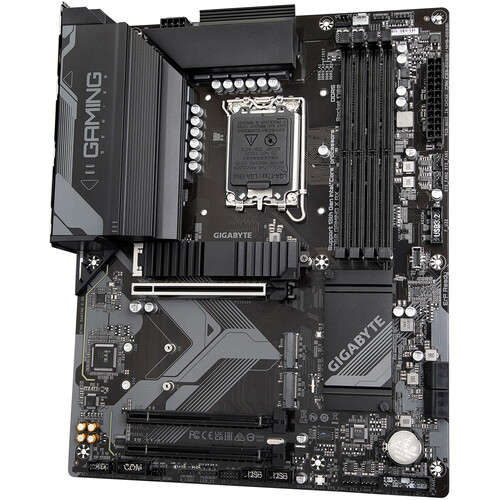

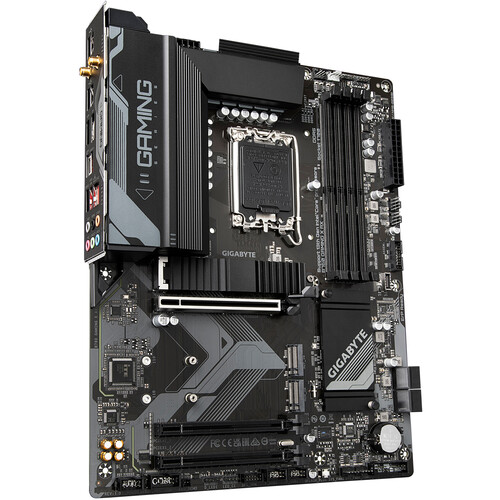

Gigabyte B760 GAMING X AX LGA 1700 ATX DDR5 Motherboard
R3,509.99 incl. VAT
Only 8 left in stock
KEY FEATURES:
– Form Factor: ATX
– Chipset: Intel B760 Express
– Socket: LGA 1700
– CPU Support: Intel 14th / 13th / 12th Gen
-Memory: 4× DDR5 DIMM, up to 192GB, DDR5-7600+ (OC)
– Graphics: HDMI 2.1, DisplayPort 1.2 via CPU
– Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x16 (x4), 1× PCIe 3.0 x1
– Storage: 3× M.2 PCIe 4.0 x4, 4× SATA 6Gb/s
– Networking: Intel Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN
– USB (Rear): 1× USB-C 3.2 Gen 2×2, 2× USB-A 3.2 Gen 2, 4× USB-A 3.2 Gen 1, 4× USB 2.0
– USB (Internal): 1× USB-C 3.2 Gen 2, 2× USB 3.2 Gen 1 headers, 2× USB 2.0 headers
– Audio: Realtek 8-channel HD audio
– Cooling: MOSFET heatsinks, M.2 Thermal Guards, Smart Fan 6
– RGB: RGB Fusion, 2× RGB, 2× ARGB headers
– Special Features: Q-Flash Plus, Multi-Key, Ultra Durable PCIe Armor
– Warranty: 3 Years
Description
Gigabyte B760 GAMING X AX LGA 1700 ATX DDR5 Motherboard
B760 GAMING X AX (rev. 1.x)
The Gigabyte B760 GAMING X AX delivers stellar performance on a budget-friendly B760 platform. It supports Intel 14th–12th Gen processors on the LGA?1700 socket, brings blazing DDR5 memory, PCIe?4.0 storage, advanced cooling, integrated Wi?Fi?6E, and rich I/O—all packed into an Ultra Durable™ ATX frame suited for mid-range gaming builds and creative workstations.
Key Features
Robust Power Delivery
Hybrid 8+1+1 digital VRM with 60?A DrMOS and 2× copper layers ensures power stability for demanding CPUs.Next-Gen Memory Support
Quad DDR5 DIMM slots with XMP support, unlocking speeds up to DDR5?7600+ to push cutting-edge memory performance.High-Speed Storage & Expansion
One reinforced PCIe?4.0 x16 slot (EZ?Latch) plus three PCIe?4.0?×4 M.2 slots, all equipped with Thermal Guards for maintaining SSD performance.Advanced Cooling Design
Includes one-piece MOSFET heatsinks, M.2 Thermal Guards, and Smart Fan 6 with multiple sensors and hybrid headers to sustain optimum thermal control.Fast Connectivity
Built-in Wi?Fi 6E (802.11ax) with the 6?GHz band and 2.5?GbE LAN delivers future-ready network speeds.Comprehensive I/O
Offers USB?3.2?Gen?2 Type?C front port, HDMI, DisplayPort, 8-channel HD audio, RGB Fusion for lighting, and SATA 6?Gb/s ports for diverse device support.User-Centric Tools
Features like Q?Flash?Plus (BIOS updates without CPU/GPU), Multi-Key functions, and Ultra Durable components add considerable convenience and long-term value.
Combining overclock-ready DDR5, PCIe 4.0 support, thermal leadership, and future-proof networking, the Gigabyte B760 GAMING X AX brings premium features to mid-range builds—offering high value for gamers, creators, and everyday users.
Specifications:
| Category | Specification |
|---|---|
| Brand / Model | Gigabyte B760 GAMING X AX (rev. 1.x) |
| CPU Support | Intel® Core™ 14th, 13th, and 12th Generation processors (LGA 1700 socket) |
| Chipset | Intel® B760 Express chipset |
| Form Factor | ATX – 30.5cm × 24.4cm |
| Power Design | Hybrid 8+1+1 phase digital VRM, 60A DrMOS, 2oz copper PCB for improved power efficiency and heat dissipation |
| Memory Support | – 4 × DDR5 DIMM slots (dual channel) – Supports up to 192GB total capacity – Supports XMP 3.0 memory profiles – Overclocked speeds up to DDR5-7600+ (OC) |
| Graphics Support | Integrated graphics via CPU: – 1 × HDMI 2.1 port (max 4096×2160 @ 60Hz) – 1 × DisplayPort 1.2 (max 4096×2304 @ 60Hz) – Supports HDCP 2.3, HDR |
| Expansion Slots | – 1 × PCIe 4.0 x16 slot (with PCIe EZ-Latch) – 1 × PCIe 3.0 x16 slot (x4 mode) – 1 × PCIe 3.0 x1 slot |
| Storage | – 3 × M.2 PCIe 4.0 x4 slots (up to 22110 length) with Thermal Guard heatsinks – 4 × SATA 6Gb/s ports (RAID 0, 1, 5, 10 support) |
| Networking | – Intel® Wi-Fi 6E (802.11ax) with 2.4/5/6GHz bands – Bluetooth® 5.3 – Intel® 2.5GbE LAN (RJ-45) with cFosSpeed |

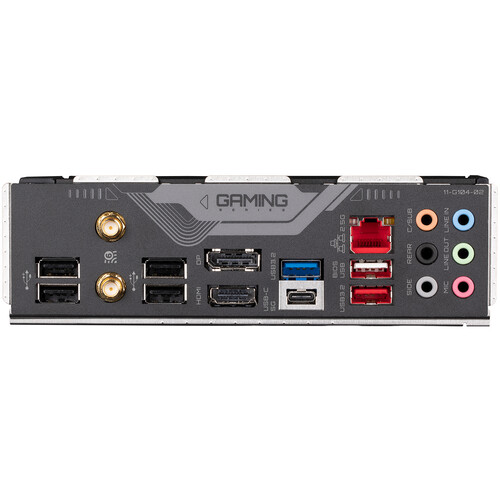

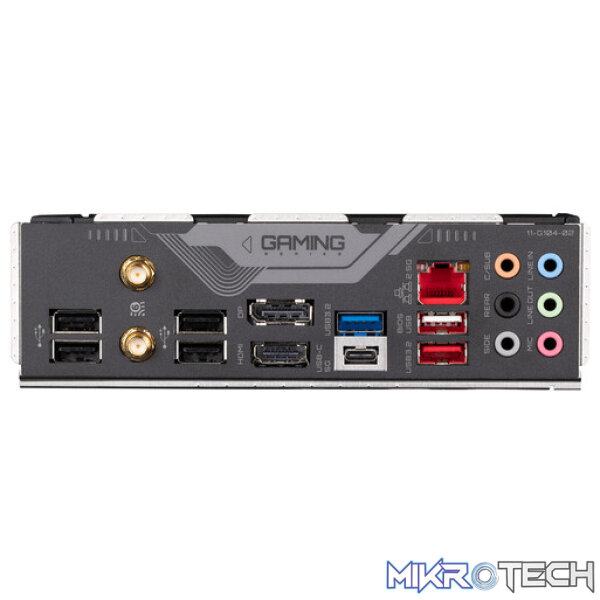

| USB Ports – Rear I/O | – 1 × USB 3.2 Gen 2×2 Type-C (20Gb/s) – 2 × USB 3.2 Gen 2 Type-A (10Gb/s) – 4 × USB 3.2 Gen 1 Type-A (5Gb/s) – 4 × USB 2.0/1.1 |
| USB Ports – Internal Headers | – 1 × USB 3.2 Gen 2 Type-C (front panel) – 2 × USB 3.2 Gen 1 headers (supports 4 ports) – 2 × USB 2.0/1.1 headers (supports 4 ports) |
| Audio | Realtek® 8-channel HD Audio codec, high-end audio capacitors, audio noise guard |
| Cooling Features | – Large MOSFET heatsinks – M.2 Thermal Guards – Smart Fan 6 with multiple temperature sensors – 4 hybrid fan headers (PWM/DC) – Fan Stop function |
| RGB / Lighting | RGB Fusion with support for: – 2 × RGB LED strip headers – 2 × Addressable RGB LED strip headers – Fully controllable via Gigabyte Control Center |
| Special Features | – Q-Flash Plus (update BIOS without CPU/GPU/RAM) – Multi-Key reset function (BIOS, RGB, Safe Mode) – Ultra Durable™ PCIe Armor – Anti-sulfur resistors – Dual BIOS |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Included Accessories | – Wi-Fi antenna – 2 × SATA cables – User manual – M.2 screw package |
| Warranty | 3-year manufacturer warranty |
