Product Description

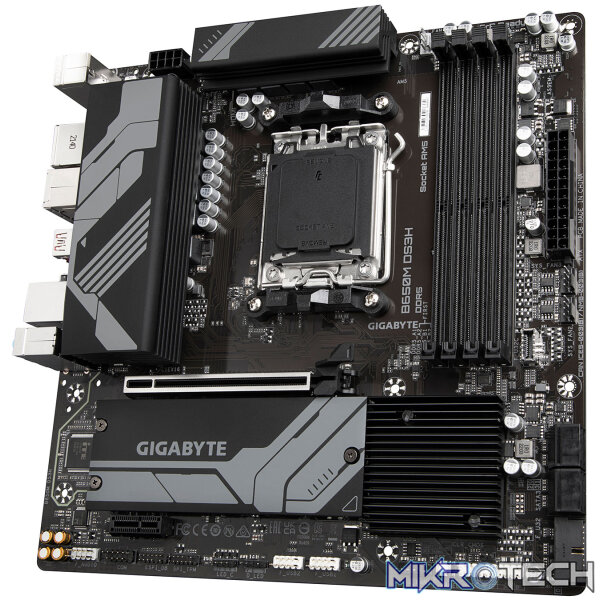

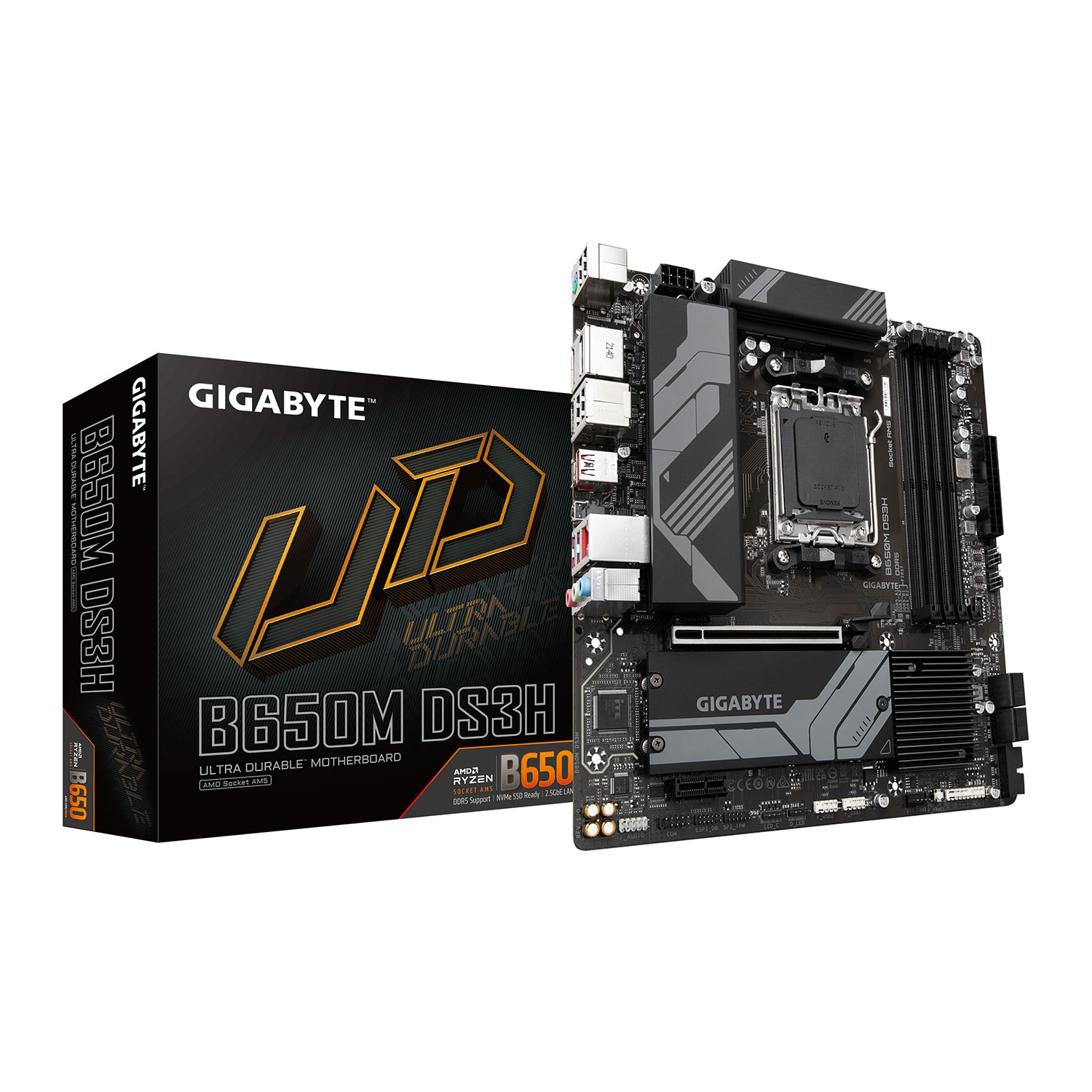

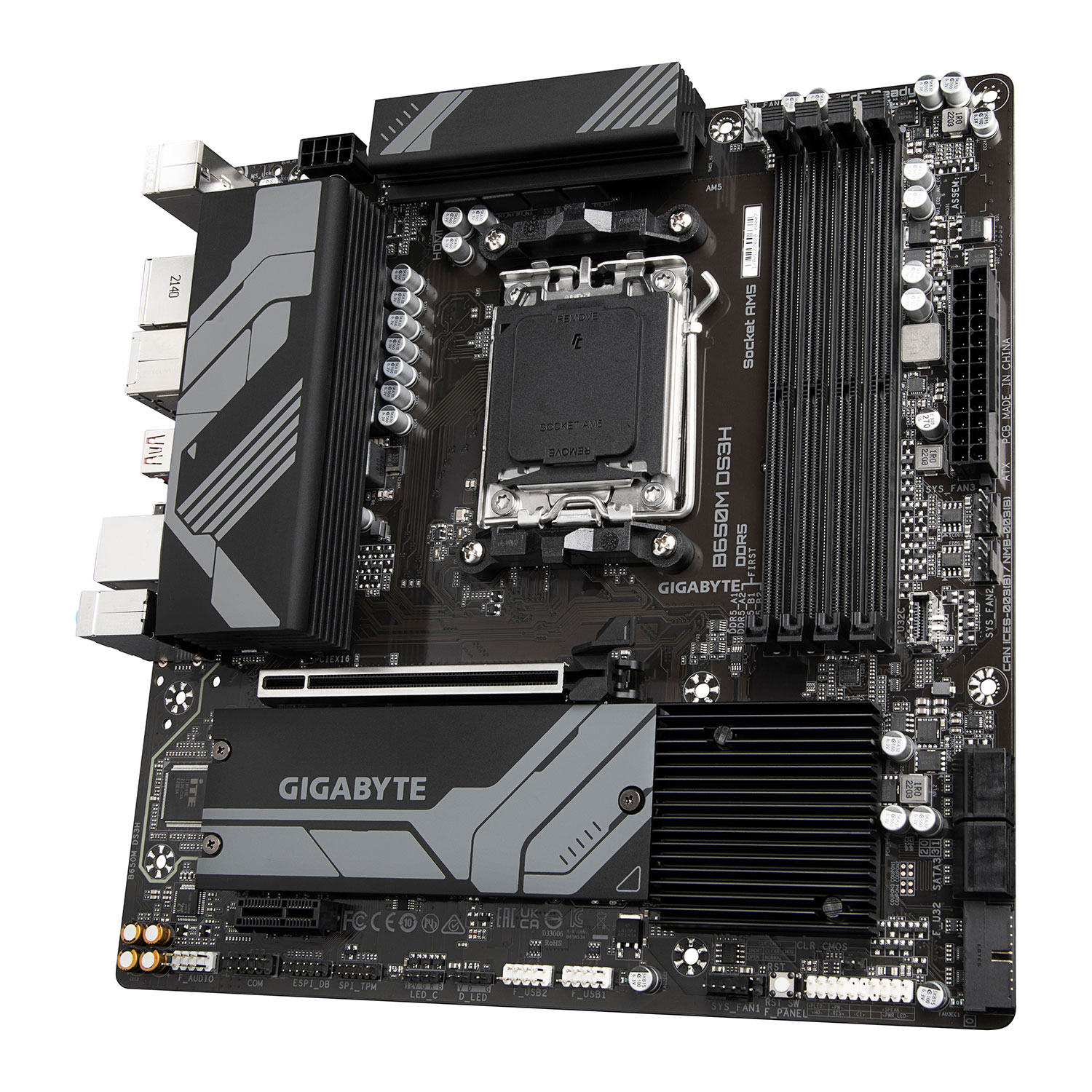

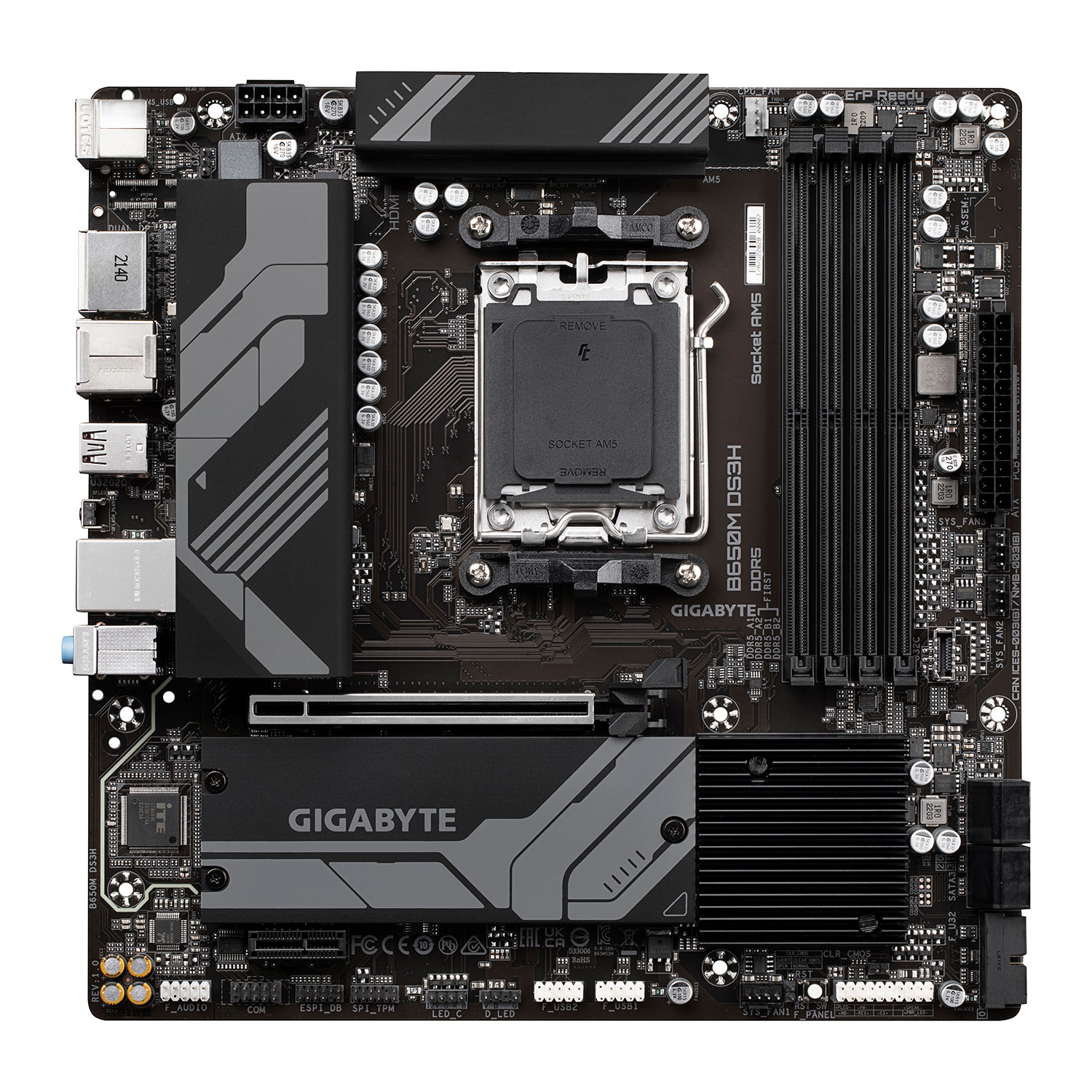

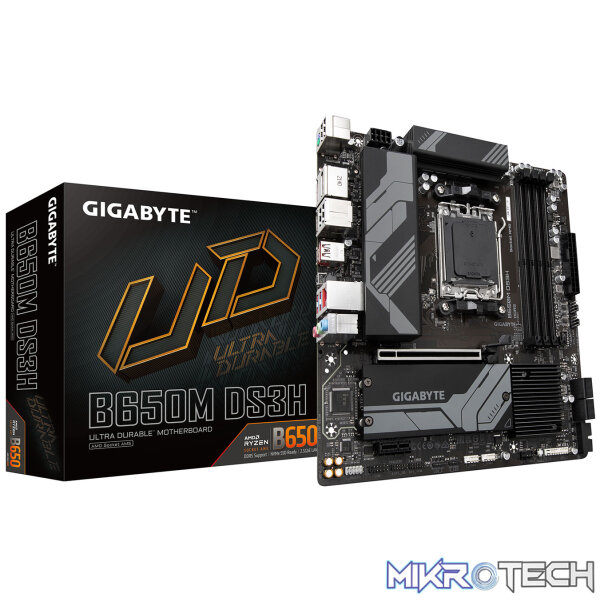

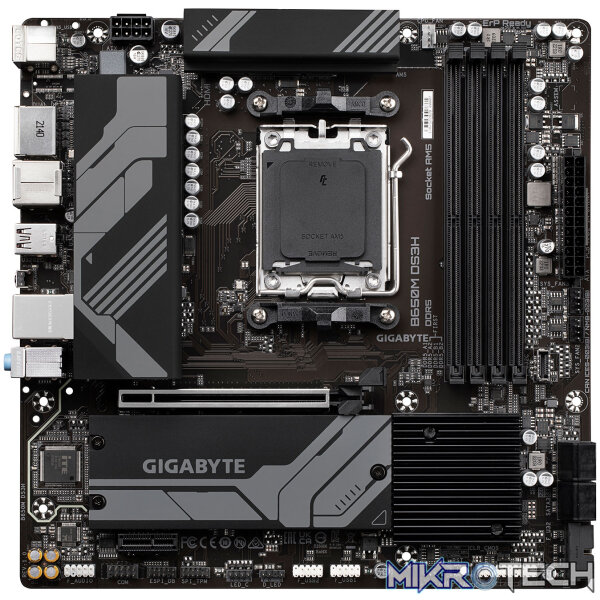

Gigabyte B650M DS3H AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard
GA-B650M-DS3H
Gigabyte B650M DS3H (rev. 1.0) Motherboard
- AMD Socket AM5?Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance?Direct 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5?4*SMD DIMMs with AMD EXPO™ & Intel®XMP Memory Module Support
- SuperSpeed Storage?2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard?To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- PCIe x16 EZ-Latch with Quick Release & Screwless Design
- Fast Networks?2.5GbE LAN
- Extended Connectivity?2*DP, HDMI, 2*USB-C®10Gb/s
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
Features
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
- Direct Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of AMDÂ’s new generation CPU, GIGABYTE UD series motherboard equip the best VRM design ever built with the highest quality components. - PCIe 4.0 Hardware Design
To ensure maximum Turbo Boost and overclocking performance of AMDÂ’s new generation CPU, GIGABYTE UD series motherboard equip the best VRM design ever built with the highest quality components. - EXPO & XMP Support
Gigabyte is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
THERMAL DESIGN
GIGABYTE MotherboardsÂ’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.
- First adopter on 2.5GbE LAN onboard
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. - Connecting the Future – USB 3.2 Gen 2 Type-C
he USB 3.2 Gen 2 ports provide with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 3.2 Gen 1 and USB 2.0, the much-improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices. - High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. - Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the boardÂ’s sensitive analog audio components from potential noise pollution at the PCB level.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
- RGB Fusion Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. - Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan. - GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function. - Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
- PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. - Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.With GIGABYTE Q-Flash Plus, you donÂ’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and youÂ’re good to go!
Additional Information:
Specifications
| Make and Model | Gigabyte B650M DS3H (rev. 1.0) Motherboard |
|---|---|
| Part Number | B650M DS3H |
| Color | Black |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer “CPU Support List” for more information.) |
| Chipset | AMD B650 |
| Memory | 1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s MHz memory modules 2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor: 1. 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time |
| Audio | 1. Realtek®Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | 1.Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface | CPU: 1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 1. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: 1. 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2 support 2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: 1. 4 x USB 2.0/1.1 ports on the back panel Chipset: 1. 1 x USB Type-C®port with USB 3.2 Gen 2 support, available through the internal USB header 2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 3. 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 3 x system fan headers 5. 1 x addressable LED strip header 6. 1 x RGB LED strip header 7. 2 x M.2 Socket 3 connectors 8. 4 x SATA 6Gb/s connectors 9. 1 x front panel header 10. 1 x front panel audio header 11. 1 x USB Type-C®header, with USB 3.2 Gen 2 support 12. 1 x USB 3.2 Gen 1 header 13. 2 x USB 2.0/1.1 headers 14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 15. 1 x serial port header 16. 1 x reset button 17. 1 x reset jumper 18. 1 x Clear CMOS jumper |

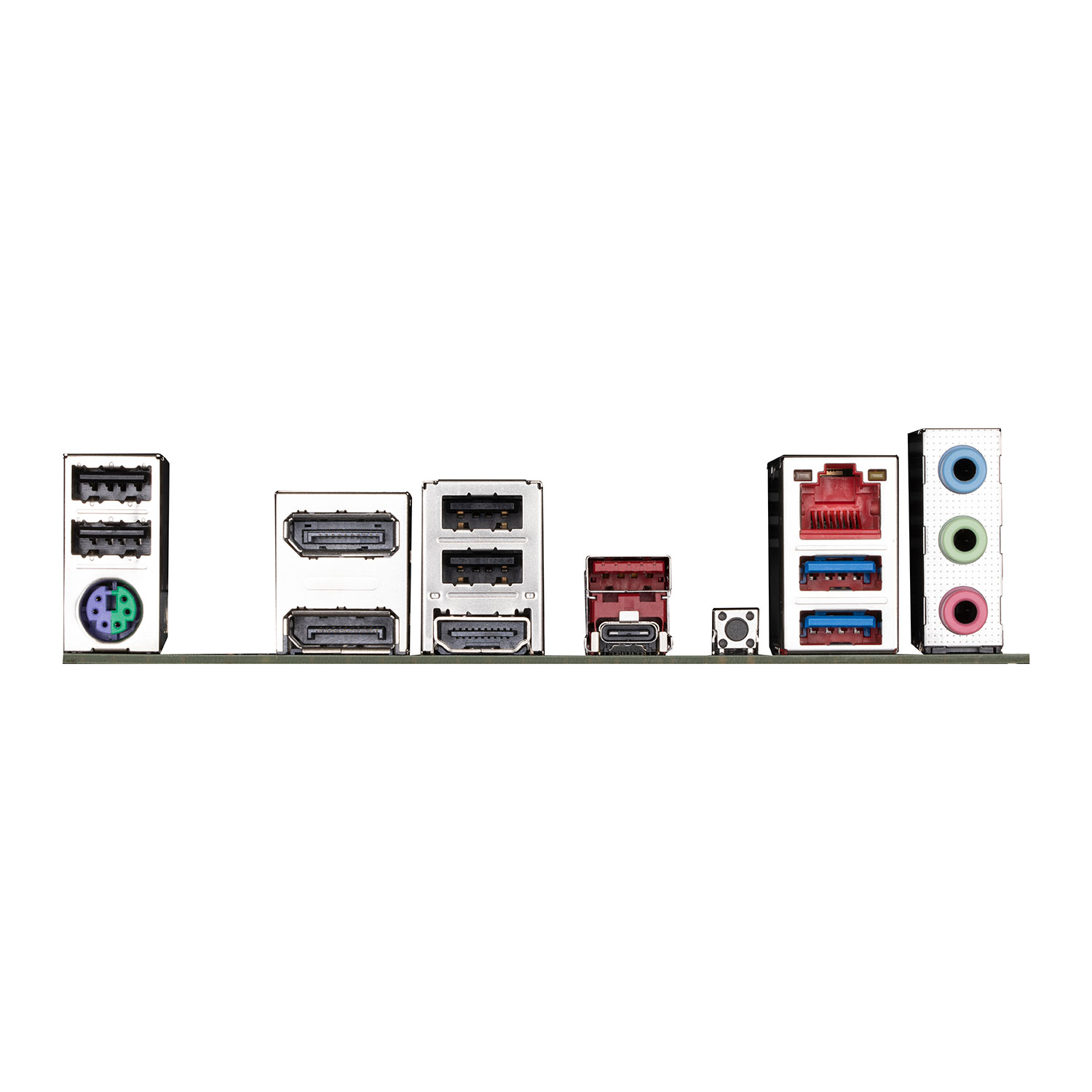

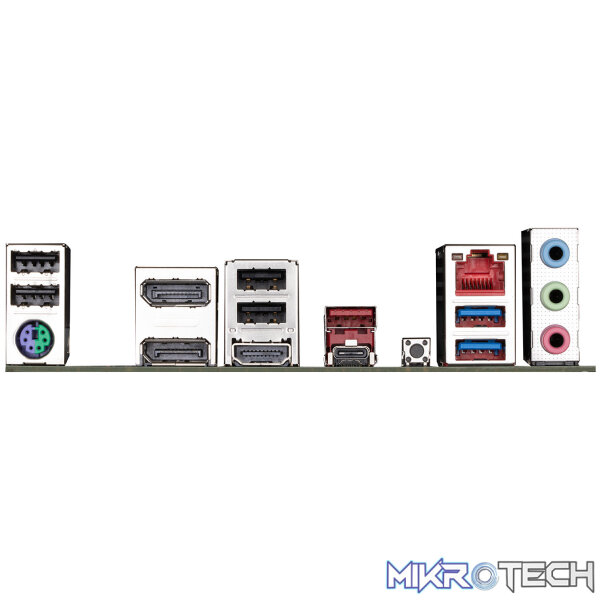

| Back Panel Connectors | 1. 4 x USB 2.0/1.1 ports 2. 1 x PS/2 keyboard/mouse port 3. 2 x DisplayPorts 4. 1 x HDMI port 5. 1 x USB 3.2 Gen 2 Type-A port (red) 6. 1 x USB Type-C®port, with USB 3.2 Gen 2 support 7. 1 x Q-Flash Plus button 8. 1 x RJ-45 port 9. 2 x USB 3.2 Gen 1 ports 10. 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection 2. Temperature detection 3. Fan speed detection 4. Fan fail warning 5. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1. 1 x 256 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Operating System | Windows®10 64-bit, Windows®11 64-bit |
| Unique Features | 1. Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 2. Support for Q-Flash 3. Support for Q-Flash Plus |
| Bundled Software | 1.Norton® Internet Security (OEM version) 2.LAN bandwidth management software |
| Operating System | 1. Support for Windows 11 64-bit 2. Support for Windows 10 64-bit |
| Form Factor | Micro ATX |
| Dimensions | 24.4cm x 24.4cm |
