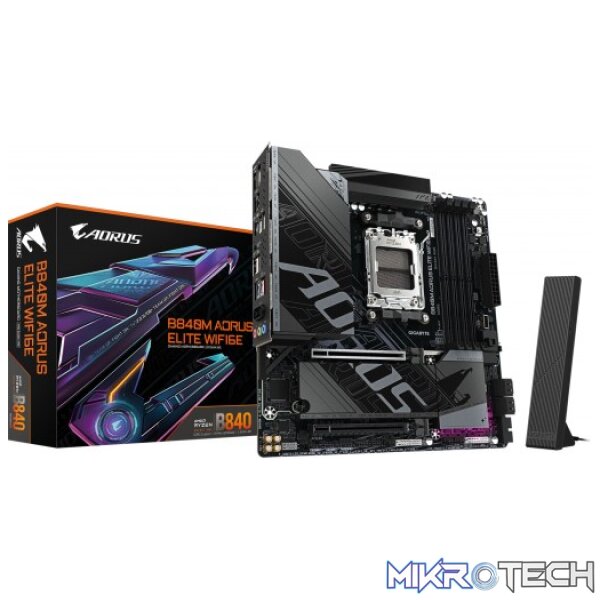

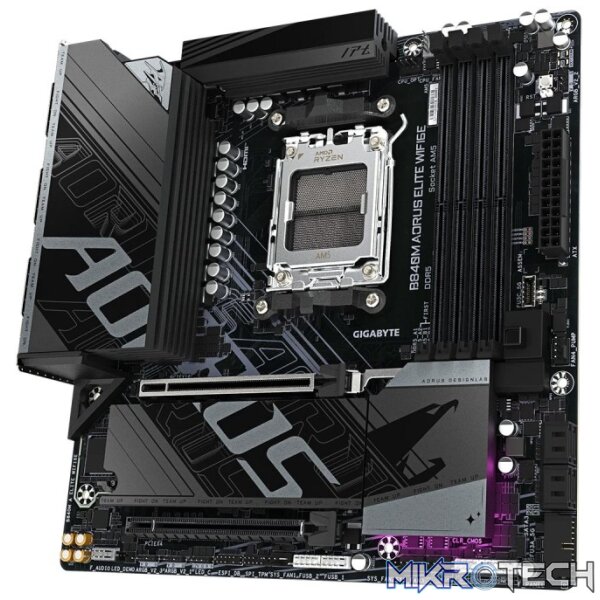

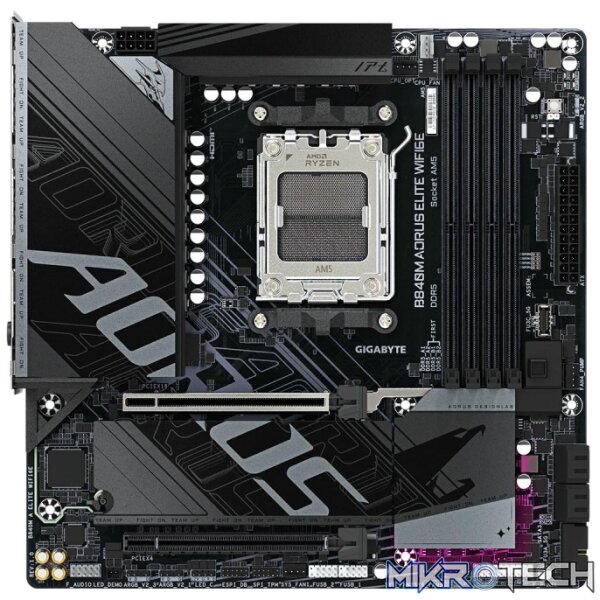

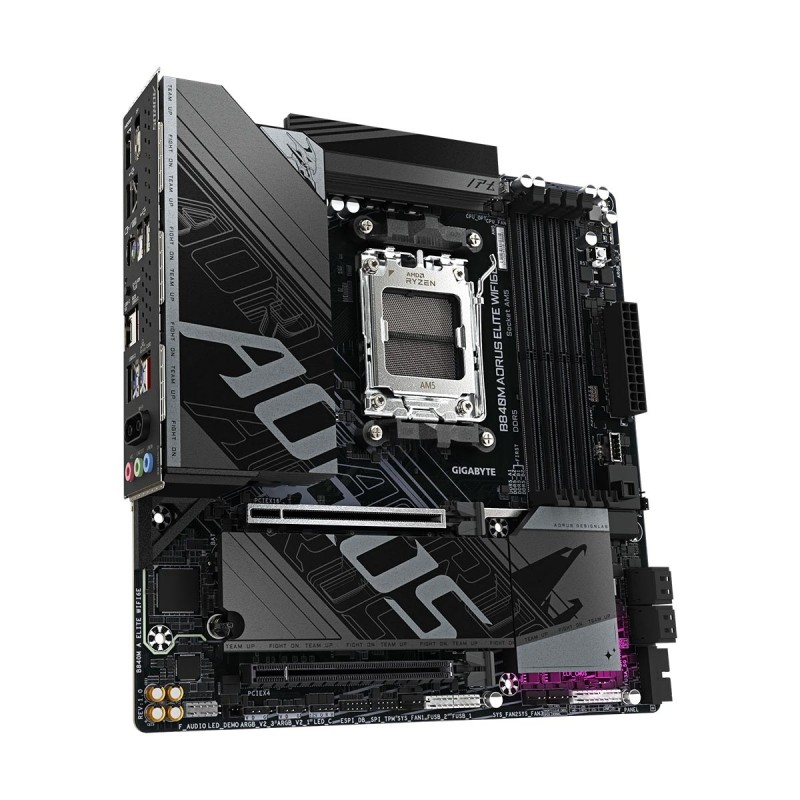

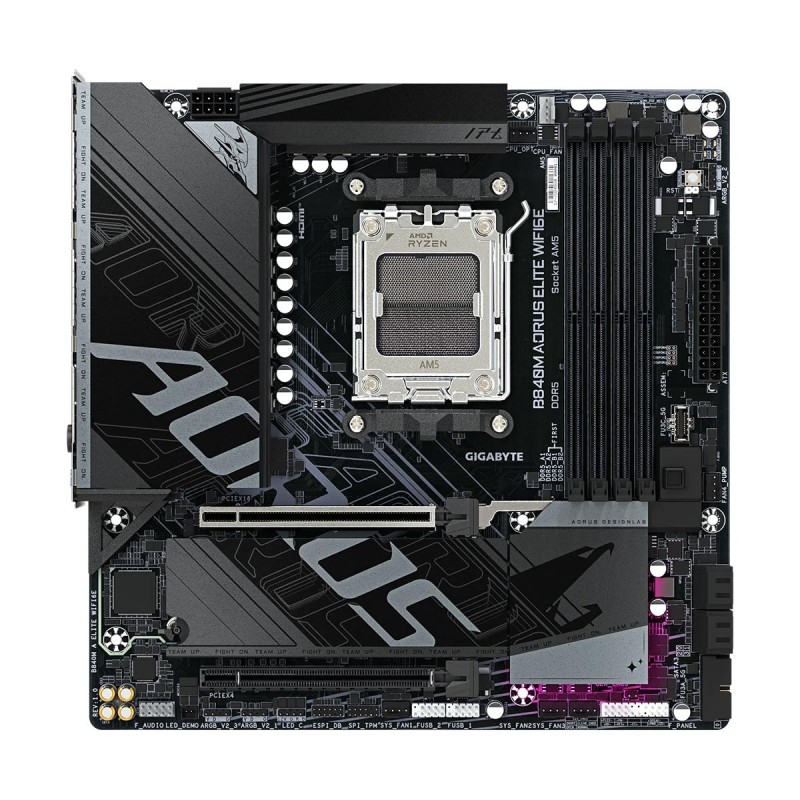

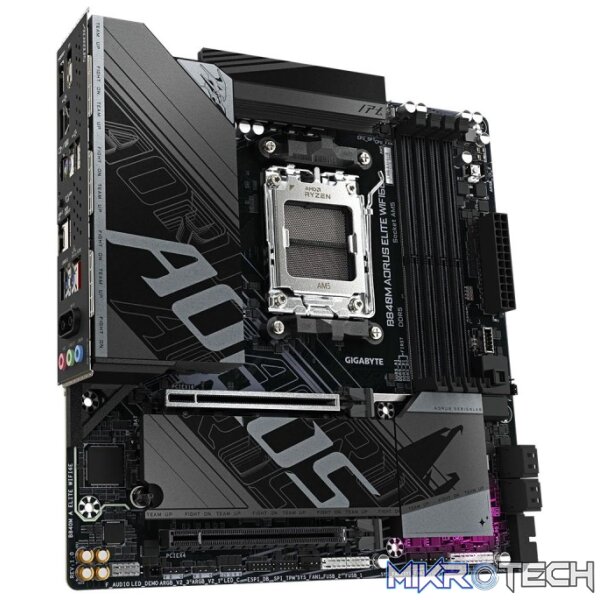

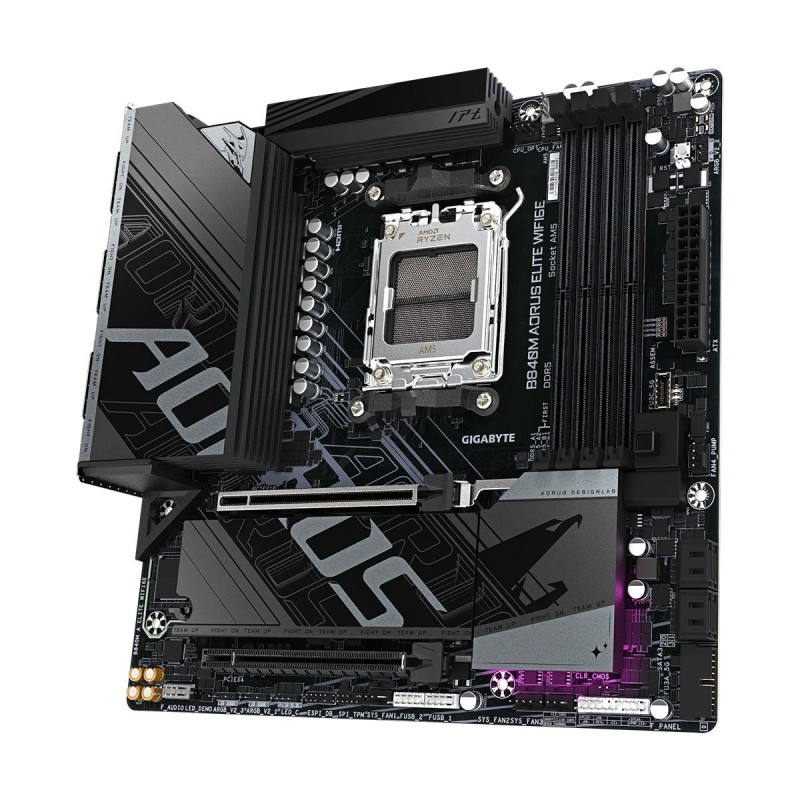

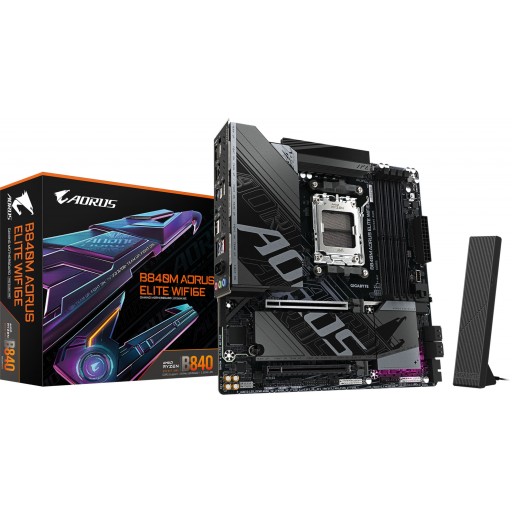

Gigabyte B840M AORUS ELITE WIFI6E AMD B840 Ryzen Socket AM5 Micro-ATX Motherboard
R4,099.99 incl. VAT
Only 8 left in stock
KEY FEATURES:
– Micro-ATX Form Factor
– AMD B840 Chipset
– Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
– 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
– Supports Up to DDR5-8200 (OC)
– Supports AMD EXPO & Intel XMP 3.0 Modules
– 1x PCIe 4.0 x16 Slot (x16 Physical)
– 1x PCIe 3.0 x4 Slot (x16 Physical)
– 1x M.2 2580 PCIe 4.0 x4 NVMe SSD Slot
– 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– 1x USB 10Gbps Type-A Port
– 2x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x HDMI 2.1 Port (TMDS), 1x DisplayPort 1.4 Port
– 1x PS/2 Combo Port (Keyboard/Mouse)
– 3x 3.5mm Audio Jacks (Headphone, Microphone), 2x SMA Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port

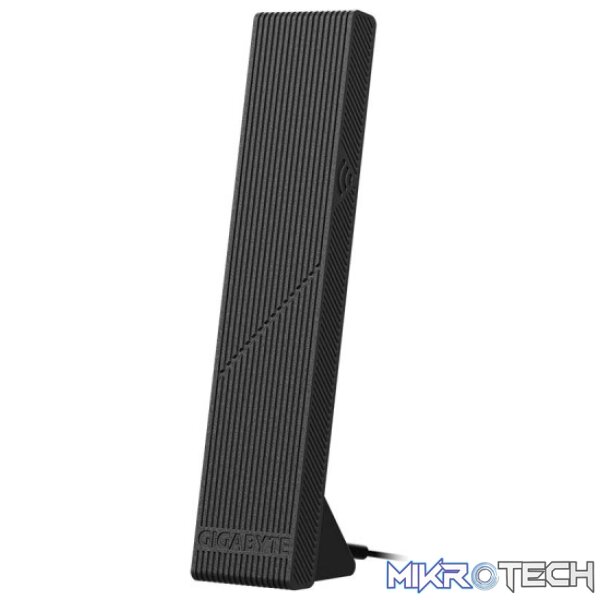

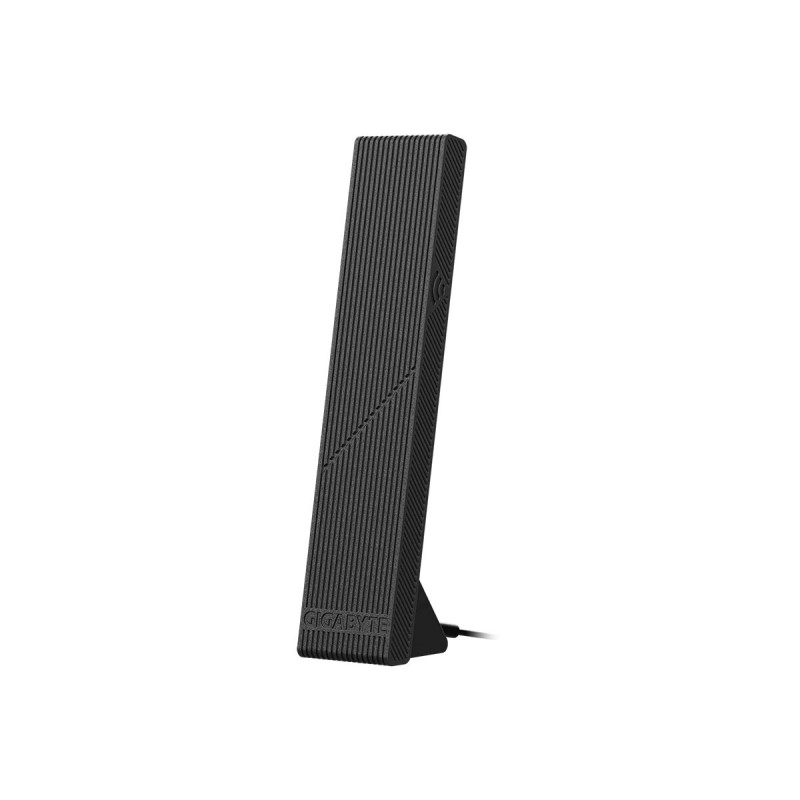

– Realtek WiFi 6E Tri-Band Adapter, Bluetooth 5.3
– Realtek High-Definition Audio Codec
– PCIe x16 EZ-Latch Plus Quick-Release Mechanism
– Digital 10+2+2 Phase VRM Solution
– Gigabyte Q-Flash Plus Button
– Gigabyte RGB Fusion
– Supports Windows 11
– 3 Year Warranty
Description
Gigabyte B840M AORUS ELITE WIFI6E AMD B840 Ryzen Socket AM5 Micro-ATX Motherboard
GA-B840M-A-ELITE-WIFI6E
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS ELITE Series |
| Model | B840M AORUS ELITE WIFI6E (B840M A ELITE WIFI6E) |
| CPU Support | Supports Ryzen 7000, 8000, 9000-Series Processors |
| Chipset | AMD B840 Chipset |
| Memory Support | |
| AMD B840 Chipset | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. |
| 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of 3840×2160@144 Hz, supports HDCP & HDR |
| HDMI | 1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096×2160@60 Hz, supports HDCP & HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Slot (x16 Physical) (PCIEX16) |
| AMD B840 Chipset | 1x PCIe 3.0 x4 Slots (x16 Physical) ((PCIEX4)) |
| Slot Configurations | PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Storage | |
| CPU Direct | 1x M.2 2580 PCIe 4.0 x4 NVMe SSD Slot (M2A_CPU) |
| 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot (M2B_CPU) | |
| 4x SATA 6Gbps connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Storage Configurations | M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| M2B_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| M2B_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| Networking | |
| LAN | Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port |
| WiFi | Realtek RTL8852CE WiFi 6E Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking, jack detection | |
| Connectivity | |

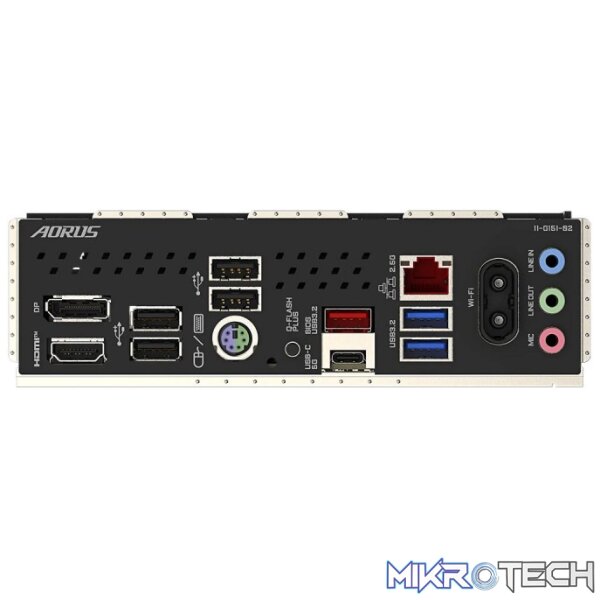

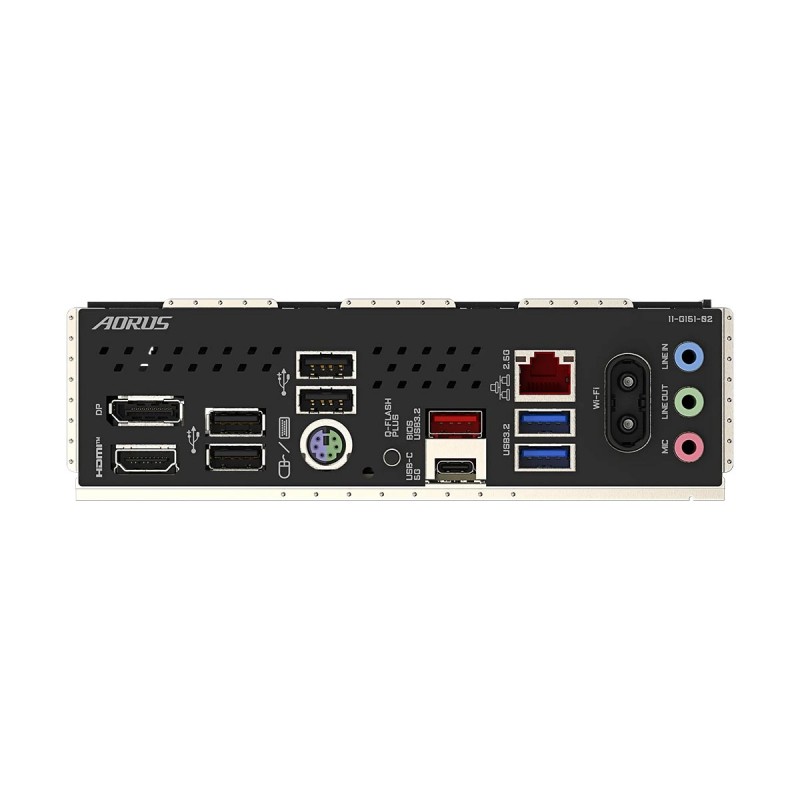

| Ports | 1x USB 10Gbps Type-A Port |
| 2x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port (TMDS) | |
| 1x DisplayPort 1.4 Port | |
| 1x PS/2 Combo Port (Keyboard/Mouse) | |
| 3x 3.5mm Audio Jacks (Headphone, Microphone) | |
| 2x SMA Connectors | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 3x addressable RGB Gen2 LED strip headers | |
| 1x RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| LEDs | Q-LED Status LEDs (BOOT, CPU, VGA, MEM) |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Warranty Information | |
| Warranty | 3 Year Warranty |
