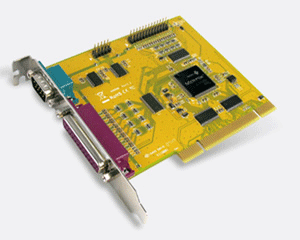

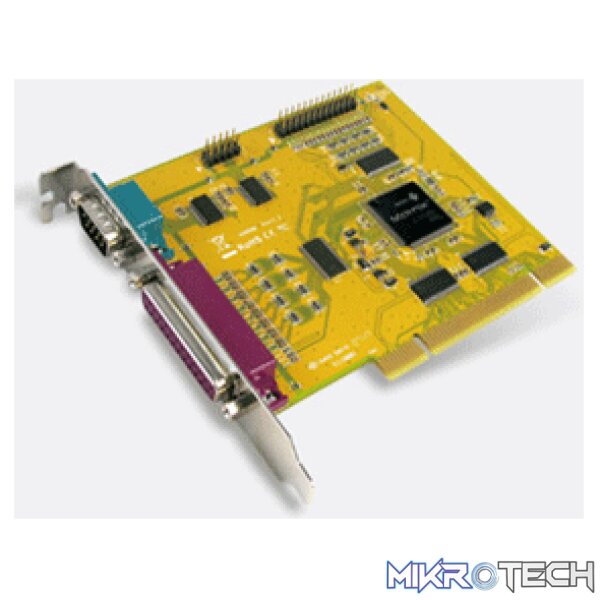

Sunix mio4089AM – 2 port serial + 2 port parallel PCI Multi-IO

Product Information

SUNIX universal PCI Multi-port serial card provides RS-232 Serial and Parallel connection ports on your system for industrial communication and automation applications. SUNIX 4079AM card works on both 32-bit and 64-bit PCI Bus with 3.3V or 5V power, allowing this multi-port serial card to be installed in virtually any PC system and compatible with all major operating systems.
SUNIX MIO 4089AM is designed for commercial automation applications which connect RS-232 serial peripherals without power supply. It provides options to select 5V and 12V power supply or RS-232 RI signal through the ninth pin of DB9 male connector in different ports. SUNIX MIO 4089AM universal PCI Multi-port serial card is the best solution for various industrial communication and automation applications.

FEATURES

• High reliability SUNIX single chipset designed ASIC SUN1998.
• Expands two RS-232 and one IEEE1284 Parallel ports on system.
• Compliance with PCI Ver. 2.2 spec. and Power Management Ver1.0 standard.
• Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
• Expand 2 independent RS-232 serial ports with 5/12 V power output.
• Support IEEE 1284-1994 parallel port standard
  ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
  SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port).
• Industrial grade design for stability and reliability.
• Plug-n-Play, I/O address and IRQ assigned by BIOS.
• Supports Re-map function for legacy ports under Microsoft Windows 98 O.S..
• Certified by CE, FCC, RoHS approval.
• Support Microsoft Windows, Linux, and DOS.
