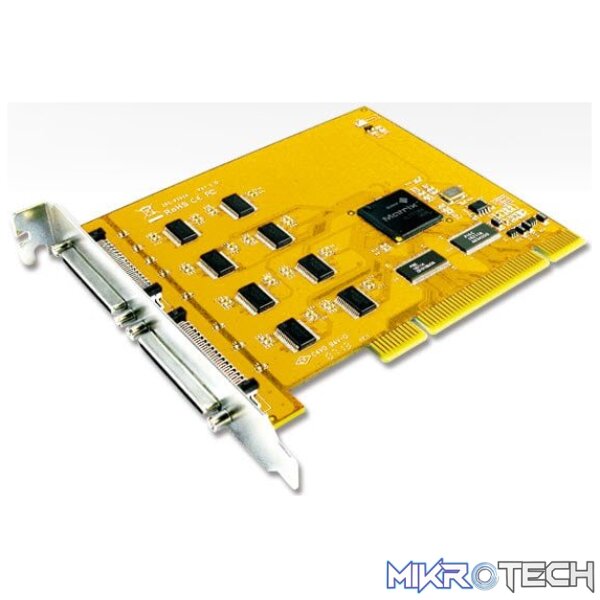

Sunix ser1600A 16 port high-speed serialial PCI card
R4,029.99 incl. VAT
Only 1 left in stock
Overview:
SUNIX SER1600A, Universal PCI serial communication board, allows users to add or expand 16 RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER1600A card has 64-bytes onboard FIFO buffer and compatible with 16C750 UART specification. SUNIX GoldenIO card series is designed with SUNIX UART controller, Matrix UL7534EB and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features:
- Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps..
- High speed Matrix UL7534EB 16C750 compatible UART controller on-board.
- Compliance with PCI 33/66 MHz Ver 3.0, 2.3, 2.2, & 2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ±15KV ESD protection for all serial signals.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
| Product Description | 16-port RS-232 high speed PCI card |
|---|---|
| Interface | RS-232 |
| Controller | Matrix UL7534EB (16C750 UART Compatible) |
| Bus Interface | Universal PCI 64/32bit 3.3V/5V PCI 33/66MHz Ver 3.0/2.3/2.2 |
| No. of Port | 16-port |
| IRQ & IO | Assigned by System |
| FIFO | 64 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Baud rate | 50 bps to 921.6 Kbps |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (Hardware), XON/XOFF(Software) |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Disaharge |
| PCB connector | Mini SCSI 68pin |
| Microsoft | 3.1/95/98/NT/ME/2000/XP/2003/Vista (32/64 bit)/CE5.0/XP Embedded |
| Linux | Linux 2.4.x / 2.6.x |
| Unix | SCO Unixware 7.1.3, SCO OpenServer 5.0.6/5.0.7/6.0 |
| DOS | DOS |
| Software | Microsoft WHQL Window XP |
| Operating Temperature | 0 to 60 °C ( 32 to 140 °F ) |
| Operating Humidity | 5% to 95% RH |
| Storage Temperature | -20 to 85 °C ( -4 to 185 °F ) |
| Connection Cable | DB68 to 8 ports DB9/DB25 male connection cable, 40/100 cm |
| PCB Dimension | 120 x 100 |
| Bracket | Std. 121 |
