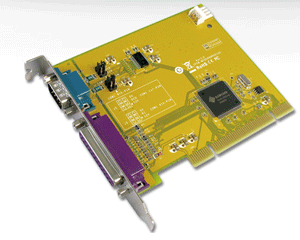

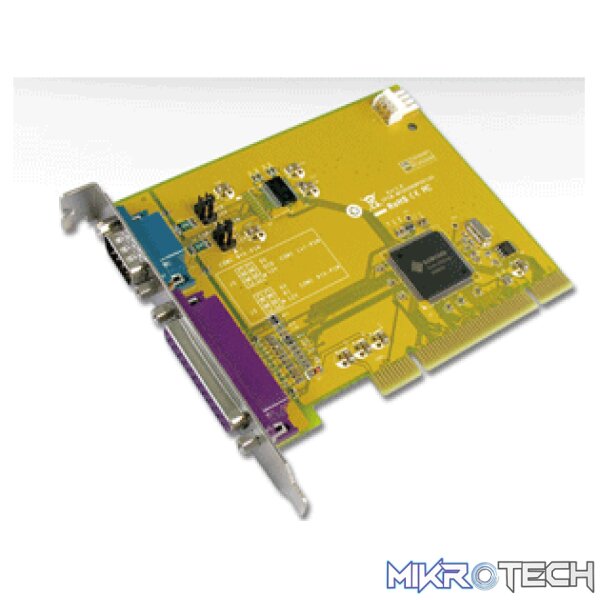

Sunix Mio5069PH 1 port high-speed serial and 1 port parallel pci card

Overview:

The majority of today´s motherboard does not equip with any RS-232 or Parallel port. With SUNIX MIO5069PH Multi I/O board, users can expand one RS-232 COM port and one IEEE1284 Parallel LPT port on their system, allowing them to use serial and parallel devices further. Besides this board supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It’s convenient for users connecting serial devices without addition external power supply. SUNIX MIO5069PH is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing this multi-port card to be installed in virtually any available PC and compatible with all major operating systems. Furthermore, SUNIX MIO5069PH Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.

Features:

• Expands 1-port RS-232 COM and 1-port IEEE1284 LPT on system.
• Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
• High reliability SUNIX SUN1989 16C950 compatible Multi-IO controller on-board.
• Expands one RS-232 serial port with communication speed up to 921.6Kbps.
• Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ±215KV ESD protection for all serial signals meets IEC1000-4-2 standard.
• Support IEEE 1284-1994 parallel port standard
• ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
• SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
• Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
• Plug-n-Play, I/O address and IRQ assigned by system.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, and DOS.
