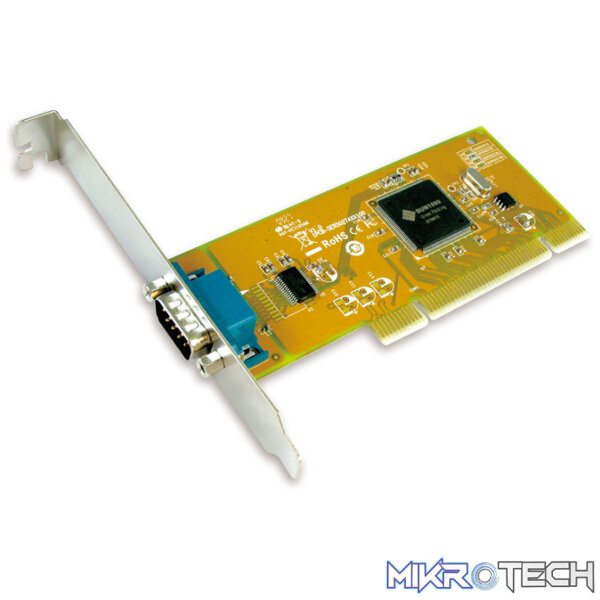

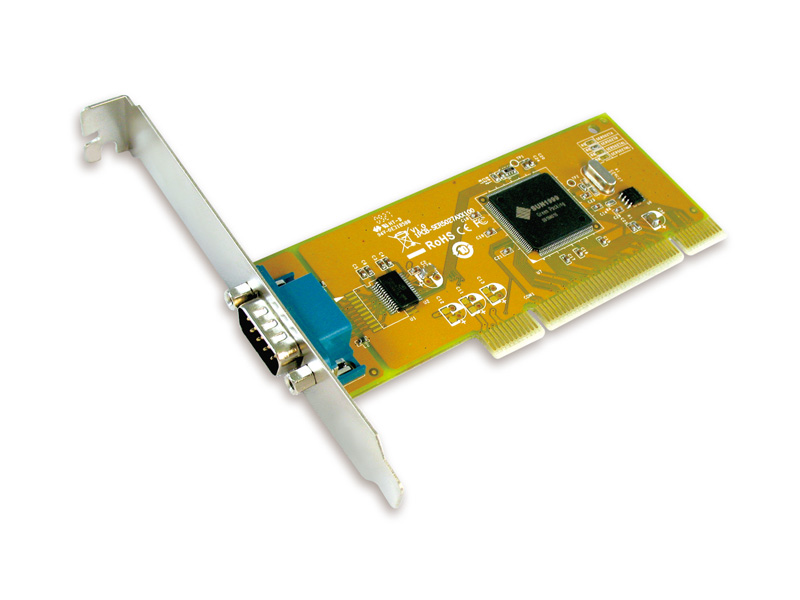

Sunix SER5027H 1-port RS-232 High Speed Universal PCI Serial Board
R559.99 incl. VAT
Only 5 left in stock
Overview:
SUNIX SER5027H, Universal PCI serial communication board, allows users to add or expand one RS-232 port on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER5027H card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features:
- Expands single independent RS-232 serial port with communication speeds up to 921.6Kbps.
- High reliability SUN1989 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
| Product Description | 1-port RS-232 High Speed Universal PCI Serial Board |
|---|---|
| Interface | RS-232 |
| Controller | SUNIX SUN1989 (16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 1-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 921.6 Kbps |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB connector | DB9 Male |
| Windows Client | XP/Vista/7/8.x/10 (X86/X64) |
| Windows Server | 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64) |
| Windows Embedded | Windows CE 4.2/5.0/6.0 XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux | Linux 2.4.x / 2.6.x / 3.x |
| FreeBSD | FreeBSD 5.3~5.5 / 6.0~6.4 |
| QNX | QNX 6.3.2/6.4.0 |
| * IBM OS/2 | WARP 3/WARP 4 |
| * SCO UnixWare | UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0 |
| * Sun Microsystems | Solaris 10 |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software | Microsoft WHQL Windows Windows Client: Windows XP/Vista/7/8.x/10 (X86/X64) Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64) |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| PCB Dimension | 120 x 51 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
