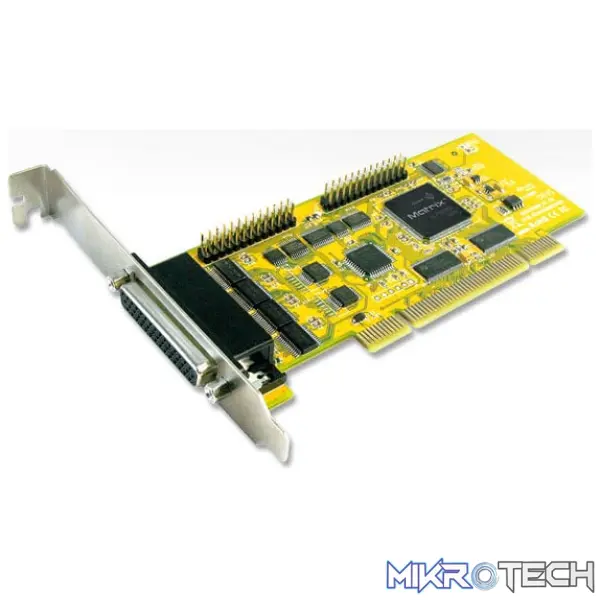

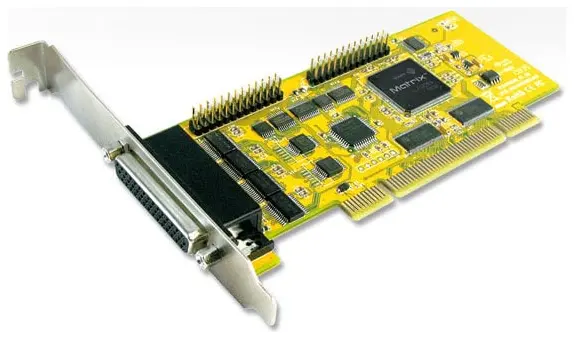

Sunix mio4096AM 3x slots required – 4 port serial + 2 port parallel PCI card
R1,689.99 incl. VAT
Only 3 left in stock
Overview:
The majority of todayÂ’s motherboards is not equipped with any RS-232 or parallel LPT port. With SUNIX MIO4096AM Multi I/O board, users can expand four RS-232 and two IEEE1284 parallel ports on their system, allowing them to use traditional serial and parallel devices further. SUNIX MIO4096AM is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO4096AM Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows X86/X64 platform, and Linux 2.2.x ~ 2.6.x kernels, making it the best and most economical solution for commercial and industrial applications.
Features:
- Expands 4 ports RS-232 and 2 ports IEEE1284 interface on system.
- Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
- High reliability SUNIX UL7522EQ 16C650 compatible Multi-IO controller on-board.
- Expands four RS-232 serial ports with communication speeds up to 230.4Kbps.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ±15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Support IEEE 1284-1994 parallel port standard.
- ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
- SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by RoHS CE, FCC ClassB approval.
- Support DOS, Linux, Microsoft 3.x, 9x, Me, NT, 2000, XP, 2003, Vista, and 2008.
- Ready for the IntelR and AMDR 32/64-bit operation system.
| Controller | SUNIX UL7522EQ (16C650 UART Compatible) |
|---|---|
| BUS | Universal PCI 64/32bit 3.3V/5V, PCI Ver 2.3/2.2/2.1 |
| IRQ & IO | Assigned by system |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50~230.4Kbps |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB Connector | DB44 Female |
| Interface | IEEE1284 |
| No. of Port | 2-Port |
| Mode | SPP/ECP/EPP/BPP(PS2) |
| Speed | Maximum 2.7MBps |
| PCB | 5×2 Pin Header (2 Sets) |
| Microsoft Windows | 3.1/95/98/ME/2000/XP/Vista (X86/X64) |
| Microsoft Embedded | XP Embedded/Embedded Standard 7 |
| Microsoft Server | NT/2003/2008 (X86/X64) |
| Linux | Linux 2.2.x / 2.4.x / 2.6.x |
| DOS | DOS |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS |
| Software | Microsoft WHQL Window XP/Vista |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Operating Humidity | 5% to 95% RH |
| Storage Temperature | -20 to 85 °C (-4 to 185 °F) |
| Cable | Pin Header to DB9 Male & DB25 Female Connector Bracket Set |
| PCB Dimension | 140 x 61 |
| Bracket | Standard 121 |
