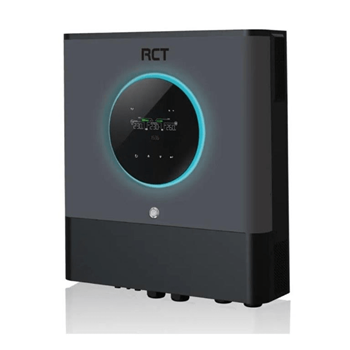

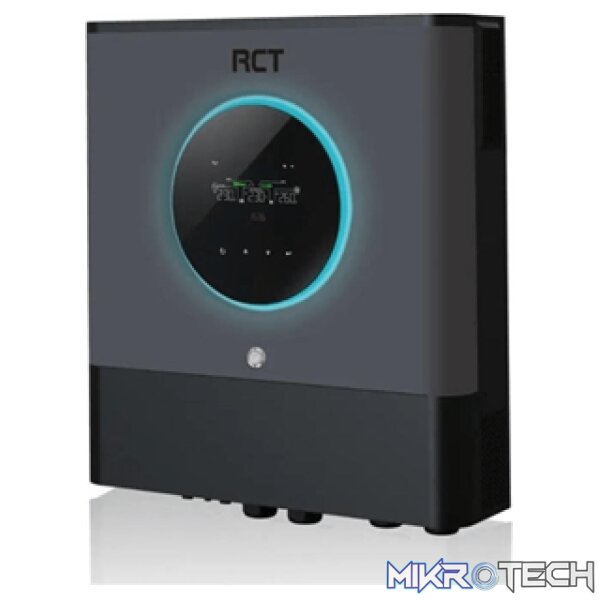

RCT AXPERT MX2 11KVA/11KW INVERTER
KEY FEATURES:
- Status indication with RGB lights.
- Built-in wi-fi
- Supports USB On-the-Go function.
- BMS (RS485, CAN-BUS or RS232).
- Battery independent design.
- Configurable AC / PV output usage timer and prioritization.
- Compatible to utility mains or generator input.
- Parallel operation with 6 units.
Product Description
Description
RCT AXPERT MX2 11KVA/11KW INVERTER
| Specifications | |
| Model | RCT-AXPERT MX2 11K48V |
| RATED POWER | 11000VA / 11000W |
| Parallel Capability | Yes, 6 Units |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 22000 VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | < 70W |
| DC Voltage | 12 VDC ± 5%, 100W |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 11000 W (5500 W x 2) |
| MPP Range @operating Voltage | 90~450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Solar Charge Current | 150A |
| Maximum AC Charge Current100A | 150A |
| Maximum Charge Current | 150A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 158.4 mm x 503.6 mm x 530.8 mm |
| Net Weight (kgs) | 20 |
| Communication Interface | USB / RS232 / RS485 / Wi-Fi / Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| STANDARD | |
| Compliance Safety: CE | YES |
| * Typical transfer time for parallel operation is 30ms to 50ms. | |
| Product specifications are subject to change without further notice. | |
