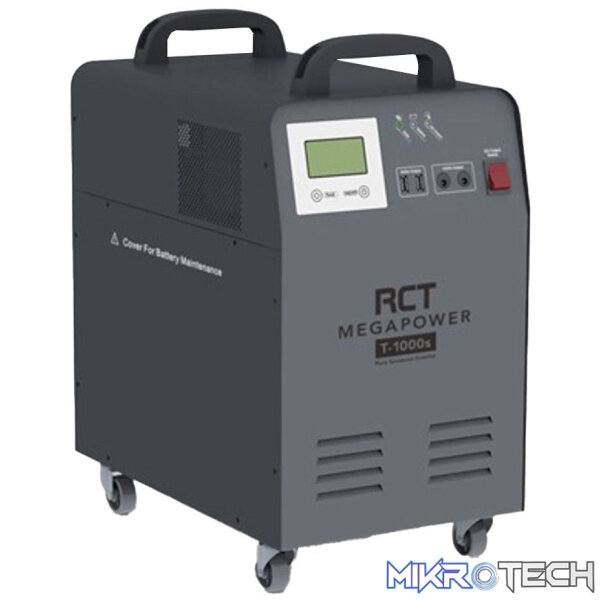

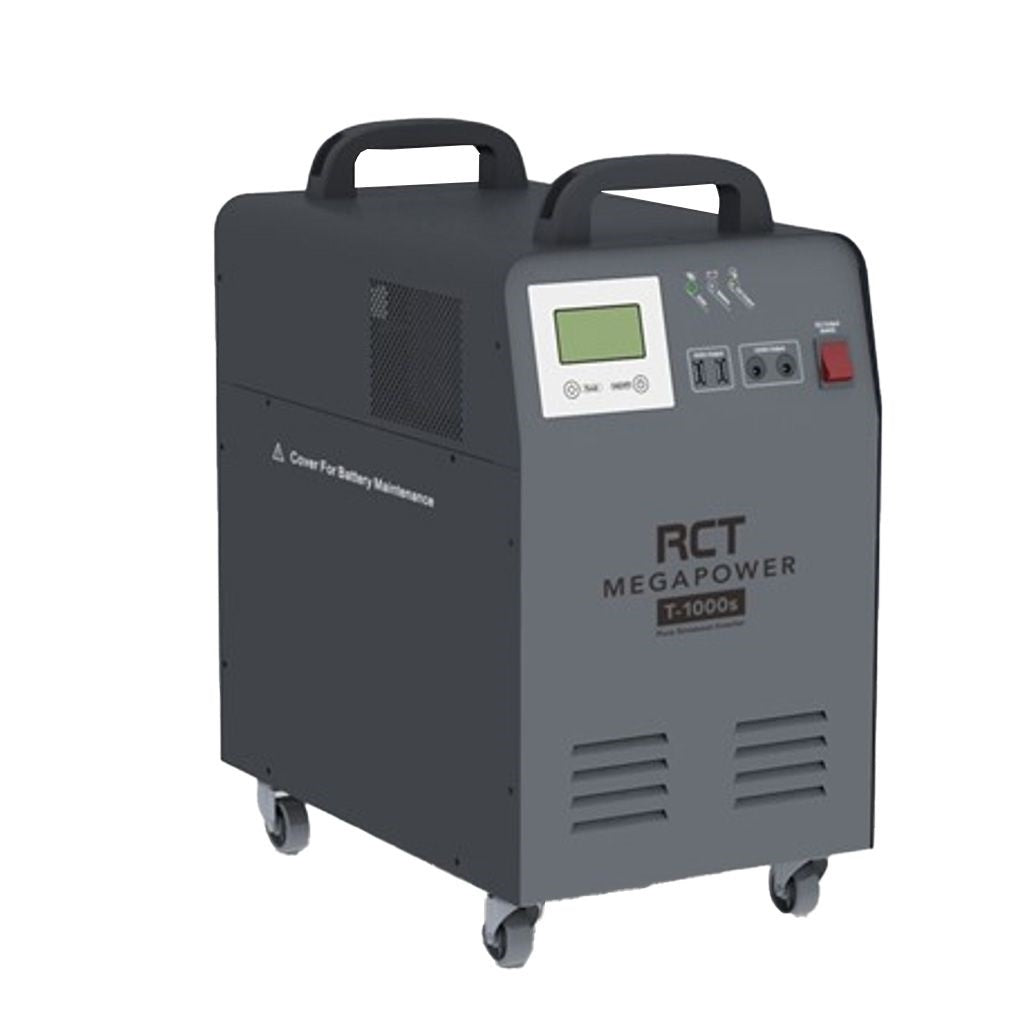

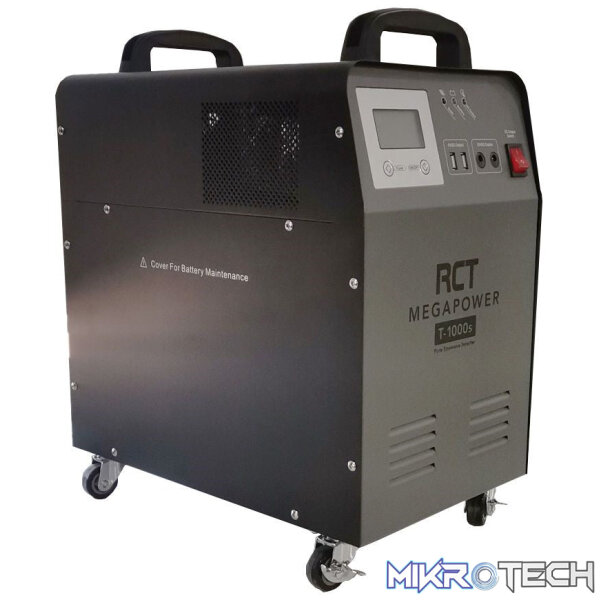

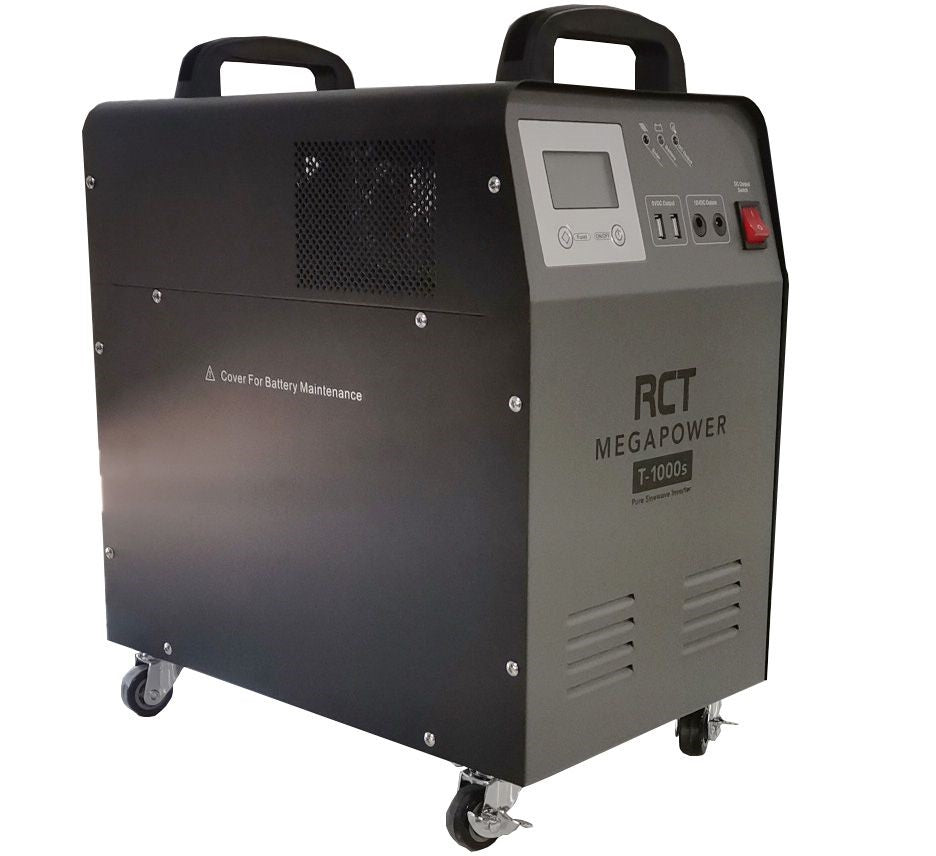

RCT MegaPower RCT-MP-T1000S 1KVA/1000W Inverter Trolley With 1 x 100AH Battery

Pure Sinewave for Sensitive Electronics & Motorised Loads
Microprocessor Control Optimizes Reliability
Input Power Factor Correction
Output Power Factor 1.0
Comprehensive Display Allows Easy Monitoring & Access of UPS Status
Built-in MPPT solar charger
2 x USB 5 V DC output and 2 x 12 V DC output
Battery cut off switch for safety
Pre-installed batteries

Specifications
RATED POWER: 1000 W
OUTPUT VOLTAGE: 220 VAC
OUTPUT FREQUENCY: 50 / 60 Hz
OUTPUT WAVEFORM: Pure Sine Wave

SOLAR INPUT
MAXIMUM PHOTOVOLTAIC
VOLTAGE (VDC): ? 25 V
CHARGE VOLTAGE (VDC): 10 V – 25 V
RATED CHARGE CURRENT (A): 30 A
MAXIMUM POWER (Wp): 360 Wp
VOLTAGE OVERCHARGE PROTECTION
(VDC): 14.2 V
VOLTAGE OVERCHARGE RECOVERY
(VDC): 14.0 V
VOLTAGE OF FLOATING CHARGE (VDC):
13.7 V

OUTPUT
AC OUTPUT:
2 x SA 3 Pin Socket – 230 V 50 Hz,
1000 VA / 1000 W Max. (Combined)
USB OUTPUT:
2 x USB Type A Port – 5 VDC 2 A Max.
DC OUTPUT:
2 x 12 V DC Port 2 A Max.
BATTERY TYPE:
1 x 12 DC 100 AH Deep Cycle
VRLA Gel Battery

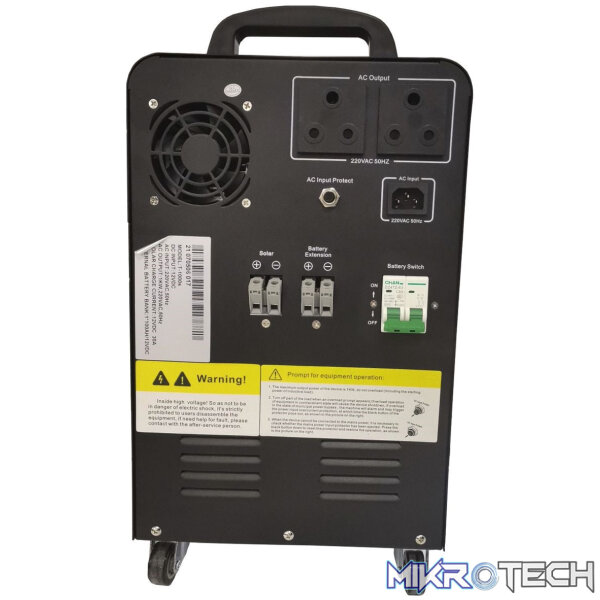

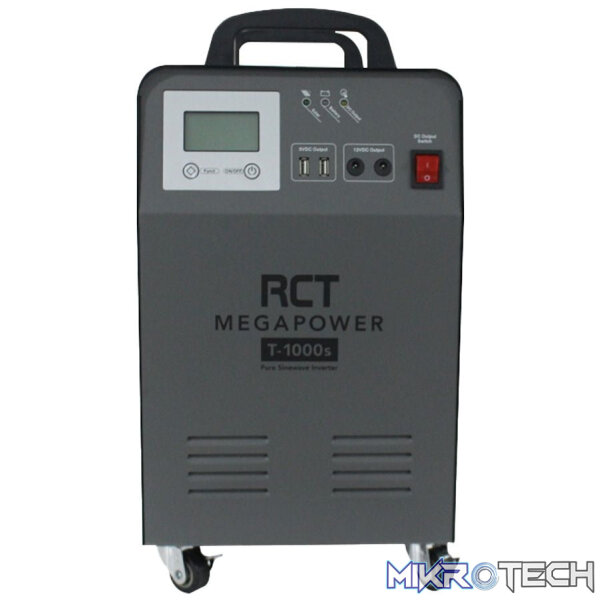

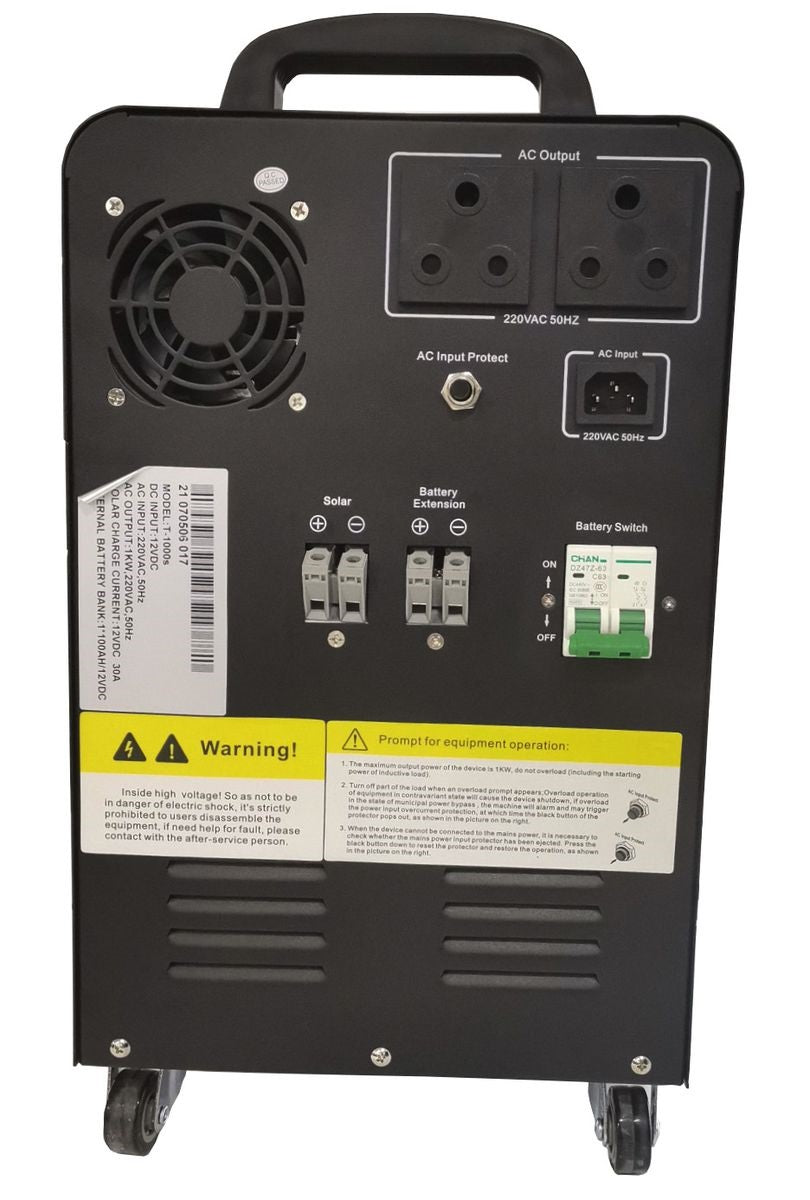

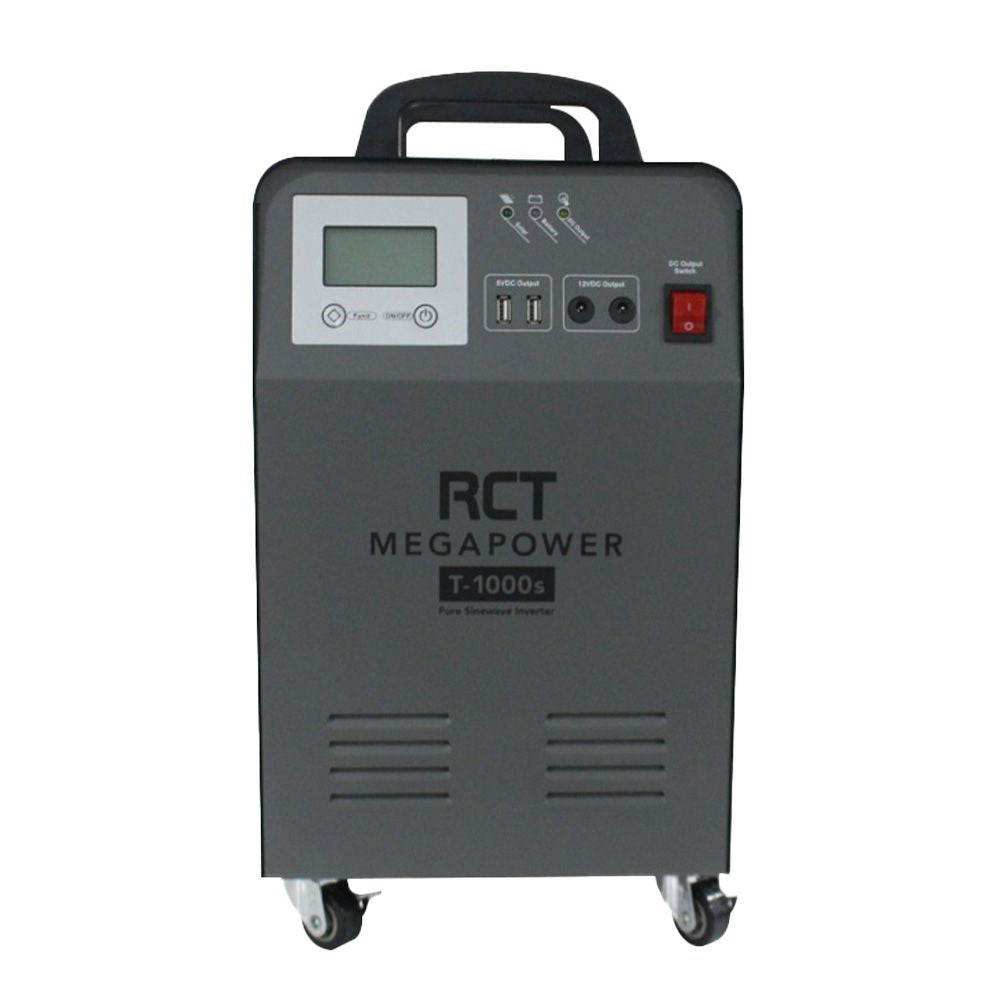

Ports and Interfaces
1. AC Output
2. Smart Cooling Fan
3. AC Input
4. Solar PV Input
5. Battery Extension
6. Battery Switch
7. Led Indicator
8. LCD Display
9. Function Buttons
10. On / Off Buttons
11. 5VDC Output
12. 12VDC Output
13. DC Output Switch
