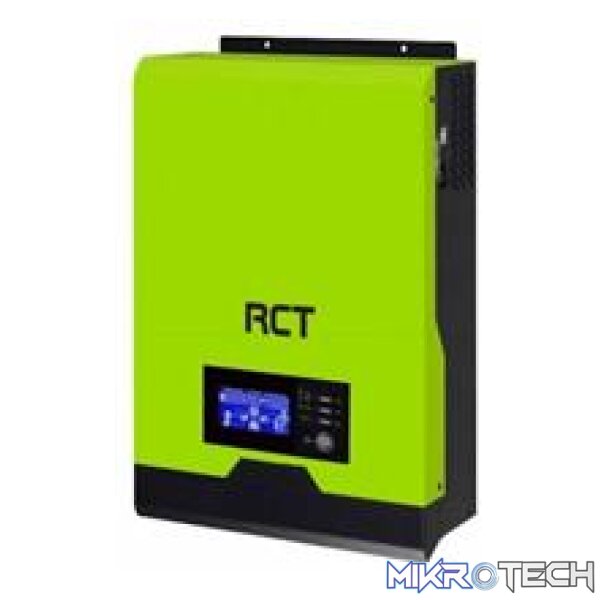

RCT-AXPERT VM2 2500VA/2500W INVERTER 24V DC 3000W MPPT
KEY FEATURES:
n
-
n
- Pure sine wave solar inverter
- Ouput power factor 1
- High PV input voltage range
- Battery independednt design
- Buil-in 100A MPPT solar charger
- Battery equalization function to optimise battery performance and extend lifecycle
- Buil-it in anti-dust kit for harsh environment
n
n
n
n
n
n
n
Product Description
Description
RCT-AXPERT VM2 2500VA/2500W INVERTER 24V DC 3000W MPPT
n
RCT-AXVM2-2.5K24V
nMain Features
n
-
n
- Pure sine wave solar inverter
- Ouput power factor 1
- High PV input voltage range
- Battery independednt design
- Buil-in 100A MPPT solar charger
- Battery equalization function to optimise battery performance and extend lifecycle
- Buil-it in anti-dust kit for harsh environment
n
n
n
n
n
n
n
n
Specifications
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
| Model | Axpert VM II 2500-24 |
| RATED POWER | 2500VA/ 2500W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 5000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 32 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 3000 W |
| MPPT Range @ Operating Voltage6 | 60VDC ~ 400VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 90 x 288 x 357 |
| Net Weight (kgs) | 6.5 |
| Communication Interface | RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
n
n
n
n
n
n
n
| Product specifications are subject to change without further notice. |
