Product Description
Description

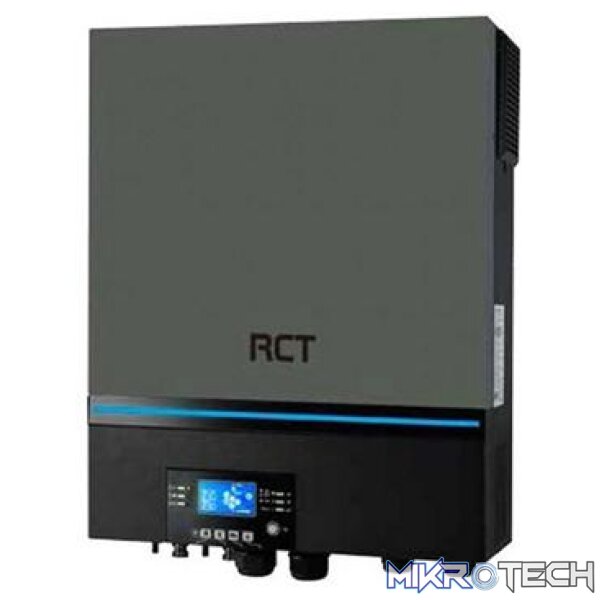

Axpert Max Off-Grid Inverter 8KVA/ 8KW With 2x 4,000W MPPT Chargers
| Specifications | ||
| Model | Axpert Max 8000 | |
| RATED POWER | 8000VA/ 8000W | |
| Parallel Capability | Yes, 6 units | |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
| 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 16000VA | |
| Efficiency (Peak) | 90% – 93% | |
| Transfer Time | 15 ms (For Personal Computers); 20 ms (For Home Appliances). | |
| Waveform | Pure sine wave | |
| No Load Power Consumption | < 70 W | |
| BATTERY | ||
| Battery Voltage | 48 VDC | |
| Floating Charge Voltage | 54 VDC | |
| Overcharge Protection | 66 VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 8000W (4000W x 2) | |
| MPPT Range @ Operating Voltage | 90VDC ~ 450VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Solar Charge Current | 120A | |
| Maximum AC Charge Current | 120A | |
| Maximum Charge Current | 120A | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 147.4 x 432.5 x 553.6 | |
| Net Weight (kgs) | 18.4 | |
| Communication Interface | USB/ RS232/ RS485/ WiFi/ Dry-Contact | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C – 50°C | |
| Storage Temperature | -15°C – 60°C | |
| STANDARD | ||
| Compaliance Safety | CE | |
