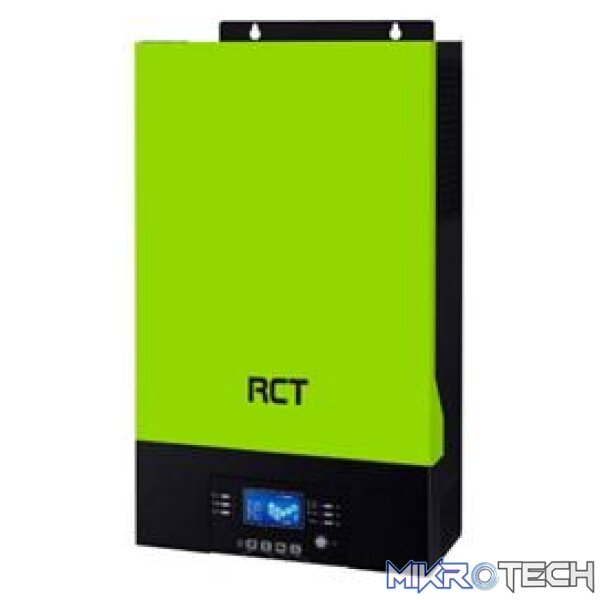

RCT RCT-AXPERT KING MK2 5K48V Axpert King MK2 5KVA Pure Sine Wave Wall Mountable Inverter System
KEY FEATURES:
– Rated Power: 5000W | 5000VA
– Line Mode Input Voltage: 230Vac
– Maximum Solar Input Current: MPPT 27A
– Pure Sinewave for Sensitive Electronics & Motorized Loads
– Comprehensive Display Allows Easy Monitoring & Access of UPS Status
– 0ms Line mode to Battery Mode Transfer Time
– 4ms Inverter to Bypass Transfer Time
– Utility Grid & Solar Power Charging Compatible
– 2 Year Warranty
Product Description
Description
RCT RCT-AXPERT KING MK2 5K48V Axpert King MK2 5KVA Pure Sine Wave Wall Mountable Inverter System
| SPECIFICATIONS | |
| Brand | RCT |
| Series | Axpert King |
| Model | RCT-AXPERT KING MK2 5K48V |
| Line Mode Specifications | |
| Input Voltage Waveform | Sinusoidal |
| Nominal Input Voltage | 230Vac |
| Low Loss Voltage | 110Vac ± 7V |
| Low Loss Return Voltage | 120Vac ± 7V |
| High Loss Voltage | 280Vac ± 7V |
| High Loss Return Voltage | 270Vac ± 7V |
| Max AC Input Voltage | 300Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto Detection) |
| Low Loss Frequency | 46(56) ± 1Hz |
| Low Loss Return Frequency | 46.5(57) ± 1Hz |
| High Loss Frequency | 54(64) ± 1Hz |
| High Loss Return Frequency | 53(63) ± 1Hz |
| Power Factor | >0.98 |
| Output Short Circuit Protection | Line Mode: Circuit Breaker |
| Battery Mode: Electronic Circuits | |
| Efficiency (Line Mode) | 93% Peak Efficiency |
| Transfer Time | Line mode to Battery mode 0ms |
| Inverter to Bypass 4ms | |
| Battery Mode Specifications | |
| Rated Output Power | 5KVA / 5KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 230Vac±5% |
| Output Frequency | 50Hz or 60Hz |
| Peak Efficiency | 92% |
| Over load Protection | 5s @ ? 150% load |
| 10s @ 105% ~ 150% load | |
| Surge Capacity | 2* rated power for 5 seconds |
| Nominal DC Input Voltage | 48Vdc |
| Operating Range | 40Vdc – 66Vdc |
| Cold Start Voltage | 46Vdc |
| Low DC Warning Voltage | <50% load: 45Vdc |
| ?50% load: 44Vdc | |
| Low DC Warning Return Voltage | <50% load: 47Vdc |
| ?50% load: 46Vdc | |
| Low DC Cut off Voltage | <50% load: 43Vdc |
| ?50% load: 42Vdc | |
| High DC Recovery Voltage | 64Vdc |
| High DC Cut off Voltage | 66Vdc |
| No Load Power Consumption | <75W |
| Charge Mode Specifications | |
| Charging Current | Default: 30A, max: 100A |
| Flooded Battery Bulk Charging Voltage | 58.4Vdc |
| AGM / Gel Battery Bulk Charging Voltage | 56.4Vdc |
| Floating Charging Voltage | 54Vdc |
| Overcharge Protection | 62Vdc |
| Solar Specifications | |
| Rated Power | 6000W |
| Max. PV Array Open Circuit Voltage | 500Vdc |
| PV Array MPPT Voltage Range | 120V – 450V |
| Maximum Solar Input Current | 27A |
| General Specifications | |
| SCC Type | MPPT |
| Parallel-able | MPPT |
| Communication | RS232 & WiFi |
| Safety Certification | CE |
| Operating Temperature Range | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Dimensions (DxWxH) | 140mm x 295mm x 468mm |
| Net Weight | 12Kg |
| Warranty Information | |
| Warranty | 2 Year Warranty |
