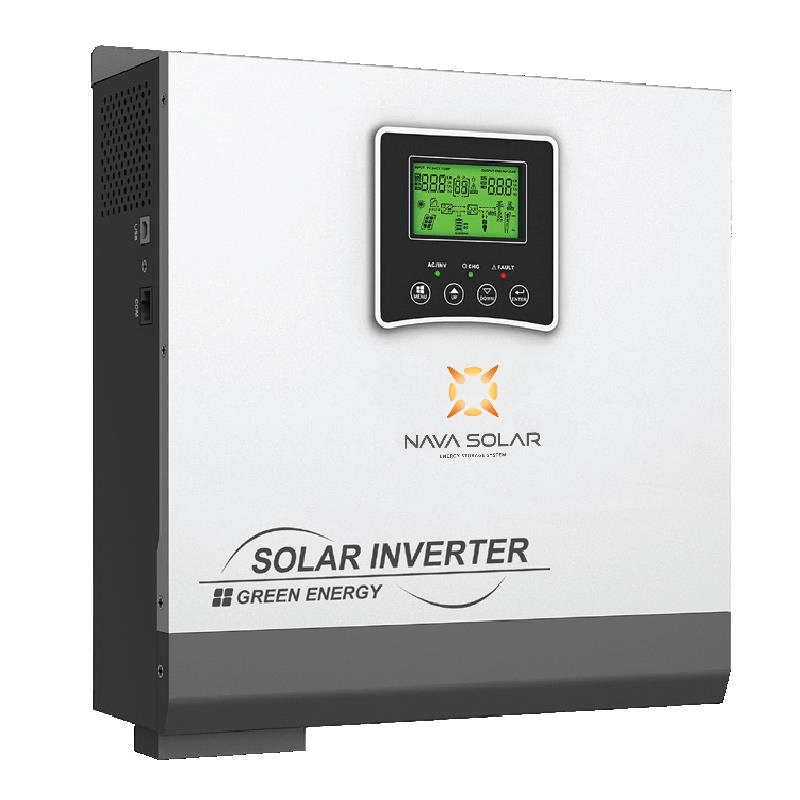

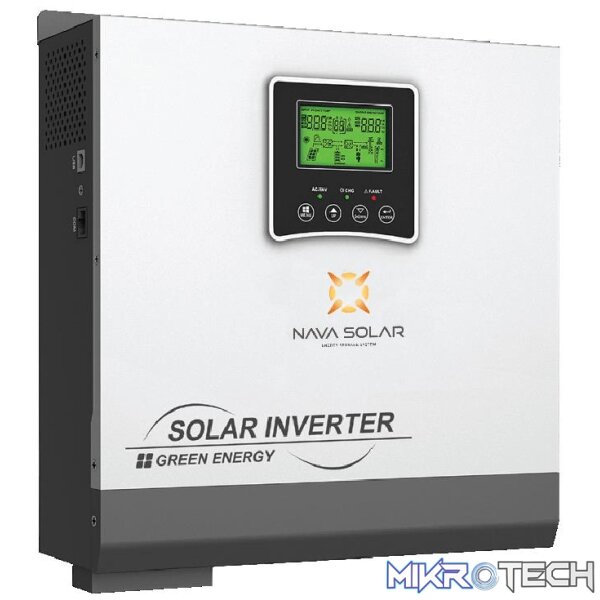

NavaSolar PV1800 VPM 3KW 24V Off-Grid Solar Inverter 60A MPPT NV-MV3024VPM

NavaSolar PV1800 VPM 3KW 24V Off-Grid Solar Inverter 60A MPPT NV-MV3024VPM

Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring

Specification
Nominal Battery System Voltage: 24VDC
Parallel Capability: No
Operation Without Battery: No

Inverter Output ;
Rated Power: 3000W
Surge Power: 6000W
Wave Form: Pure Sine Wave
AC Voltage Regulation(Batt.Mode): (230VAC) 5%
lnverter Efficiency(Peak): 93%
Transfer Time: 10ms(typical)

AC Input:
Voltage 230VAC: 5%

Selectable Voltage Range
170~280VAC(for Personal Computer)
90~280VAC(for Home Appliance)
184~253VAC(VED4105)

Frequency Range: 50Hz/60Hz(Auto sensing)

Battery:
Normal Voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC

Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array Voltage Range MPPT: 30~120VDC
Standby Power Consumption: 2W
Maximum PV lnput Power: 1500W
Maximum Solar Charge Current: 60A
Maximum Efficiency: 98%
Maximum AC Charge Current: 30A
Maximum Charge Current: 80A

Communication: USB/RS232/RS485(optional)

Mechanical Specifications
Machine Dimensions(HWD)(mm): 355272100
Package Dimensions(HWD)(mm): 390425215
Net Weight(kg): 7.4
Gross Weight(kg): 9.5
Humidity: 5% to 95% Related Humidity (Non-condensing)

Other
Operating Temperature: 0?~50?
Storage Temperature: -15?~60?
