Product Description

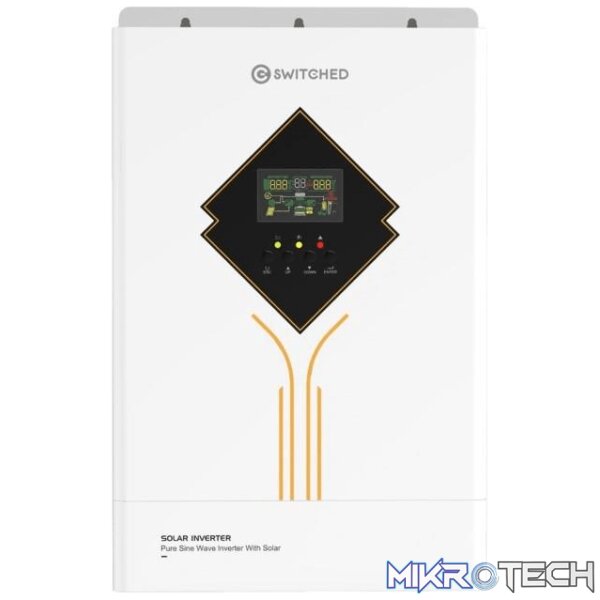

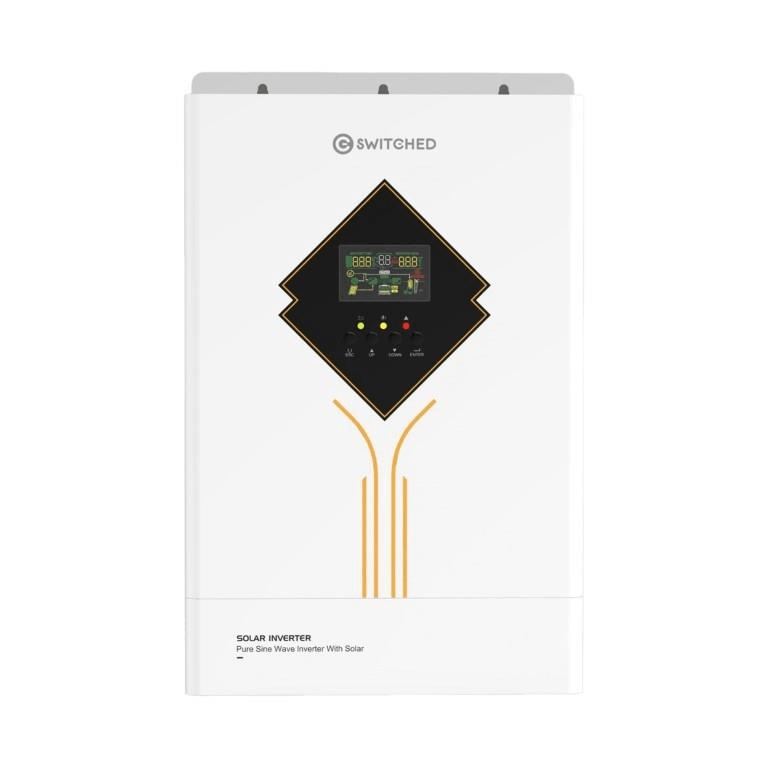

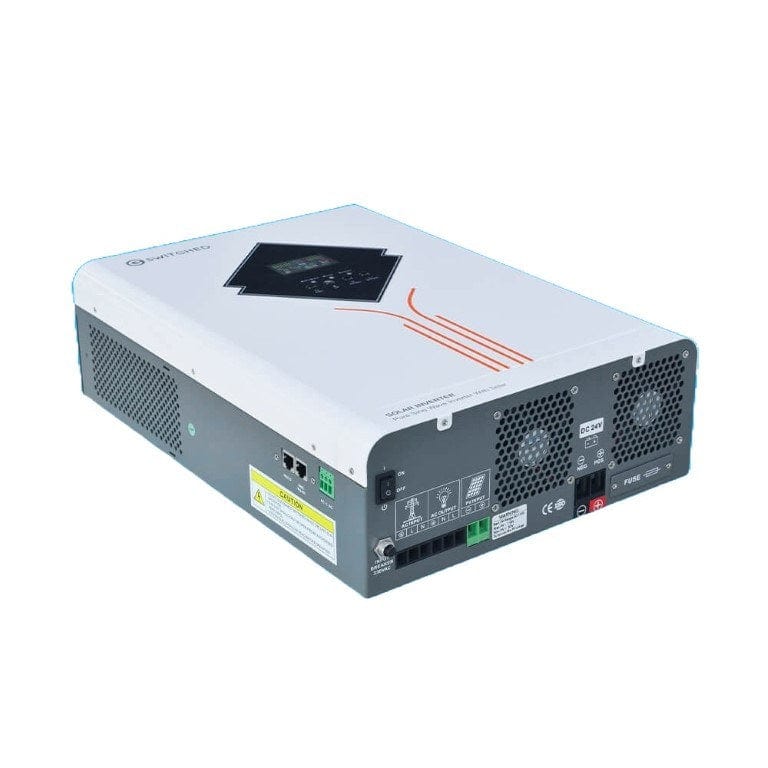

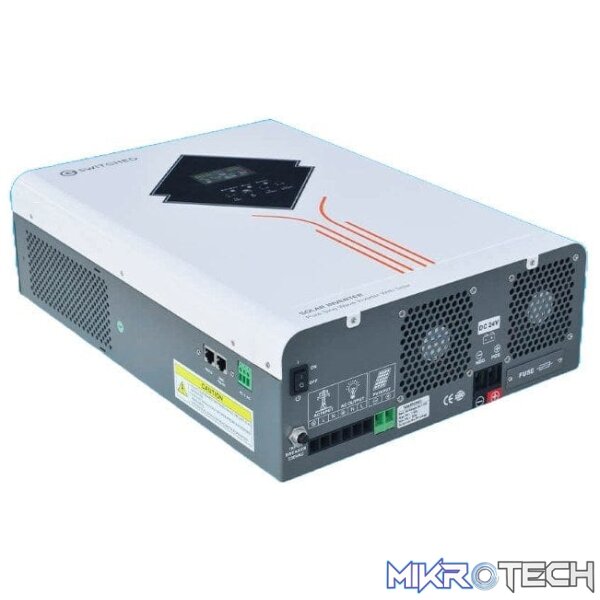

Switched 3000VA 2400W Off-Grid Inverter SWD-8913-IN
Specifications
- Capacity (VA): 3000VA
- Rated Power: 2400W
- Voltage (DC): 24V
- Input Voltage: 220VAC
- Voltage Range: 154 – 265VAC ; 185 – 264VAC (selectable)
- Frequency: 50 – 60Hz Auto sensing
- Power Factor: 0.8
- Output Voltage: 220VAC ± 10%
- Frequency: 50/60Hz ±5%
- Waveform: Pure Sine Wave
- Transfer Time (AC to DC): <8ms
- Transfer Time (DC to AC): <8ms
- Output Voltage Regulation: 土10%
- Bypass Mode: Yes
- Saver Mode: Yes
- Efficiency: >98%
- Input/Output Protection: Circuit Breaker
- Battery Type: VRLA / GEL / GEL DEEP CYCLE / Lithium
- Battery: Not included
- Charging Current: 30A / 15A
- Battery Charging Voltage: 27 VDC
- Maximum PV Array Power: 1600W
- MPPT(PWM) Input Voltage Range 24V: MPPT 30V-150VDC / PWM 30V-60VDC
- MPPT(PWM) Input Voltage Range 48V: MPPT 60V-150VDC / PWM 60V-105VDC
- Maximum solar charge current: 60A
- Size (L x Wx H): 470mm x 335mm x 210mm
- Weight: 20kg
