Product Description
Description

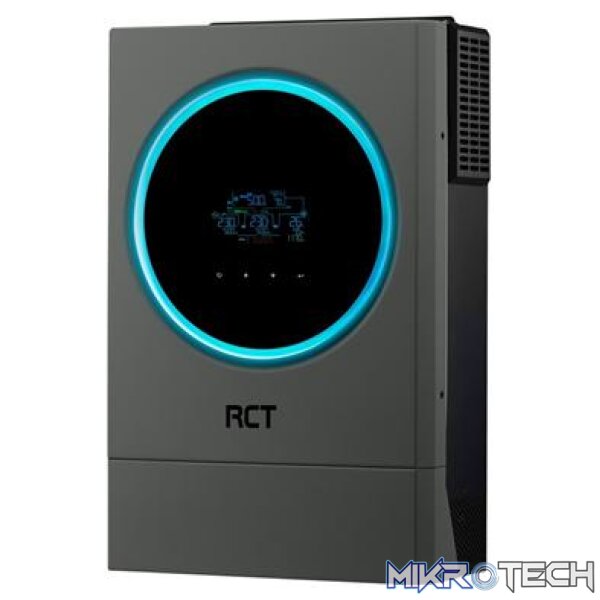

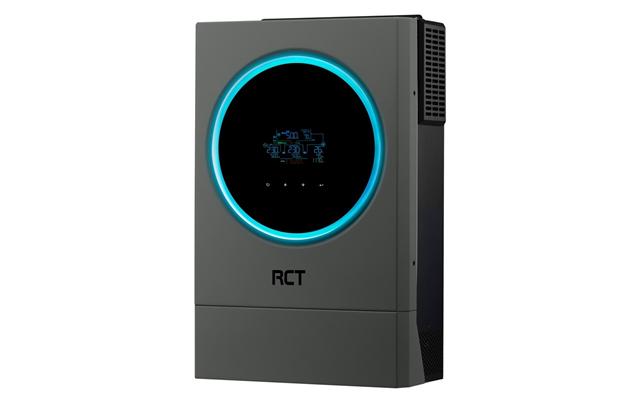

RCT INFINISOLAR V4 5.6K 5600VA/5600W GRID TIED INVERTER CHARGER
| MODEL | RCT-INFINI V4 5.6K48V |
| PHASE | 1-phase in/ 1-phase out |
| Maximum PV Input Power | 6000W |
| Rated Output Power | 5600W |
| Maximum Charging Power | 6000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage/ Maximum DC Voltage | 360VDC /450 VDC |
| Start-up Voltage/ Initial Feeding Voltage | 110VDC /120 VDC |
| MPP Voltage range | 120VDC – 430VDC |
| Number of MPP Trackers/ Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
| Nominal Output Current | 24.3 A |
| Power Factor | >0.9 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Strt-up voltage / Auto re-start voltage | 120 – 140VAC / 180VAC |
| Acceptable Input Voltage Range | 90 – 280 VAC or 170 – 280 VAC |
| Maximum AC Input Current | 40 A |
| PV INPUT (DC) | |
| Maximum DC Voltage | 450 VDC |
| MPP Voltage Range | 120 VDC – 430 VDC |
| Number of MPP Trackers/ Maximum Input Current | 1 / 27A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| HYBRID OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage/ Maximum DC Voltage | 360VDC /450 VDC |
| Start-up Voltage/ Initial Feeding Voltage | 110VDC /120 VDC |
| MPP Voltage Range | 120VDC – 430VDC |
| Number of MPP Trackers/ Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
| Nominal Output Current | 24.3 A |
| AC INPUT | |
| AC Strt-up voltage / Auto re-start voltage | 120 – 140VAC / 180VAC |
| Acceptable Input Voltage Range | 90 – 280 VAC or 170 – 280 VAC |
| Maximum AC Input Current | 40 A |
| BATERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Efficiency (DC to AC) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charging Current | 120 A |
| Maximum AC Charging Current | 120 A |
| Maximum Charging Current | 120 A |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 140 x 295 x 468 |
| Net Weight (kgs) | 12 |
| INTERFACE | |
| Parallel Function | Yes, 9 units |
| Communication Ports | USB, RS-232. RS485, WiFi and dry contact |
| ENVIRONMENT | |
| Operating Humidity | 0 ~ 90% RH (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
