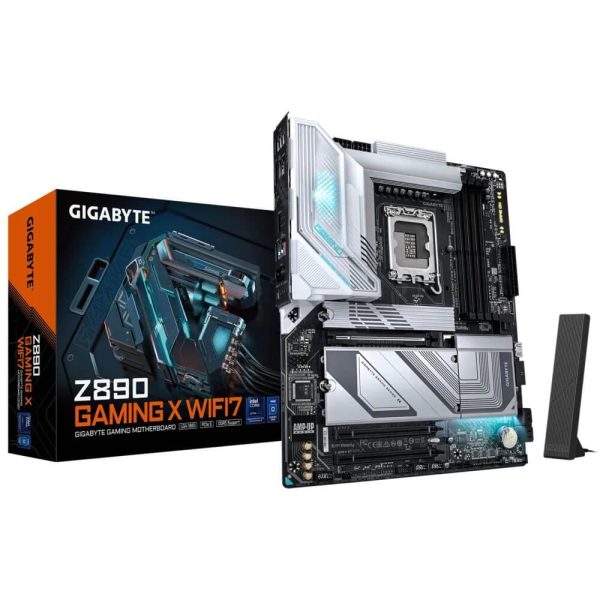

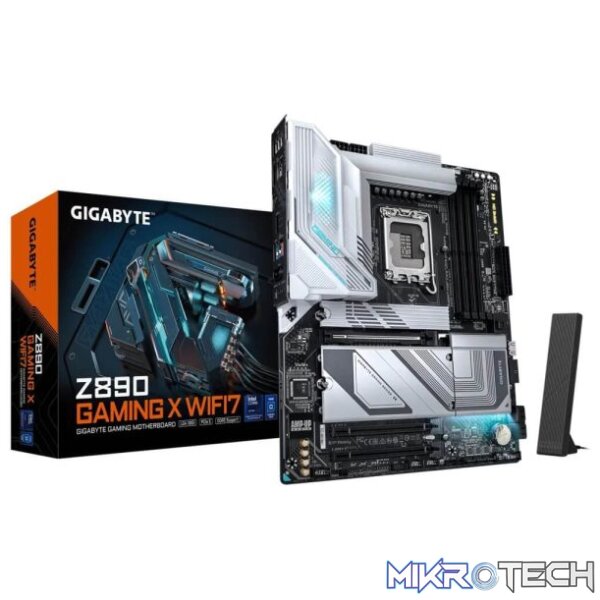

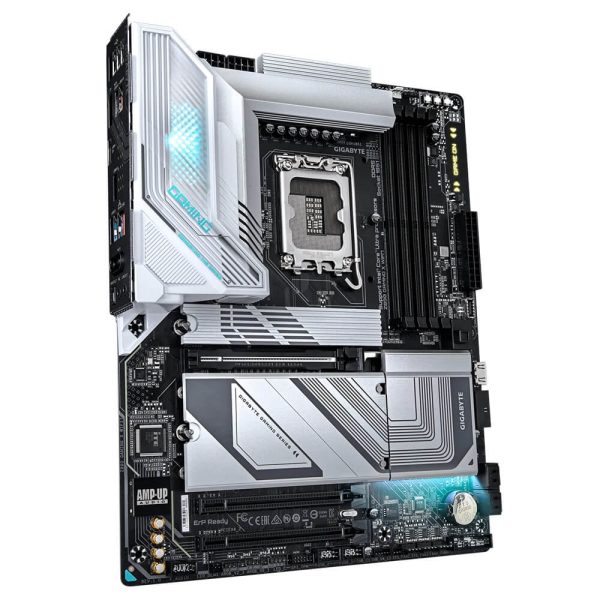

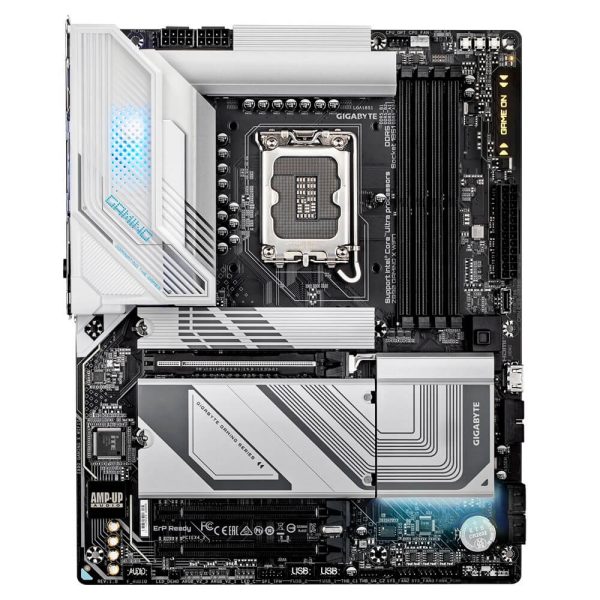

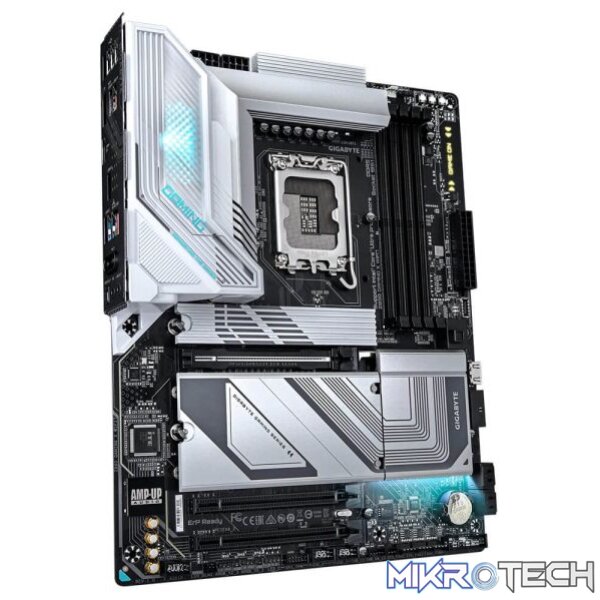

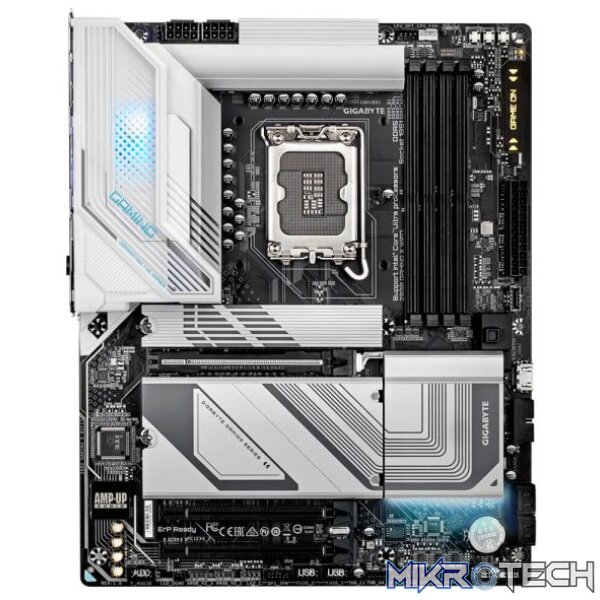

Gigabyte Z890 GAMING X WIFI7 LGA 1851 ATX DDR5 Motherboard
R5,579.99 incl. VAT
KEY FEATURES:
– ATX Form Factor
– Intel Z890 Chipset
– Intel Socket LGA1851
– 4x DIMM Slots, Max. 256GB, DDR5
– Supports up to DDR5-8800MHz+(OC)
– 1x PCIe 5.0 x16 Slot (supports up to x16)
– 2x PCIe 4.0 x16 Slots (supports up to x4)
– Total Supports 4x M.2 Slots and 4x SATA 6Gb/s Ports
– 1x USB 4 Type-C Port (DisplayPort), 2x USB 3.2 Gen 2 Type-A Ports (red)
– 3x USB 3.2 Gen 1 Ports, 4x USB 2.0/1.1 Ports
– Realtek 2.5GbE LAN Chip
– MediaTek MT7925 Tri-Band 160MHz 802.11be WiFi 7
– Bluetooth v5.4
– Realtek Audio Codec
– D5 Bionic Corsa: for Infinite Memory Performance
– AORUS AI Auto-Overclocking Software
– AI Perfdrive: Optimal & Customized BIOS Preset Profiles
– VRM Thermal Armor Advanced & M.2 Thermal Guard
– Digital Twin 16+1+2 Phases VRM Solution
– 1x RGB LED Header, 3x ARGB LED Headers
– 3 Year Warranty
Out of stock
Description
Gigabyte Z890 GAMING X WIFI7 LGA 1851 ATX DDR5 Motherboard
GA-Z890-GAMING-X-WIFI7
The Gigabyte Z890 GAMING?X?WIFI7 is a feature-rich ATX motherboard built on the Intel Z890 chipset, designed for the cutting-edge Intel Core Ultra (Series?2) processors using the LGA?1851 platform. It stands out with high-speed DDR5 memory support, PCIe 5.0 graphics, Wi?Fi?7 networking, USB4 connectivity, and an array of gamer- and builder-friendly features—all wrapped in Gigabyte’s Ultra Durable™ craftsmanship.
Key Features
Power & Memory
16+1+2 Twin Digital VRM with 60A DrMOS, 2× copper PCB, premium chokes and capacitors ensure rock-solid stability.
Supports up to DDR5-8800 (OC) across four DIMM slots with XMP support and D5 Bionic Corsa for optimized memory performance.
Storage & Expansion
Four M.2 slots, including one blazing-fast PCIe?5.0 and three PCIe?4.0 lanes for ultra-fast SSD speeds.
Expansion flexibility with a reinforced PCIe 5.0 ×16 (UD Slot X) plus two PCIe 4.0 ×4 slots.
Thermal & Cooling
VRM Thermal Armor Advanced, M.2 Thermal Guard, and extended cooling zones maintain peak performance during intense sessions.
Connectivity
Lightning-fast networking with Wi?Fi?7 and 2.5?GbE LAN.
Future-proof I/O featuring USB4 Type?C (DP?Alt mode), multiple USB 3.2 and USB 2.0 ports, DisplayPort, front-panel USB?C, and Sensor Panel Link for front I/O convenience.
Builder-Friendly Features
EZ-Latch Plus for tool-free PCIe and M.2 installs, Wi?Fi EZ-Plug, EZ?Latch Click, and a host of diagnostic tools including Q?Flash Plus and EZ-Debug Zone make upgrades and troubleshooting a breeze.
The Gigabyte Z890 GAMING X WIFI7 strikes the perfect balance of power, speed, and convenience—making it a solid choice for gamers, creators, or professionals who want cutting-edge performance without breaking the bank.
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GAMING X |
| Model | GAMING X WIFI7 |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz | |
| * Support for HDMI 1.4 version | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to 3 displays at the same time | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| – 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| – 1 x USB4 USB Type-C port on the back panel | |
| Chipset: | |
| – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header | |
| – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+2 USB 2.0 Hubs: | |
| – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x Q-Flash Plus button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| (Note) Actual support may vary by CPU. | |

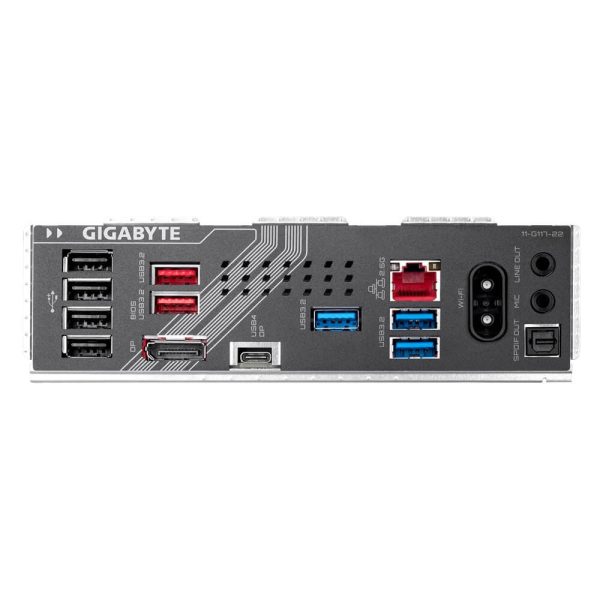

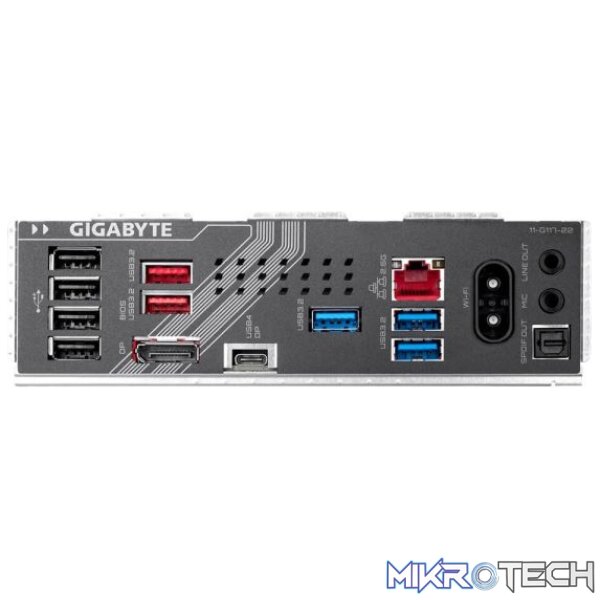

| Back Panel Connectors | 1 x USB4 USB Type-C port (DisplayPort (Note)) |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x DisplayPort (Note) | |
| 2 x antenna connectors (2T2R) | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| (Note) Actual support may vary by CPU. | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| ater cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
