KEY FEATURES:

– E-ATX Form Factor
– Intel Z890 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
– Supports Up to DDR5-9500 CU-DIMM (OC)
– Supports Intel XMP 3.0 Memory Modules
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 5.0 x8 Slot (x16 Physical)
– Supports PCIe 5.0 x16/x0 or x8/x8 Configurations
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 1x M.2 25110/2580/2280 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 25110/2580/2280 PCIe 4.0 x4 NVMe SSD Slot
– 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
– 8x SATA 3.0 Ports
– Supports Front-Panel USB 20Gbps Type-C Ports

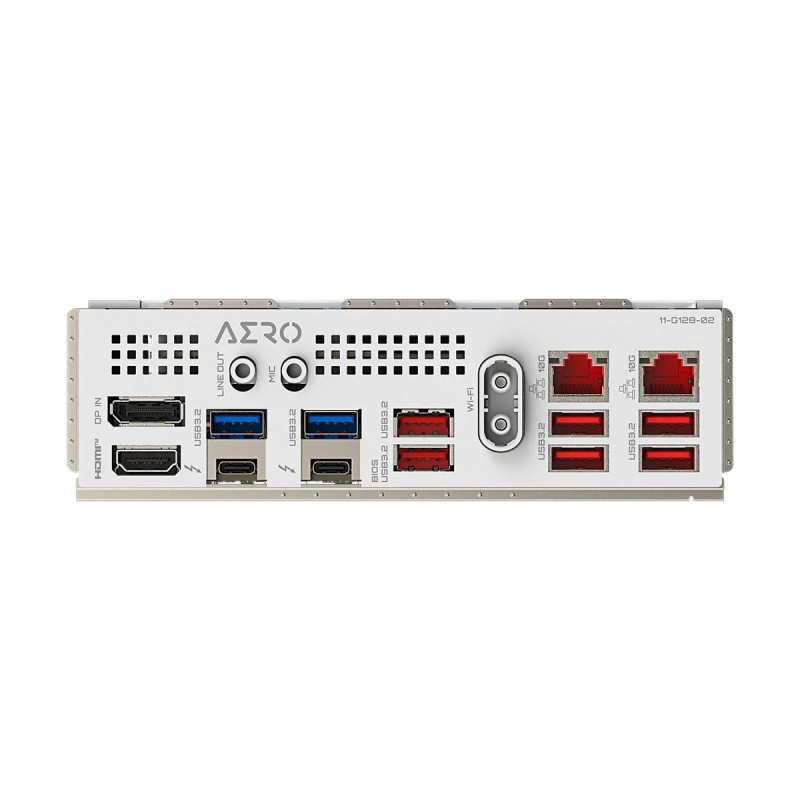

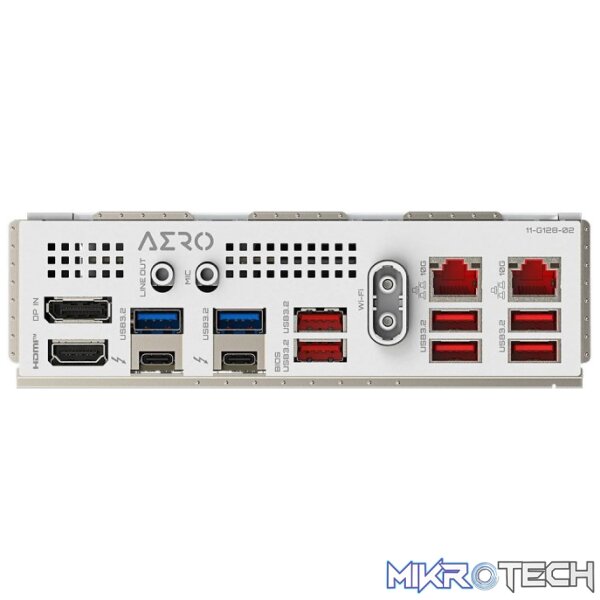

– 2x Thunderbolt 5 USB 120Gbps Type-C Ports with DisplayPort 2.1
– 6x USB 10Gbps Type-A Ports
– 2x USB 5Gbps Type-A Ports
– 1x HDMI 2.1 (TMDS), 1x DisplayPort 2.1 Port (Input)
– 2x 3.5mm Audio Jacks, 2x WiFi Antenna Jacks
– 2x Marvell AQC113C 10 Gigabit Ethernet RJ-45 LAN Ports
– Intel BE200 WiFi 7 Tri-Band Adapter, Bluetooth 5.4
– ESS Sabre ES9260 Audio Codec (Rear Ports)
– 16+1+2 Twin Digital VRM Solution
– Port 80 7-Segment Debug Display
– Supports Windows 11 64-bit
– 3 Year Warranty

Description

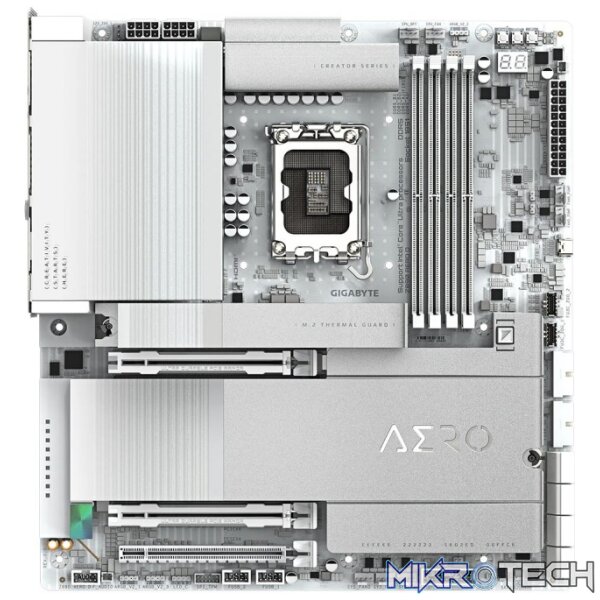

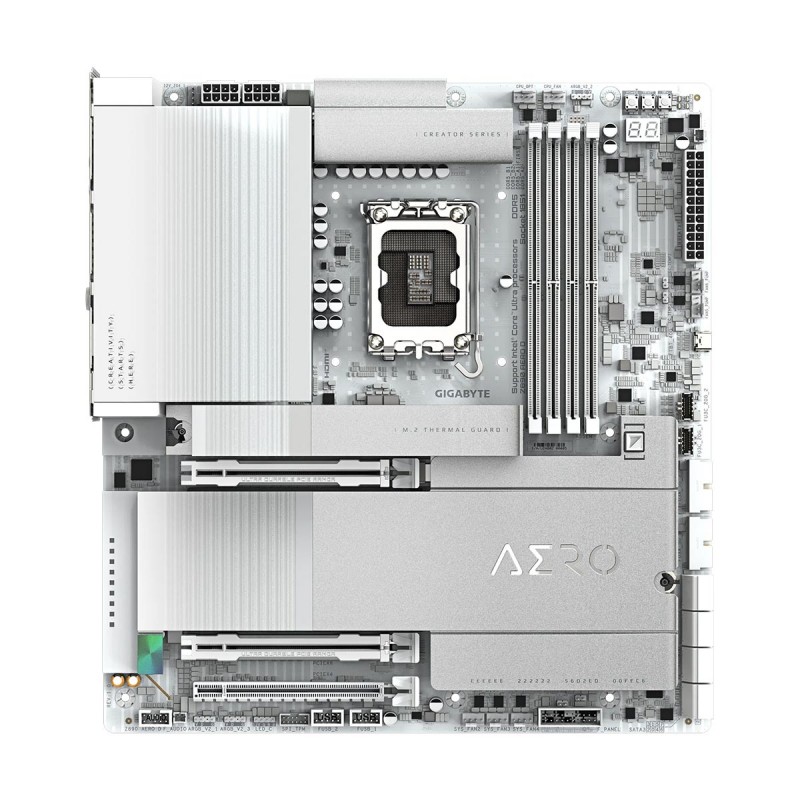

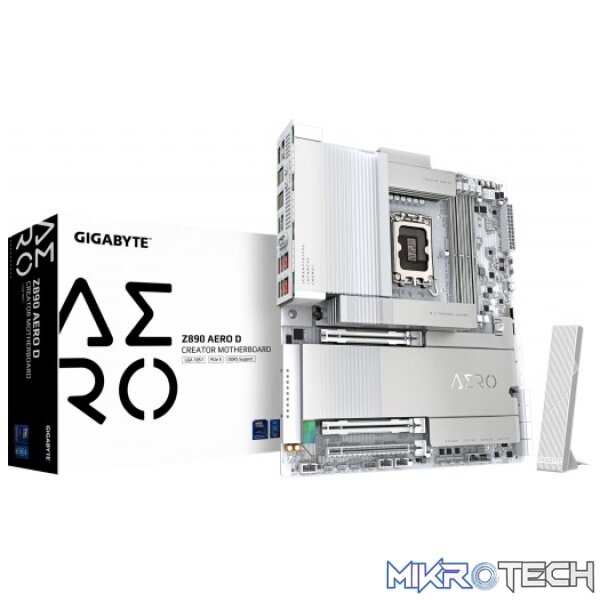

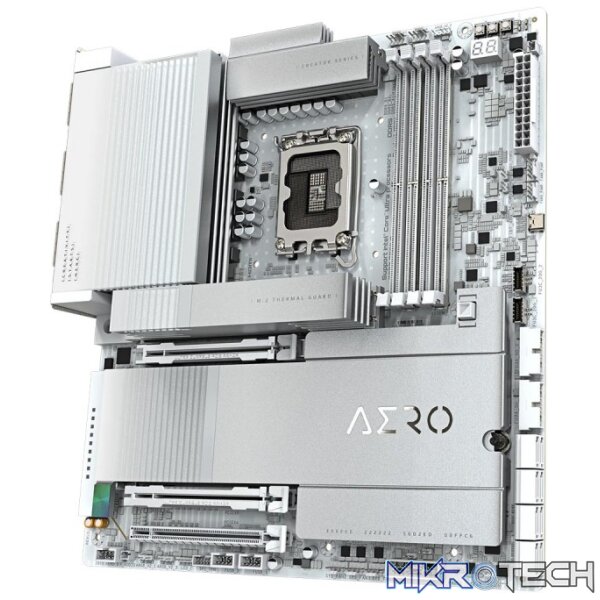

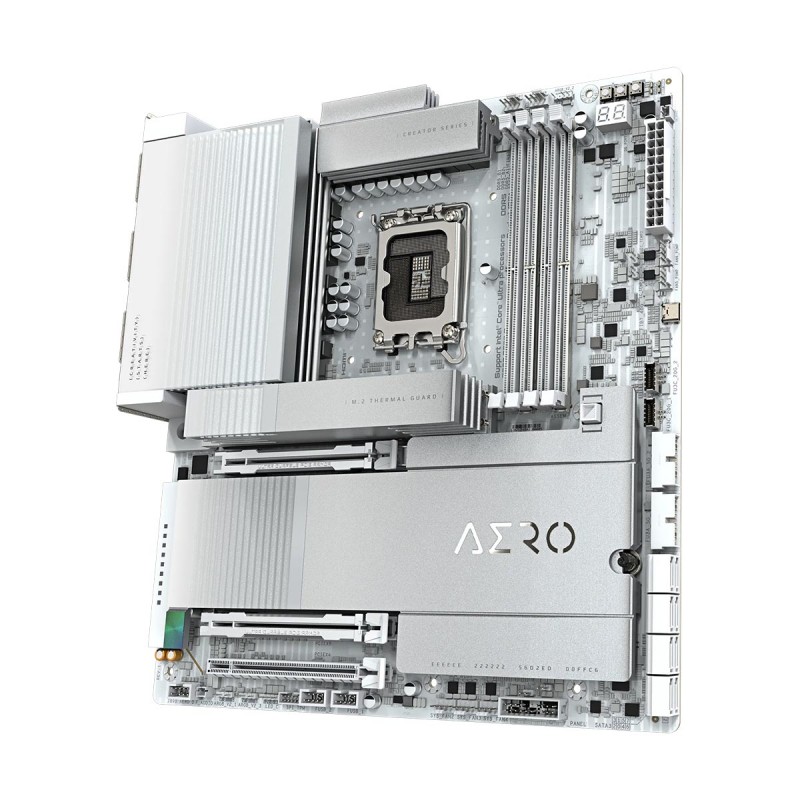

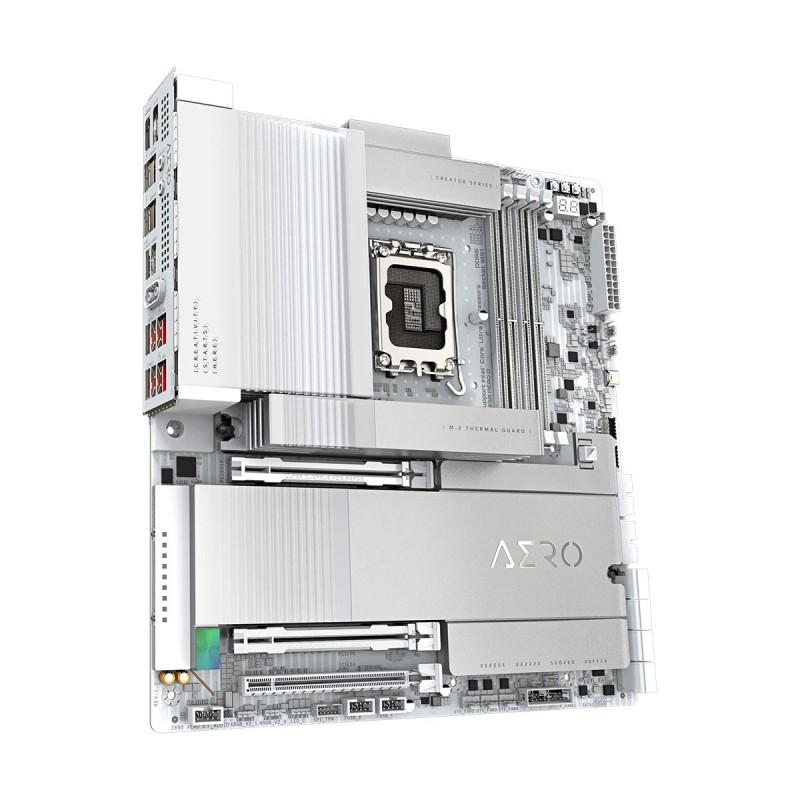

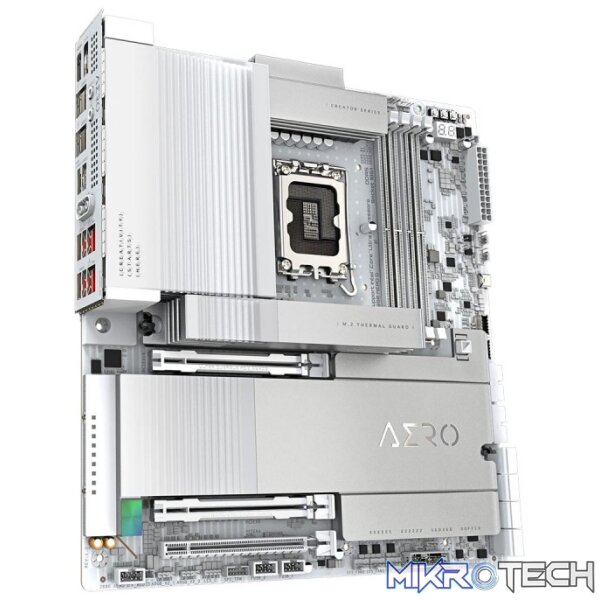

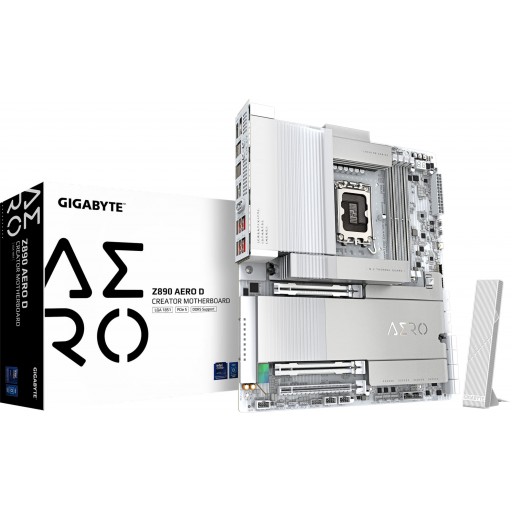

Gigabyte Z890 AERO D WIFI Intel E-ATX Motherboard

GA-Z890-AERO-D

Where Creative Power Meets Future-proof Innovation

The Gigabyte Z890 AERO D is engineered for professionals and creators who demand unparalleled performance. Built on the advanced Intel® Z890 chipset, it supports Intel® Core Ultra processors (Series 2) and delivers bleeding-edge features like PCIe 5.0, Wi?Fi 7, Thunderbolt™ 5, and VisionLINK—all housed in a resilient Ultra Durable frame tailored for high-intensity content creation and AI workflows.

Key Features That Set It Apart

• Rock-Solid Power & Cooling
  Built with a 16+1+2 phase digital VRM featuring 80?A Smart Power Stages and robust VRM Thermal Armor—keeping high-core-count CPUs stable under intensive workloads.

• Advanced DDR5 Memory Support
  Four dual-channel DDR5 DIMM slots with XMP support—ideal for extreme memory bandwidth and demanding multitasking.

• PCIe 5.0 & Flexible Storage
  Equipped with a PCIe 5.0 M.2 slot, plus three PCIe 4.0 M.2 slots with Thermal Guard for blazing-fast SSD performance and efficient cooling.

• Next-Level Expansion
  Dual PCIe 5.0 x16 slots (x16/x8 modes) with PCIe UD Slot X for GPU and compute expansion, powerful enough for multi-GPU and AI workflows.

• Superior Connectivity & UI
  Includes Dual Thunderbolt™ 5 Type-C ports with DP-Alt and 60W power, VisionLINK support via USB-C, and a fresh UC BIOS for easier tuning.

• Blazing Networking Options

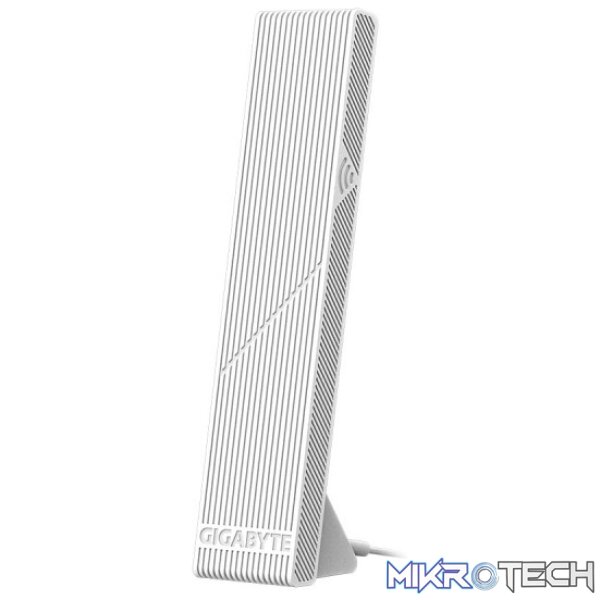

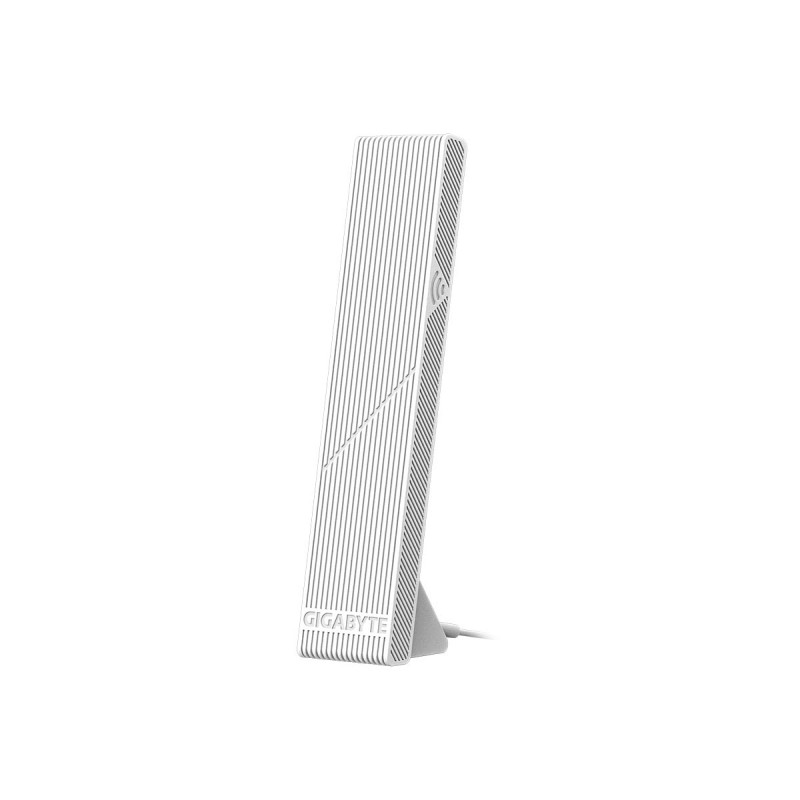

  Dual 10?GbE LAN, Wi?Fi 7 with ultra-high gain directional antennas, and built-in audio with ESSential DAC deliver top-tier performance across all angles.
