KEY FEATURES:
– ATX Form Factor
– Intel Z890 Chipset
– Intel Socket LGA1851
– 4x DIMM Slots, Max. 256GB, DDR5
– Supports up to DDR5-8800MHz+(OC)
– Supports Memory Overclocking and Intel XMP 3.0
– 1x PCIe 5.0 x16 Slot (supports up to x16)
– 2x PCIe 4.0 x16 Slots (supports up to x4)
– 1x PCIe 4.0 x16 Slot (supports up to x1)
– Total Supports 3x M.2 Slots and 4x SATA 6Gb/s Ports
– 1x USB 4 Type-C Port (DisplayPort)
– 1x USB 3.2 Gen 2 Type-A Port, 4x USB 2.0/1.1 Type-A Ports, 4x USB 3.2 Gen 1 Type-A Ports
– Realtek 2.5GbE LAN Chip
– Realtek Audio Codec
– 12+1+2 Twin Digital VRM Design
– 60A DrMOS Power Stage
– D5 Bionic Corsa: for Infinite Memory Performance
– VRM Thermal Armor Advanced & M.2 Thermal Guard
– Gigabyte RGB FUSION
– 1x RGB LED Header, 3x ARGB LED Headers
– AORUS AI Auto-Overclocking Software
– AI Perfdrive: Optimal & Customized BIOS Preset Profiles
– 3 Year Warranty
Description

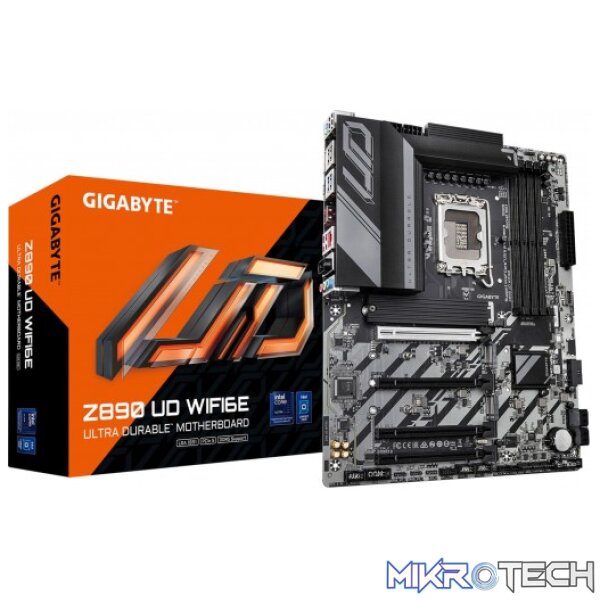

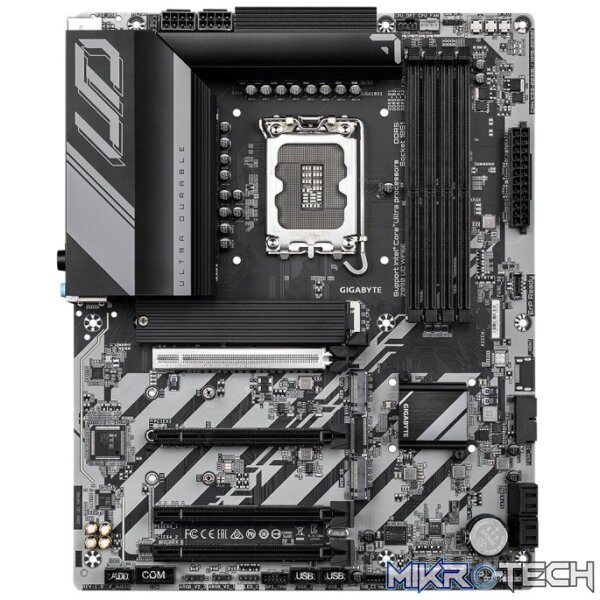

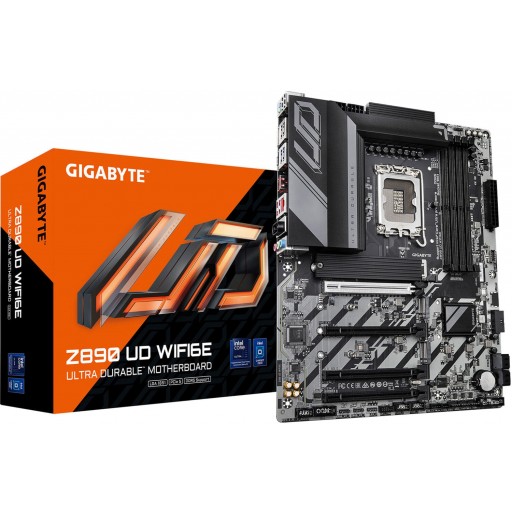

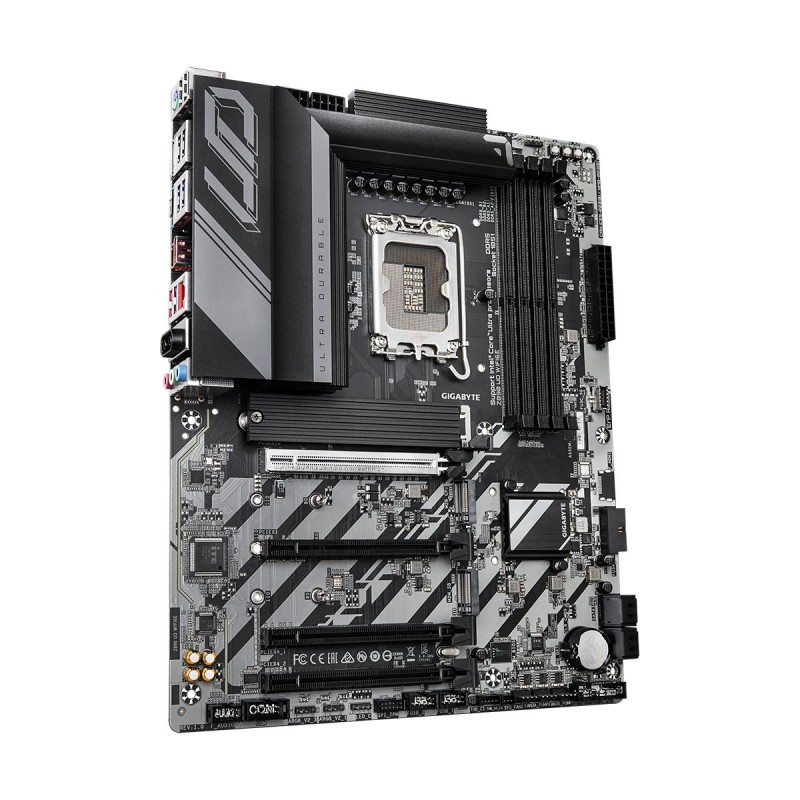

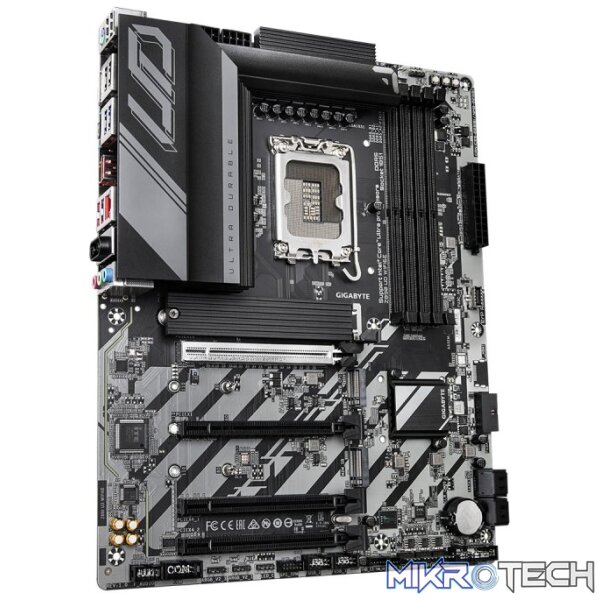

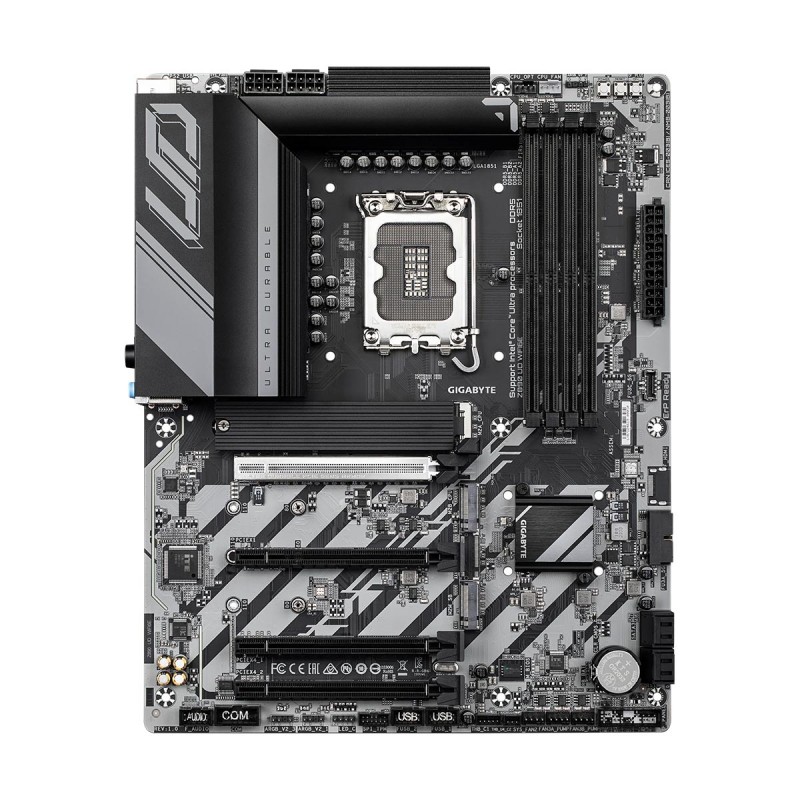

Gigabyte Z890 UD WIFI6E LGA1851 ATX Motherboard
GA-Z890-UD-WIFI6E
The Gigabyte Z890 UD WIFI6E delivers a powerful and efficient foundation for next-gen performance with support for Intel® Core™ Ultra Processors (Series 2). It boasts a robust 12+1+2 digital twin VRM design with 60A DrMOS and premium components, ensuring stable power delivery even under load?.
Built for memory enthusiasts, the board features D5?Bionic Corsa technology, enhancing DDR5 performance with XMP and CUDIMM support. For enhanced storage capabilities, enjoy ultra-fast storage with 3× M.2 slots—including one PCIe 5.0 x4—paired with M.2 Thermal Guard for reliable heat dissipation?.
Enjoy smooth connectivity through 2.5?GbE LAN and Wi?Fi 6E, plus versatile USB options with included USB4 Type?C (supports DP?Alt) alongside USB 3.2 ports and legacy support.
Cool and fail-safe, the board incorporates VRM Thermal Armor Advanced, M.2 Thermal Guard, and friendly features like PCIe EZ?Latch, WIFI EZ?Plug, Q?Flash Plus, and EZ?Debug Zone—all aimed at delivering a seamless DIY experience.
Key Features
Socket & Chipset: LGA1851, Intel® Z890
CPU Support: Intel® Core™ Ultra Processors (Series 2)
Power Design: 12+1+2 digital VRM phases with 60A DrMOS
Memory: 4× DDR5 DIMM slots; XMP & CUDIMM support, D5 Bionic Corsa tuning
PCIe & Slots: 1× PCIe 5.0 x16 (UD Slot + EZ-Latch), 2× PCIe 4.0 x16 (x4), 1× PCIe 4.0 x1
Storage: 1× PCIe 5.0 M.2, 2× PCIe 4.0 M.2, 4× SATA 6 Gb/s with RAID support
Networking: 2.5 GbE LAN, Wi-Fi 6E (with EZ-Plug)
USB: USB4 Type-C (40 Gb/s, DP-Alt), USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
Thermals: VRM Thermal Armor Advanced, M.2 Thermal Guard
DIY Friendly: Q-Flash Plus, PCIe EZ-Latch, EZ-Debug Zone, multi-theme BIOS, power monitor, Wi-Fi EZ-Plug
Audio: 8-channel HD Audio with high-end capacitors
Warranty: 3 Year Warranty
Why ItÂ’s a Great Choice
The Gigabyte Z890 UD WIFI6E provides cutting-edge support for Intel’s Core Ultra platform (Series 2) at a competitive price. With PCIe 5.0, DDR5 performance tuning, ultra-fast storage, and Wi-Fi 6E integration, it combines high-speed capabilities with a mature and reliable build—perfect for gamers, creators, and enthusiast builds seeking performance without extravagance.
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Ultra Durable |
| Model | Z890 UD WIFI6E |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 6E AX211 (PCB rev. 1.0) |
| – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.3 | |
| – Support for 11ax 160MHz wireless standard | |
| Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) | |
| – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.3 | |
| – Support for 11ax 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) | |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| – 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| – 1 x USB4 USB Type-C port on the back panel | |
| Chipset: | |
| – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header | |
| – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+2 USB 2.0 Hubs: | |
| – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 2 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x power button | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

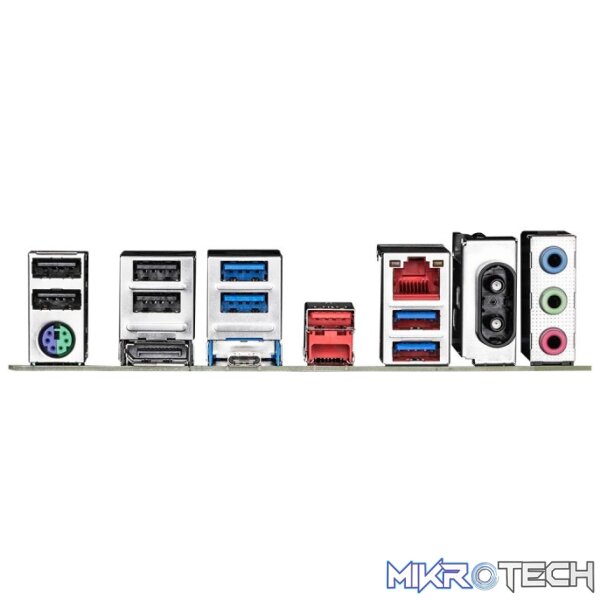

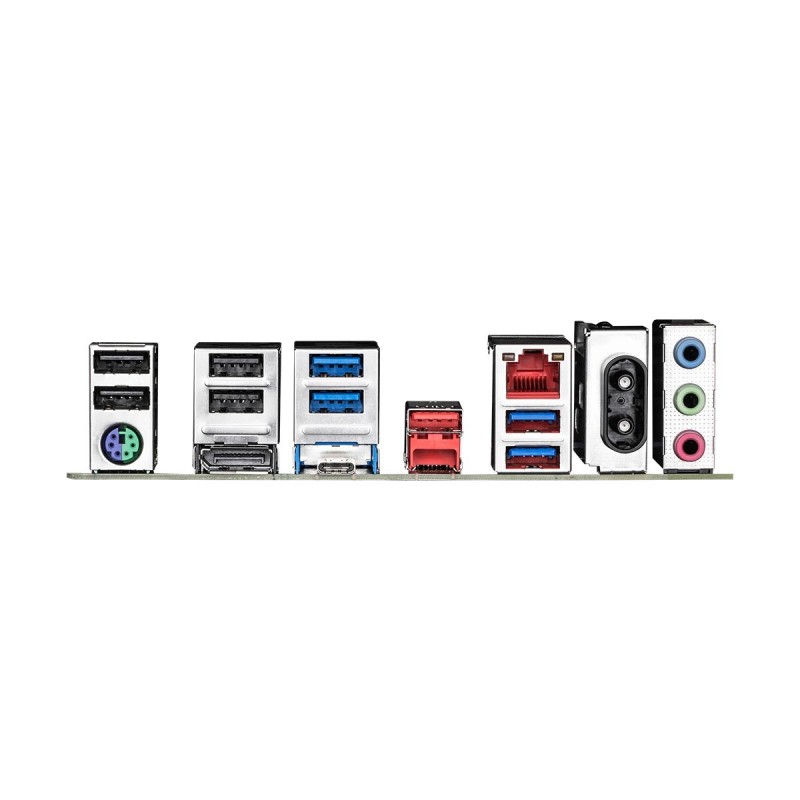

| Back Panel Connectors | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 1 x DisplayPort (Note) | |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x USB4 USB Type-C port (DisplayPort (Note)) | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 1 x RJ-45 port | |
| 2 x SMA antenna connectors (2T2R) | |
| 3 x audio jacks | |
| (Note) Actual support may vary by CPU. | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
