KEY FEATURES:

– Micro-ATX Form Factor
– Intel Z890 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
– Supports up to DDR5-9200 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 1x M.2 2580/2280 PCIe 5.0 x4 NVMe/SATA SSD Slot
– 1x M.2 2580/2280 PCIe 4.0 x4 NVMe/SATA SSD Slot
– 1x M.2 22110 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– Supports Front-Panel USB Type-C Chassis Port

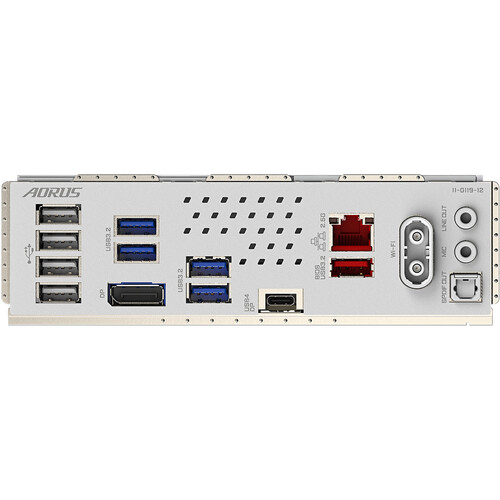

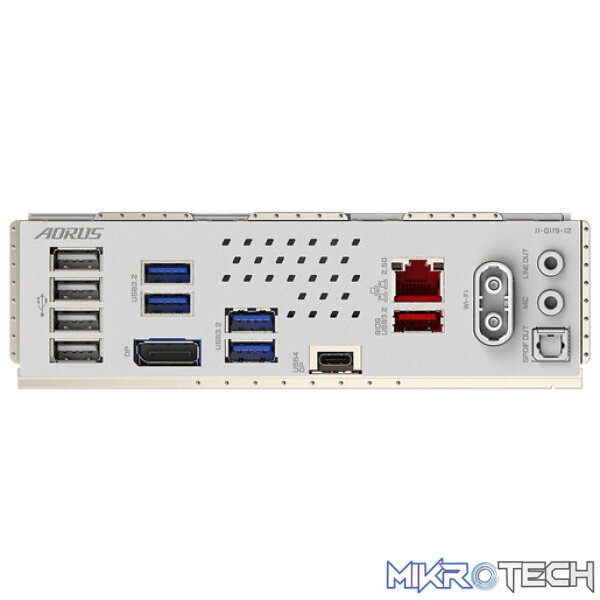

– 1x USB 40Gbps Type-C Port with DisplayPort 2.1
– 1x USB 10Gbps Type-A Port
– 4x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x DisplayPort 2.1 Port
– 2x SMA Wireless Connectors
– 2x 3.5mm Audio Jacks, 1x S/PDIF Optical Out
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
– WiFi 7 Tri-Band Adapter, Bluetooth 5.4
– Realtek High-Definition Audio Codec
– 12+1+1 Phase Twin Hybrid Digital VRM Solution
– Supports Windows 11 64-bit
– 3 Year Warranty

Description

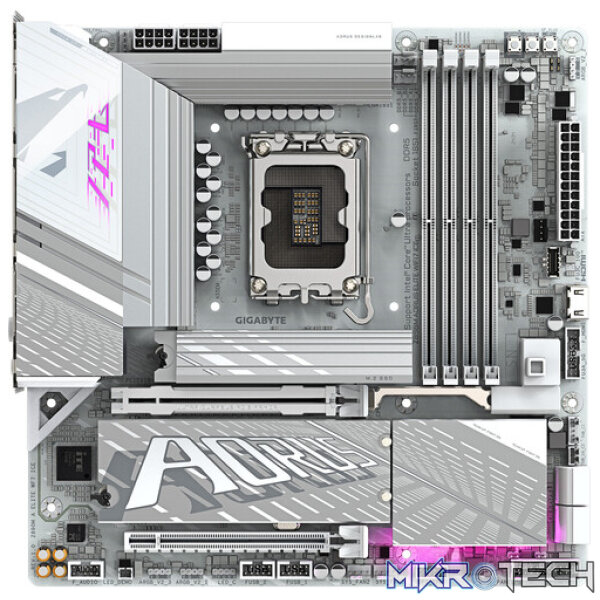

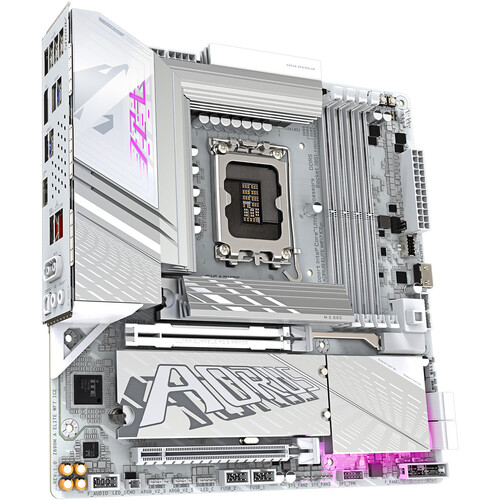

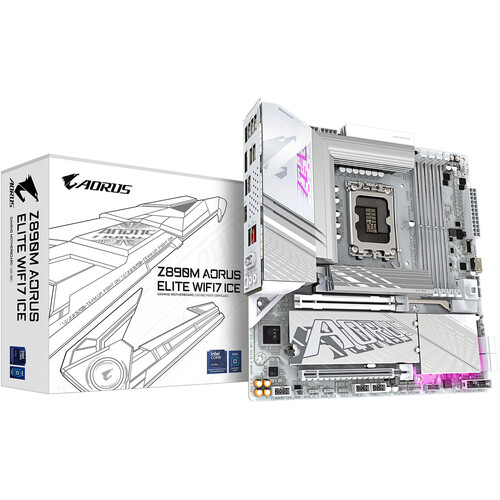

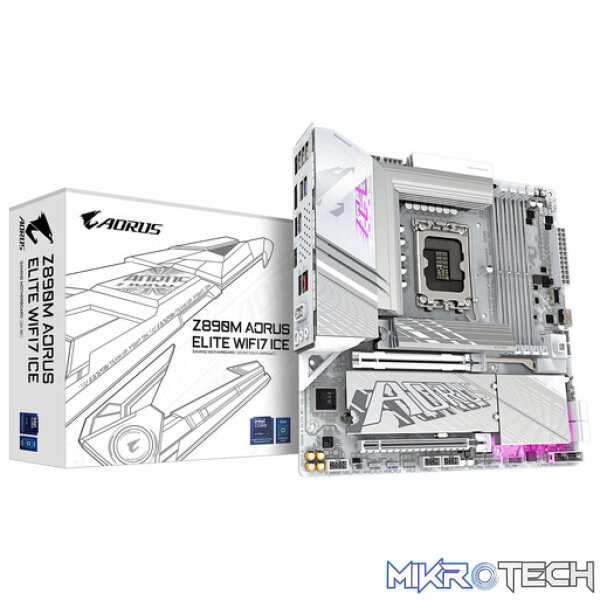

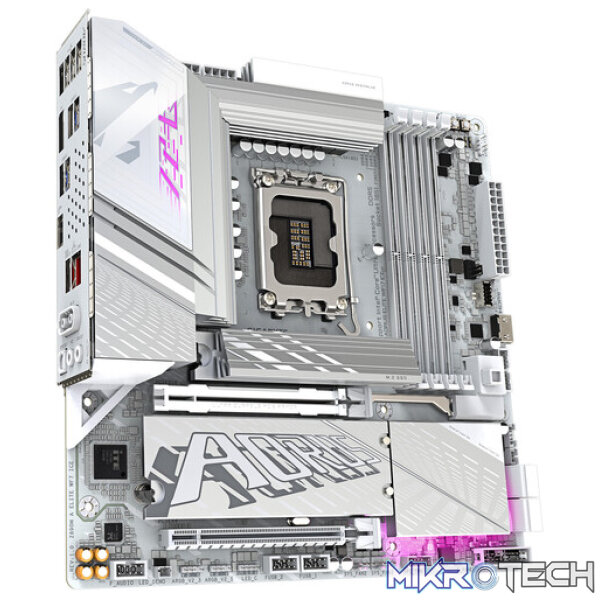

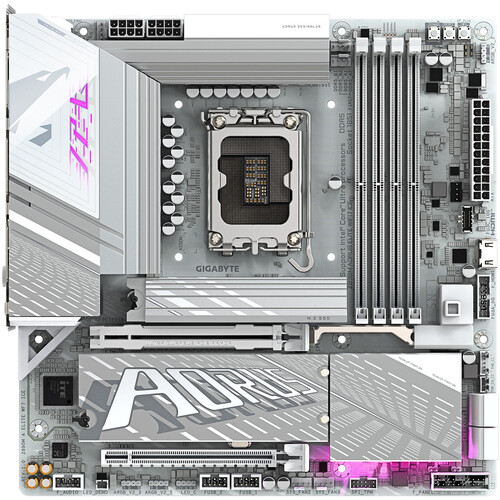

Gigabyte Z890M AORUS ELITE WIFI7 ICE Intel LGA 1851 Micro-ATX Motherboard

GA-Z890M-AORUS-ELITE-WIFI7-ICE

Compact Style, Big-Game Performance

Uniquely fashionable in its snowy white design, the Gigabyte Z890M AORUS ELITE WIFI7 ICE is an uncompromising Micro?ATX powerhouse. Built on the Intel® Z890 chipset and accommodating Intel® Core Ultra Series?2 CPUs, it packs flagship features like DDR5 with D5 Bionic Corsa memory optimization, blazing PCIe 5.0 performance, Wi?Fi?7 wireless, and USB4 connectivity—all optimized for gamers, content creators, and PC builders seeking high performance in a small footprint.

Highlights You’ll Love

• Next-Gen Power Design & Memory
  12+1+2 digital phase VRM ensures rock-solid power delivery to Intel?Ultra CPUs. Enhances DDR5 performance with D5 Bionic Corsa and AI Perfdrive BIOS tuning.

• Sleek DIY Features
  Installs are simplified with EZ?Latch Plus for M.2 & PCIe, EZ?Latch Click heatsinks, Wi?Fi EZ?Plug, and Sensor Panel Link for clean in-case routing.

• Advanced Storage & Thermal Design
  Supports three M.2 slots—one PCIe 5.0 x4 and two PCIe 4.0—with enhanced cooling via VRM Thermal Armor Advanced and M.2 Thermal Guard.

• Unmatched Connectivity
  Offers Wi?Fi?7, 2.5?GbE LAN, USB4 Type?C with DP?Alt, multi-display I/O, and a durable PCIe UD Slot X for GPU.

• User-Friendly Interface
  Multi-theme BIOS and software, RGB Fusion headers, Power Monitor in HWinfo, and Q?Flash Auto Scan provide total control and customization.

Why It Works for You

Stylish yet powerful, this board proves that premium performance doesn’t require a full-ATX build. It’s the ideal choice for compact gaming systems or content-creation rigs that demand the latest connectivity, overclocking, and thermal features. Plus, it makes a statement with its sleek white finish.
