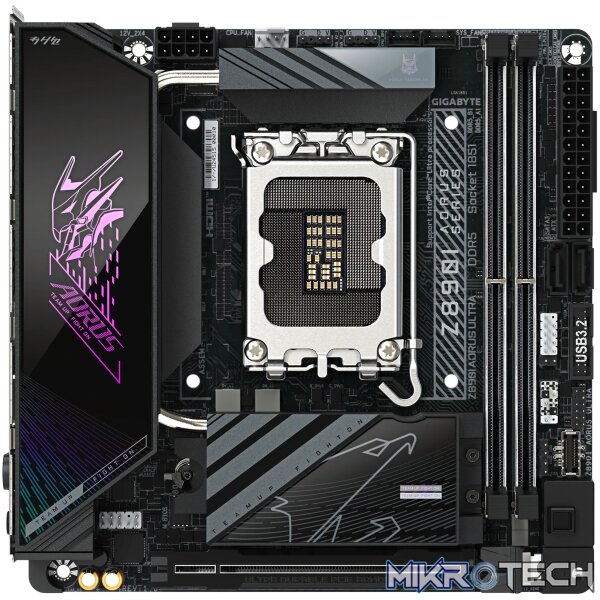

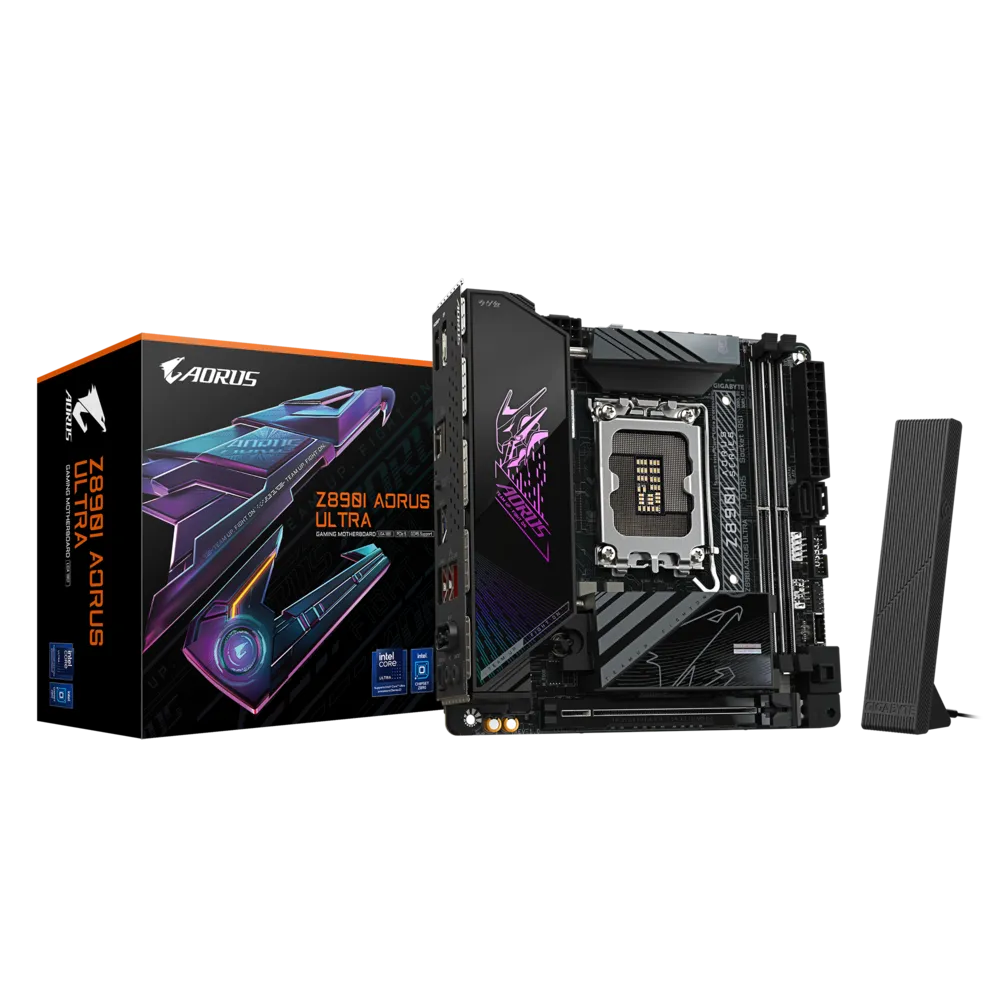

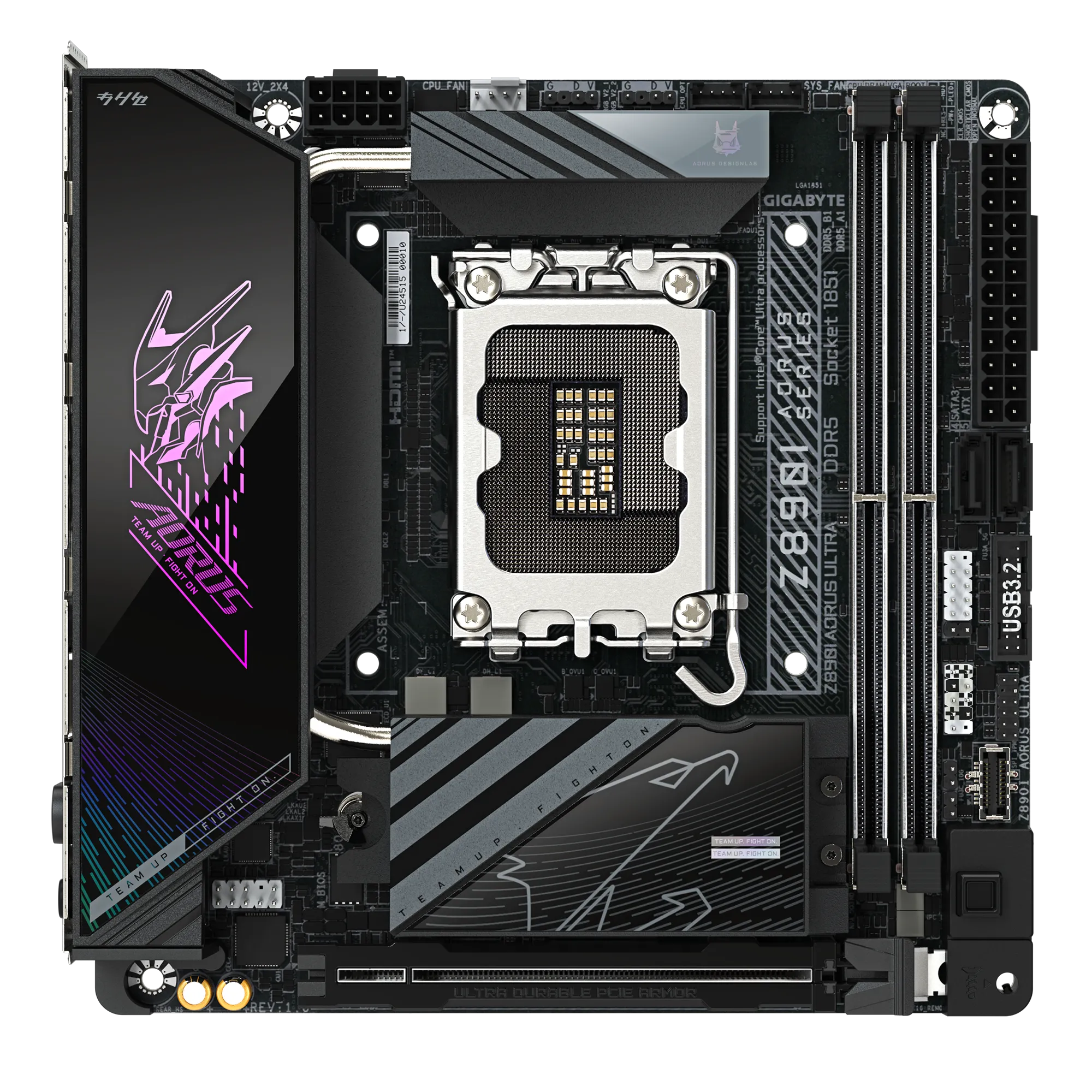

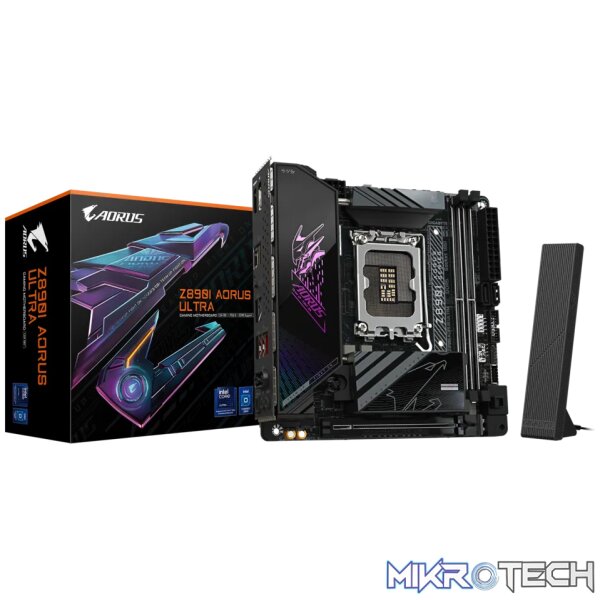

Gigabyte Z890I Aorus Ultra WiFi7 Motherboard

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital 8+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 2*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard Ext.
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : THUNDERBOLT™ 4 Type-C with DP-Alt , HDMI , DisplayPort
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Specifications

• CPU
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
  • L3 cache varies with CPU
  • * Please refer to CPU Support List for more information.
• Chipset:  Intel® Z890 Express Chipset
• Memory
  • Support upto DDR5 9200(O.C) / 6400MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
    • 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs {When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).}
    • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz (Support for DisplayPort 2.1 version and HDCP 2.3)
    • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3.)
    • (Graphics specifications may vary depending on CPU support.)
    • Support for up to triple-display at the same time
• Audio:  Realtek® Audio CODEC
• LAN:  Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • Wi-Fi 7
  • BLUETOOTH 5.4
• Expansion Slots
  • CPU
    • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
      • * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Storage Interface
  • CPU
    • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset
    • 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    • 2 x SATA 6Gb/s connectors
    • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    • RAID 0, RAID 1 support for SATA storage devices

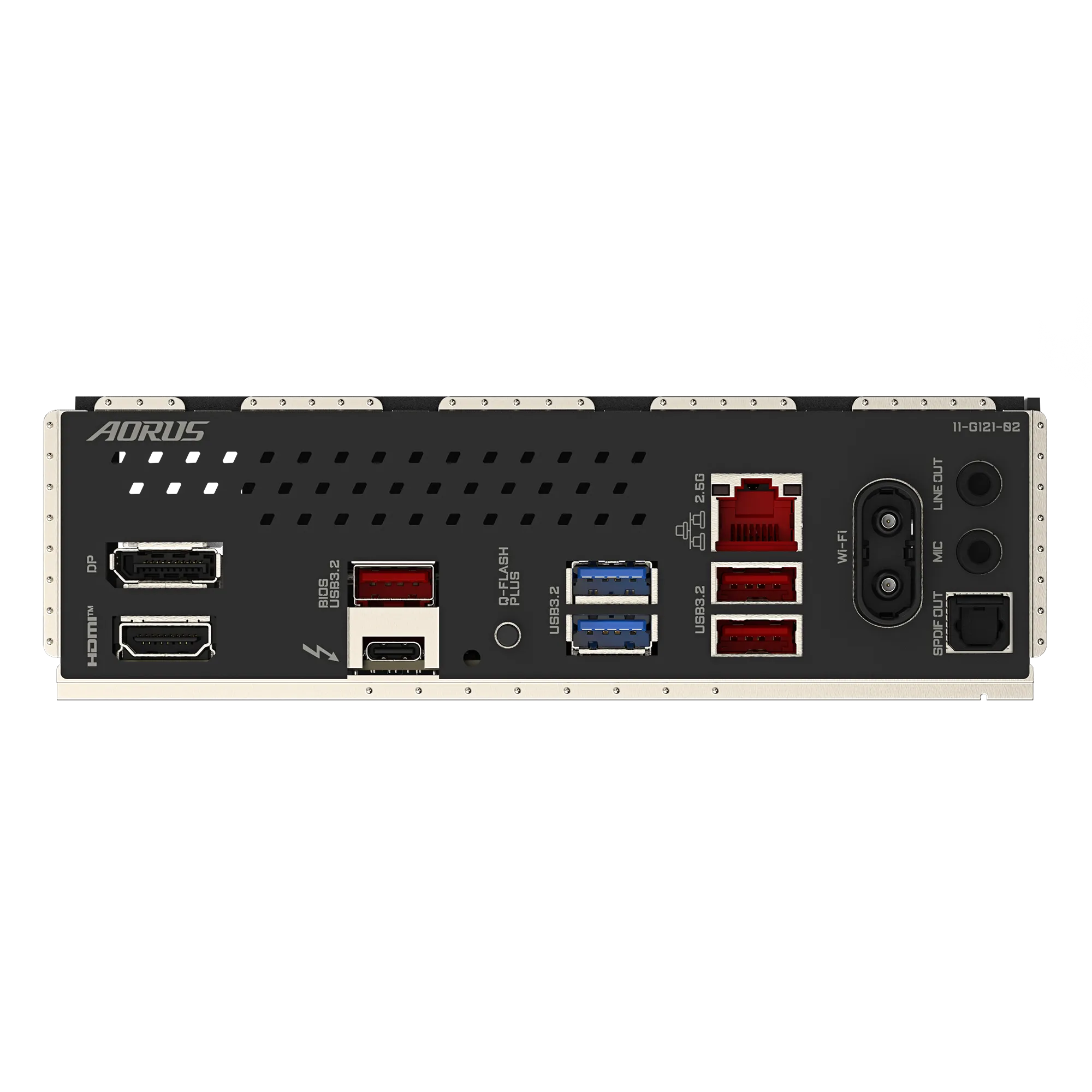

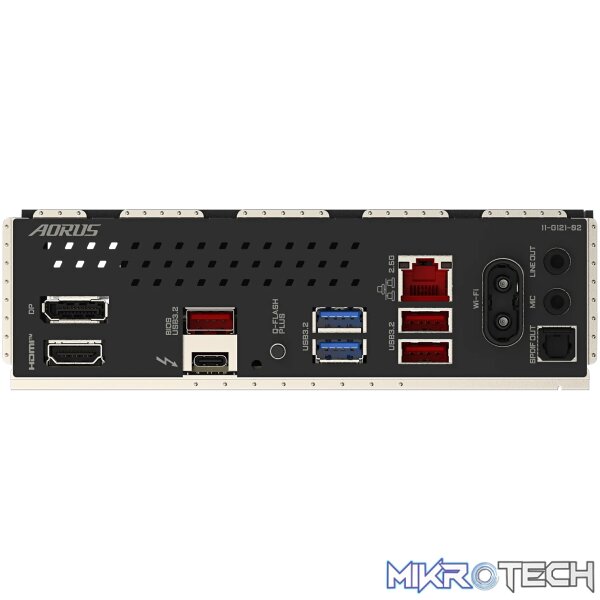

• USB
  • CPU
    • 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel (Support up to 40Gbps with Thunderbolt devices. Support up to 20Gbps with USB4 devices. Support up to 10Gbps with USB 3.2 devices)
  • Chipset + Hubs
    • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    • 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • 2 x USB 2.0/1.1 ports available through the internal USB headers
• Form Factor: Mini-ITX (17.0 x 17.0 cm)
• Warranty: 3 years
