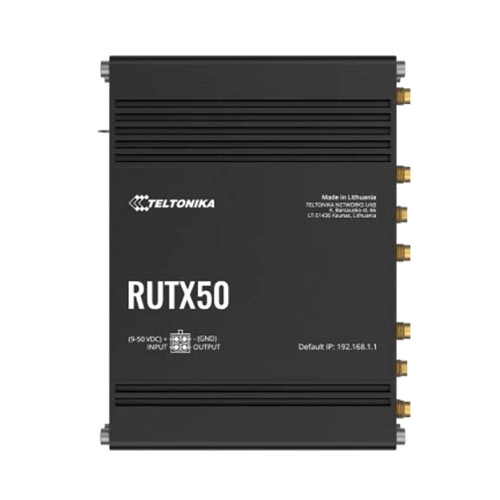

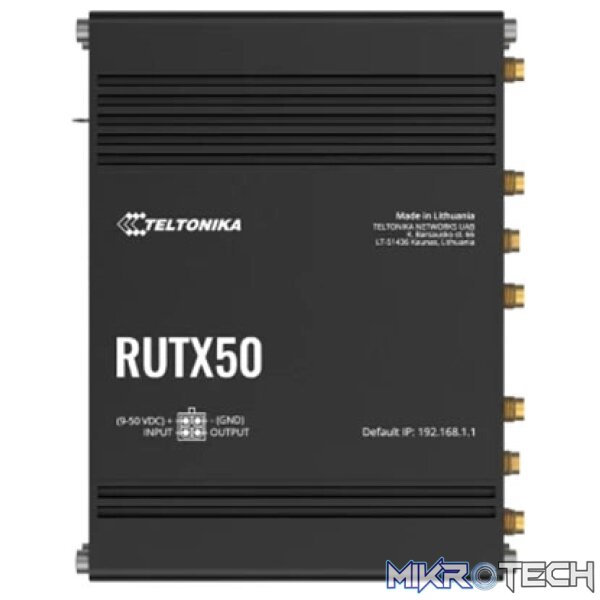

Teltonika RUTX50 5G Industrial Router,Dual-SIM, Wi-FI 5, 4×4 MIMO, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS TCP/USB, GNSS, 1 x I/O IN, 1 x I/O OUT

Industrial 5G Router

RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.

5G
Ultra-high cellular speeds of up to 3.3 Gbps
Dual SIM
With auto failover, backup WAN and other switching scenarios
SA & NSA
Supports both architectures to leverage the 5G infrastructure
Future-Proofing
Backward compatible with 4G (LTE CAT 20) and 3G network technologiesut

Features:

Mobile – 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
CPU – Quad-core ARM Cortex A7, 717 MHz
Flash storage – 256 MB
RAM – 256 MB
Powering options – 4-pin power socket, 9-50 VDC
SIM – 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Antenna connectors – 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
Ethernet – 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
Wi-Fi – 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wireless mesh/roaming – Wireless mesh (802.11s), fast roaming (802.11r)
GNSS – GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs – On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
Other – 1 x USB host, 1 x Grounding screw
Status LEDs – 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
Operating temperature – -40 °C to 75 °C
Housing – Aluminum housing, DIN rail (can be mounted on two sides), flat surface placement
Dimensions (W x H x D) – 132 x 44.2 x 95.1 mm
Weight – 533 g
