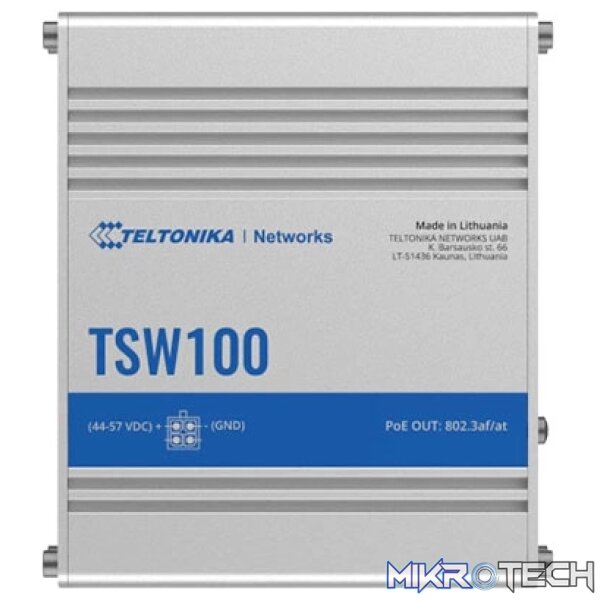

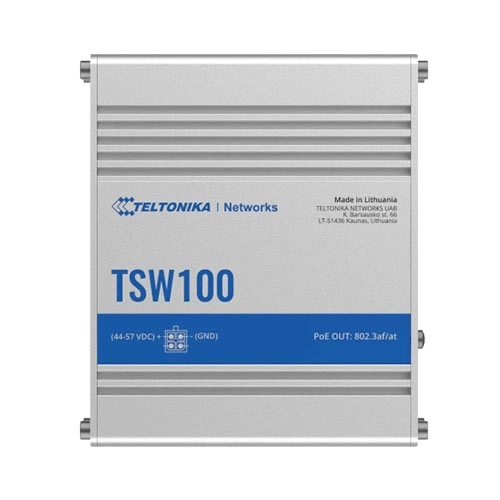

Teltonika TSW100 5 x LAN (1 Gbps), 4 x Port PoE Switch (120 W)

Industrial PoE+ Ethernet Switch

TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.

PoE+
4 x PoE+ ports with 802.3af and 802.3at support
Power Budget
Total power budget at PSE up to 120 W
Ethernet
5 x Gigabit Ethernet with speeds up to 1000 Mbps
Mounting
DIN rail and surface mounting options

Features:

Powering option – 4-pin power socket, 7-58 VDC
Power consumption – Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
PoE standart – 802.3af/at (max 30 W per port, total power budget 120W)
Ethernet – 5 x 10/100/1000 Ethernet ports: 4 x PoE Out, 1 x ETH
Status LEDs – 10 x Ethernet, 1 x Power
Ingress protection rating – IP30
Operating temperature – -40 °C to 75 °C
Housing – Aluminium housing with wall or DIN rail mounting option and grounding capability
Dimensions – 115 x 32 x 95 mm
Weight – 350 g
