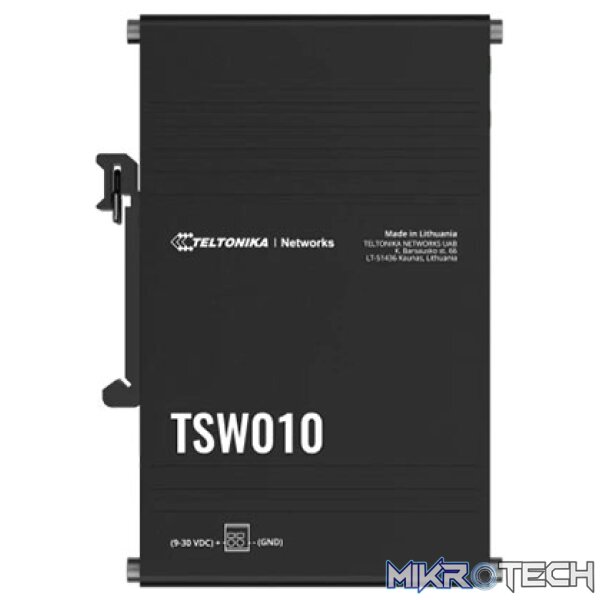

Teltonika TSW010 5x LAN (100Mbp)s Switch

Din Rail Ethernet Switch

TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

Plug and Play
No additional configuration needed
Mounting
Integrated DIN rail bracket and surface mounting options
Industrial Design
Anodized aluminum housing and panels
Ethernet
5 x Ethernet ports with speeds of up to 100 Mbps

Features:

Power supply – 2-pin industrial DC power socket, 9 – 30 VDC
Power consumption – Idle: 0.3 W / Max: 0.9 W
Status LEDs – 1 x Power LED, 10 x LAN status LEDs
Ethernet – 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function
Ingress protection rating – IP30
Operating temperature – -40 °C to 75 °C
Housing – Anodized aluminum housing and panels
Dimensions – 113.1 x 27.4 x 80.5 mm
Weight – 146.5 g
Installation – Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
