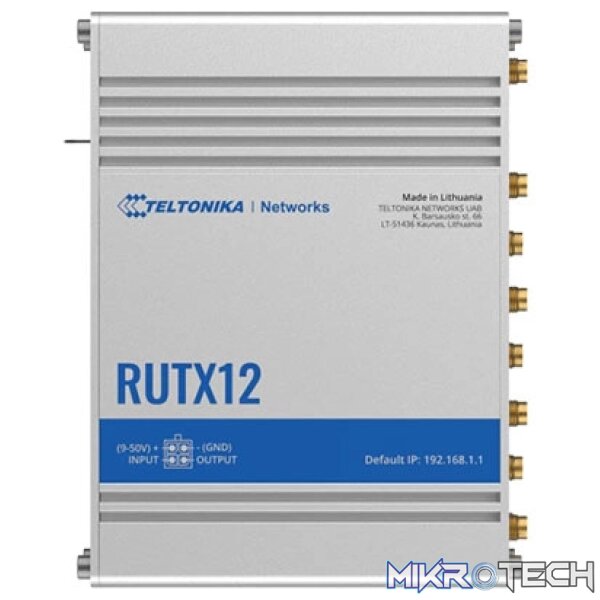

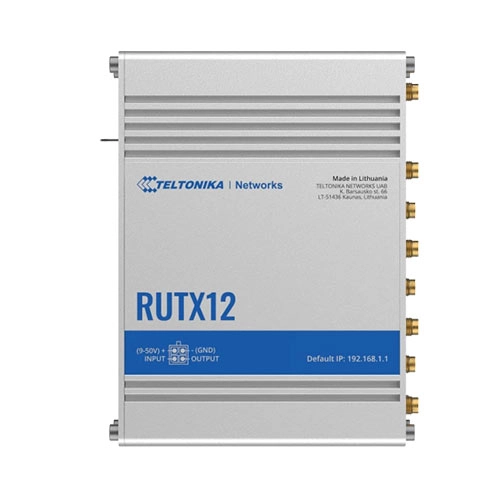

Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS TCP/USB, GNSS, Bluetooth 4.0, 1 x I/O IN, 1 x I/O OUT
Dual LTE CAT 6 Industrial Cellular Router
This powerful dual LTE Cat 6 router is a great fit for mission-critical applications. Two cellular modems for dual simultaneous connections, seamless mobile service switching and load balancing features make this device irreplaceable in applications where losing connection is not an option.
Dual LTE
Cellular speeds up to 600 Mbps with dual simultaneous LTE CAT 6 connections
Dual SIM
Instant failover switching
Wi-Fi & BT
Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE
Load Balancing
Allows to use multiple WAN sources to increase throughput
Features:
- Mobile – 2 X 4G/LTE (Cat 6), 3G
- CPU – Qualcomm, 4 x ARM Cortex A7, 717 MHz
- Storage – 256 MB Flash
- Memory – 256 MB RAM
- Powering option – 4pin power socket, 9-50 VDC
- SIM – 2 x External SIM holders (2FF)
- Antenna connectors – 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
- Ethernet – 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
- Wi-Fi – IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
- GNSS – GPS, GLONASS, BeiDou, Galileo, QZSS
- Bluetooth – 4.0 (Low energy)
- Inputs/Outputs – On 4pin socket: 1 x Digital input, 1 x Digital open collector output
- Other – 1 x USB host
- Status LEDs – 4 x WAN type, 6 x Connection type, 6 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
- Operating temperature – -40 °C to 75 °C
- Housing – Aluminium housing with DIN rail mounting option and grounding capability
- Dimensions (W x H x D) – 132 x 44.2 x 95.1 mm
- Weight – 540 g
