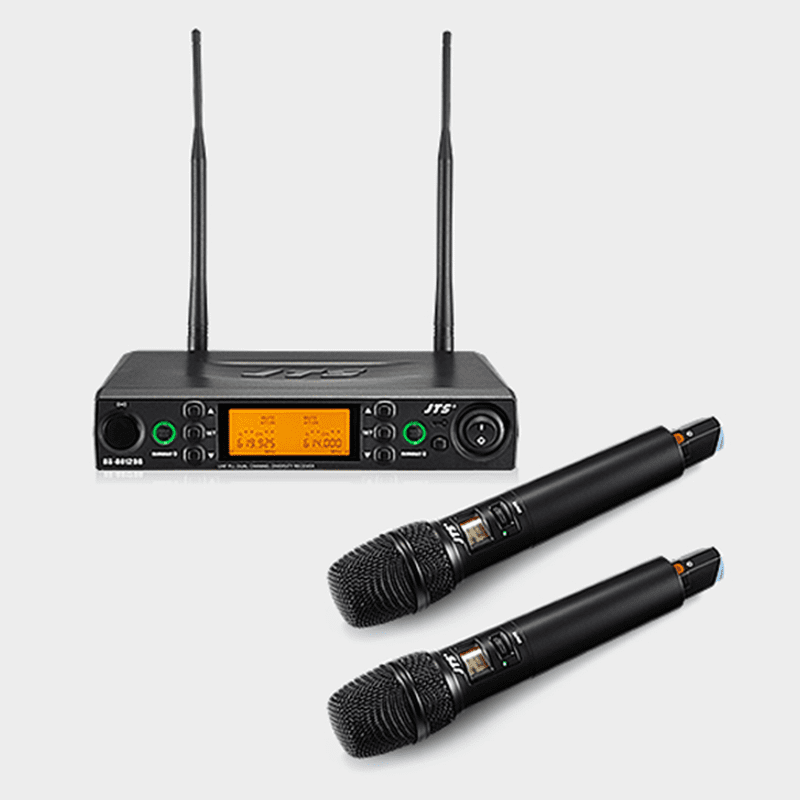

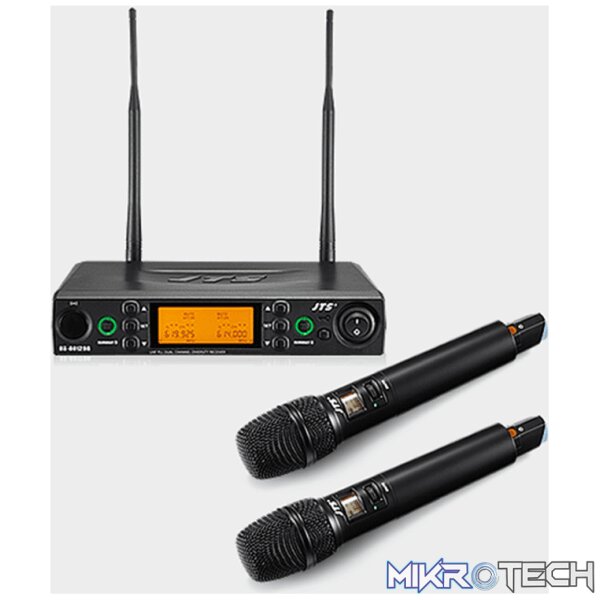

Jts – Ru-8012Db/Ru-850Lth Dual Handheld Diversity Uhf Mic 614-650Mhz

The best selling RU-8012DB offers a feature rich solution at a fantastic price. The large LED display shows all of the important information required to guarantee rock solid RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Supplied with a RU-G3TH Condenser transmitter, this is a complete handheld system for the discerning singer.

SPECIFICATIONS:

• Frequency Preparation :
  PLL Synthesized Control
•
  Carrier Frequency :
  Range 470~960 MHz
•
  Frequency Setting :
  Ultrasonic / REMOSET (Transmit)
•
  Receiving Mode :
  Antenna Diversity
•
  Bandwidth :
  36MHz
•
  S/N Ratio:
  >105dB(A)
•
  T.H.D:
  <0.6%@1KHz
• Sensitivity:
  -95dBm,S/N>80dB
•
  Rejection Ratio :
  >80 dB
•
  Frequency Response :
  50Hz~16KHz±2dB
•
  Antenna Type :
  BNC Socket
•
  Antenna Booster Power:
  DC12~15V/100mA
•
  Display:
  LCD
•
  Audio Output Impedance :
  600?
•
  Squelch :
  Pilot Tone & Noise Mute
•
  Output Connector :
  2 independent balanced XLR and 2 Ø6.3mm unbalanced
•
  Power Supply :
  DC12~15V/500mA
•
  Dimension (mm) :
  212.3mm(W)* 38.3mm(H)* 144mm(D)
•
  Notes:
  Acutal product specifications may vary depending on model and region
  RU-850LTH Frequency Preparation PLL Synthesized Control
•
  Carrier Frequency :
  Range 470~960MHz
•
  Frequency Setting :
  REMOSET U(Receive)
•
  RF Outpus :
  Low / High
•
  Stability :
  <±10KHz@Fc
•
  Frequency Deviation :
  ±48KHz
•
  Spurious Emissions :
  <-50dBc
•
  Function:
  Mute, Auto Power Off, Sensitivity Adjust, Low Battery
•
  Display :
  LCD+LED
•
  Controls :
  Power, Mute, Group, Channel
  Frequency, Gain Adjust, Auto Power Off, Key
  Lock
•
  Battery :
  UM3, AA x2
