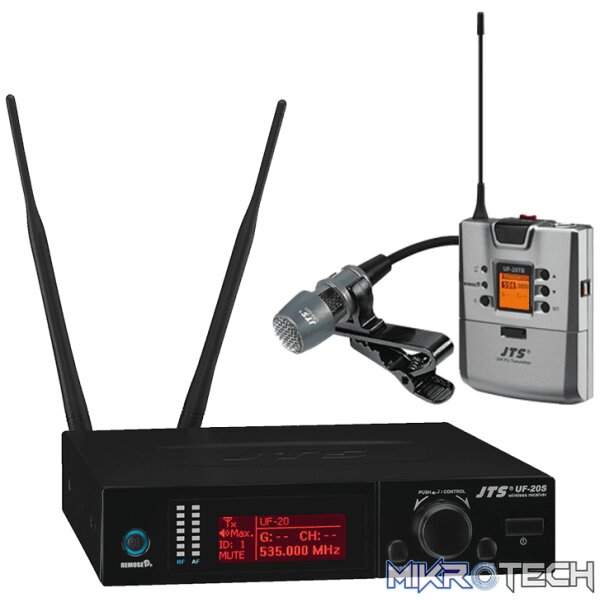

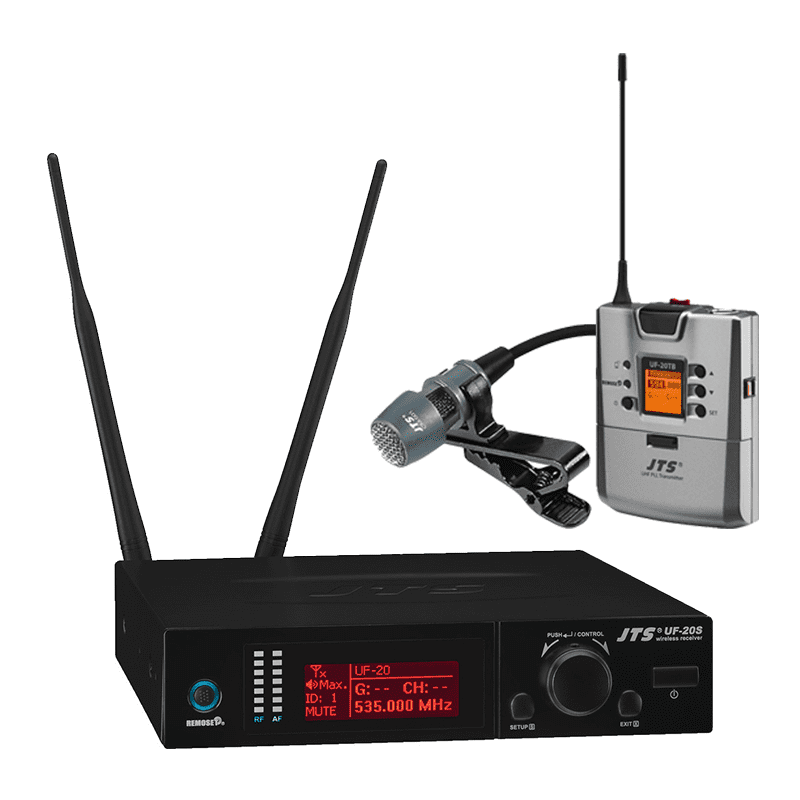

Jts – Uf-20S/Uf-20Tb+Cm-501 Uhf Lapel True Diversity Mic 624-694 Mhz

Perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.

FEATURES:

• Bandwidth: 75 MHz
• 15 groups, each with 63 compatible preset channels
• 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
• RF output and mains voltage output for easily cascading up to 10 x UF-20R/5 receiver without additional splitter
• REMOSET technology for receiver/transmitter synchronisation
• Auto-scan function
• Pilot tone and noise squelch
• Equalizer function
• LED for indicating RF level and AF level
• Backlit display for indicating battery status of the transmitter, frequency setup, active antenna

SPECIFICATIONS:

• Carrier frequency range :
  530-605 MHz
•
  Audio frequency range :
  50-18,000 Hz
•
  Channels :
  1
•
  THD :
  < 0.5%
•
  Dynamic range > :
  108 dB
•
  Admiss. ambient temp. :
  0-40 °C
•
  Audio signal receiver :
  100 mV XLR
•
  Power supply receiver :
  via encl. power supply
•
  Width receiver :
  212 mm
•
  Height receiver :
  44 mm
•
  Depth receiver :
  214 mm
•
  Weight receiver :
  1.4 kg
