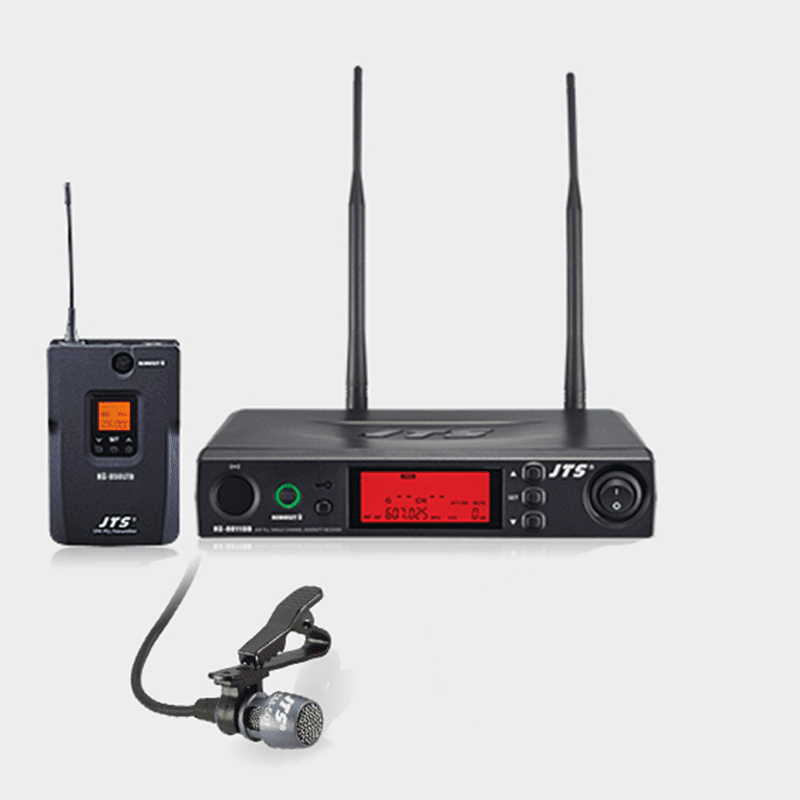

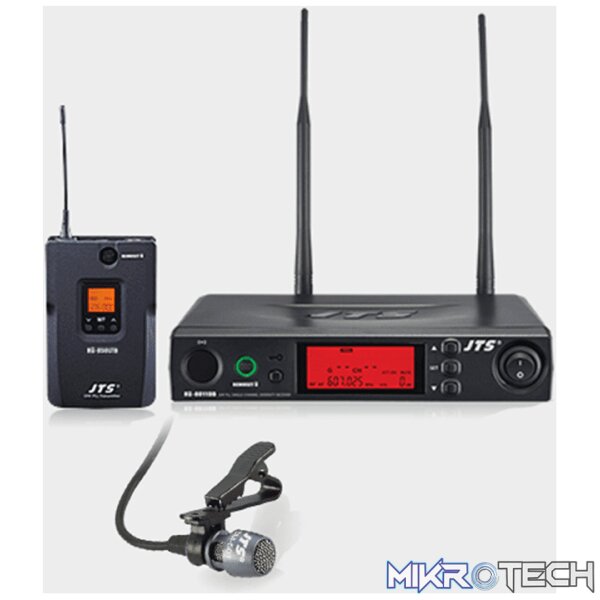

Jts – Ru-8011Db/Ru-850Ltb+Cm-501 Lapel Diversity Uhf Mic 614-650Mhz

This product is a full feature version of RU-8011D / RU-8011DT. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

FEATURES:

• Uni-direction for high-quality voice pick-up
• Wide dynamic range and frequency response for excellent sound reinforcement
• Small size for minimum visibility
• Together with clip for easy attaching to a tie, lapel, dress etc

SPECIFICATIONS:

• Frequency Preparation:
  PLL Synthesized Control
•
  Carrier Frequency :
  Range 470~960 MHz
•
  Frequency Setting :
  REMOSET U
•
  Receiving Mode :
  Antenna Diversity
•
  Bandwidth :
  36MHz
•
  S/N Ratio :
  >105dB(A)
•
  T.H.D :
  <0.6%@1KHz
•
  Sensitivity:
  -95dBm,S/N>80dB
•
  Rejection Ratio:
  >80 dB
•
  Frequency Response:
  50Hz~16KHz±2dB
•
  Antenna Type:
  BNC Socket
•
  Antenna Booster Power:
  DC12~15V/100mA
•
  Display :
  LCD
•
  Display Contents :
  Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF
•
  Meter:
  Frequency Scan, Audio Level, Volume
•
  Controls :
  Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
•
  Attenuaiton(XLR),:
  Frequency Scan(ON/OFF)
•
  Audio Output:
  Level Ref/ ±22.5KHz Dev@1KHz Tone
•
  ?6.3 Phone Jack/ -10dBV:

•
  XLR :
  Jack/ -4dBV(Line) ? -24dBV(MIC)
•
  Audio Output Impedance:
  600?
•
  Squelch:
  Pilot Tone & Noise Mute
•
  Output Connector:
  1 independent balanced XLR and one Ø6.3mm unbalanced
•
  Power Supply:
  DC12~15V/300mA
•
  Dimension (mm) :
  212.3mm(W)* 38.3mm(H)* 144mm(D)
•
  Notes:
  Acutal product specifications may vary depending on region
•
  Frequency Setting:
  REMOSET U(Receive)
•
  RF Outpus :
  Low / High
•
  Stability:
  <±10KHz@Fc
•
  Frequency Deviation :
  ±48KHz
•
  Spurious Emissions :
  <-50dBc
•
  Function:
  Mute, Auto Power Off, Sensitivity Adjust, Low Battery
•
  Display :
  LCD+LED
•
  Controls :
  Power, Mute, Group, Channel
•
  Frequency, Gain Adjust, Auto Power Off, Key
  Lock:

•
  Battery :
  UM3, AA x2
