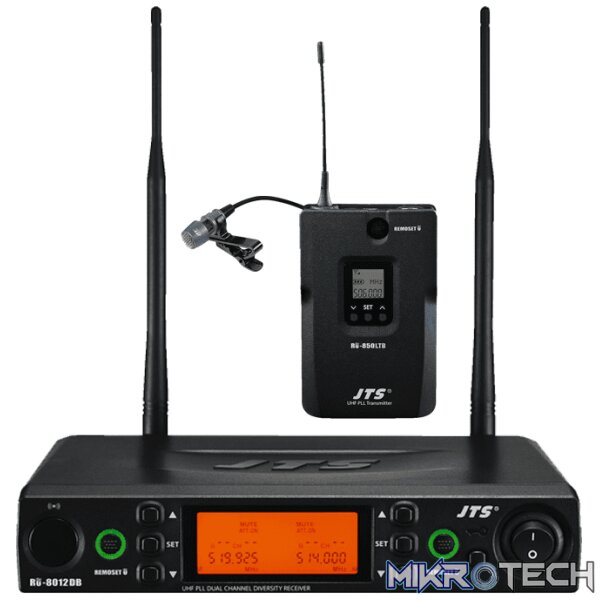

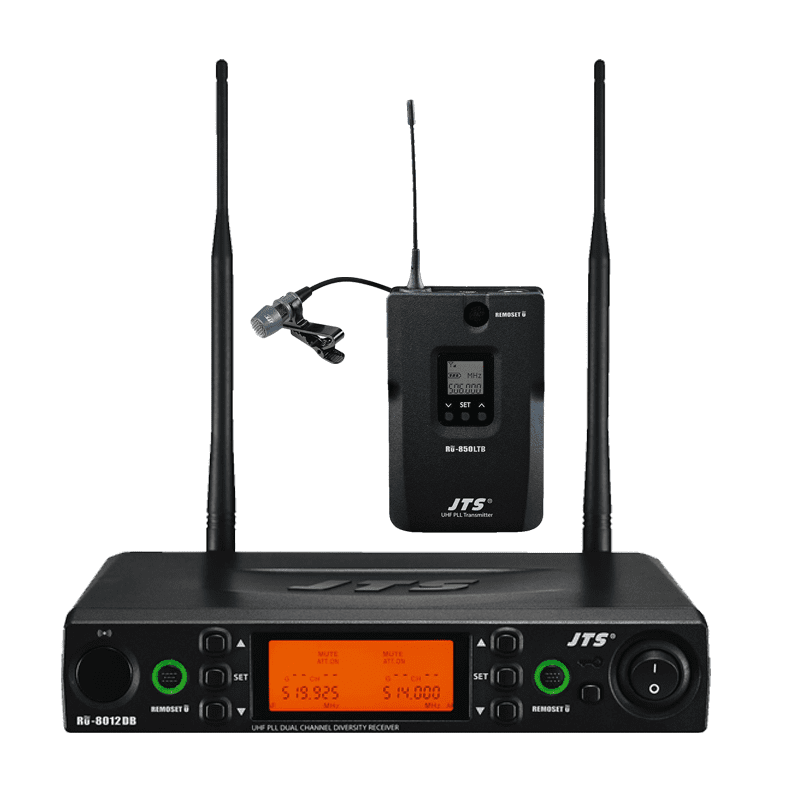

Jts – Ru-8012Db/Ru-850Ltb+Cm-501 Uhf Dual Lapel True Diversity Mic 614-650 Mhz

Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand
general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

FEATURES:

• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• REMOSET ULTRASONIC technology for receiver/transmitter synchronization
• Removable antennas (BNC connection)
• Auto-scan function
• Pilot tone squelch and noise mute
• Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B, RF receiving level, AF audio level
• 2 x XLR output (bal.) and 2 x 6.3 mm jack output (unbalanced)

SPECIFICATIONS:

• Carrier frequency range :
  506-542 MHz
•
  Audio frequency range :
  50-16,000 Hz
•
  Channels :
  2
•
  THD :
  0.6%
•
  Dynamic range :
  105 dB
•
  Admiss. ambient temp :
  0-40 °C
•
  Power supply :
  receiver via encl. power supply
•
  Width receiver :
  212 mm
•
  Height receiver :
  38 mm
•
  Depth receiver :
  144 mm
•
  Weight receiver :
  508 g
