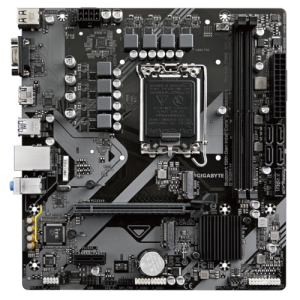

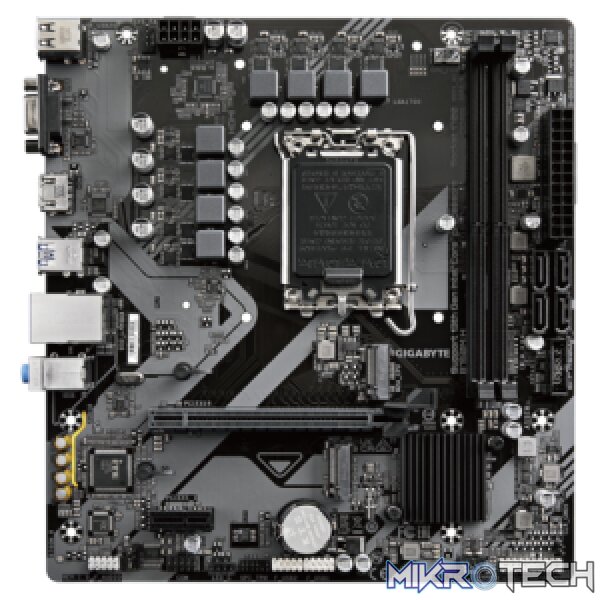

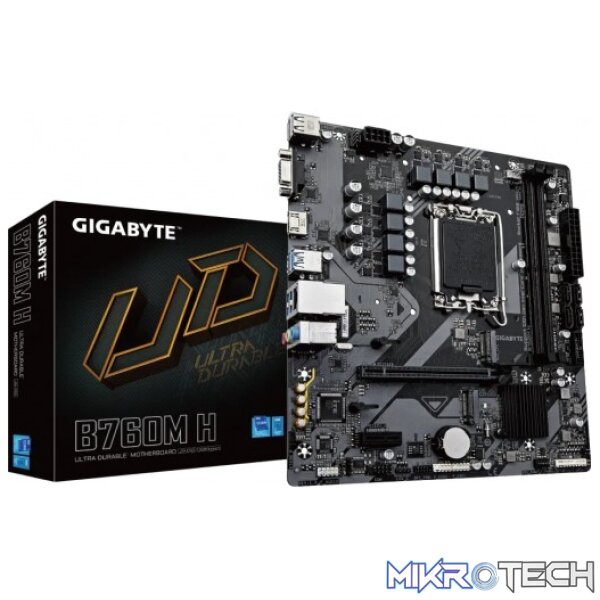

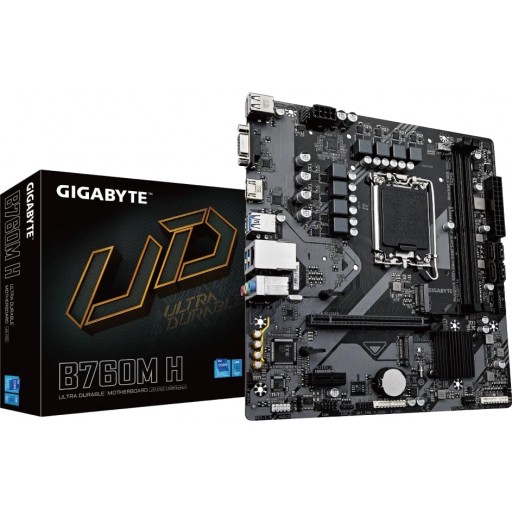

Gigabyte B760M H Ultra Durable DDR5 Rev 1.0 Intel B760 LGA 1700 Raptor Lake Micro-ATX Motherboard
R2,639.99 incl. VAT
Micro-ATX Form Factor
Intel B760 Chipset
Socket LGA 1700
Supports Intel 12th & 13th Gen Processors
2x DDR5 DIMM Slots, Supports Up To 96GB
Supports Up to DDR5-8000 (OC)
Supports Intel XMP 3.0 Memory Modules
1x PCIe 4.0 x16 Slot (x16 Physical)
1x PCIe 3.0 x1 Slot (x1 Physical)
2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
4x SATA 3.0 Ports
4x USB 5Gb/s Type-A Ports
2x USB 2.0 Type-A Ports
1x HDMI 2.0 Port, 1x VGA D-Sub Port
3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
Realtek Gigabit Ethernet RJ-45 LAN
Realtek High Definition Audio Codec
Hybrid 6+1+1 Phase Digital VRM Solution
Gigabyte Q-Flash BIOS Flashback
Gigabyte EZ-Latch M.2 Design
Gigabyte RGB Fusion
Gigabyte Smart Fan 6 Technology
Gigabyte Control Center Utility
Supports Windows 10, Windows 11 64-bit
3 Year Warranty
Out of stock
Gigabyte B760M H Ultra Durable DDR5 Rev 1.0 Intel B760 LGA 1700 Raptor Lake Micro-ATX Motherboard
GA-B760M-H-D5
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | B760 Motherboard Series |
| Model | B760M H DDR5 Rev 1.0 |
| CPU Support | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 13th Gen & 12th Gen Processors | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 2x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.0 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| VGA D-Sub | 1x VGA D-Sub port, supporting a maximum resolution of 1920×1200 @ 60Hz |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical slot |
| Intel B760 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) |
| Intel B760 Chipset | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Realtek Gigabit LAN 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Support for S/PDIF Out (internal header) | |

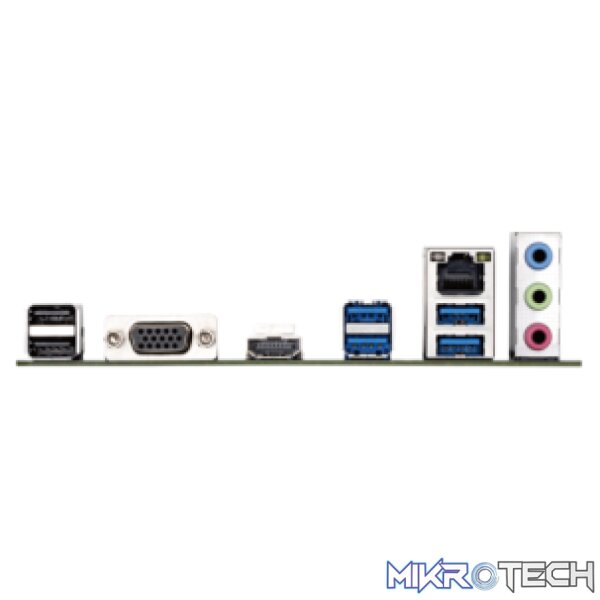

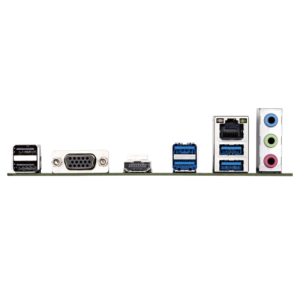

| Connectivity | |
| Ports | 4x USB 5Gb/s Type-A Ports |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.0 Port | |
| 1x VGA D-Sub Port | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 1x Realtek Gigabit Ethernet RJ-45 LAN Port | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 2x system fan headers | |
| 1x RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x Clear CMOS jumper | |
| Buttons | N/A |
| LED Displays | N/A |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 230 x 215 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
