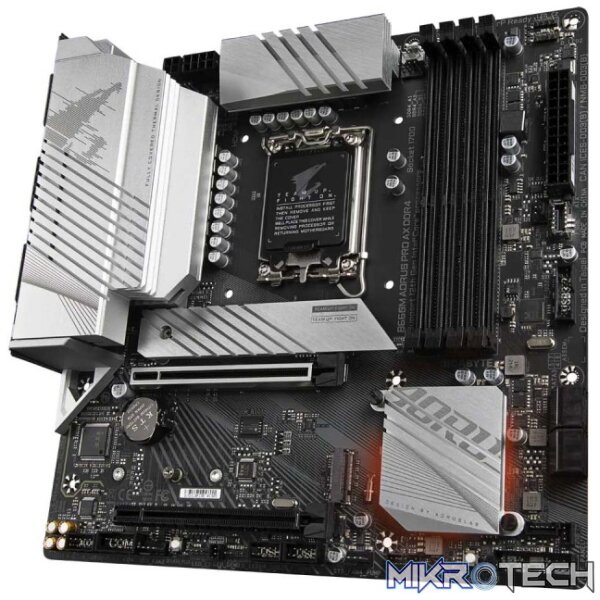

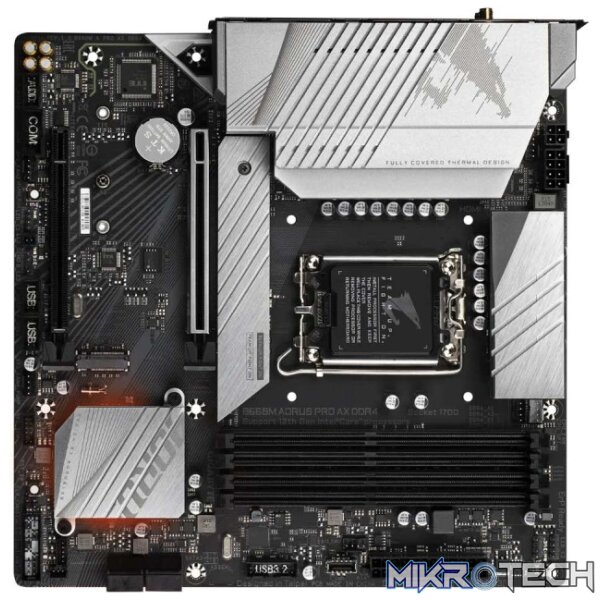

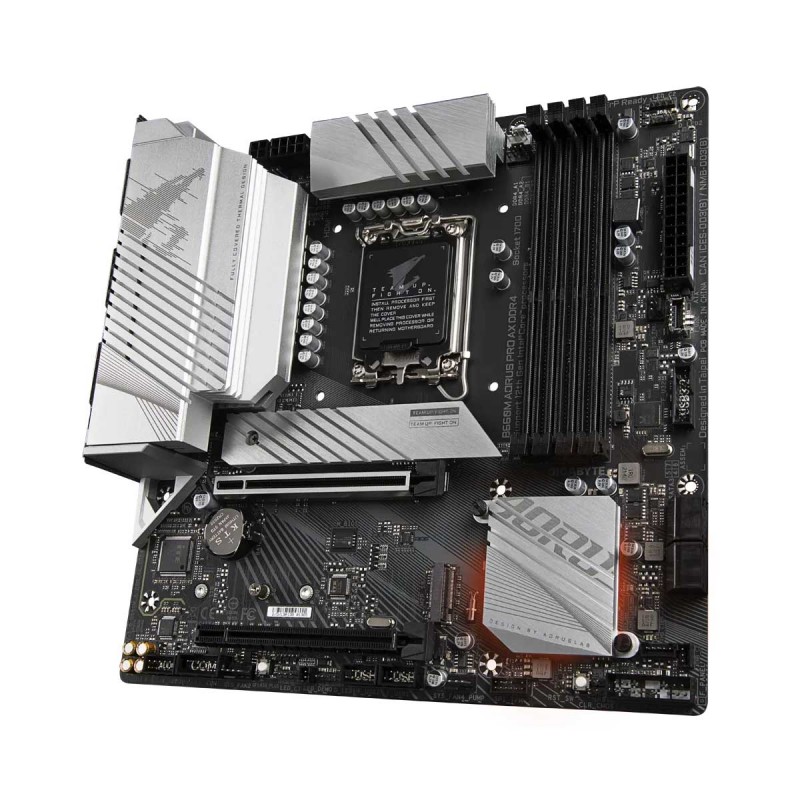

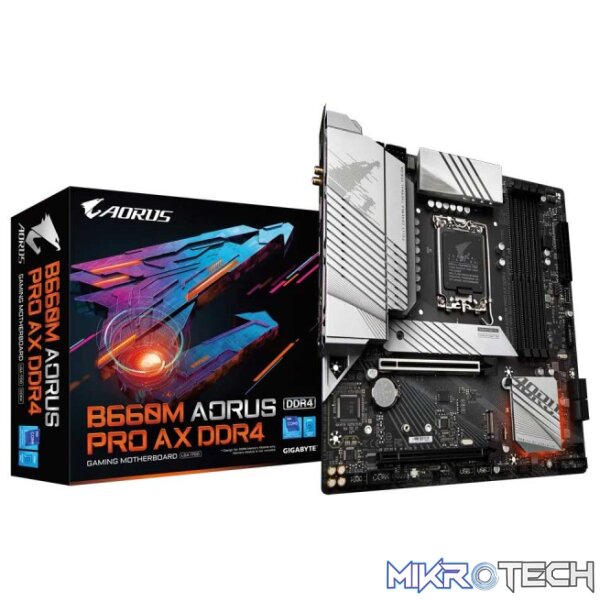

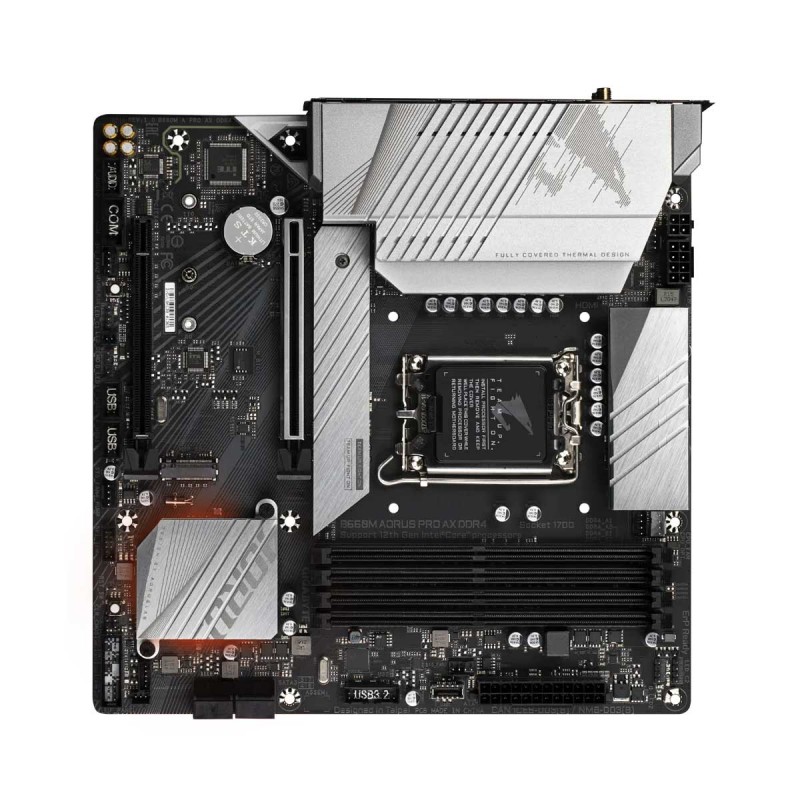

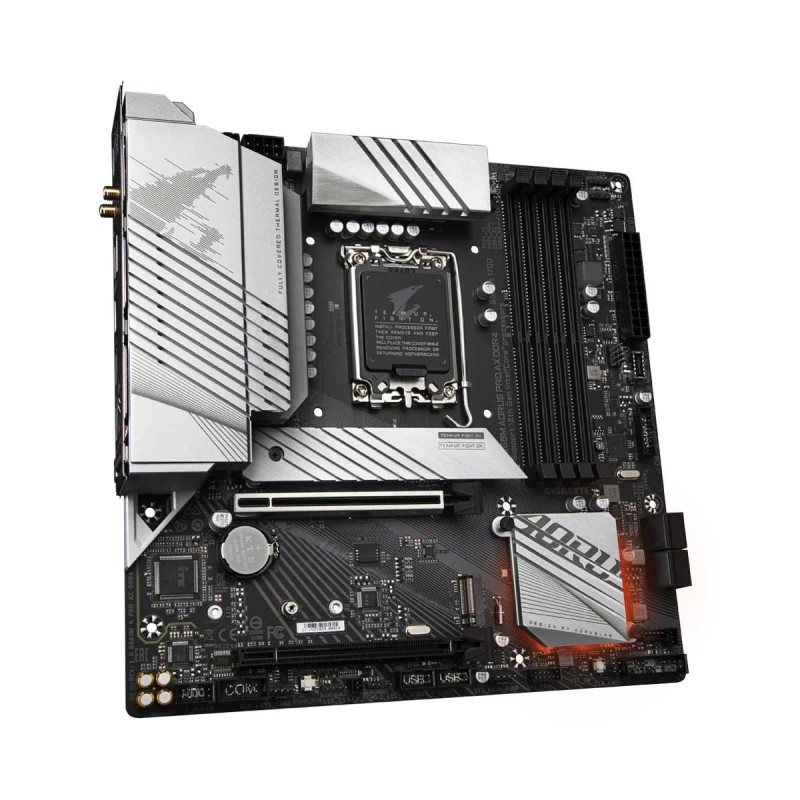

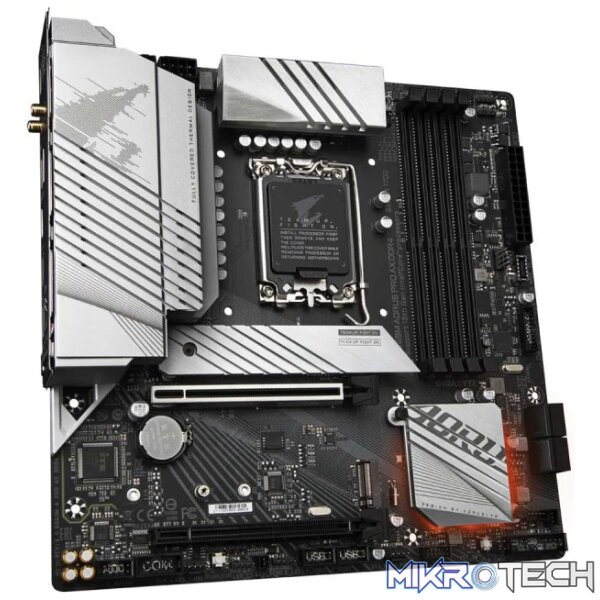

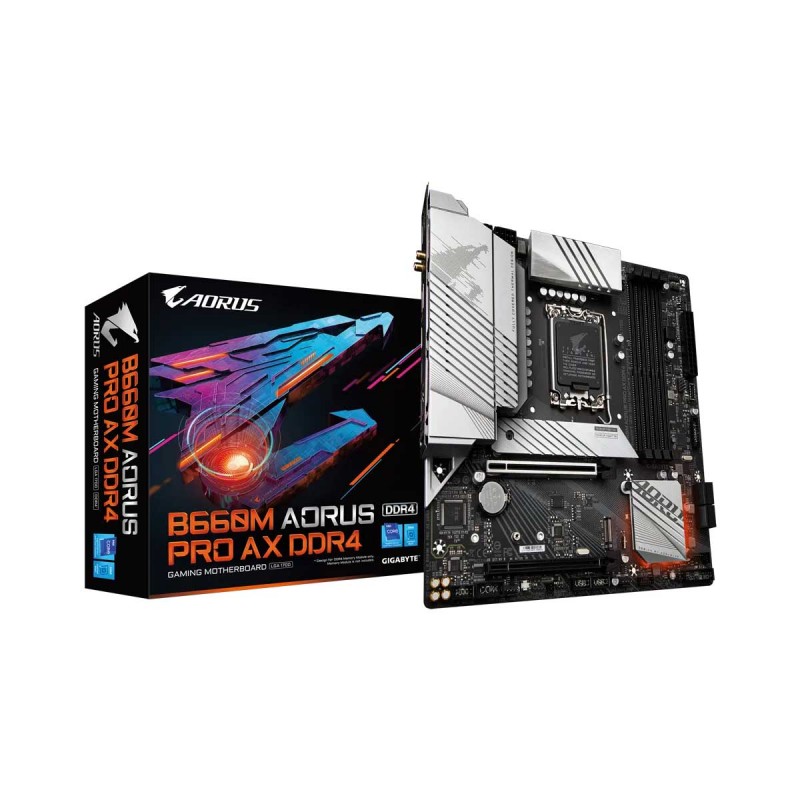

Gigabyte Intel B660M AORUS PRO AX DDR4 LGA1700 MATX Motherboard

GA-B660M-AORUS-PRO-AX-DDR4

Rule supreme with the B660 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lakes performance in all its gaming glory. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. GIGABYTE B660 Series Motherboards Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

SPECIFICATIONS
Brand	Gigabyte
Series	Aorus PRO AX
Model	GA-B660M-AORUS-PRO-AX-DDR4
CPU	LGA 1700 Socket: Support For 12th Generation Intel Core, Pentium Gold and Celeron Processors
	L3 Cache Varies With CPU
	Please Refer To CPU Support List For More Information
Chipset	Intel B660 Express Chipset
Memory	Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz Memory Modules
	4x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) Of System Memory
	Dual Channel Memory Architecture
	Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
	Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
	Support For Extreme Memory Profile (XMP) Memory Modules
	Please Refer To Memory Support List For More Information
Onboard Graphics	1x DisplayPort, Supporting a Maximum Resolution Of 4096×2304@60 Hz
	Support For DisplayPort 1.2 Version And HDCP 2.3
	1x HDMI Port, Supporting a Maximum Resolution Of 4096×2160@60 Hz
	Support For HDMI 2.1 Version And HDCP 2.3.
	Support Native HDMI 2.1 TMDS Compatible Ports
Audio	Realtek Audio CODEC
	The Back Panel Line Out Jack Supports DSD Audio
	High Definition Audio
	2/4/5.1/7.1-Channel
	Support for S/PDIF Out
LAN	Intel 2.5GbE LAN Chip(2.5 Gbps/1 Gbps/100Mbps)
Wireless Communication Module	WIFI a, b, g, n, ac, ax, Supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 5.2
	Support For 11ax 160MHz Wireless Standard and Up to 2.4 Gbps Data Rate
	Actual Data Rate May Vary Depending On Environment And Equipment.
Expansion Slots	1x PCI Express x16 Slot, Running At x16 (PCIEX16)
	(The PCIEX16 Slot Conforms To PCI Express 4.0 Standard)
	1x PCI Express x16 Slot, Running At x4 (PCIEX4)
	The PCIEX4 Slot Shares Bandwidth With The M2M_SB Connector. The PCIEX4 Slot Becomes Unavailable When a Device Is Installed In The M2M_SB Connector
Multi-Graphics Technology	Support For AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies
Storage Interface
CPU Native	1x M.2 Connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD Support) (M2A_CPU)
Intel B660 Chipset	1x M.2 Connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD Support) (M2P_SB)
	4x SATA 6Gb/s Connectors
	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
	Intel Optane Memory Ready
	System Acceleration With Intel Optane Memory Can Only Be Enabled On The M.2 Connectors Supported By The Chipset
USB
Chipset	1x USB Type-C Port On The Back Panel, With USB 3.2 Gen 2×2 Support
	1x USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header
	1x USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel
Chipset 2 USB 3.2 Gen 1 Hubs	6x USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
Chipset USB 2.0 Hub	8x USB 2.0/1.1(4x Ports On The Back Panel, 4x Ports Available Through The Internal USB Header
Internal I/O Connectors	1x 24-Pin ATX Main Power Connector
	1x 8-Pin ATX 12V Power Connector
	1x 4-Pin ATX 12V Power Connector
	1x CPU Fan Header
	1x Water Cooling CPU Fan Header
	3x System Fan Headers
	1x System Fan/Water Cooling Pump Headers
	2x Addressable LED Strip Headers
	2x RGB LED Strip Headers
	2x M.2 Socket 3 Connectors
	4x SATA 6Gb/s Connectors
	1x Front Panel Header
	1x Front Panel Audio Header
	1x USB Type-C Header, With USB 3.2 Gen 2 Support
	1x USB 3.2 Gen 1 Header
	2x USB 2.0/1.1 Headers
	1x Serial Port Header
	2x Thunderbolt Add-In Card Connectors
	1x Trusted Platform Module Header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)
	1x Reset Button
	1x Q-Flash Plus Button
	1x Reset Jumper
	1x Clear CMOS Jumper

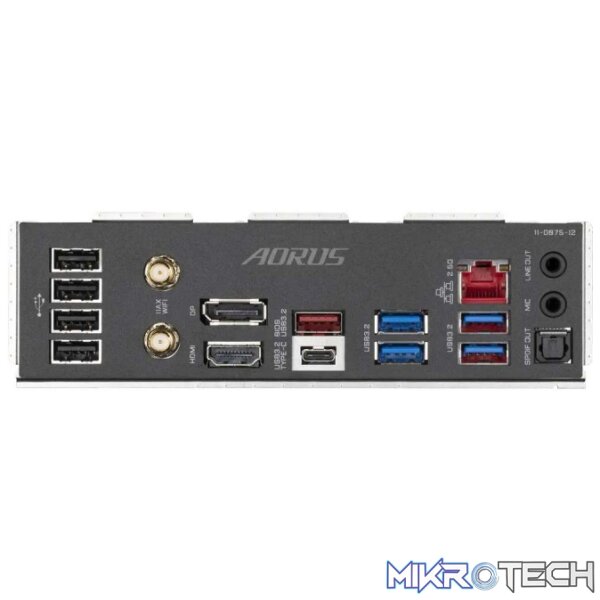

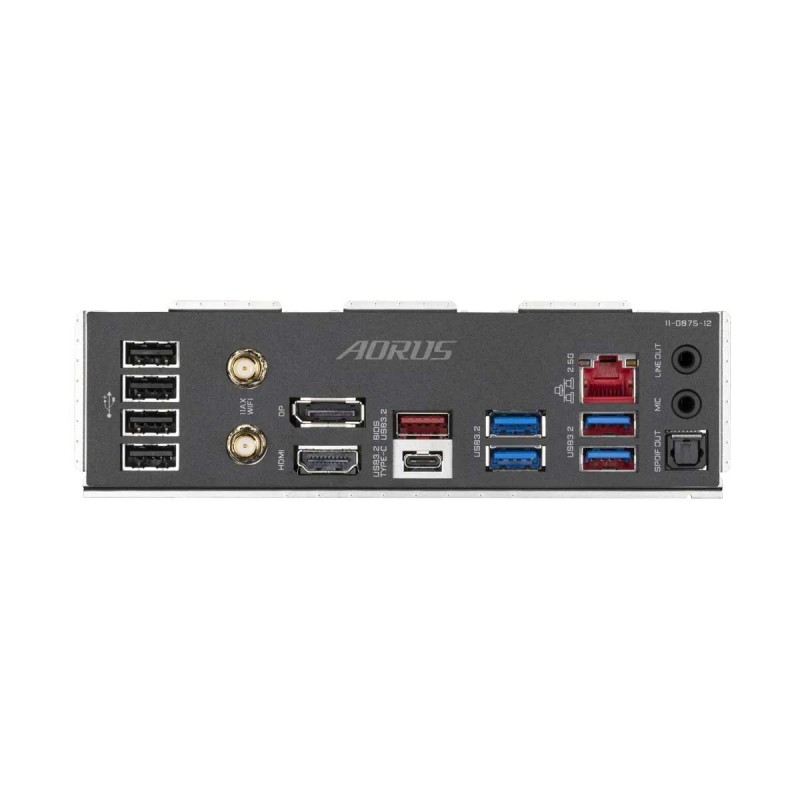

Back Panel Connectors	1x USB Type-C Port, With USB 3.2 Gen 2×2 Support
	1x USB 3.2 Gen 2 Type-A Port (Red)
	4x USB 3.2 Gen 1 Ports
	4x USB 2.0/1.1 Ports
	2x SMA Antenna Connectors (2T2R)
	1x DisplayPort
	1x HDMI 2.0 Port
	1x RJ-45 Port
	1x Optical S/PDIF Out Connector
	2x Audio Jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage Detection
	Temperature Detection
	Fan Speed Detection
	Water Cooling Flow Rate Detection
	Fan Fail Warning
	Fan Speed Control
	Fan Fail Detection
	Whether The Fan (Pump) Speed Control Function Is Supported Will Depend On The Fan (Pump) You Install
BIOS	1x 256 Mbit Flash
	Use Of Licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	Available Applications In APP Center May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
	BIOS
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
	Support for Xpress Install
Bundled Software	Norton Internet Security (OEM Version)
Bundled Software	cFosSpeed
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor
Form Factor	244 x 244mm (L x W)
Warranty Information
Warranty	3 Year Warranty
