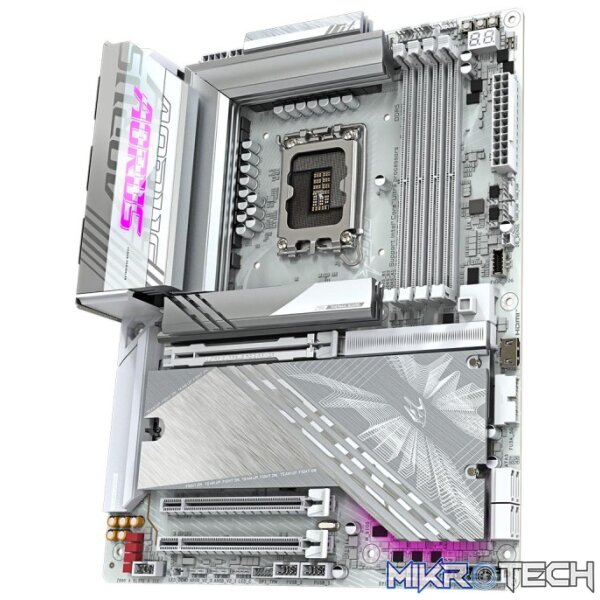

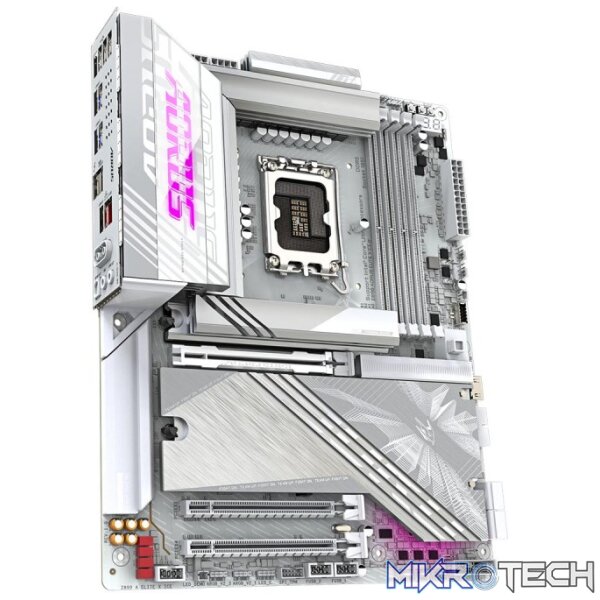

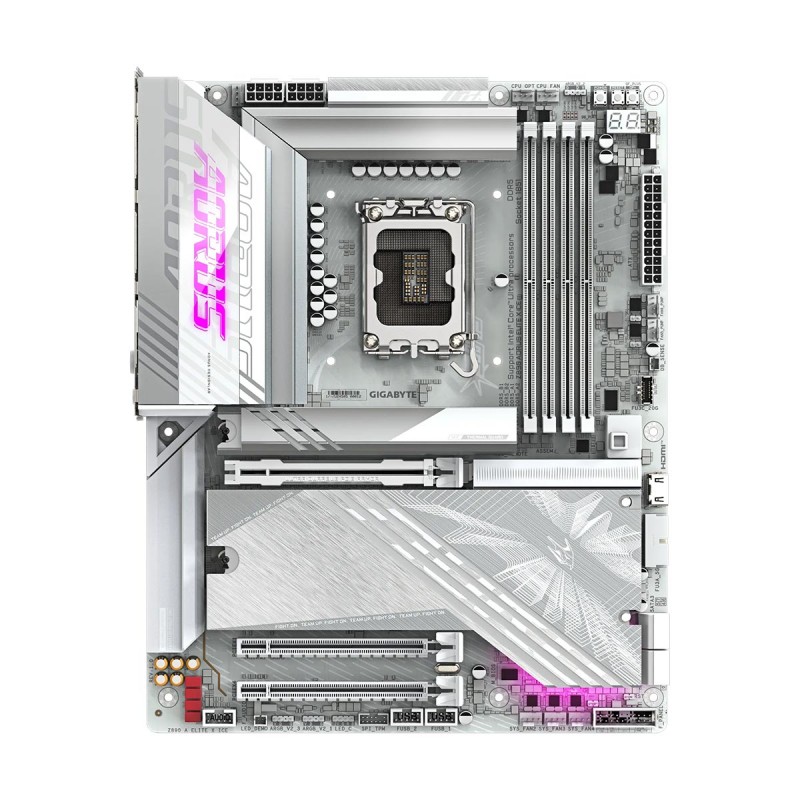

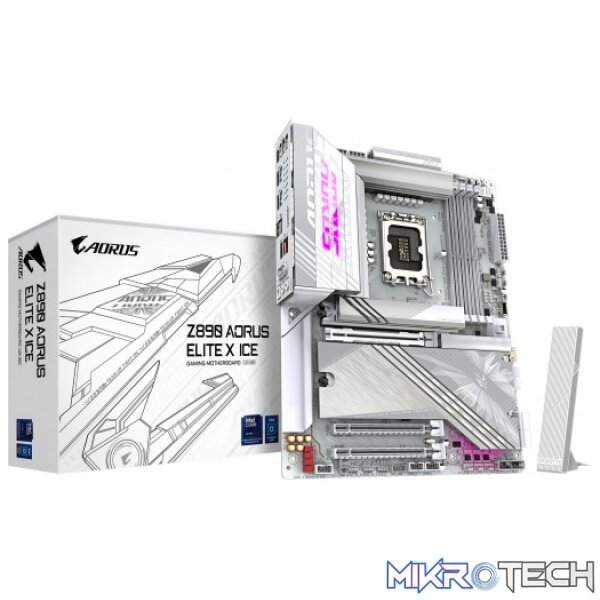

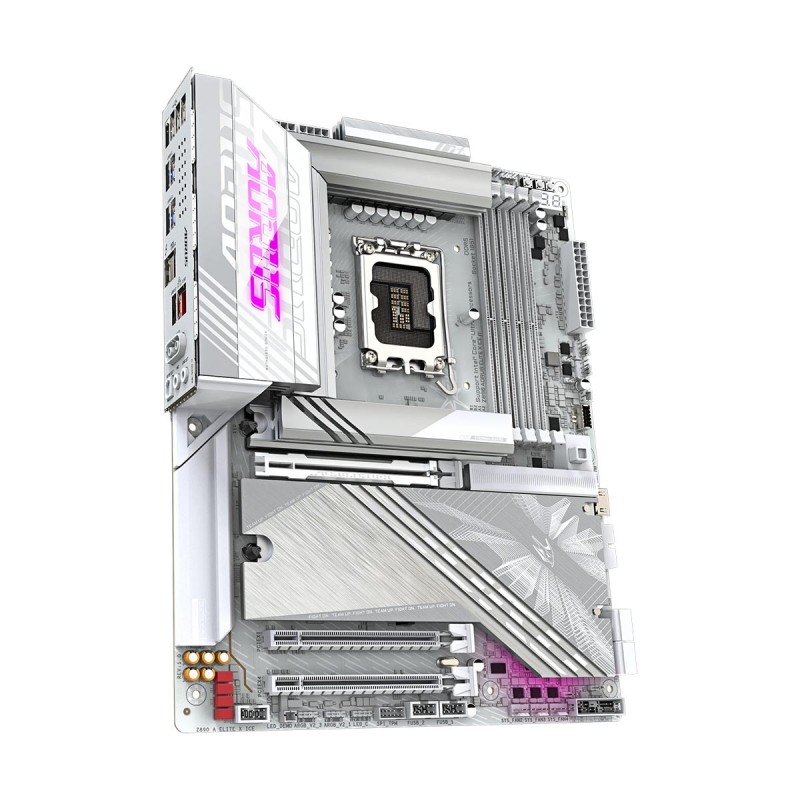

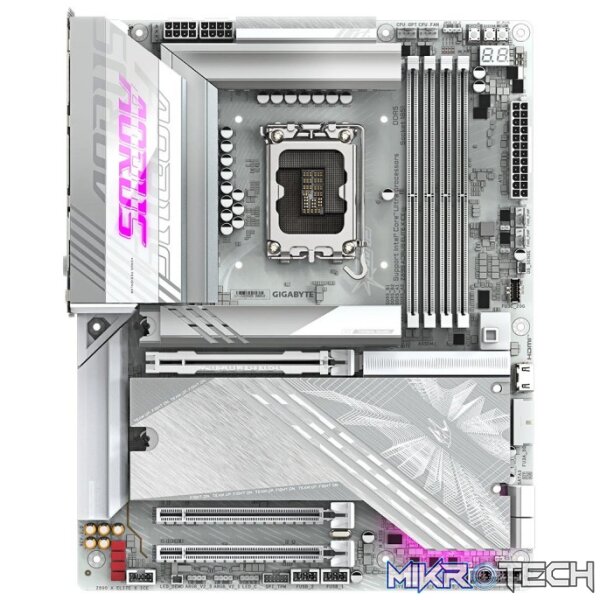

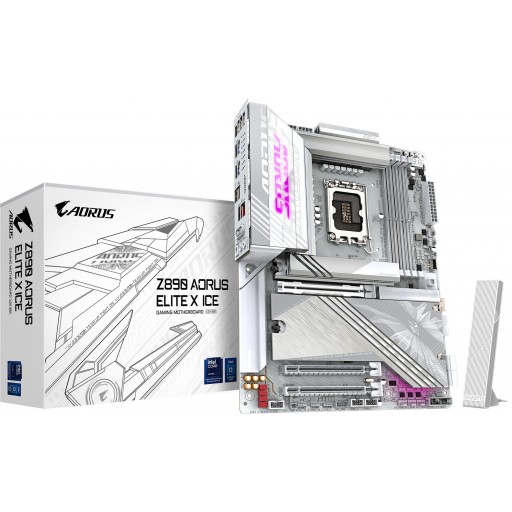

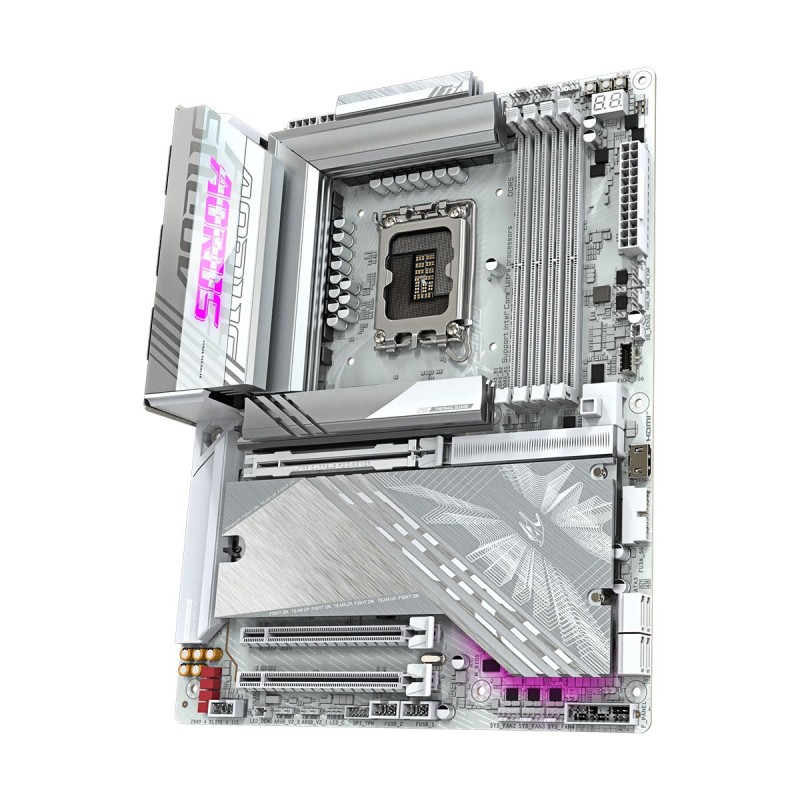

Gigabyte Z890 AORUS ELITE X ICE Intel LGA1851 ATX Motherboard
R7,149.99 incl. VAT
Only 1 left in stock
KEY FEATURES:
– ATX Form Factor
– Intel Z890 Chipset
– Intel Socket LGA1851
– 4x DIMM Slots, Max. 256GB, DDR5
– Supports up to DDR5-9500MHz(OC)
– 1x PCIe 5.0 x16 Slot (supports up to x16)
– 2x PCIe 4.0 x16 Slots (1x supports up to x4 & 1x supports up to x1)
– Total Supports 5x M.2 Slots and 4x SATA 6Gb/s Ports
– 1x Intel Thunderbolt 4 USB 4 Type-C
– 4x USB 2.0/1.1 Ports, 4 x USB 3.2 Gen 1 ports, 2x USB 3.2 Gen 2 Type-A ports (red)
– 2x Antenna Connectors (2T2R), 1 x RJ-45 port, 1x optical S/PDIF Out Connector
– 2x Audio Jacks
– Realtek 2.5GbE LAN chip
– MediaTek MT7925 Tri-Band 160MHz 802.11be Wi-Fi 7
– Bluetooth 5.4
– Realtek ALC1220 Audio Codec
– WIMA Audiophile Grade Capacitors
– 16+1+2 Twin Digital VRM Design
– 80A Smart Power Stage
– VRM Thermal Armor Advanced
– 1x RGB LED Header, 3x ARGB LED Headers
– AORUS AI Auto-Overclocking Software
– AI Perfdrive: Optimal & Customized BIOS Preset Profiles
– VRM Thermal Armor Advanced & M.2 Thermal Guard L
– Ultra Durable PCIe Armor
– 3 Year Warranty
Description
Gigabyte Z890 AORUS ELITE X ICE Intel LGA1851 ATX Motherboard
GA-Z890-AORUS-ELITE-X-ICE
Premium Power Meets Cutting-Edge Features
The Gigabyte Z890 AORUS ELITE X ICE is designed for creators and enthusiasts who demand top-tier performance—and a standout white aesthetic to match. Featuring the latest Intel® Core Ultra (Series 2) processor support via the LGA 1851 socket, this ATX board brings class-leading tech: DDR5 memory, PCIe 5.0, Thunderbolt™ 4, Wi?Fi 7, and more—all crafted for future-ready systems.
What Makes It Exceptional
Robust Power Delivery
Built with a 16+1+2 phase digital VRM, 80A Smart Power Stages, dual-copper-layer PCB, and VRM Thermal Armor—ensuring rock-solid stability for high-load workloads.Extreme Memory Performance
Supports four DDR5 DIMM slots with XMP and D5 Bionic Corsa technology for seamless and intelligent memory tuning.Next-Gen Storage & Bandwidth
Includes one PCIe 5.0 x16 slot with reinforced UD Slot X, and five M.2 slots (1× PCIe 5.0 & 4× PCIe 4.0) with EZ?Latch and M.2 Thermal Guard for fast, cool SSD performance.Ultra-Fast Connectivity

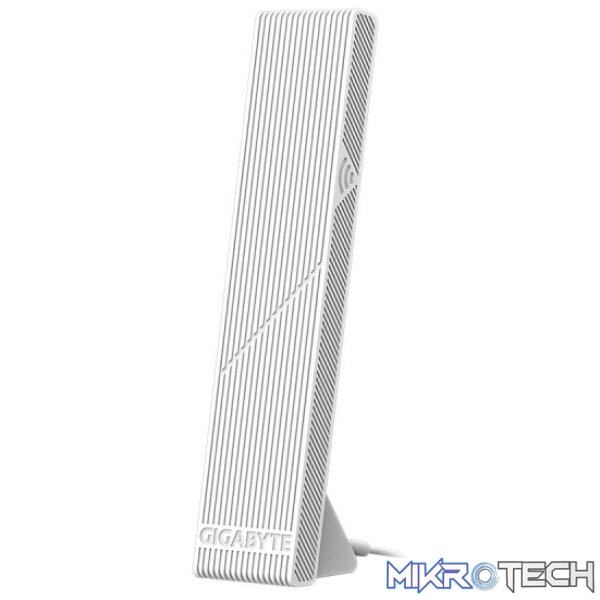

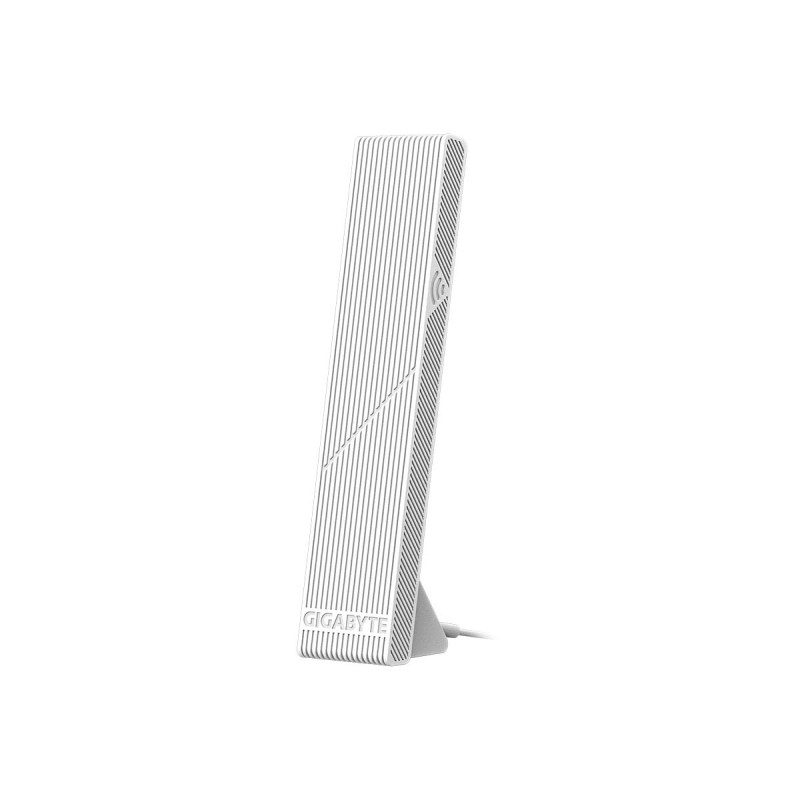

Enjoy Wi?Fi 7 with ultra-high gain antenna, 2.5?GbE LAN, Thunderbolt?4, front USB?C, Sensor Panel Link HDMI, plus multi-zone RGB Fusion, chic in-chassis looks.Audio Clarity for Creators
Features high-resolution audio with ALC1220 codec and audiophile-grade WIMA capacitors—perfect for immersive content creation.DIY-Friendly Tools
EZ-Latch slots, WIFI EZ-Plug, EZ-Debug Zone, and Q-Flash Plus make builds cleaner, faster, and future upgrade-friendly.
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS ELITE |
| Model | Z890 AORUS ELITE X ICE |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processor |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| (The CPU and memory configurationmay affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port),supporting DisplayPort and Thunderbolt video outputs | |
| When a Thunderbolt monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). | |
| When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,”for more information.) | |
| * Support for DisplayPort 1.4 version and HDCP 2.3 | |
| – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz | |
| * Support for HDMI 1.4 version. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek ALC1220 CODEC |
| * The back panel line out jack supports DSD audio. | |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| – 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| – 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| – 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel | |
| *Support up to 40Gbps with Thunderbolt devices | |
| *Support up to 20Gbps with USB4 devices | |
| *Support up to 10Gbps with USB 3.2 devices | |
| Chipset: | |
| – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header | |
| – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+3 USB 2.0 Hubs: | |
| – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 5 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x HDMI port (Note) | |
| 1 x USB Type-C header, with USB 3.2 Gen 2×2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x Q-Flash Plus button | |
| 1 x noise detection header | |
| 1 x power button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

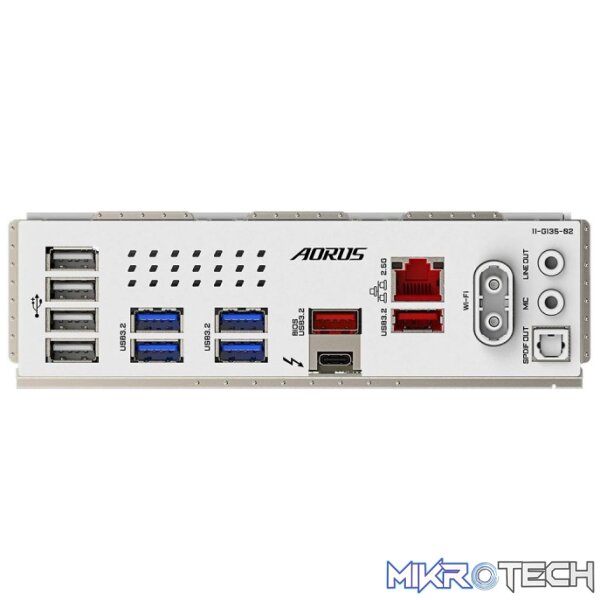

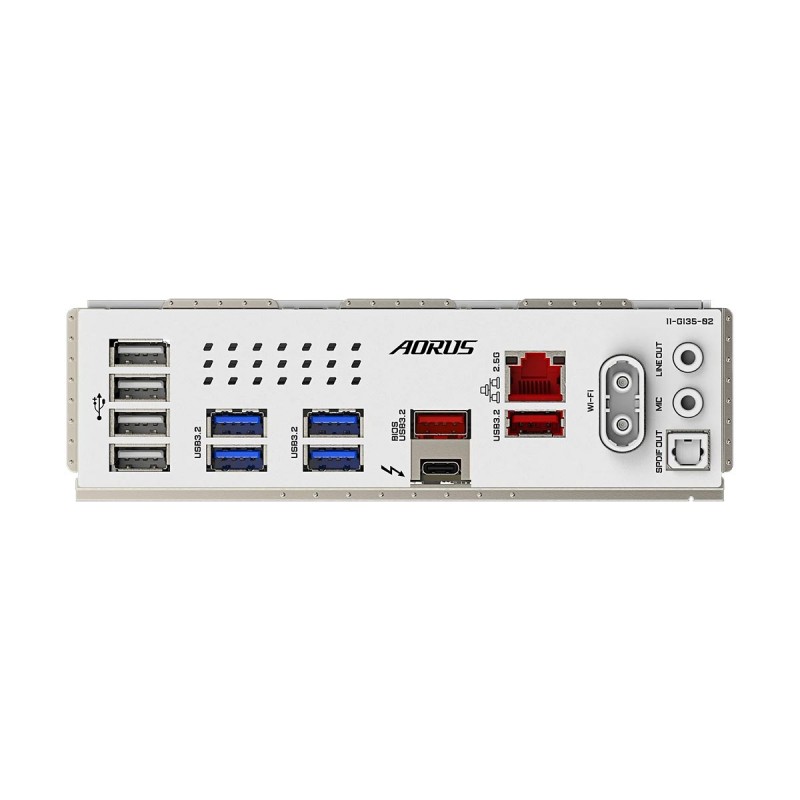

| Back Panel Connectors | 4 x USB 2.0/1.1 ports |
| 2 x antenna connectors (2T2R) | |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x Intel Thunderbolt 4 connectors (USB Type-C ports) | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| Noise detection | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
