Product Description

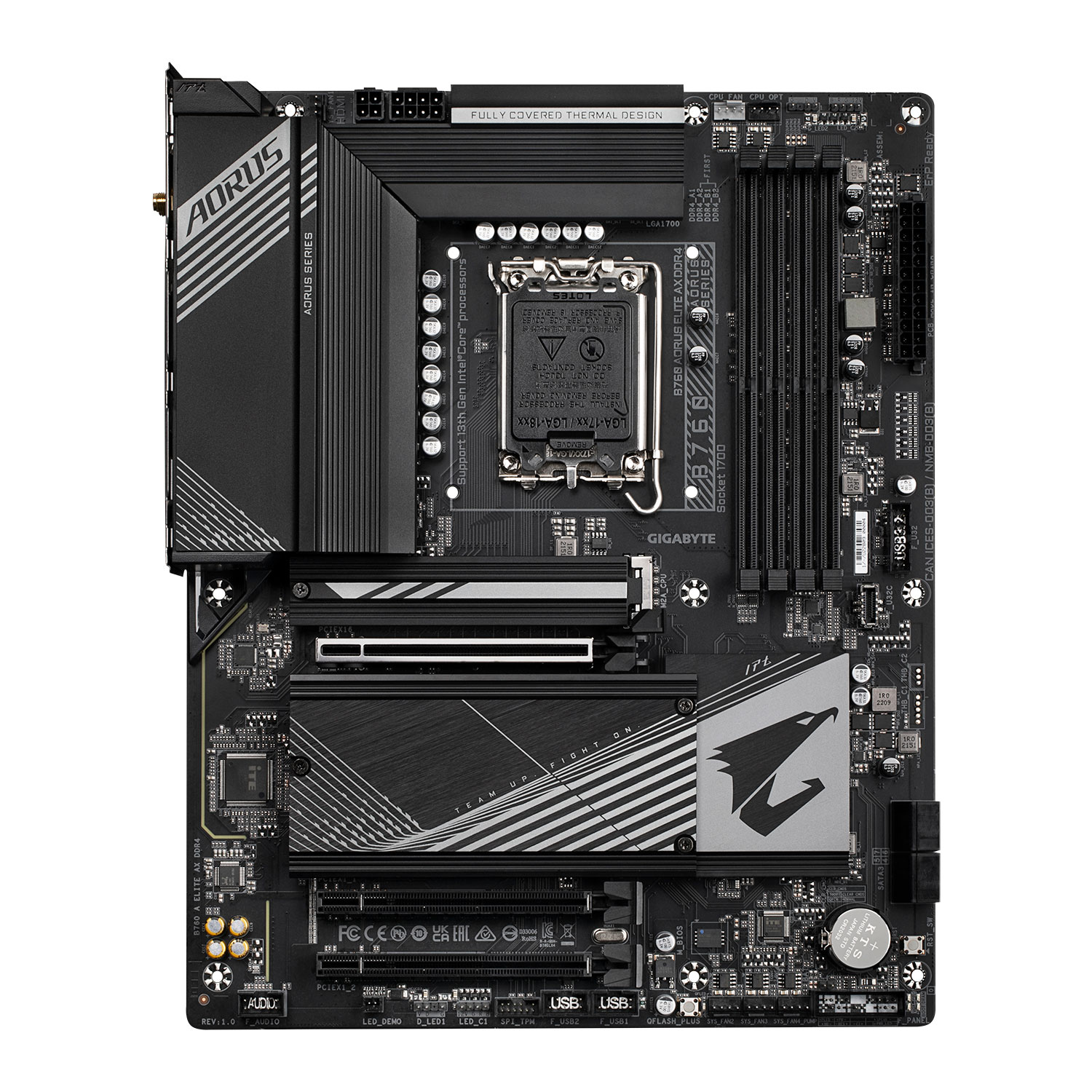

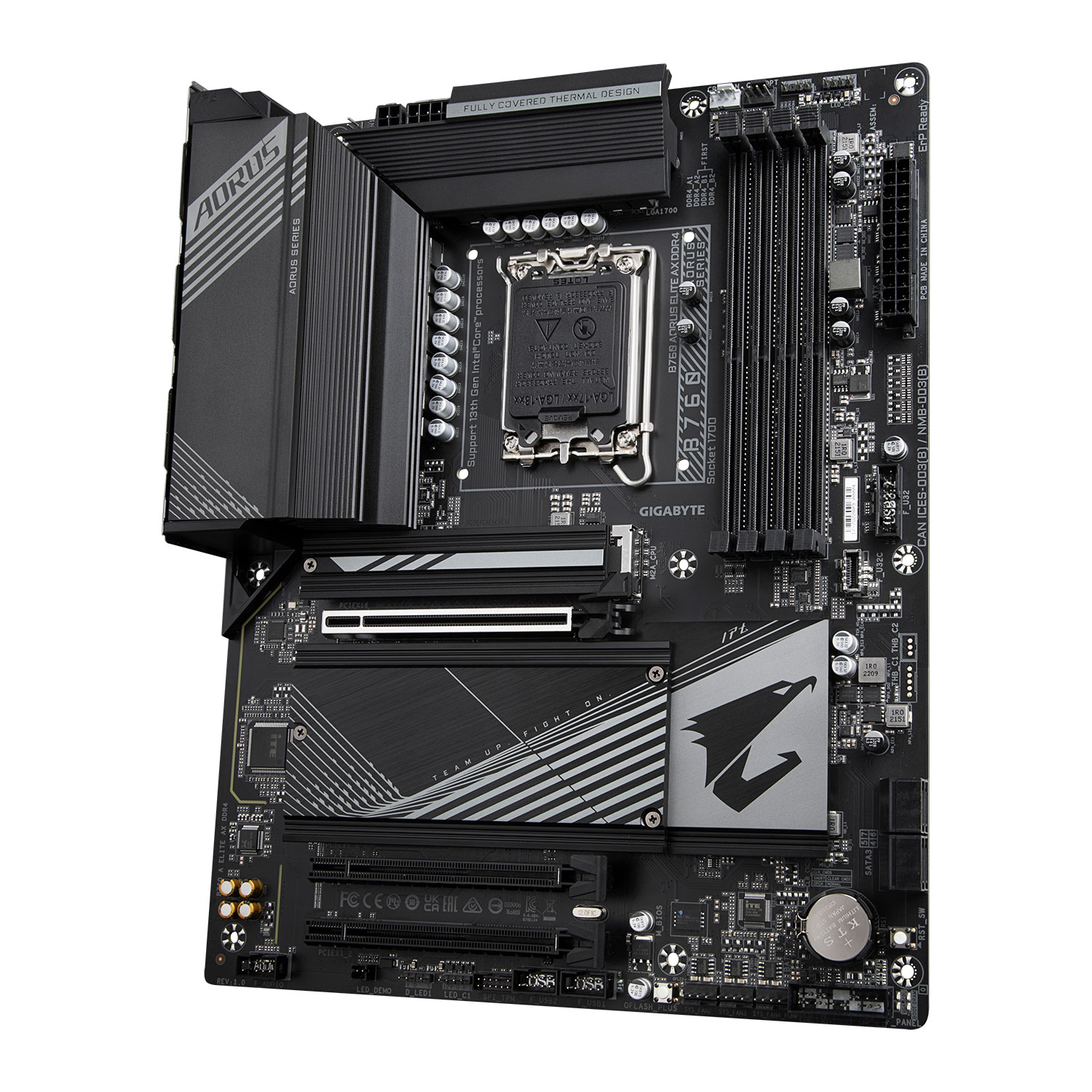

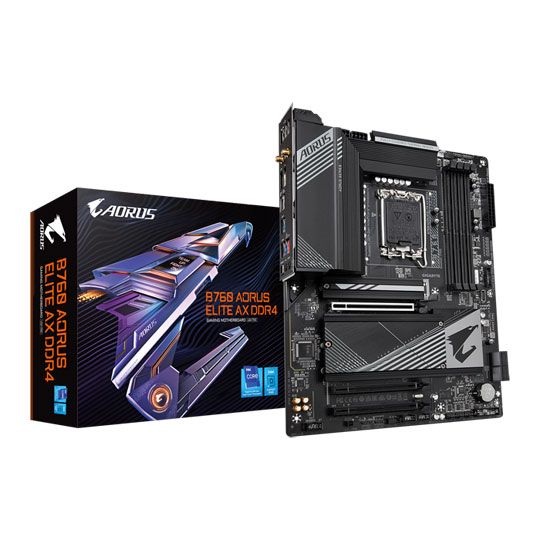

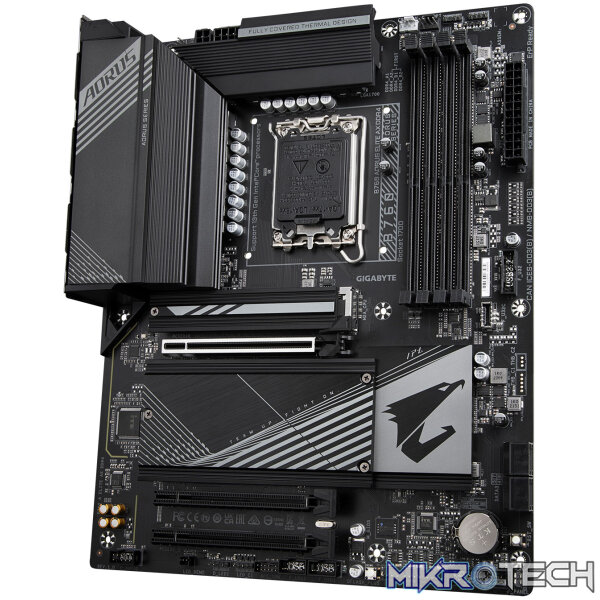

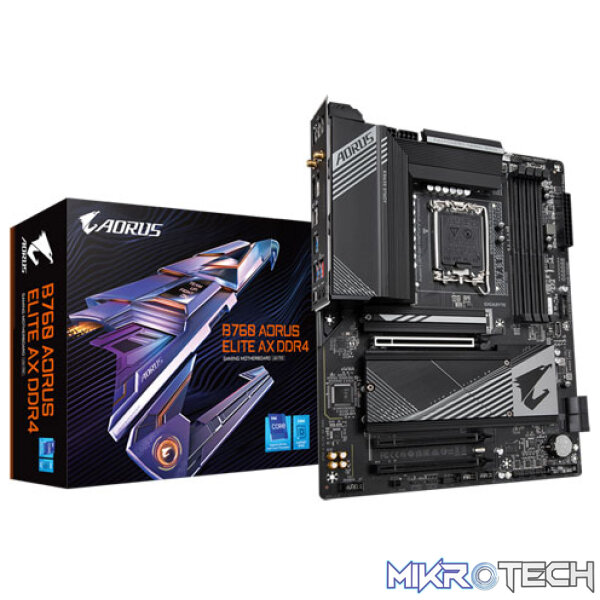

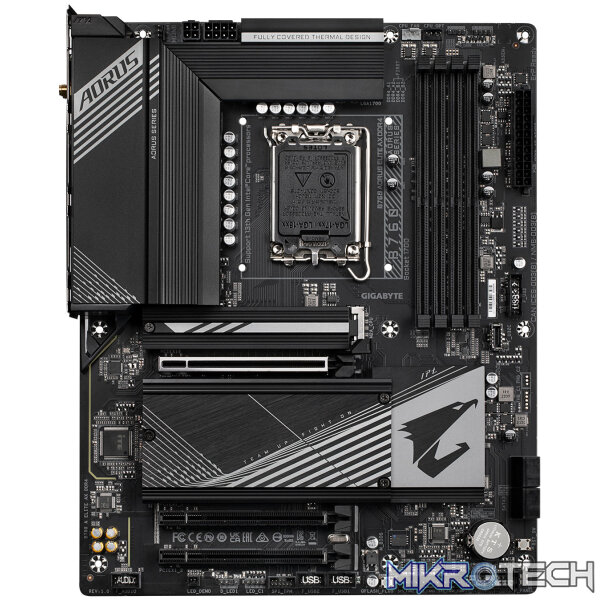

Gigabyte Intel B760 AORUS ELITE AX DDR4 Raptor Lake LGA 1700 ATX Desktop Motherboard
GA-B760-AORUS-ELITE-AX-DDR4
A SOLID FOUNDATION FOR YOUR SYSTEM
Here to herald the arrival of the latest generation of Intel CPUs is the AORUS ELITE Motherboard, this beast is filled with the top-shelf components required to deliver top-rate performance and high-end reliability for mainstream daily users and gaming enthusiasts. Boasting a twin digital VRM power solution, an advanced cooling solution, Wi-Fi 6E support and incredible PCI-e Gen 4.0 interfaces for your GPU and M.2 Slot, combine that with another two additional ultra-fast M.2 slots,Intel® 2.5GbE LAN, high quality audio and a comprehensive rear I/O and you have everything you need to ensure you remain at the top of your game. The B760 AORUS ELITE, the best for the pros.
Here to herald the arrival of the latest generation of Intel CPUs is the AORUS ELITE Motherboard, this beast is filled with the top-shelf components required to deliver top-rate performance and high-end reliability for mainstream daily users and gaming enthusiasts. Boasting a twin digital VRM power solution, an advanced cooling solution, Wi-Fi 6E support and incredible PCI-e Gen 4.0 interfaces for your GPU and M.2 Slot, combine that with another two additional ultra-fast M.2 slots,Intel® 2.5GbE LAN, high quality audio and a comprehensive rear I/O and you have everything you need to ensure you remain at the top of your game. The B760 AORUS ELITE, the best for the pros.
Intel B760 Chipset
LGA 1700 CPU Socket
12th & 13th Intel Processors
ATX Form Factor
Unparalleled Performance
TWIN DIGITAL VRM DESIGN?|?PCIE 4.0 DESIGN?|?DDR4 XMP
3 X PCIE 4.0 X4 M.2?|?HYBRID CORES OPTIMISATION
3 X PCIE 4.0 X4 M.2?|?HYBRID CORES OPTIMISATION
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides you with advanced features and all the latest technologies. GIGABYTE motherboards are equipped with an upgraded power solution, the latest storage standards and outstanding connectivity to enable optimised performance for gaming.
Outstanding Thermal Design
THERMAL DESIGN?|?FULLY COVERED MOSFET HEATSINK?|?2X COPPER PCB?|?SMART FAN 6
Unparalleled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset & SSD stability and low temperatures under full load and heavy gaming performance.
Unparalleled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset & SSD stability and low temperatures under full load and heavy gaming performance.
Versatile Connectivity
802.11AX WI-FI 6E?|?2.5GBE LAN?|?REAR & FRONT USB-C 10GB/S?|?HI-FI AUDIO
GIGABYTE Motherboards enable the ultimate connection experience with blazing fast data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Make it Your Own
RGB FUSION?|?UEFI BIOS?|?GIGABYTE CONTROL CENTER?|?MULTI-KEY
Enjoy impressive aesthetics with several useful and intuitive Gigabyte softwares. These allow you to control every aspect of your motherboard, with customisable lighting effects via RGB Fusion that will match your setup and sync colours together.
Built to Last
DIY FRIENDLY?|?Q-FLASH PLUS
The Ultra Durable™ design provides impressive durability, with the motherboard being built with a high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce each of the slots to make each solid and durable for years to come.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS ELITE AX DDR4 |
| Model | GA-B760-AORUS-ELITE-AX-DDR4 |
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel B760 Express Chipset |
| Memory | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 6E AX211 |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| Chipset USB 3.2 Gen 1 Hub: | |
| 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset 2 USB 2.0 Hubs: | |
| 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x reset button | |
| 1x Q-Flash Plus button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |

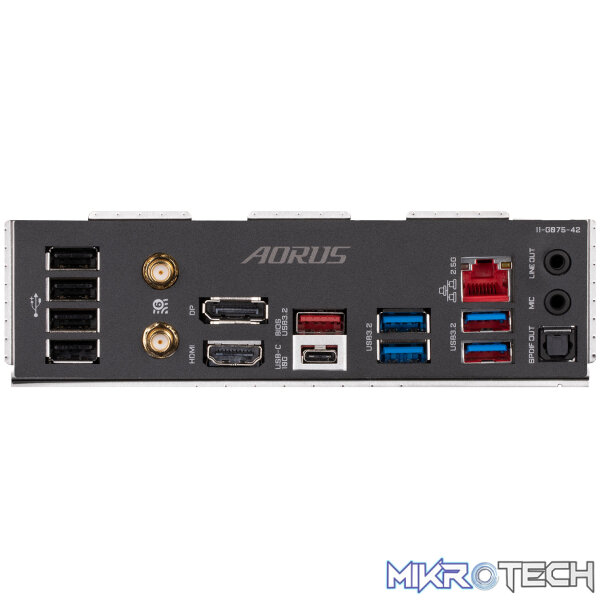

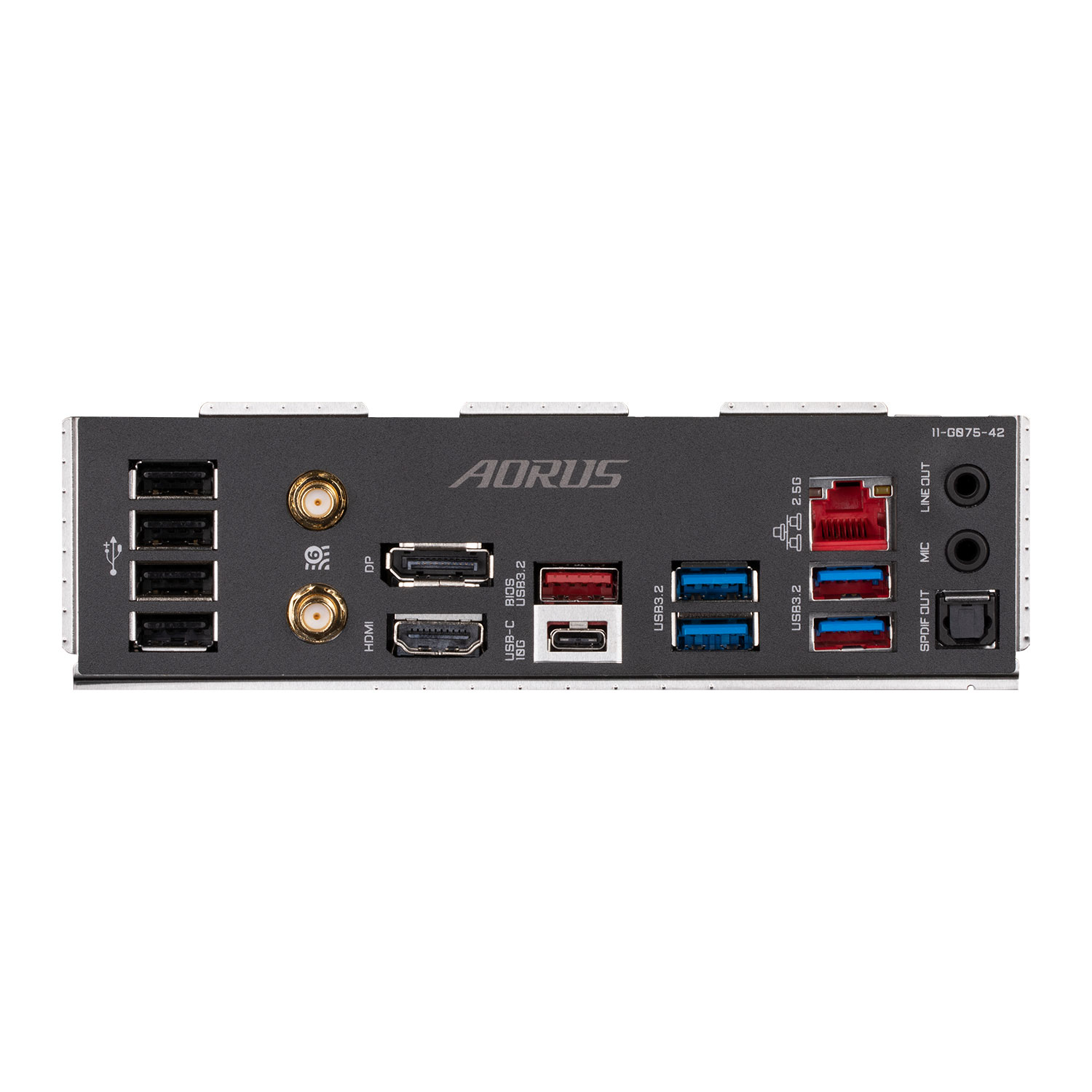

| Back Panel Connectors | 1x USB Type-C port, with USB 3.2 Gen 2 support |
| 1x USB 3.2 Gen 2 Type-A port (red) | |
| 4x USB 3.2 Gen 1 ports | |
| 4x USB 2.0/1.1 ports | |
| 2x SMA antenna connectors (2T2R) | |
| 1x HDMI port | |
| 1x DisplayPort | |
| 1x RJ-45 port | |
| 1x optical S/PDIF Out connector | |
| 2x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
