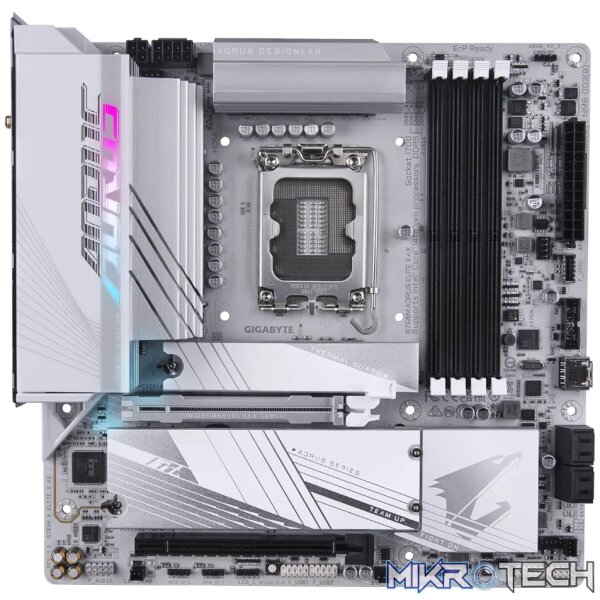

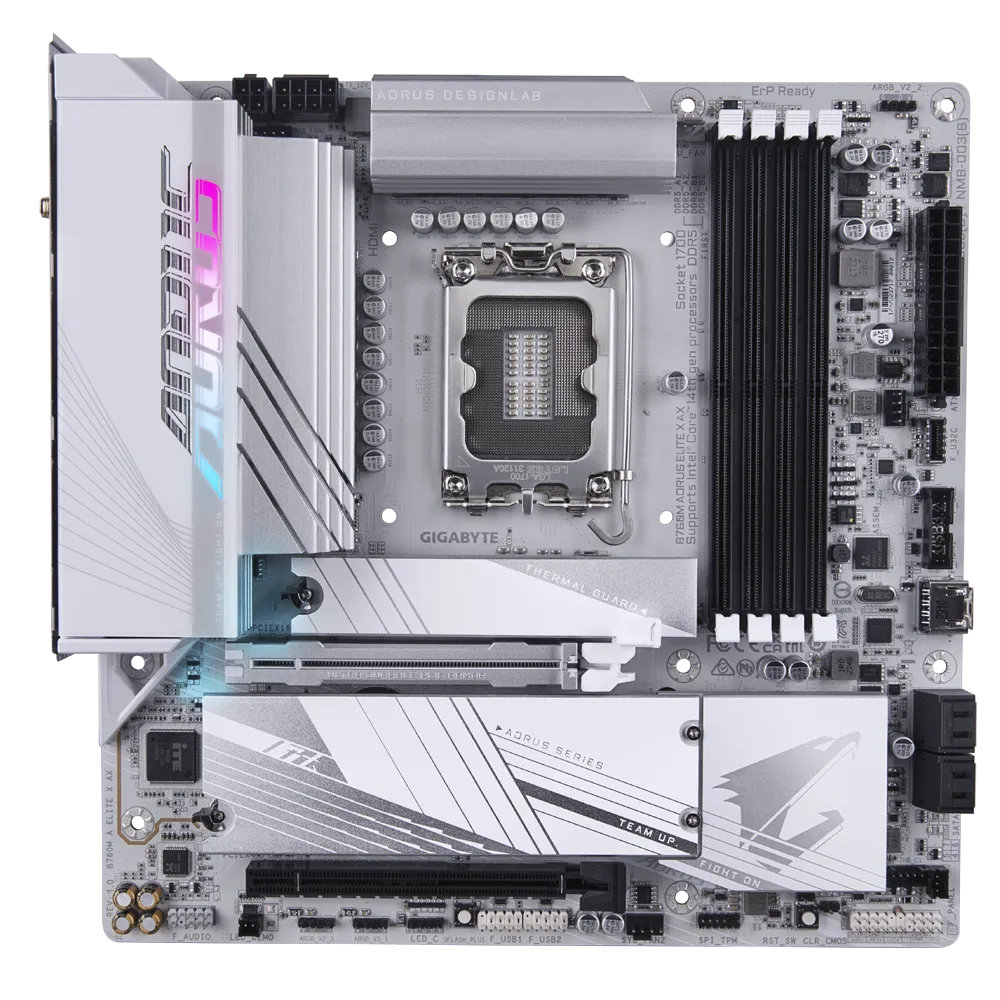

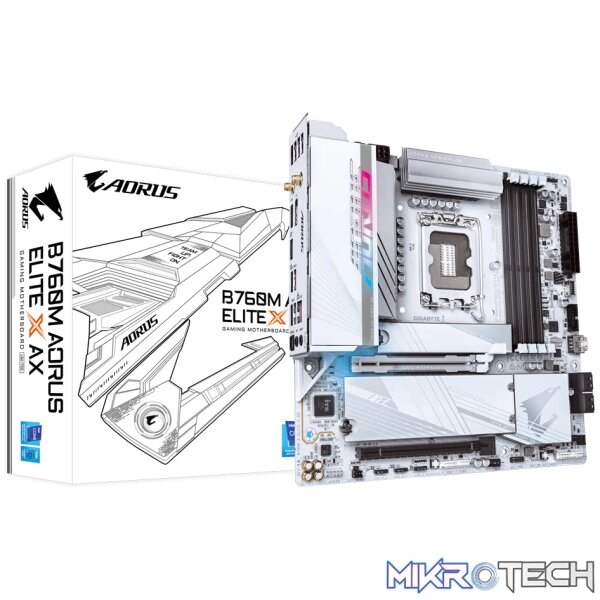

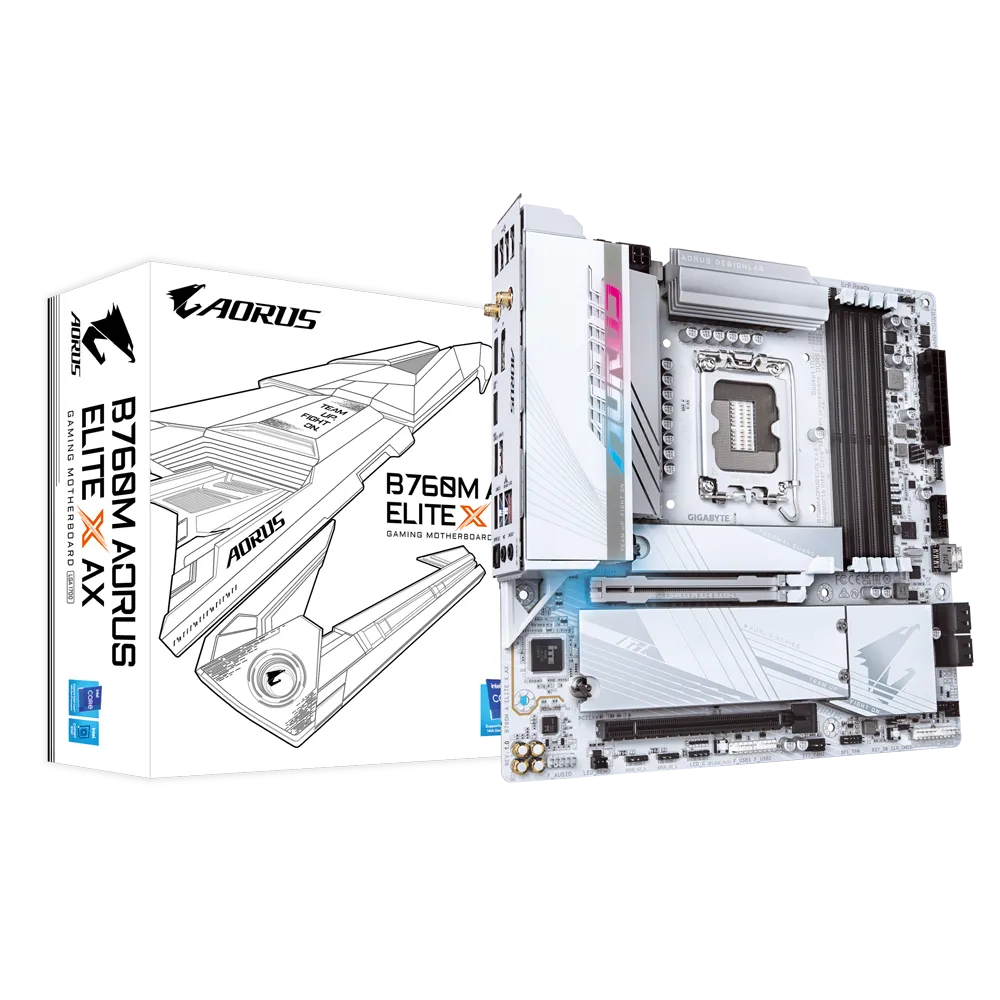

Gigabyte B760M Aorus Elite X AX DDR5 Motherboard

X marks the 14th generation! Introducing the AORUS B760 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS B760 X Gen Motherboards are built to fully unleash the next-gen power.

Xceed in DDR5 performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every B760M AORUS ELITE X AX motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Xtraordinary power delivery

The B760M AORUS ELITE X AX motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Xpress your cool

Every B760M AORUS ELITE X AX motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Specifications

• CPU Support: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Please refer to the CPU Support List for more information.)
• CPU Socket: LGA1700
• Chipset: Intel B760 Express Chipset
• Graphics
  • 1 x HDMI 2.1 port, supporting a maximum resolution of 4096×2160@60 Hz
  • 1 x Front HDMI 1.4 port, supporting a maximum resolution of 1920×1080@30 Hz
  • 1 x DisplayPort 1.2, supporting a maximum resolution of 4096×2304@60 Hz
• Expansion Slots
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 x16
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 x4
• Memory
  • 4x DDR5 Slots
  • Maximum Memory Capacity: 192GB
  • Speed: 4000 – 8266 MT/s (OC)
  • Dual channel memory architecture
  • The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to the Memory Support List for more information.
• Storage
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4)
  • 4 x SATA 6Gb/s connectors

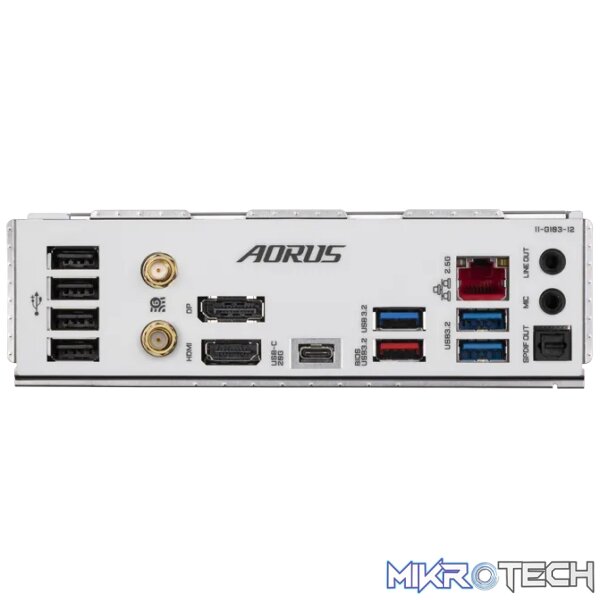

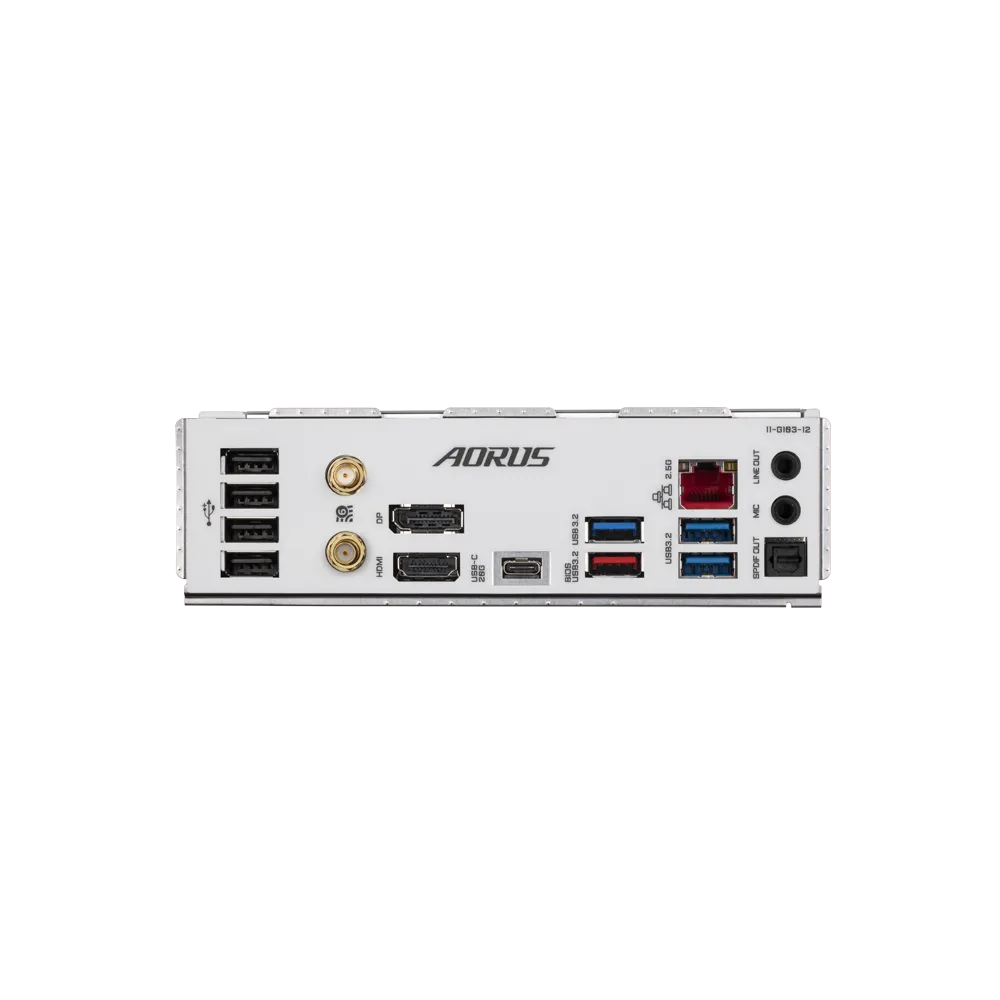

• USB ports
  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
  • 1 x USB Type-C port with USB 3.2 Gen 2 support, through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 1 x USB 3.2 Gen 1 port on the back panel
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 Ports internal USB header)
  • 4 x USB 2.0/1.1 ports on the back panel
• LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless / Bluetooth
  • Wi-Fi 6E
  • BLUETOOTH 5.3
• Audio: Realtek Audio CODEC
• Form Factor
  • Micro ATX
  • 24.4 x 24.4 cm
• Warranty: 36 Months
• Note: Please refer to full motherboard specifications on the Manufacturer’s product page.
