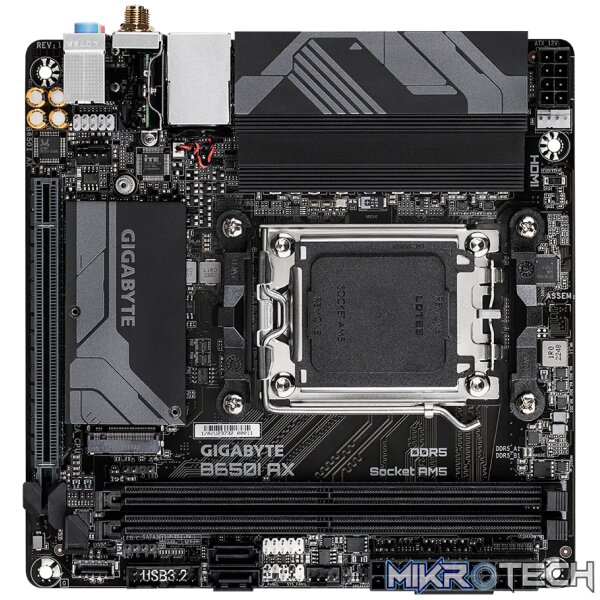

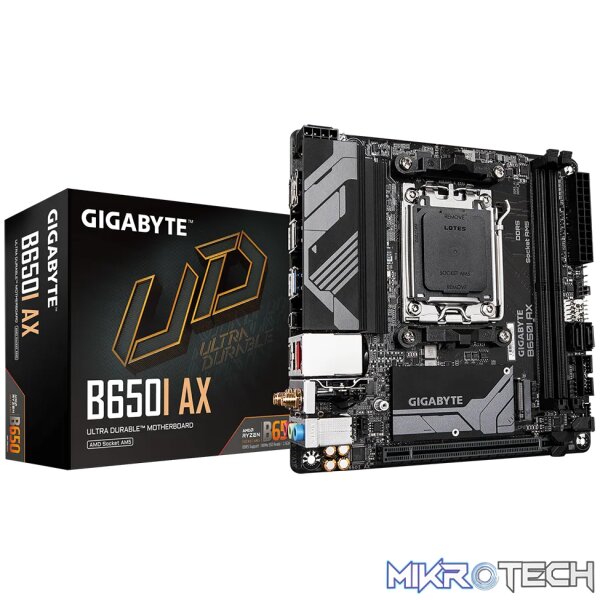

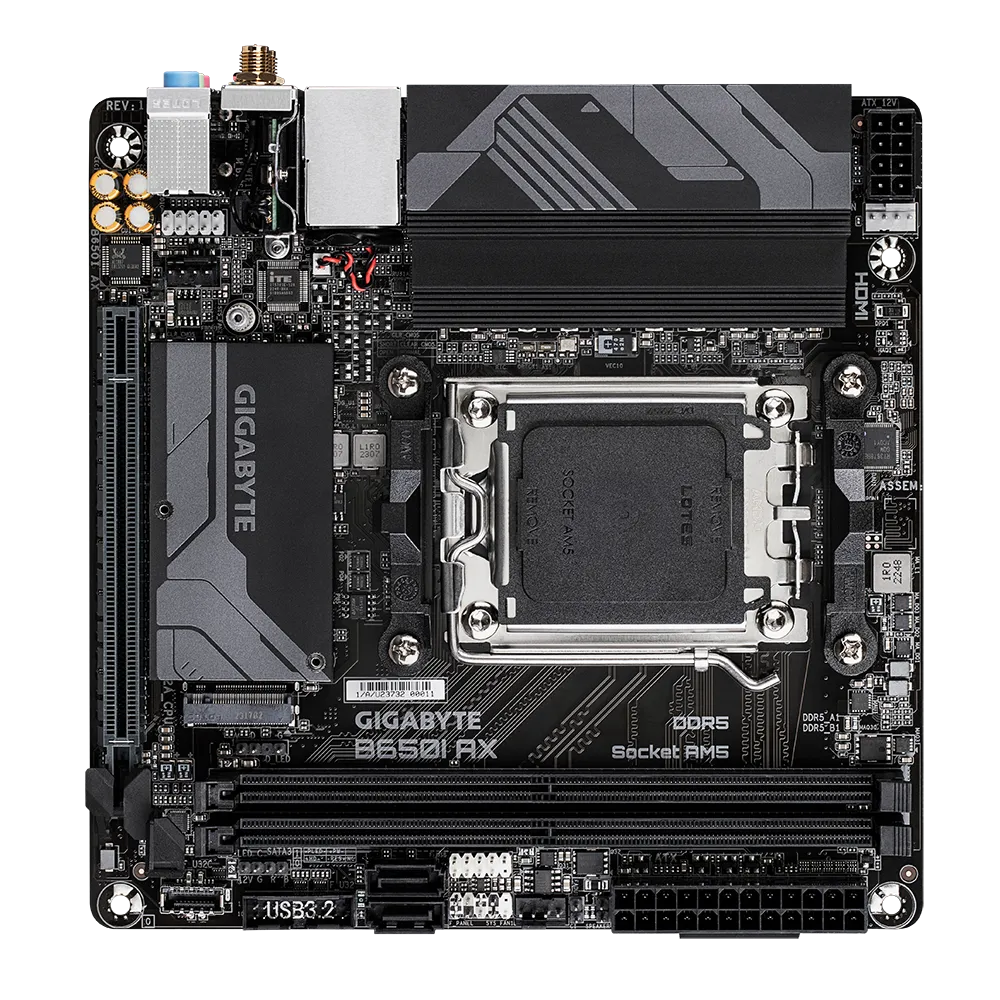

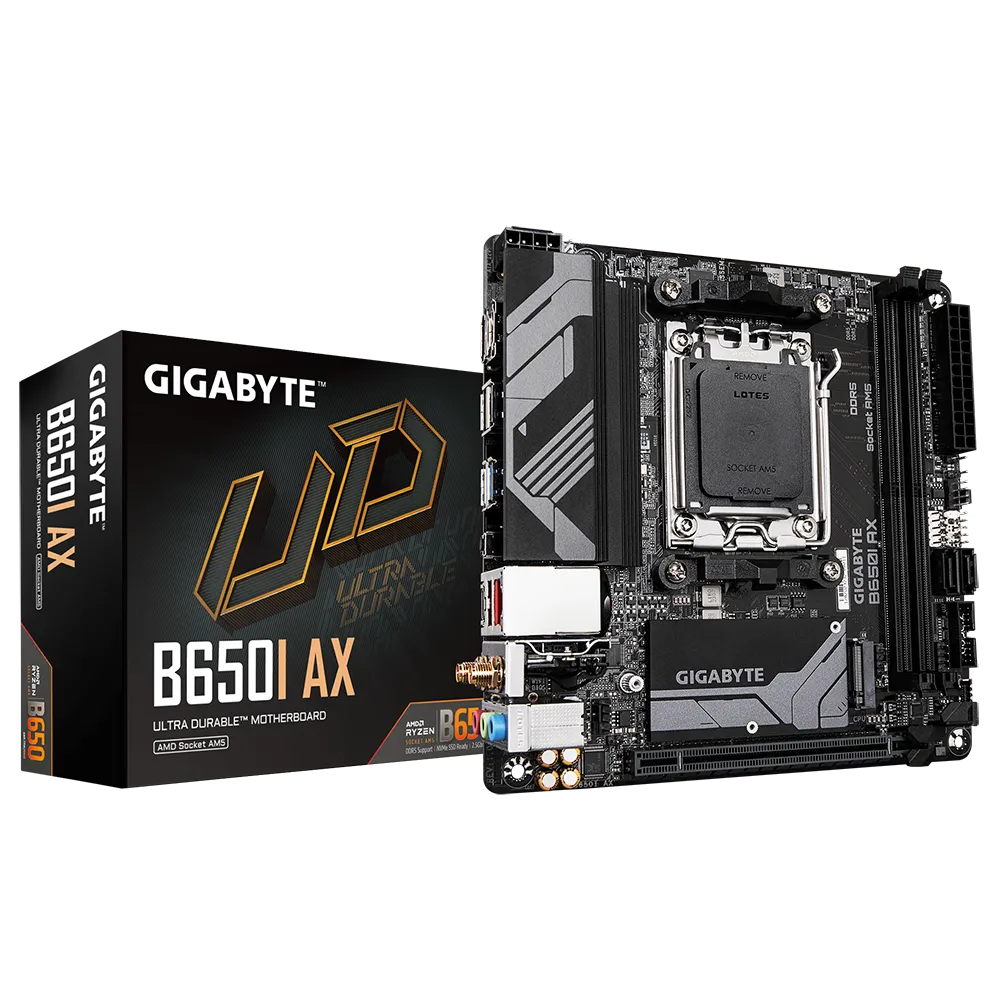

Gigabyte B650I AX Motherboard

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Features

• AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
• Unparalleled Performance: 5+2+1 Phases Digital VRM Solution
• Dual Channel DDR5: 2x SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• Fast Networks: Wi-Fi 6E 802.11ax & 2.5GbE LAN
• Extended Connectivity: DP, HDMI
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications

• CPU: AMD Socket AM5, support for: AMD Ryzen™ 7000/8000 Series Processors
  (Please refer to the CPU Support List for more information.)
• Chipset: AMD B650
• Memory
  1. Support up to DDR5 6400(OC) MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 96 GB
  3. Dual channel memory architecture

  (Please refer to the Memory Support List.)

• Onboard Graphics
  1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 1.4 version and HDR.)
  2. 1 x HDMI port, supporting a maximum resolution of 7680×4320@60 Hz (Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports.)

  (Graphics specifications may vary depending on CPU support.)

• Audio
  1. Realtek® ALC4080 CODEC
  2. High Definition Audio
  3. 2-channel
• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  1. Realtek® Wi-Fi 6E RTL8852CE
  2. BLUETOOTH 5.3
• Expansion Slots (CPU): 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Storage Interface

  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
  2. 2 x SATA 6Gb/s connectors

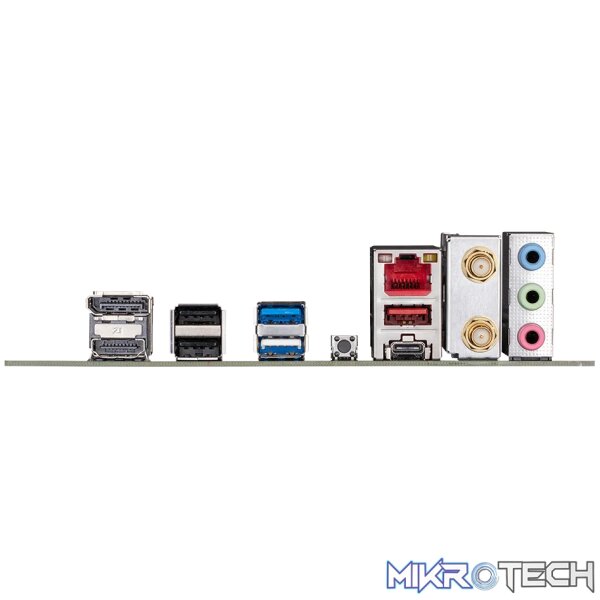

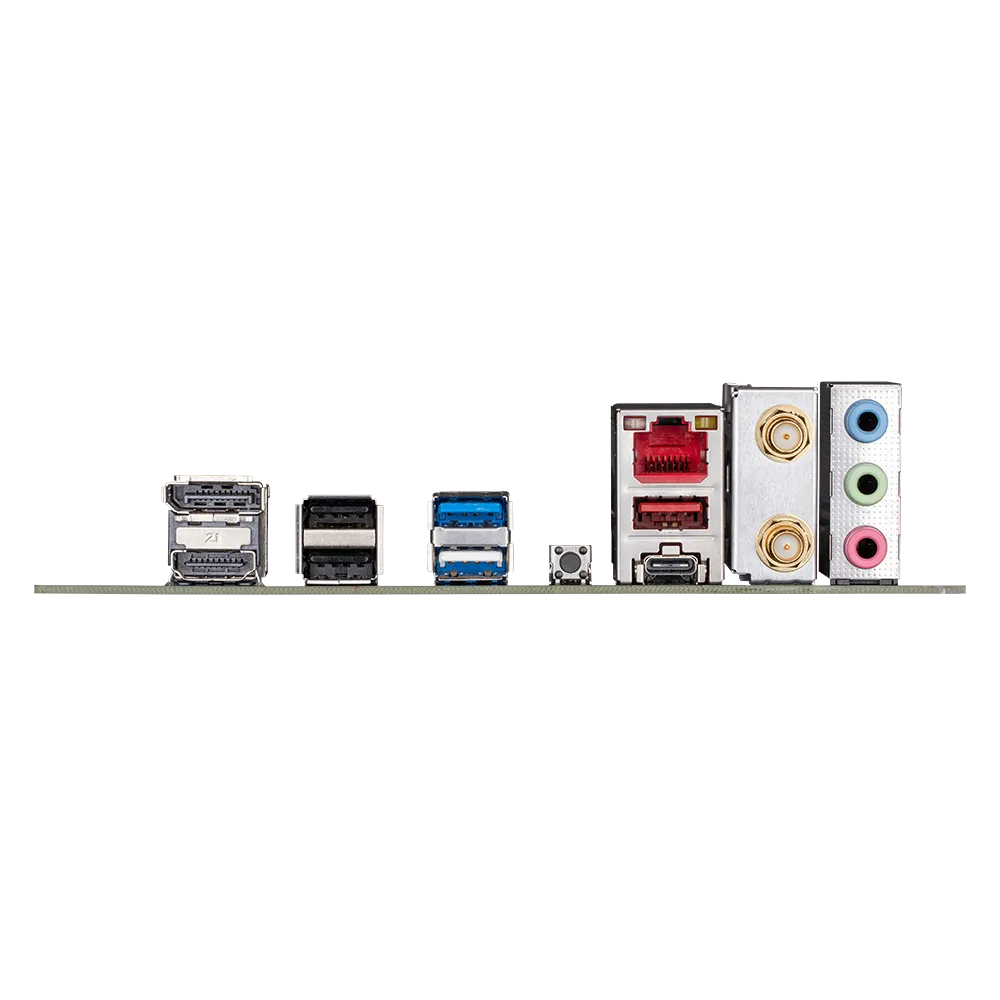

• USB
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 1 x USB 2.0/1.1 port on the back panel
  4. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  5. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  6. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Form Factor: Mini-ITX Form Factor (17.0 x 17.0 cm)
• Warranty: 3 Years
