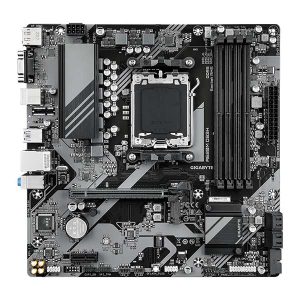

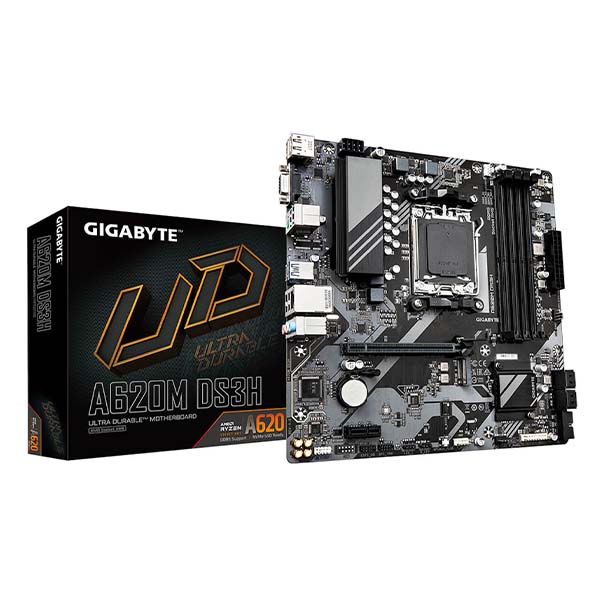

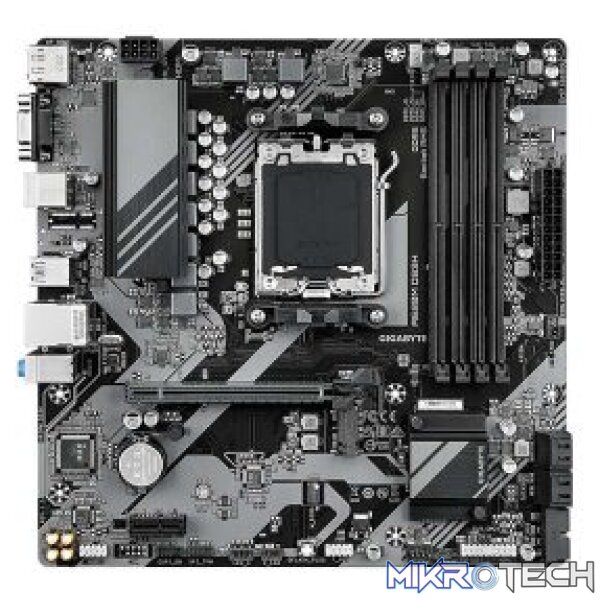

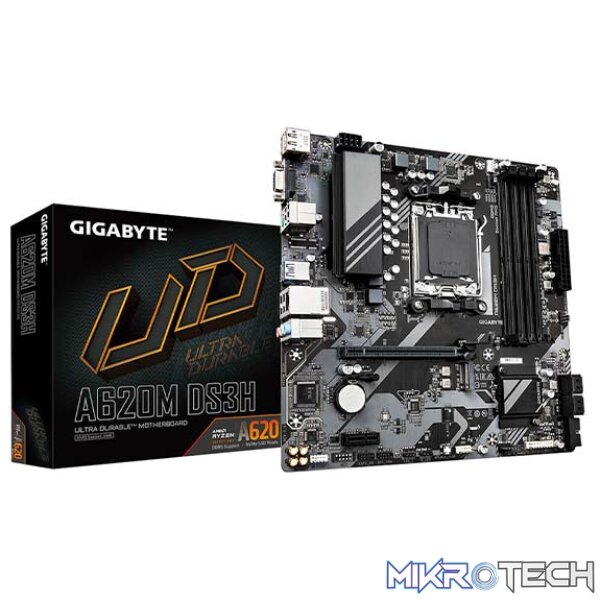

Gigabyte A620M-DS3H AMD A620 Ryzen Socket AM5 Micro-ATX Desktop Motherboard
R2,279.99 incl. VAT
Micro-ATX Form Factor
AMD A620 Chipset
Socket AM5
Supports Ryzen 7000-Series Processors
Q-Flash Plus BIOS Flash Supports Future Processors
4x DDR5 DIMM Slots, Supports Up to 192GB
Supports up to DDR5-6400 (OC)
Supports AMD EXPO Memory
1x PCIe 4.0 x16 Slot
1x PCIe 3.0 x1 Slot
1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
4x SATA 3.0 Ports
1x USB 5Gb/s Type-C Port
1x USB 5Gb/s Type-A Port
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port, 1x DisplayPort 1.4 Port
1x PS/2 Combo Port
3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
1x Q-Flash Plus button
Realtek Gigabit Ethernet RJ-45 LAN Port
Realtek High-Definition Audio Codec
5+2+2 Digital VRM Solution
Gigabyte PCIe EZ-Latch Design
Gigabyte M.2 Latch Design
Gigabyte RGB Fusion Software
Gigabyte Smart Fan 6 Technoogy
Supports Windows 10, Windows 11 64-bit
3 Year Warranty
Only 1 left in stock
Gigabyte A620M-DS3H AMD A620 Ryzen Socket AM5 Micro-ATX Desktop Motherboard
GA-A620M-DS3H
- AMD Socket AM5ï¼Supports AMD Ryzen 7000 Series Processors
- Unparalleled Performanceï¼5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5ï¼4*SMD DIMMs with AMD EXPO & Intel® XMP Memory Module Support
- SuperSpeed Storageï¼PCIe 4.0 x4 M.2 Connector
- EZ-Latchï¼PCIe x16 Slot with Quick Release Design
- Fast Networksï¼GbE LAN
- Extended Connectivityï¼DP, HDMI, D-Sub
- Smart Fan 6ï¼Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plusï¼Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | UD Series |
| Model | A620M DS3H (rev. 1.0) |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD A620 |
| Memory Support | |
| AMD Ryzen 7000 Series | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 4x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160 @ 60 Hz, Supports HDCP 2.3 |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of 3840×2160 @ 144 Hz, Support for HDCP 2.3 |
| Integrated AMD graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| AMD A620 Chipset | 1x PCIe 3.0 x1 Physical Slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) |
| AMD A620 Chipset | 4 x SATA3 6.0 Gb/s Connectors |
| Supports RAID 0 and RAID 1 for SATA storage devices | |
| Networking | |
| LAN | Realtek Gigabit LAN Port 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek High Definition Audio |
| 2/4/5.1/7.1-channel support with front-panel jack retasking | |

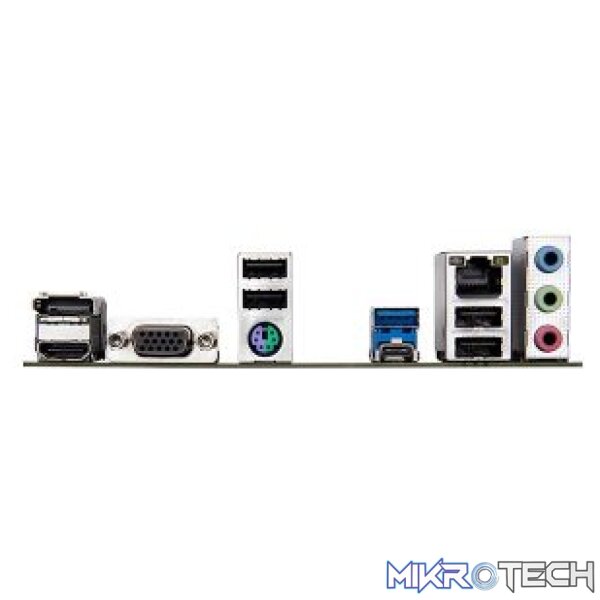

| Connectivity | |
| Ports | 1x USB 5Gb/s Type-C Port |
| 1x USB 5Gb/s Type-A Port | |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port | |
| 1x Q-Flash Plus button | |
| 1x DisplayPort 1.4 Port | |
| 1x PS/2 Combo Port | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 2x system fan headers | |
| 1x addressable LED strip header | |
| 1x RGB LED strip header | |
| 1x M.2 Socket 3 connector | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x Clear CMOS jumper | |
| LED Displays | Gigabyte Q-Flash LED |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 230 x 225 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
