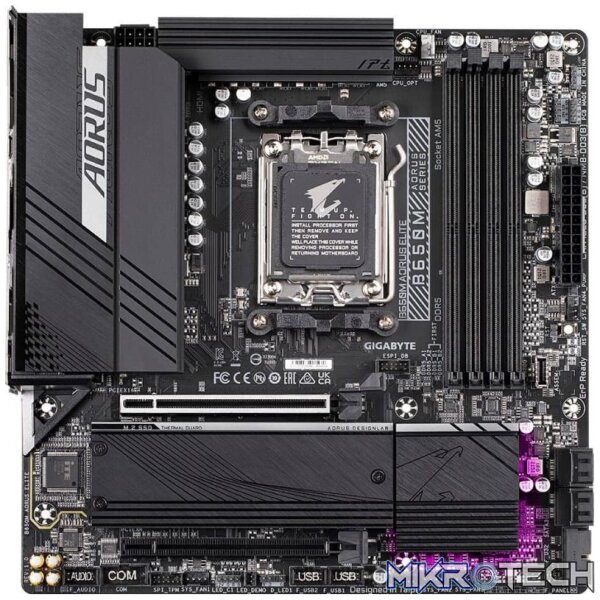

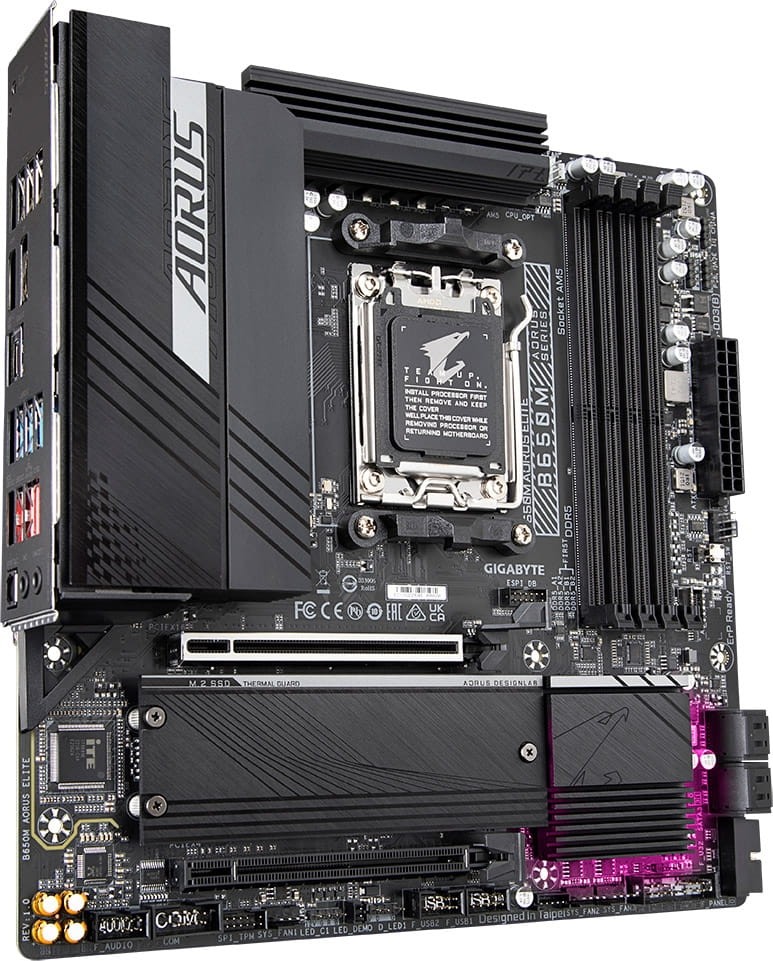

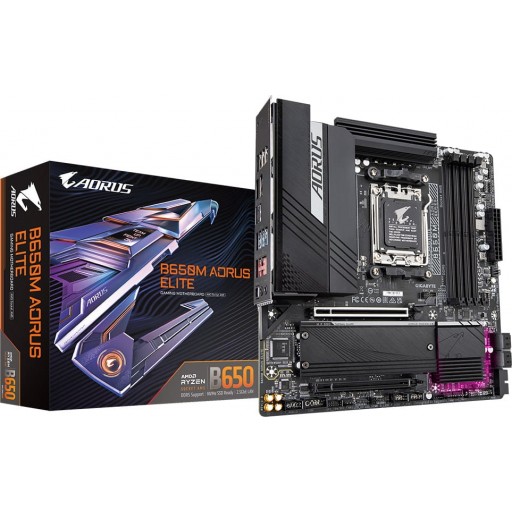

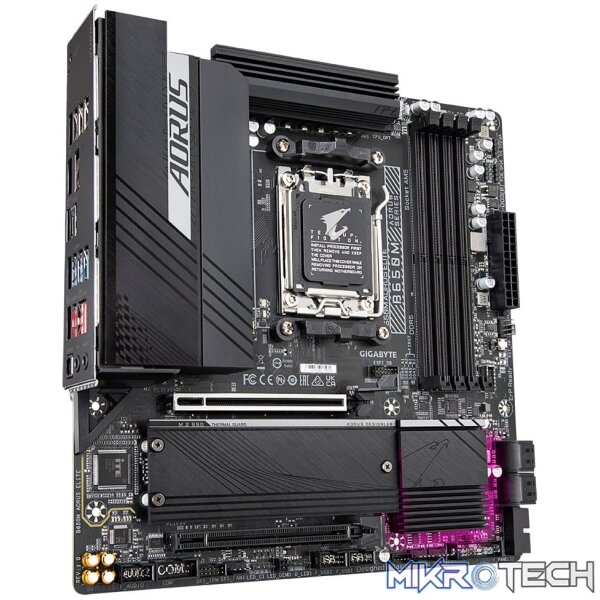

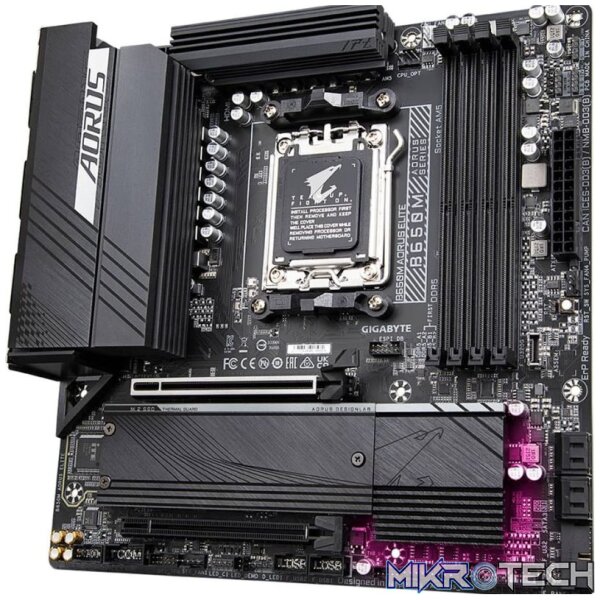

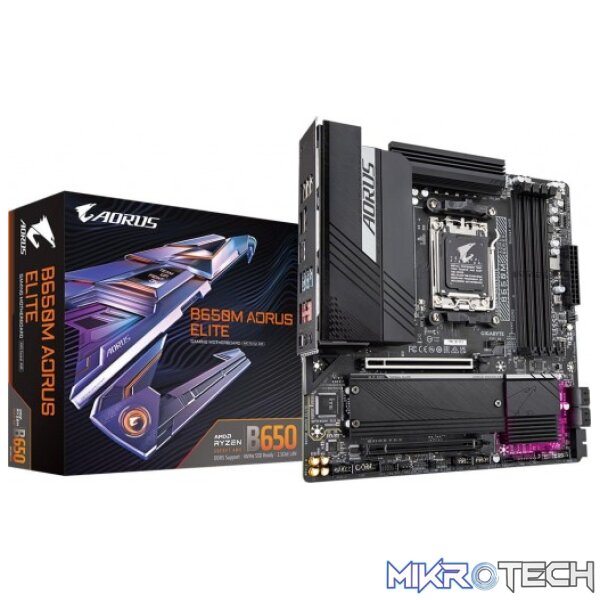

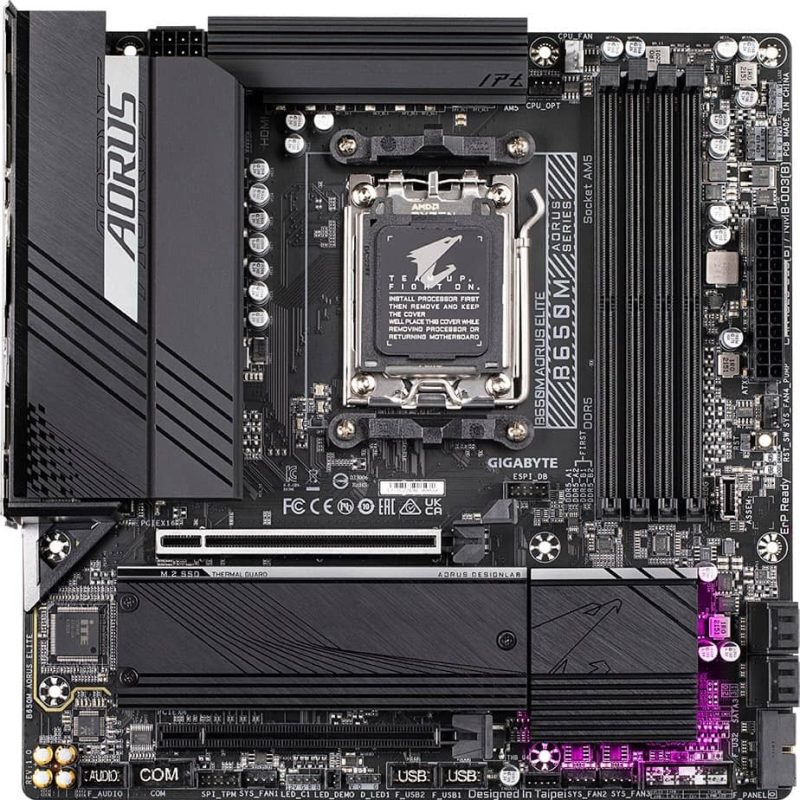

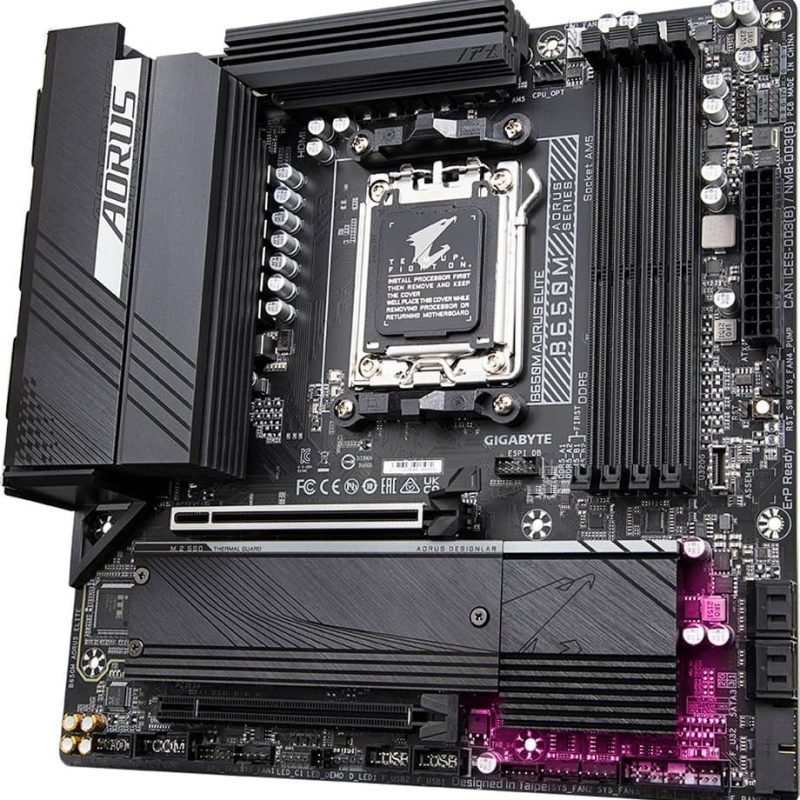

Gigabyte B650M AORUS ELITE AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard
R3,769.99 incl. VAT
Only 2 left in stock
Product Description
Gigabyte B650M AORUS ELITE AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard
GA-B650M-AORUS-ELITE
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS |
| Model | AORUS ELITE |
| CPU | AMD Socket AM5, Support For: AMD Ryzen 7000 Series Processors |
| (Please Refer “CPU Support List” For More Information.) | |
| Chipset | AMD B650 |
| Memory | Support For DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/S Memory Modules |
| 4x DDR5 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory | |
| Dual Channel Memory Architecture | |
| Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support For AMD EXtended Profiles For Overclocking (AMD EXPO) And Extreme Memory Profile (XMP) Memory Modules | |
| (Please Refer “Memory Support List” For More Information.) | |
| Onboard Graphics | Integrated Graphics Processor: |
| – 1x DisplayPort, Supporting A Maximum Resolution Of 3840×2160@144 Hz | |
| * Support For DisplayPort 1.4 Version And HDR. | |
| – 1x HDMI Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz | |
| * Support For HDMI 2.1 Version And HDCP 2.3. | |
| ** Support Native HDMI 2.1 TMDS Compatible Ports. | |
| (Graphics Specifications May Vary Depending On CPU Support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel | |
| * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. | |
| Support For S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| – 1x PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) | |
| * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. | |
| Chipset: | |
| – 1x PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) | |
| Storage Interface | CPU: |
| – 1x M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 5.0* X4/X2 SSD Support) (M2A_CPU) | |
| * Actual Support May Vary By CPU. | |
| – 1x M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2B_CPU) | |
| Chipset: | |
| – 4x SATA 6Gb/S Connectors | |
| RAID 0, RAID 1, And RAID 10 Support For NVMe SSD Storage Devices | |
| RAID 0, RAID 1, And RAID 10 Support For SATA Storage Devices | |
| USB | CPU: |
| – 1x USB Type-C Port On The Back Panel, With USB 3.2 Gen 2 Support | |
| – 2x USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel | |
| CPU USB 2.0 Hub: | |
| – 4x USB 2.0/1.1 Ports On The Back Panel | |
| Chipset: | |
| – 1x USB Type-C Port With USB 3.2 Gen 2×2 Support, Available Through The Internal USB Header | |
| – 3x USB 3.2 Gen 1 Ports (1 Port On The Back Panel, 2 Ports Available Through The Internal USB Header) | |
| – 4x USB 2.0/1.1 Ports Available Through The Internal USB Headers | |
| Chipset USB 3.2 Gen 1 Hub: | |
| – 4x USB 3.2 Gen 1 Ports On The Back Pane | |
| Internal I/O Connectors | 1x 24-Pin ATX Main Power Connector |
| 1x 8-Pin ATX 12V Power Connector | |
| 1x CPU Fan Header | |
| 1x Water Cooling CPU Fan Header | |
| 3x System Fan Headers | |
| 1x System Fan/Water Cooling Pump Header | |
| 2x Addressable LED Strip Headers | |
| 2x RGB LED Strip Headers | |
| 1x CPU Cooler LED Strip/RGB LED Strip Header | |
| 2x M.2 Socket 3 Connectors | |
| 4x SATA 6Gb/S Connectors | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x USB Type-C Header, With USB 3.2 Gen 2×2 Support | |
| 1x USB 3.2 Gen 1 Header | |
| 2x USB 2.0/1.1 Headers | |
| 1x Serial Port Header | |
| 1x THB_U4 Add-In Card Connector | |
| 1x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) | |
| 1x Reset Button | |
| 1x Reset Jumper | |
| 1x Clear CMOS Jumper | |

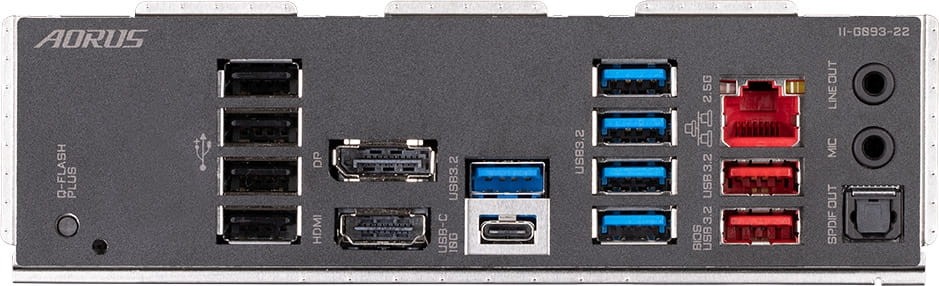

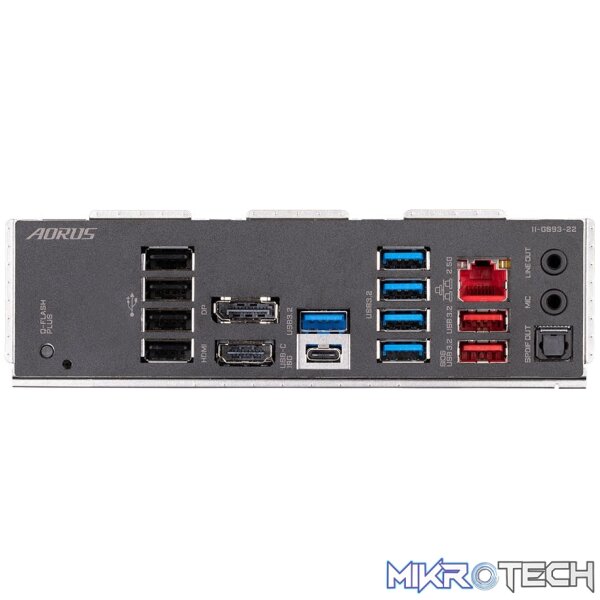

| Back Panel Connectors | 1x Q-Flash Plus Button |
| 1x DisplayPort | |
| 1x HDMI Port | |
| 1x USB Type-C Port, With USB 3.2 Gen 2 Support | |
| 2x USB 3.2 Gen 2 Type-A Ports (Red) | |
| 5x USB 3.2 Gen 1 Ports | |
| 4x USB 2.0/1.1 Ports | |
| 1x RJ-45 Port | |
| 1x Optical S/PDIF Out Connector | |
| 2x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Water Cooling Flow Rate Detection | |
| Fan Fail Warning | |
| Fan Speed Control | |
| * Whether The Fan (Pump) Speed Control Function Is Supported Will Depend On The Fan(Pump) You Install. | |
| BIOS | 1x 256 Mbit Flash |
| Use Of Licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support For GIGABYTE Control Center (GCC) |
| * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. | |
| Support For Q-Flash | |
| Support For Q-Flash Plus | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor |
| 24.4cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
