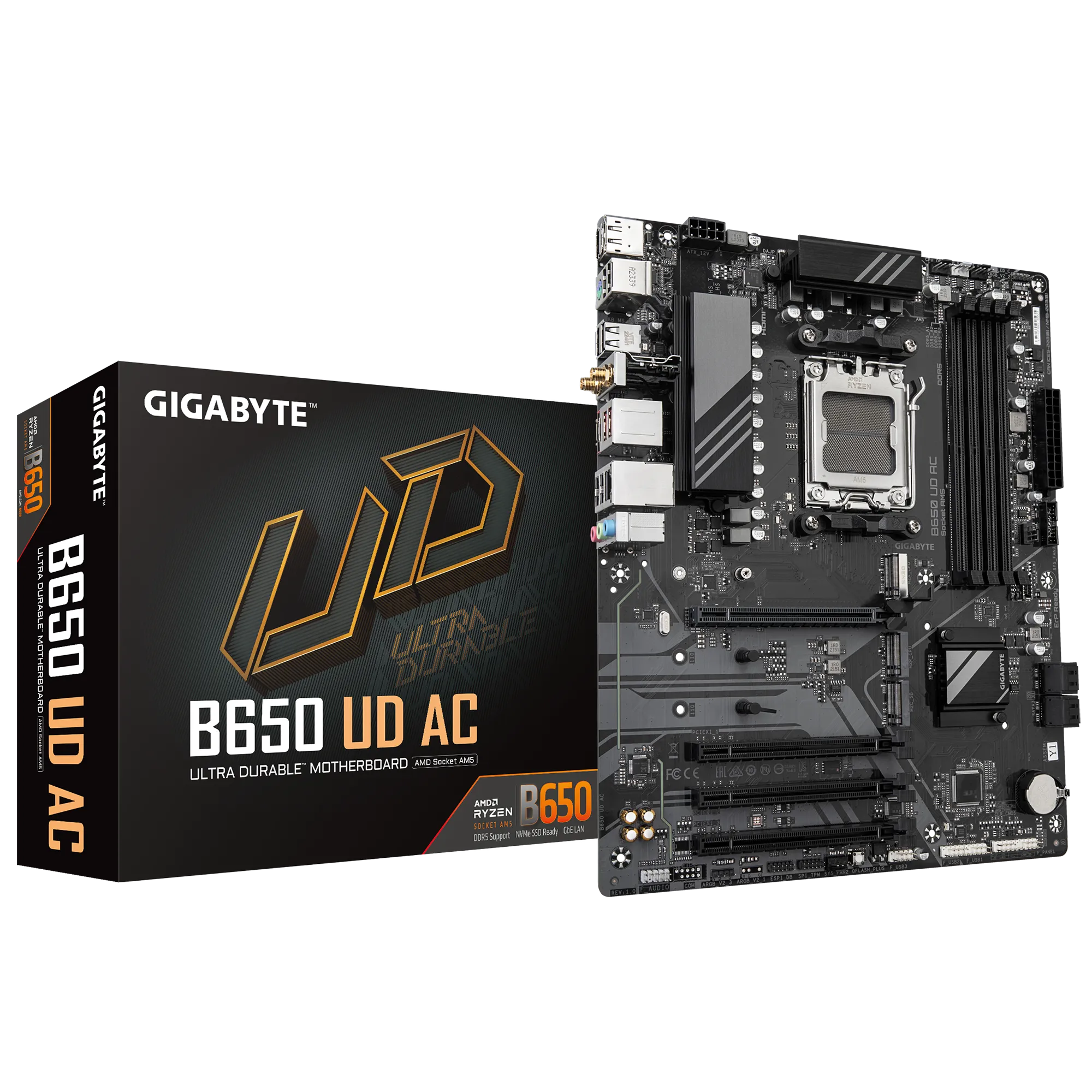

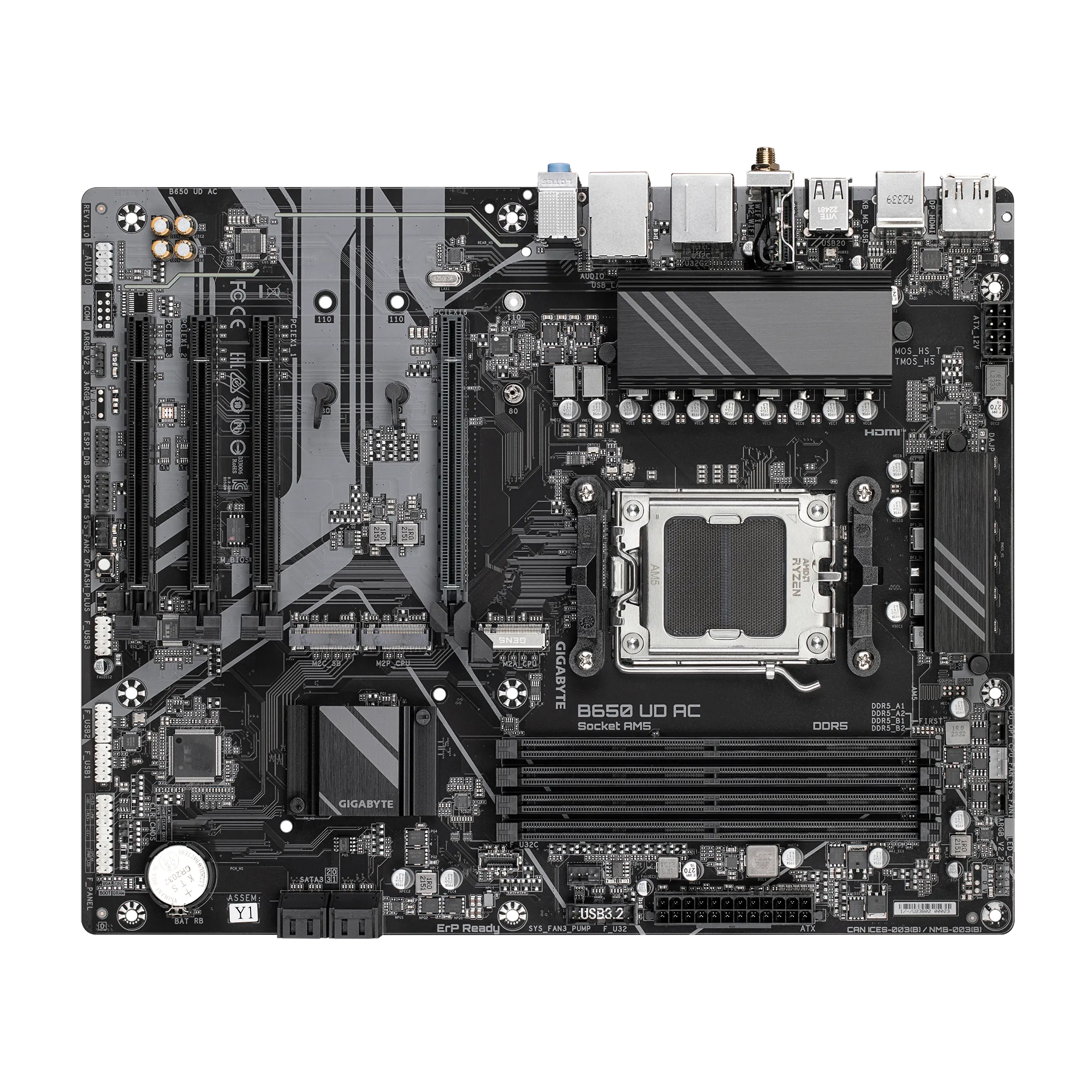

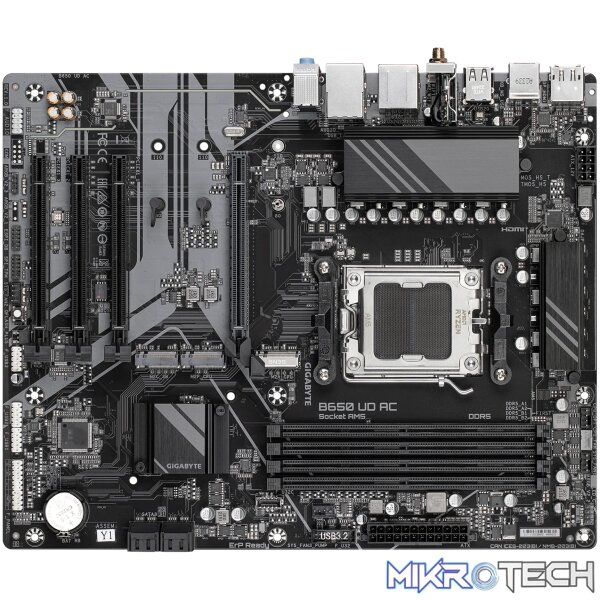

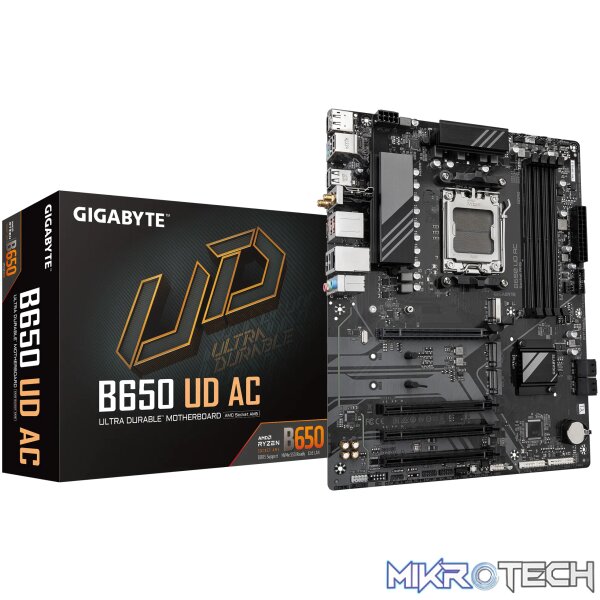

Gigabyte B650 UD AC Motherboard

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Specifications

• CPU Support: AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors (Refer to the CPU support list.)
• CPU Socket: AM5
• Chipset: AMD B650
• Graphics
  • 1 x DisplayPort 1.4 maximum resolution of 3840×2160@144 Hz
  • 1 x HDMI 2.1 maximum resolution of 4096×2160@60 Hz
  • (Graphics specifications may vary depending on CPU support)
• Memory
  • 4x DDR5 UDIMM
  • Speed: 4800MHz – 7600 MT/s (OC)
  • Maximum Memory Capacity: 192GB
  • Supports Dual channel memory architecture
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to the Memory Support List for more information.)
• Expansion Slots
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
  • (Depending on CPU support)
• Storage
  • 1 x M.2 connector (PCIe 5.0 x4/x2 SSD support)
  • 2 x M.2 connectors (PCIe 4.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors

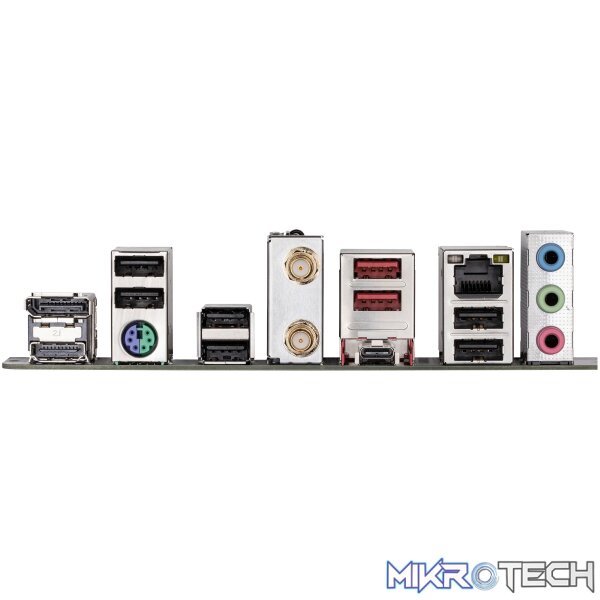

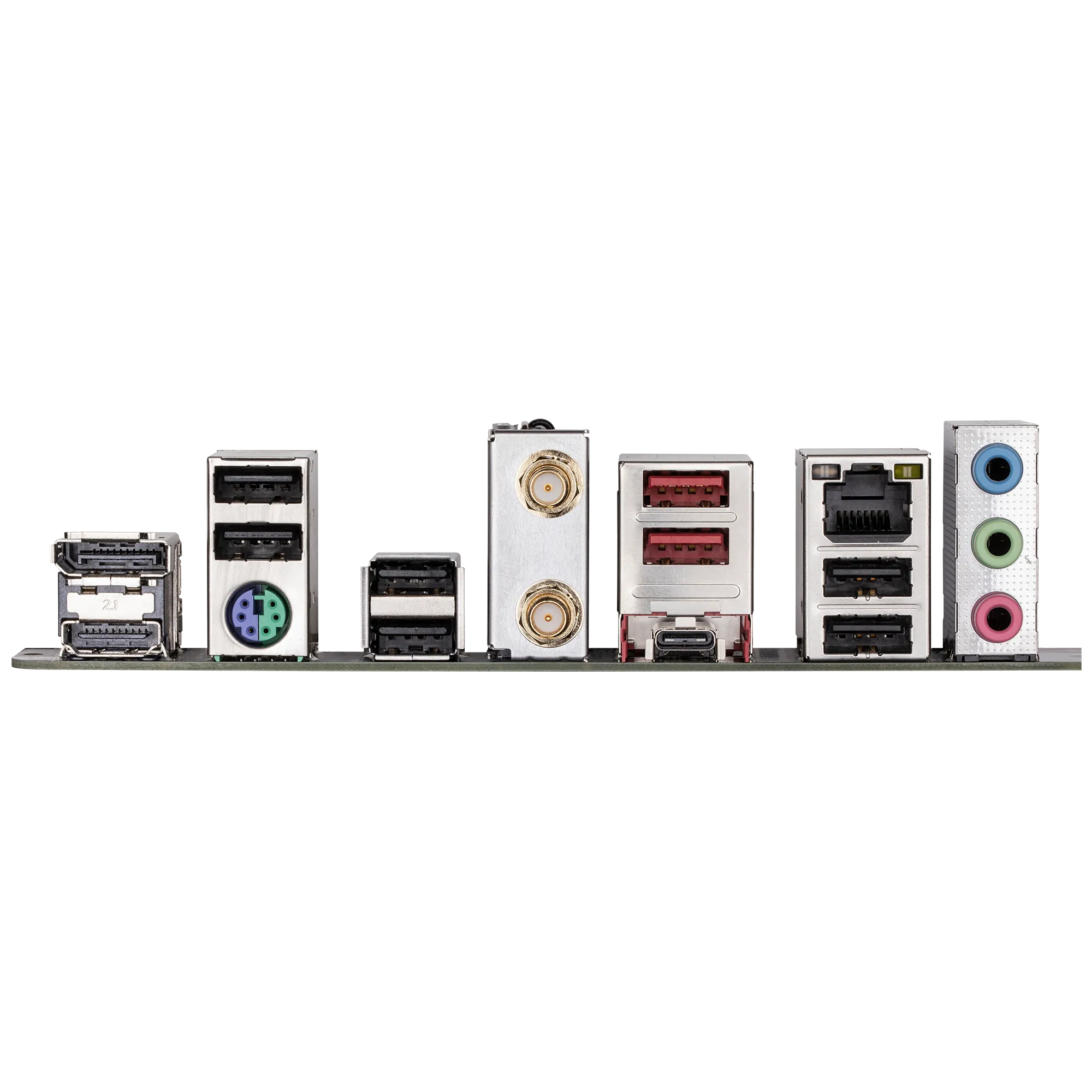

• USB ports
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 12 x USB 2.0/1.1 ports
• LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps)
• Wireless/ Bluetooth: Wi-Fi 802.11ac / Bluetooth 5.0
• Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Form factor: ATX Form Factor; 30.5 x 24.4 cm
• Warranty: 36 Months

Note

• Please refer to full motherboard specifications on the Manufacturer’s product page.
