Features:

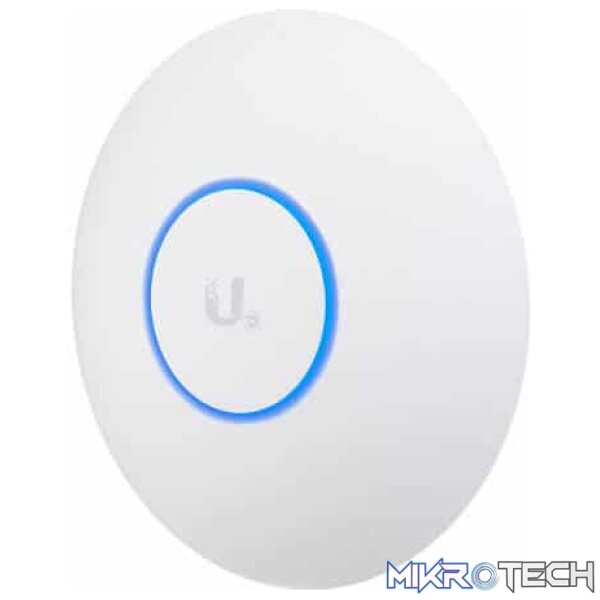

Deploy Ubiquiti’s UniFi AC SHD AP in high-density environments requiring maximum wireless performance. The UniFi AC SHD AP features simultaneous, dual-band, 4×4 MU-MIMO technology and convenient 802.3at PoE+ compatibility. Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts. The unique LED provisioning ring provides administrator location tracking and alerts for each device.
The UniFi AC SHD AP offers a secondary port available for bridging. The UniFi AC SHD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP. The UniFi AC SHD AP is compatible with an 802.3at PoE+ compliant switch.
| Weight | 2.14 kg |
|---|---|
| Dimensions | 27.000000 × 27.000000 × 12.000000 cm |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Power Method | 802.3at PoE+ |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | UniFi Switch (PoE) Sold separately |
| Power Save | Supported |
| Maximum Power Consumption | 20W |
| Radios | 2.4 GHz, 5 GHz, Security |
| TX Power 2.4 GHz | 6-25 dBm |
| TX Power 5 GHz | 6-25 dBm |
| Antennas 2.4 GHz | (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each |
| Antennas 5 GHz | (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w (PMF) |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C |
| Operating Humidity | 5 to 95% Non-condensing |
| Dimensions | 220 x 220 x 48.1 mm |
| Weight | 700 g |
| Weight With Mounting Kits | 830 g |
