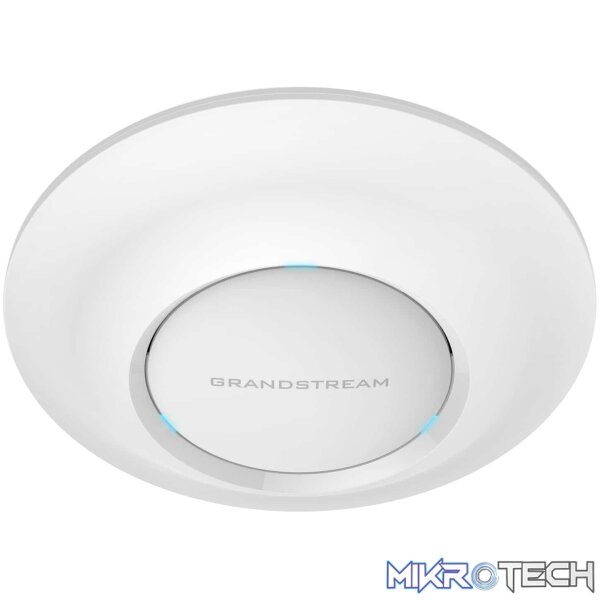

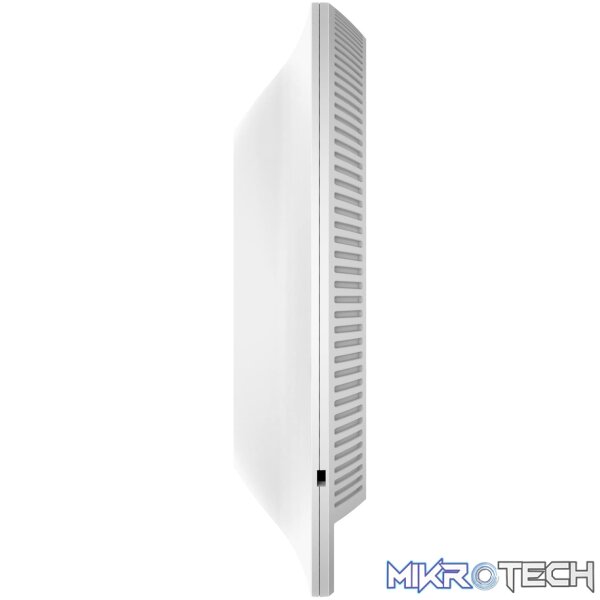

Grandstream GWN7630 Enterprise 802.11ac WAVE-2 4×4 MU-MIMO ceiling Mount Access Point
R2,159.99 incl. VAT
In stock
Overview:
The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the products web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstreams free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstreams Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features:
- 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
- Dual-band 4×4:4 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Supports 200+ concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management
| Weight | 0.96 kg |
|---|---|
| Dimensions | 26.000000 × 25.000000 × 10.000000 cm |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
| Antennas | 4 dual band internal antennas 2.4GHz, gain 4dBi 5 GHz, gain 5dBi |
| Wi-Fi Data Rates | IEEE 802.11ac: 6.5 Mbps to 1733Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 600Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands | 2.4GHz radio: 2412 – 2484 MHz 5GHz radio: 5180 – 5825 MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 4×4:4 2.4G(MIMO) 4×4:4 5G(MU-MIMO) |
| Coverage Range | Up to 175 meters *coverage range can vary based on environment |
| Maximum TX Power | 2.4G: 27 dBm 5G: 25 dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps, 802.11g: -93dBm @6Mbps, -75dBm@54Mbps 802.11n 20MHz: -73dBm @MCS7, 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps, 802.11ac 20MHz: -67dBm@MCS8 802.11ac: HT40:- 63dBm @MCS9, 802.11ac 80MHz: -59dBm @MCS9 |
| SSIDs | 15 SSIDs per access point |
| Concurrent Clients | 200+ |
| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |
| Mounting | Indoor wall mount or ceiling mount, kits included |
| LEDs | 3 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | ? 50 APs: Light-weight Master in AP ? 50 APs: Cloud management (GWN.Cloud) |
| Power and Green Energy Efficiency | Support 802.3 az POE 802.3af/ 802.3at Max Consumption: 16.5W |
| Environmental | Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 205.3 x 205.3 x 45.9mm, Unit Weight: 590g Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm, Unit + Mounting Kits Weight : 710g Entire Package Dimension: 258 x 247 x 86mm, Entire Package Weight: 930g |
| Package Content | GWN7630 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide |
| Compliance | FCC, CE, RCM, IC |
