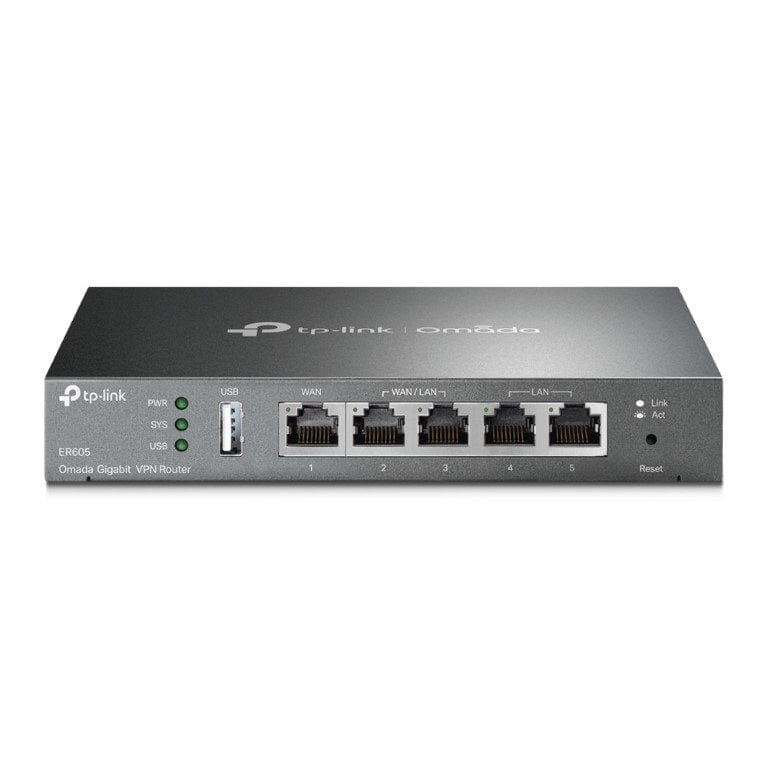

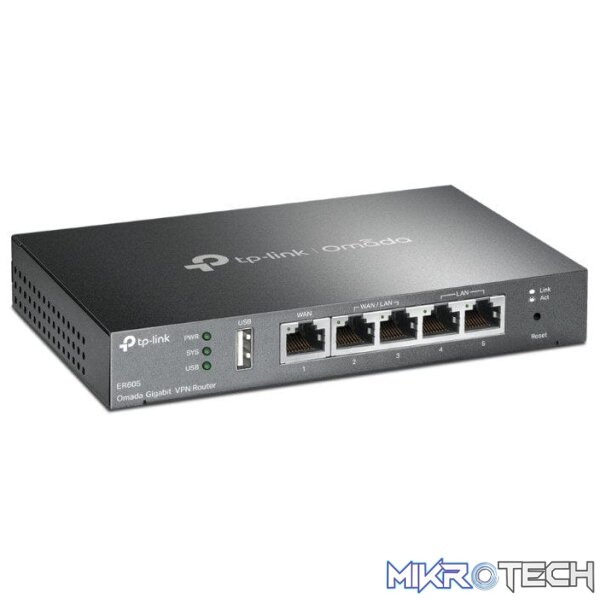

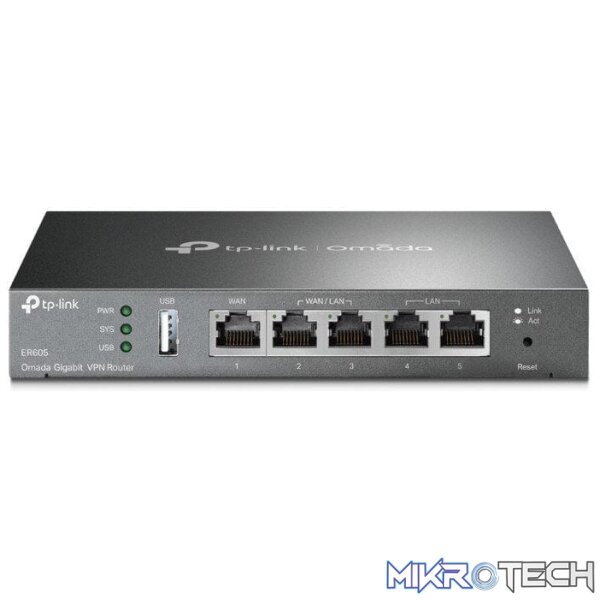

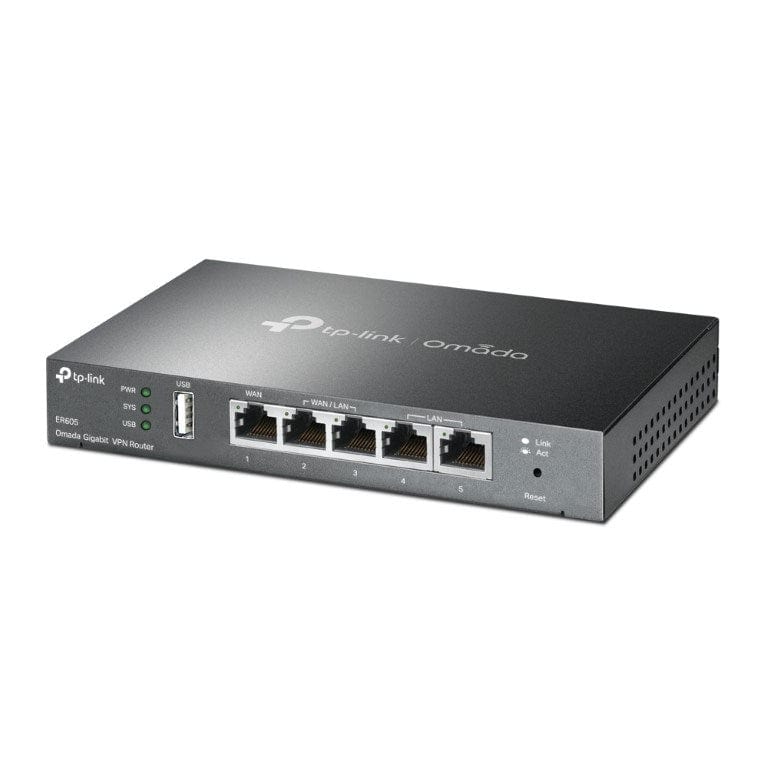

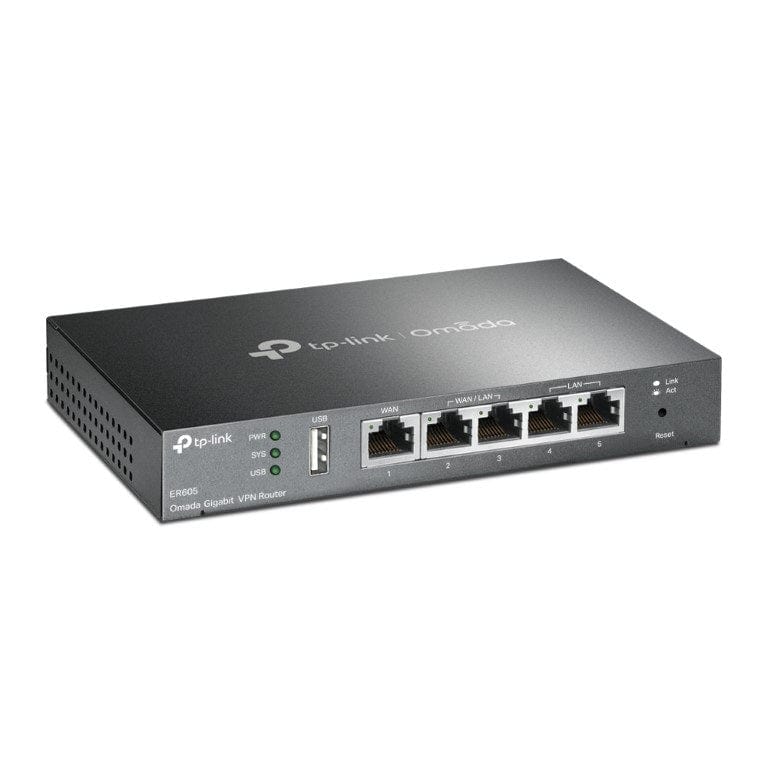

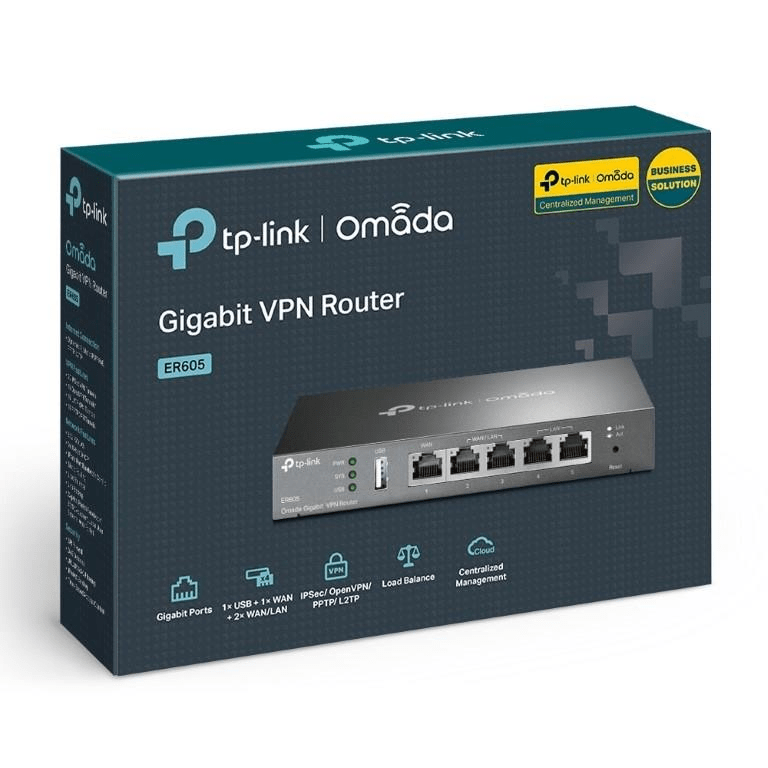

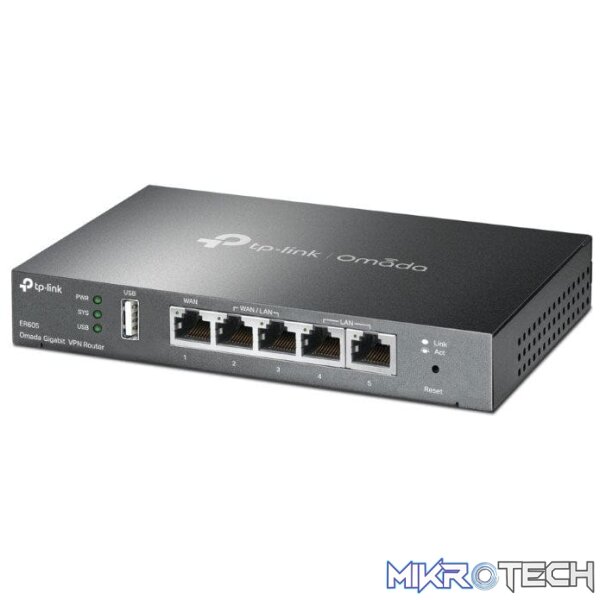

TP-Link ER605 Omada Gigabit VPN Router

TP-Link Omada ER605 Gigabit VPN Router

Omada SDN—The Smarter Cloud Solution for Business Networking

As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband

Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.

High-Security and High-Performance VPN

ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada’s user base.

Internet Access Management Strategy

Administrators can moderate users’ online behavior and easily specify employees’ internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Features

• Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.

• Centralized Management: Cloud access and Omada app for convenience and easy management.

• Five Gigabit Ports: High-speed wired connectivity.

• Up to 3 WAN Ethernet Ports: 1x gigabit WAN port and 2x gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

• One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.

• Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN*, 16x L2TP, and 16x PPTP VPN connections.

• Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

Technical Specification

Product: TP-Link Omada ER605 Gigabit VPN Router

Standards and Protocols:

• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface:

• 1x Fixed Gigabit WAN Port
• 2x Fixed Gigabit LAN Ports
• 2x Changeable Gigabit WAN/LAN Ports
• 1x USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

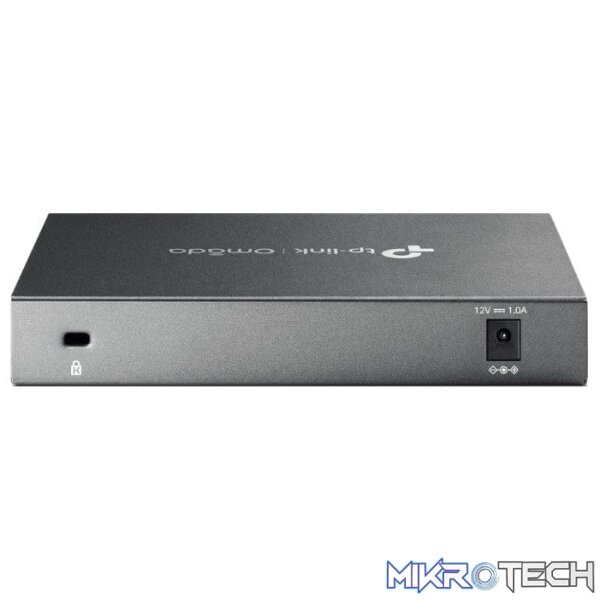

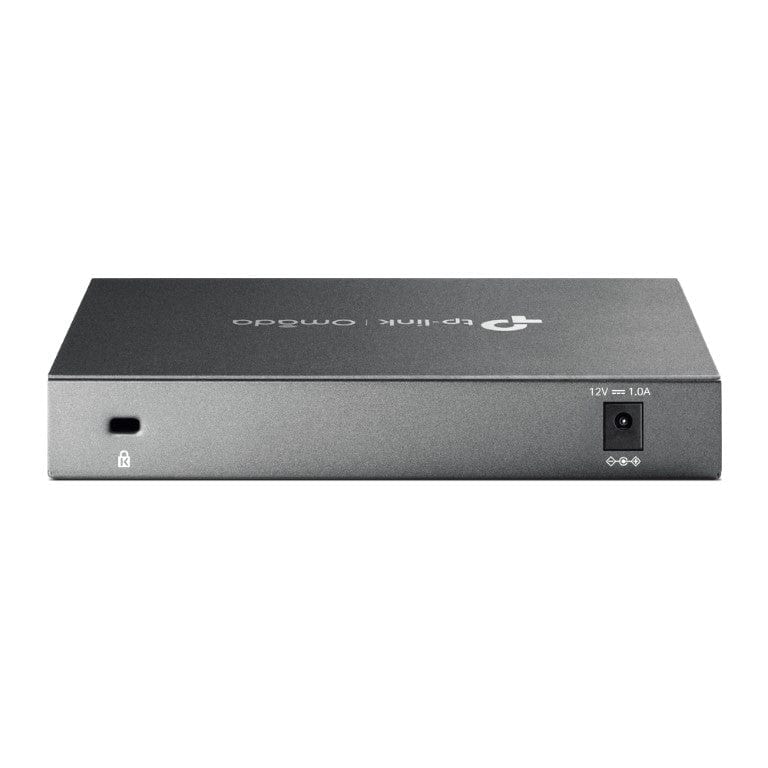

Power Supply: External 12V/1A DC Adapter

Flash: 128 MB NAND

DRAM: 256 MB DDR
