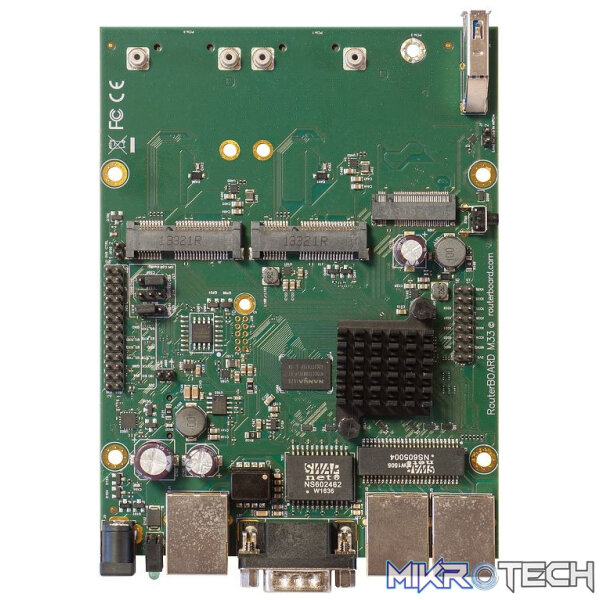

MikroTik RouterBOARD M33G with 3 Gigabit LAN
R859.99 incl. VAT
In stock
Overview:
The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).
Features:
The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).
The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:
- Two miniPCIe 3G/LTE modems (two SIM slots provided)
- One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.
The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
| Weight | 0.01 kg |
|---|---|
| Dimensions | 16.000000 × 14.000000 × 3.000000 cm |
| Product code | RBM33G |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| License level | 4 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Max Power consumption | 19W |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| PoE in | Passive PoE |
| DC jack input Voltage | 11-30 V |
| PoE in input Voltage | 11-30 V |
| 10/100/1000 Ethernet ports | 3 |
| Number of SIM slots | 2 Modem (Mini SIM) |
| M.2 slots | 1 |
| MiniPCI-e slots | 2 |
| Number of USB ports | 1 |
| Serial port | RS232 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
