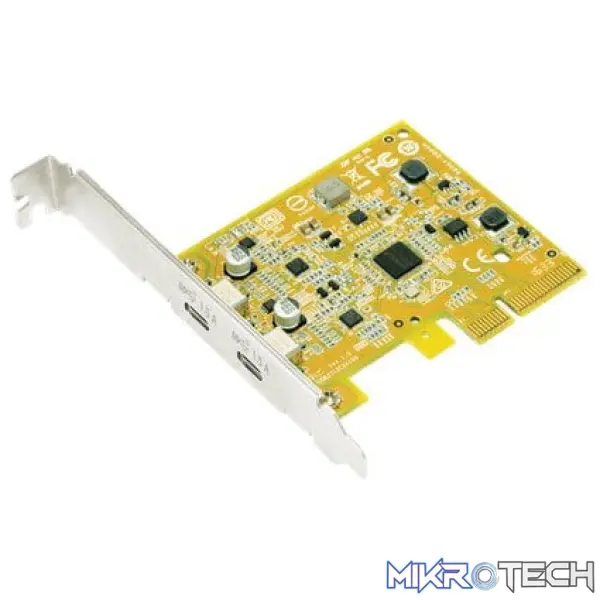

Sunix USB2312C USB 3.1 Enhanced SuperSpeed+ 10G 2 ports PCI Express Host Card with Type-C Receptacle
R729.99 incl. VAT
Only 6 left in stock
Overview:
SUNIX USB2312C is a 2 port SuperSpeed+ USB 3.1 PCI Express card, and itÂ’s compliant with the PCI Express Revision 2.0 & 3.0 for host PC system. Based on USB Type-C pure DFP (Downstream Facing Port) mode, it works up to 10 Gbps for data transfer when connecting to USB 3.1 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB 3.1 performance is 2 times faster than USB 3.0 and 20 times faster than USB 2.0 connectivity.
With USB Type-C Receptacle, SUNIX USB2312C sports reversible plug orientation and cable direction, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. The new connector is smaller and thinner design, but drive higher power output capacity to USB device. SUNIX USB2312C supports 5VDC@1500mA power output to USB device with over current protection on each USB port. This card is an ideal choice for external storage devices, digital cameras, webcam, video devices, and all other USB electronic devices.
Features:
- PCI Express Base Specification Revision 2.0 & 3.0 Dual-lane ( x2) .
- Compliant with Universal Serial Bus 3.1 specification Gen2.
- Compliant with xHCI (eXtensible Host Controller Interface) Ver.1.1.
- Supports simultaneous operation of multiple USB 3.1, 3.0, 2.0 and 1.1 devices.
- Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.
- Expands dual external USB 3.1 Type-C port (DFP) on the system.
- USB port supplies maximum +5VDC / 1500mA power output to USB device.
- Built-in over current protection on each USB port.
- Hot-swapping feature allows connect/disconnect device without powering down the system.
- Driver supports for Microsoft Windows 7, 8.x and 10 operation systems.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
- Green Product meets RoHS standard and Low Power consumption.
| BUS | PCI Express Revision 2.0 & 3.0, Dual-Lane (x2) |
|---|---|
| Controller | PCI Express USB 3.1 Host controller, Asmedia ASM3142 |
| USB Standard | eXtensible Host Controller Interface (xHCI) Rev1.1 |
| IRQ & IO | Assigned by System |
| Interface | Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1 |
| Speed | SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps) |
| No. of Port | 2-port |
| PCB Connector | USB 3.1 USB Type-C port (Downstream Facing Port) |
| Protection | ±15KV IEC61000-4-2 Air Gap Discharge ±4KV IEC61000-4-2 Contact Discharge |
| Source | PCI Express bus power |
| Output Capacity | USB Type-C Port : +5VDC / 1.5A Note: * USB Power Delivery Protocol does NOT support. * Built-in over current protection on each USB port. * Maximum total power output depends on the capacity of user’s power supply unit |
| Power Consumption | 1.1 W @ 3.3V (board only without power output to USB device) |
| Windows | Windows 7 (X86/X64) Windows 8.x / 10 (X86/X64) (Windows in-box driver) |
| Linux | Linux 4.6 or later |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| EMC | CE, FCC, VCCI, BSMI |
| Green | RoHS, CRoHS, WEEE |
| Bracket | Standard 120 mm (Low Profile 80mm) |
| Bracket Space | 1 |
