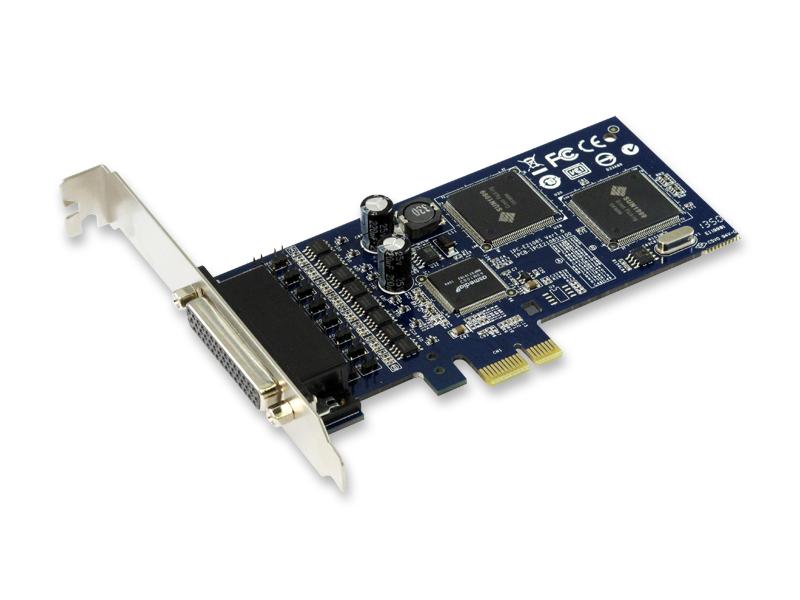

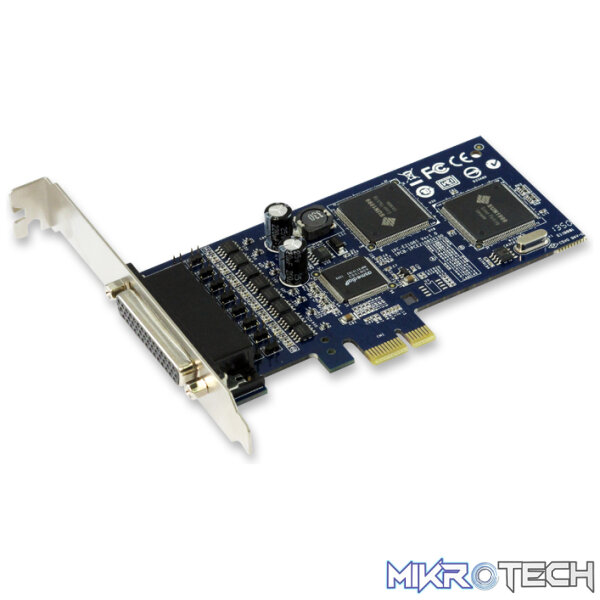

Sunix 8 port RS422/485 high-speed serial PCI-E Card

SUNIX IPC-E2108S, Industrial 8-port RS-422/485 with Surge PCI-Express Serial Card, allows users to expand eight RS-422/485 ports on Industrial PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.

Features

• Expands 8 RS-422/485 serial ports with communication speeds up to 921.6Kbps.
• 2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3.
• High reliability SUN1999 16C950 compatible UART controller on-board.
• AHDC/CS technology for collision free communication
• Ultra low power consumption design for Green Environment.
• Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2.

Specifications

• Interface: RS-422/485
• Controller: SUNIX SUN1999
• BUS: PCI Express 1.0a
• PCB Connector: DB44 Female
• Baud rate: 50bps ~921.6Kbps
• Flow Control: Xon/Xoff (software)
• FIFO: 128byte Hardware

Driver Support

• Windows Client: Windows XP/ Vista/ 7/ 8.x/ 10 (X86/X64)
• Windows Server: Windows 2003/ 2008/ 2012/ 2016 (X64)
• Windows Embedded: XP Embedded/ POSReady 2009/ POSReady/ Embedded System 2009
• Linux: Linux 2.x/ 3.x/ 4.x/ 5.3
