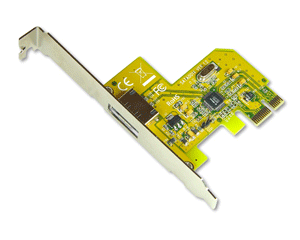

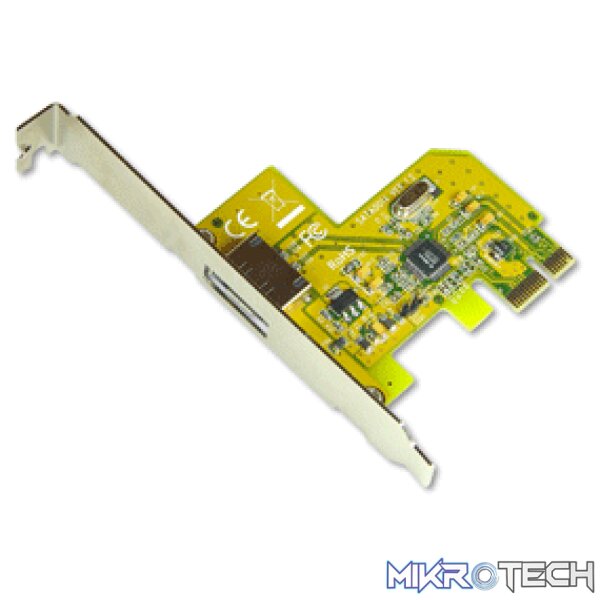

Sunix E-SATA 1-port PCI-E Card (LP)

SATA0014 is a single-chip, one-lane PCI Express to one external port Serial-ATA (SATA) II host controller that brings server-class features to the desktop. SATA1400 equips high-performance chipset which supports all Serial ATA II features, including 3.0 Gbps SATA II transfer speeds and Native Command Queuing (NCQ). It is fully compliant Serial ATA ports on the device side to access Serial ATA storage media such as SATA Disk Array Box, SATA RAID Enclosure, or external storage and ATAPI peripheral.

FEATURES:
Fully compliant with one-lane 2.5Gb/s PCI Express specification.
Serial ATA Generation 2 transfer rate of 3.0 Gb/s.
Compliant with Serial ATA 1.0a and Serial ATA II extensions toATA 1.0a specification.
Provides one external channel for SATA II harddisk drive andenclosure connection.
Supports SATA II NCQ (Native Command Queuing) to maximizesystem performance.
Hot-swapping feature allows you to attach/detach SATA device withoutfirst powering your computer off.
Works with various brands of large capacity SATA/SATA II hard disk drives.
Low-profile design fitting for kinds of computer chassis

HARDWARE:
Interface: One-lane PCI-Express
Mode: Serial ATA Generation 2
Controller: JMicron JMB360
Channel: One internal Serial ATA 3.0Gb/s channel
O.S. Support: Windows2000/XP/2003/Vista, Linux 2.6x
