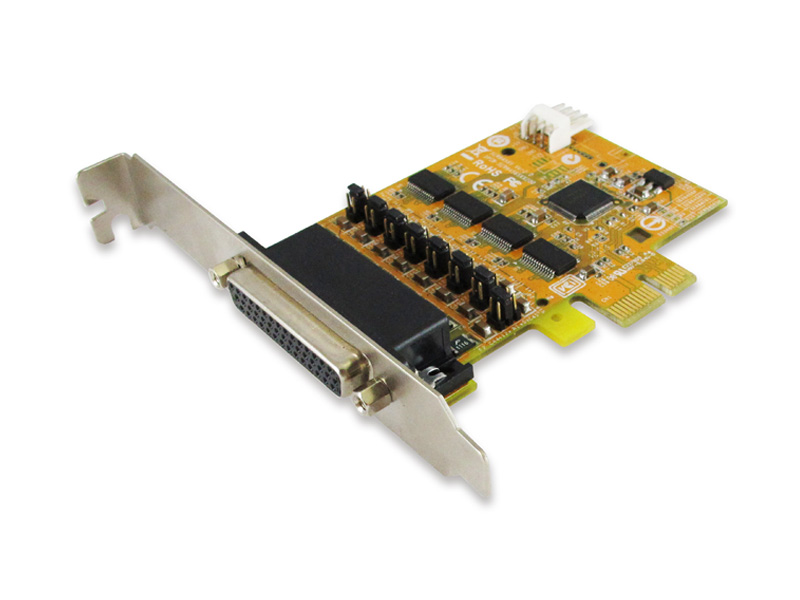

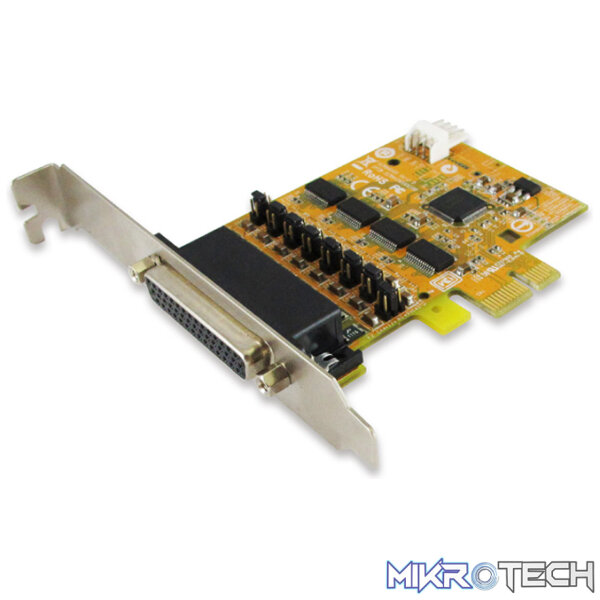

Sunix SER6456PH 4-port RS-232 High Speed PCI Express Board with Power Output
R1,769.99 incl. VAT
Only 10 left in stock
Overview:
SUNIX SER6456PH, PCI Express serial communication board, supports +5 or +12VDC power via serial COM 1st and 9th pin output. It’s convenient for users connecting serial devices without addition external power supply. SUNIX SER6456PH meets the PCI Express Base Specification Revision 2.0, allows users to add or expand four RS-232 COM ports on PC-based system to use serial devices further. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any PC-based system. The majorities of todayÂ’s motherboards does not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add one serial port to their system, allowing them to use serial devices further. SUNIX SER6456PH card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2410 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features:
- Expands four independent RS-232 serial ports with communication speeds up to 921.6Kbps.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
| Controller | SUNIX SUN2410 (16C950 UART Compatible) |
|---|---|
| BUS | PCI Express Spec 2.0, Single-Lane (x1) |
| IRQ & IO | Assigned by System |
| Interface | RS-232 |
| No. of Port | 4-port |
| FIFO | 128byte Hardware |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI / 12V / 5VDC |
| Baud rate | 50bps ~ 921.6Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon / Xoff, RTS / CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB Connector | DB44 Female |
| Windows Client | XP / Vista / 7 / 8 / 8.1 (X86 / X64) |
| Windows Server | 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86 / X64) |
| Windows Embedded | Windows CE 4.2 / 5.0 / 6.0 XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux | Linux 2.4.x / 2.6.x / 3.x |
| DOS | DOS |
| QNX | QNX 6.3.2 / 6.4.0 |
| Hardware | CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS / NZS, RoHS |
| Software | Microsoft WHQL Windows Windows Client: XP / Vista / 7 / 8 / 8.1 (X86 / X64) Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86 / X64) |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| PCB Dimension | 90 x 69 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
